STG 20 Hydraulic Long Bar Feeder (Magazined-Type)

A self-adjustment of clamping device. (Patented)

A bar loading time runs rapidly.

Offers a quick changeover of guide channel sets.

Features lubricant and remnants to work independently. (Patented)

A servo motor feeding system offers speedy & accurate.

Both left and right feeding is available for individual lathe application.

A power metallurgy-made guide channel set is available to choose from. (Optional)

A clamping device functions well to insert bar material stably.

An external LED display features a bar material position while operating.

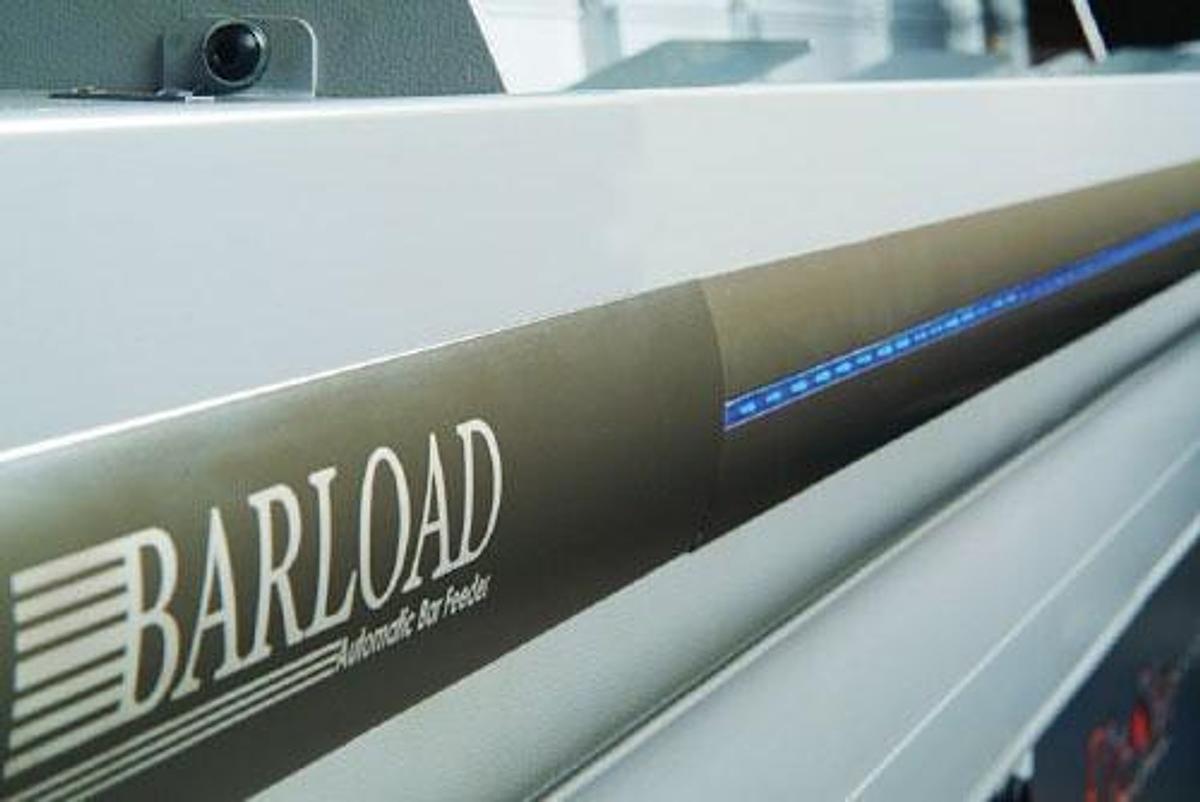

A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).

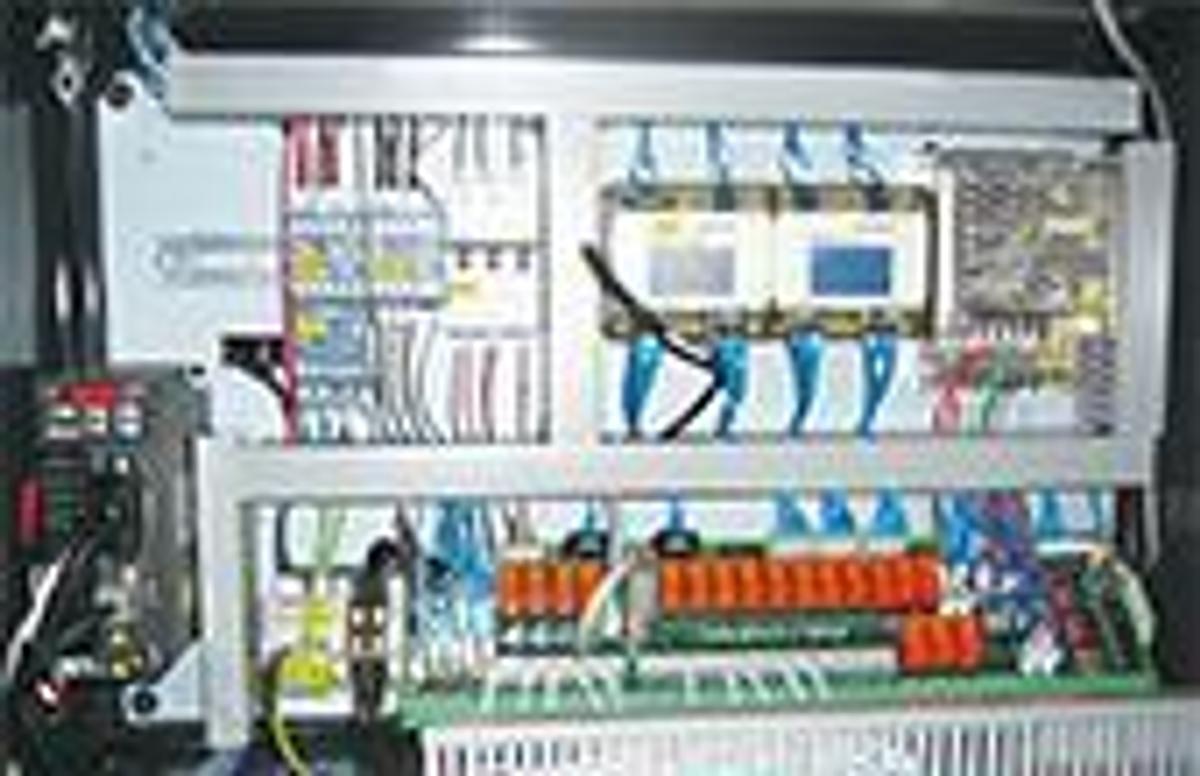

A hi-end PLC controller is with completed software concept and module-assembly electrical cabinet.

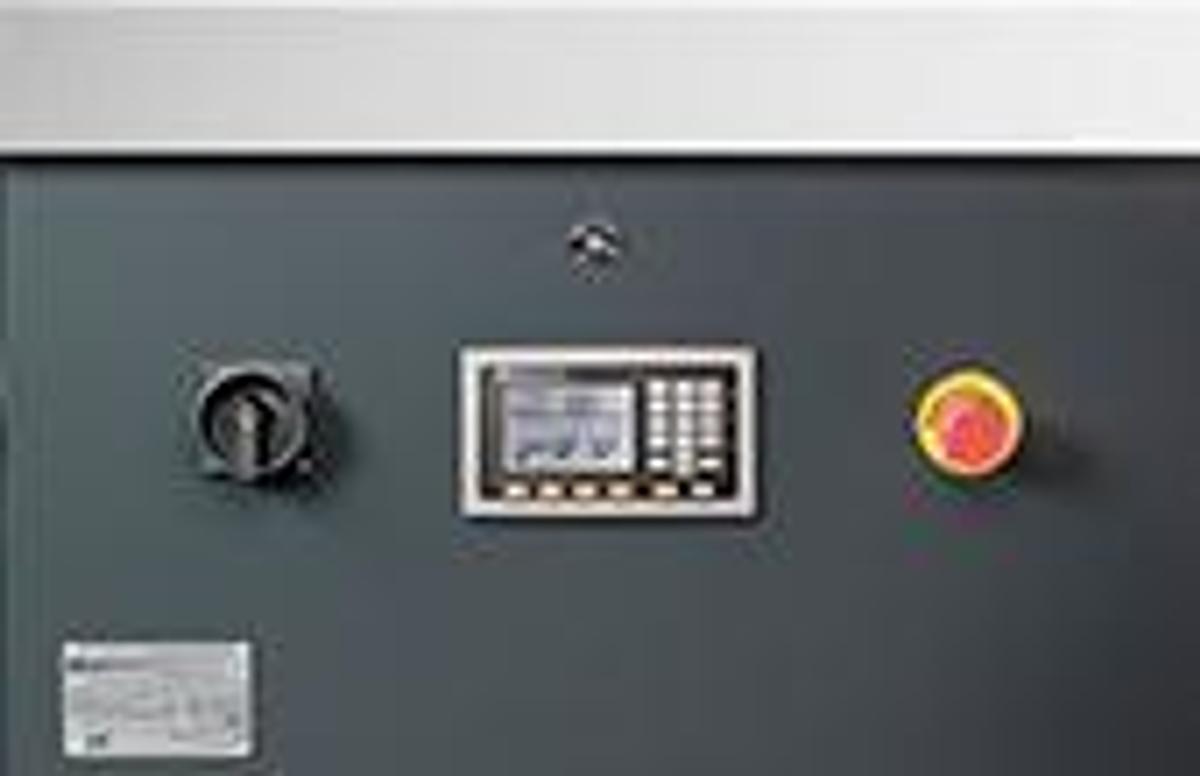

A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.

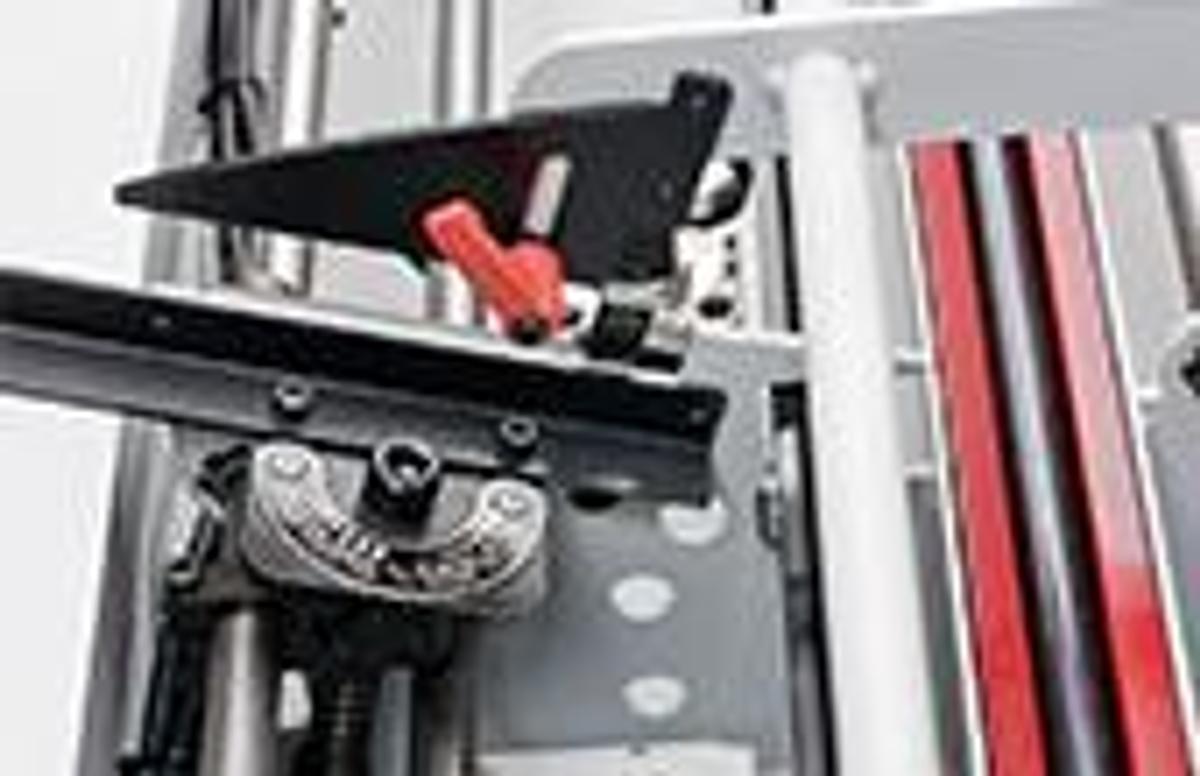

A loading system features speed, accuracy, and simple.

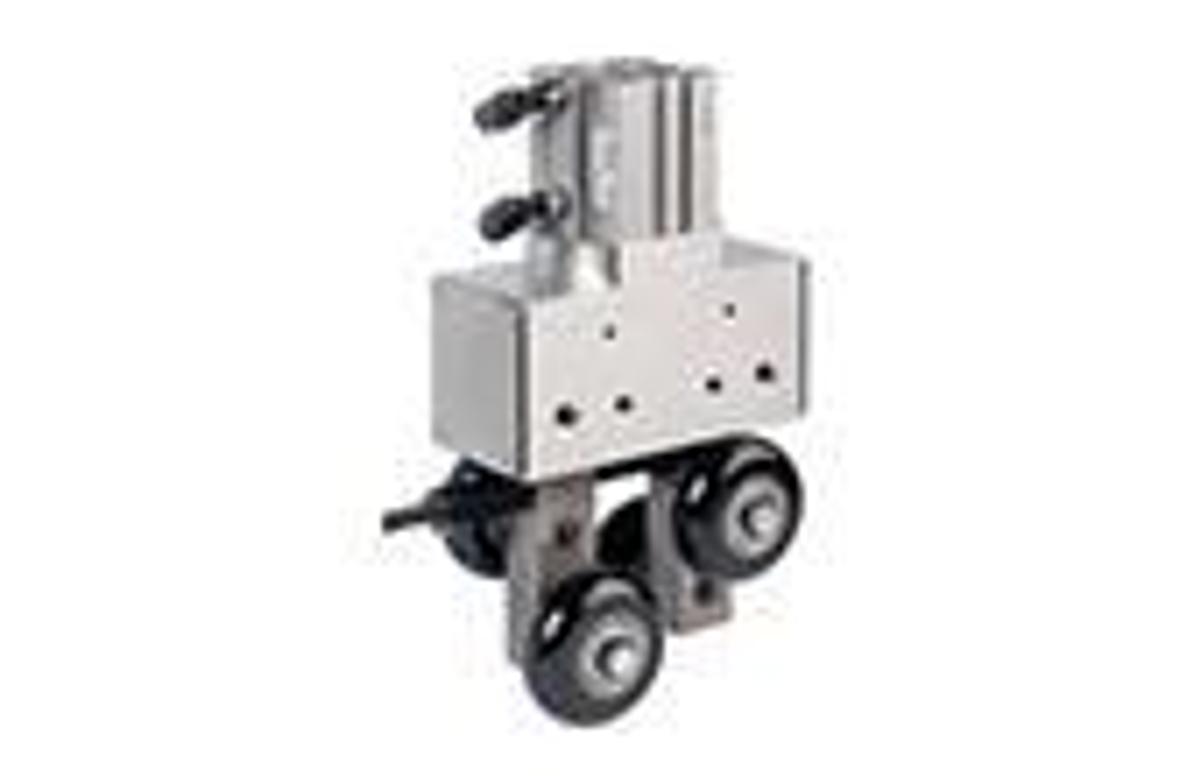

An anti-vibration-roller set easily adjust for bar material changeover.

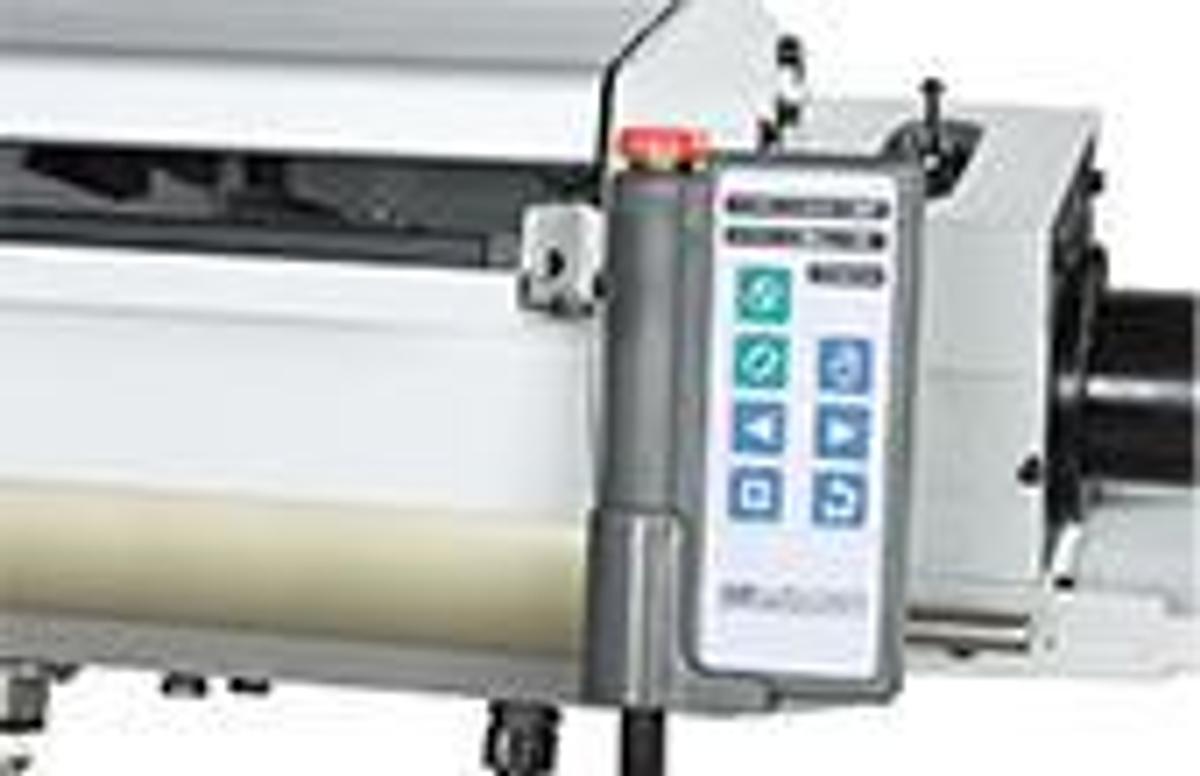

A remote control box is durable and conforms with ergonomics.

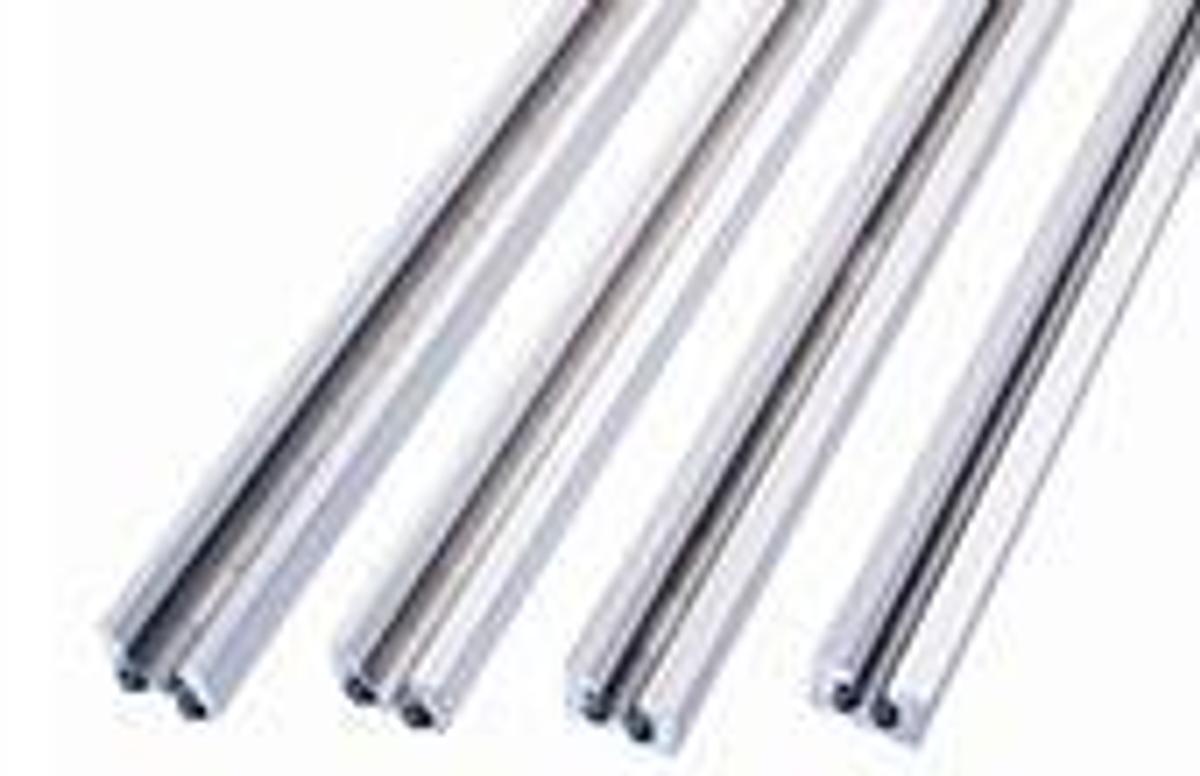

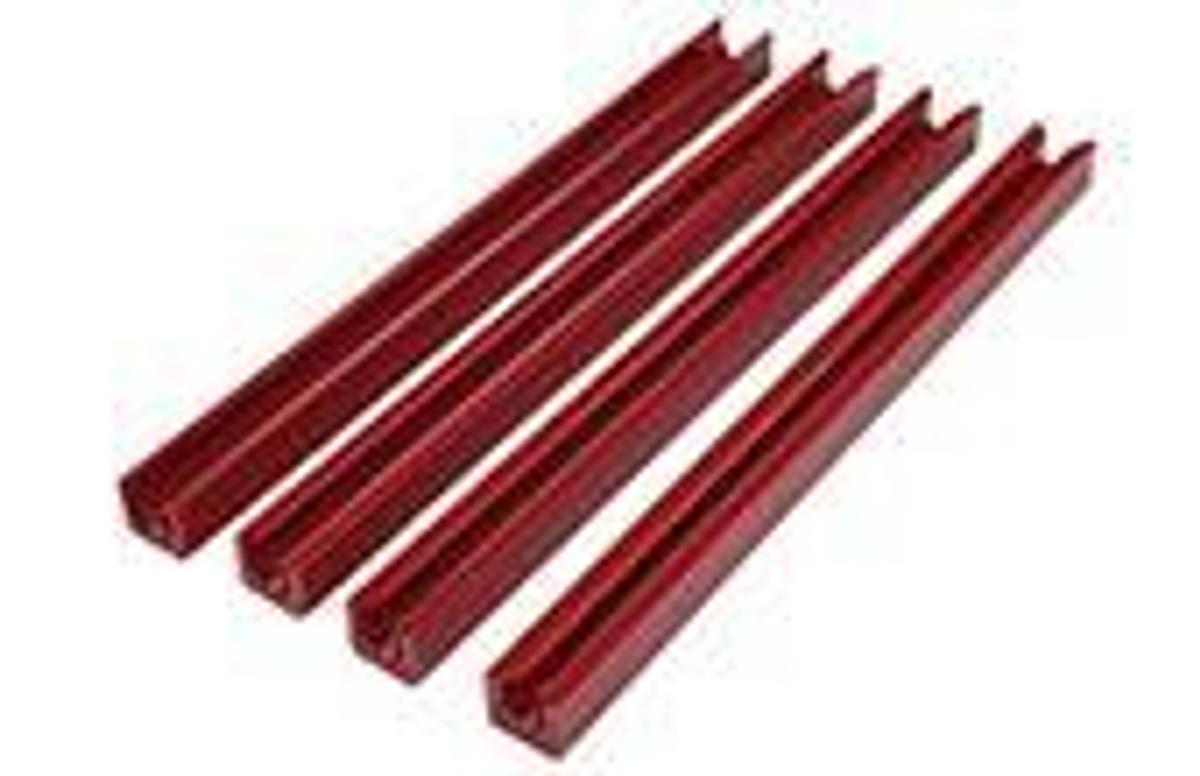

PU guide channel sets of BWG model are easy & quick to changeover.

A power metallurgy made guide channel set performs durably. (optional)
