BWG26/ EWG26 Hydraulic Magazine Bar Feeder
Description

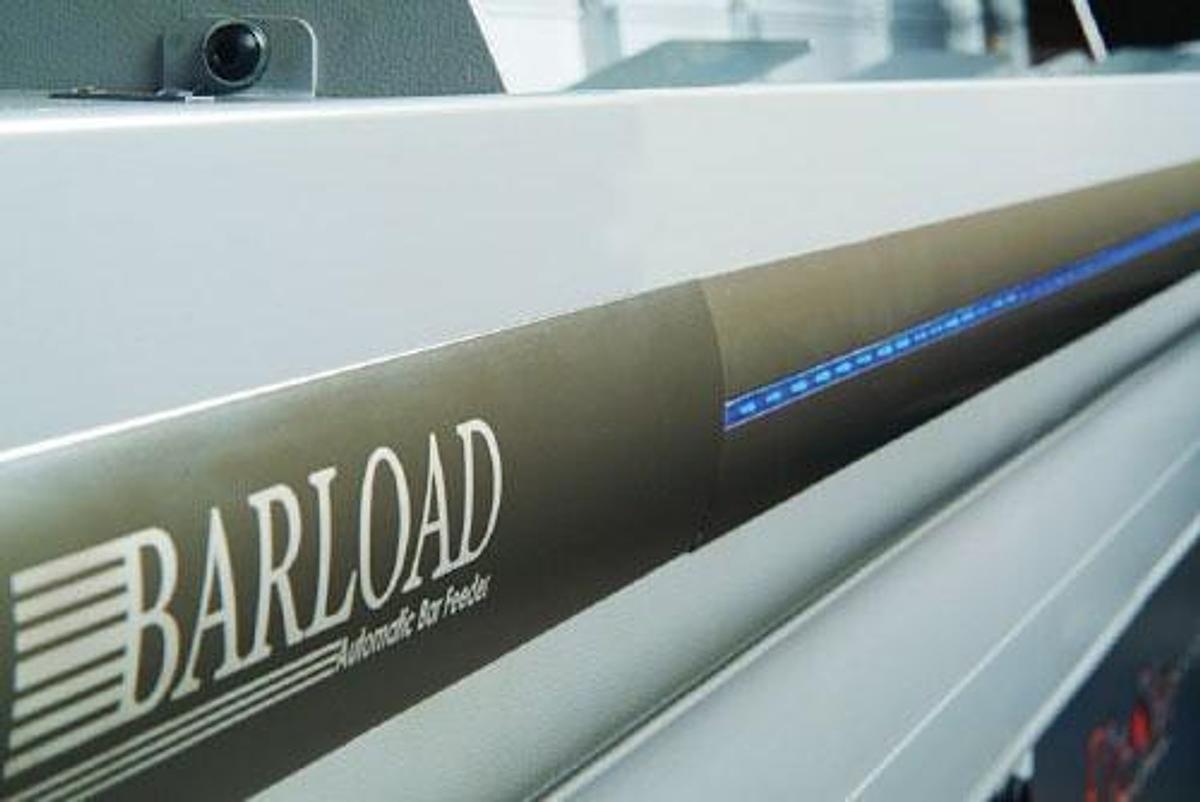

A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).

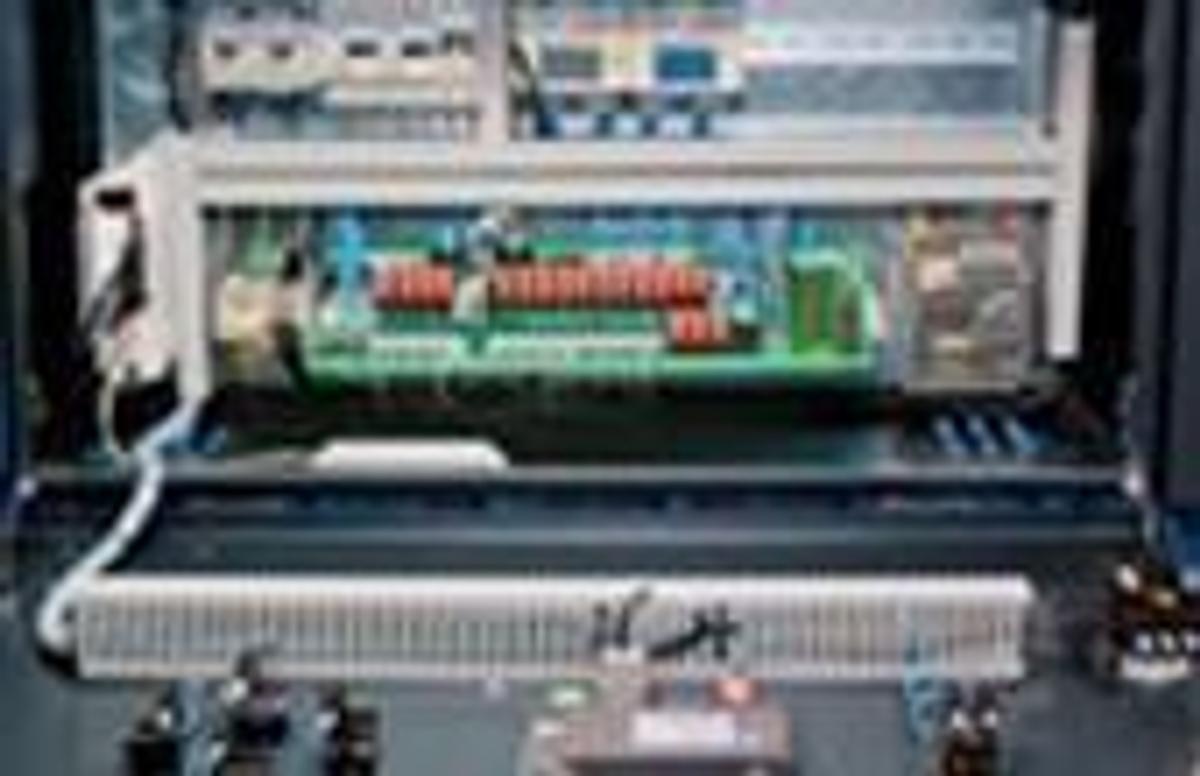

A hi-end PLC controller is with completed software concept and module-assembly electrical cabinet.

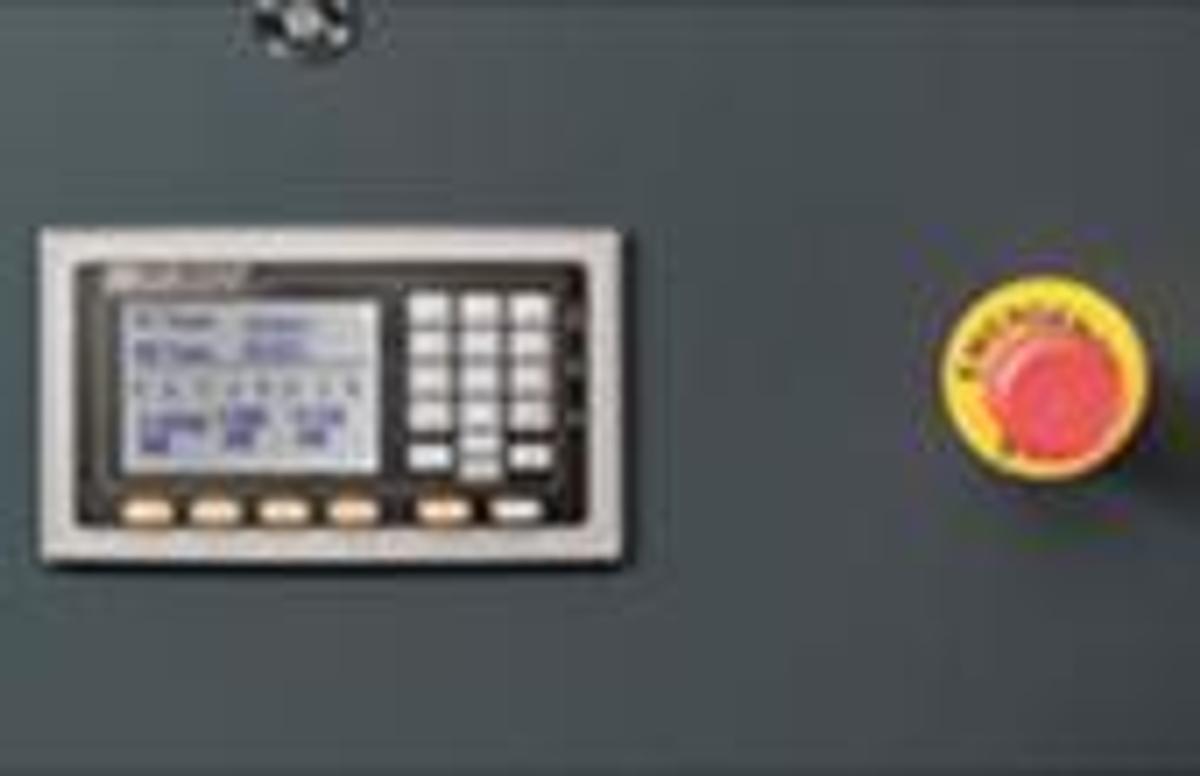

A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.

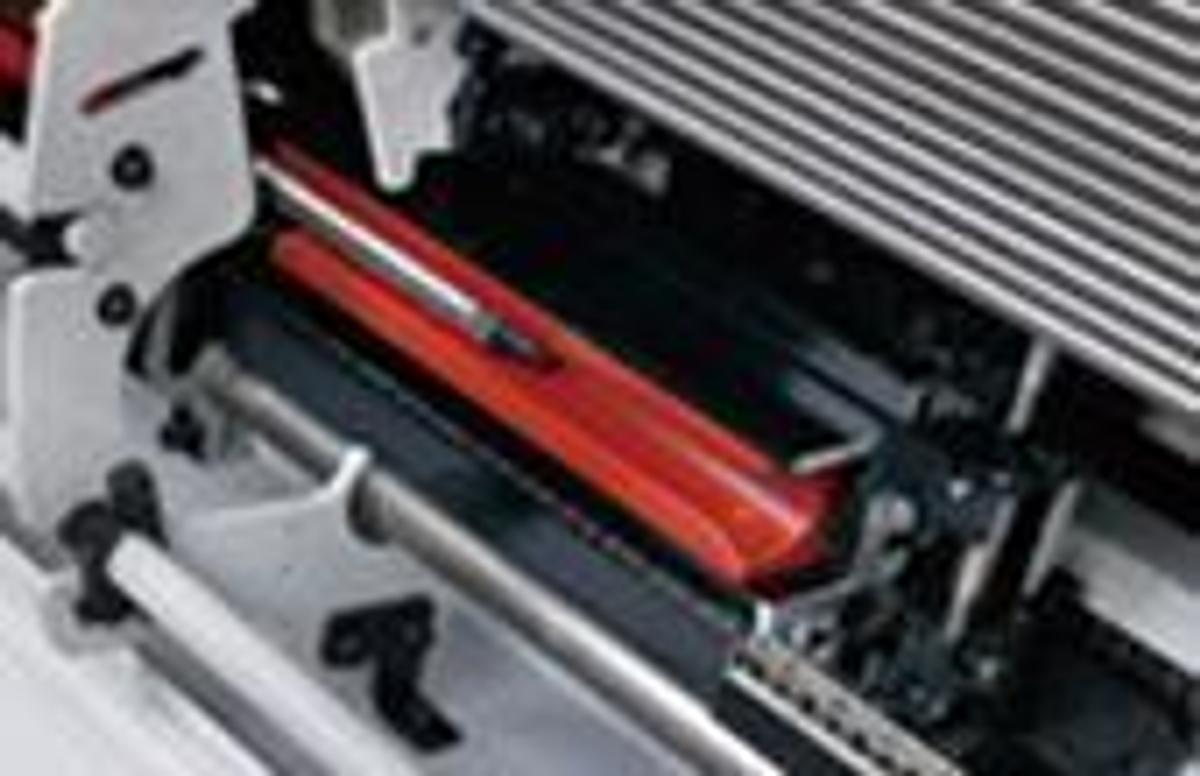

A loading system features speed, accuracy, and simple.

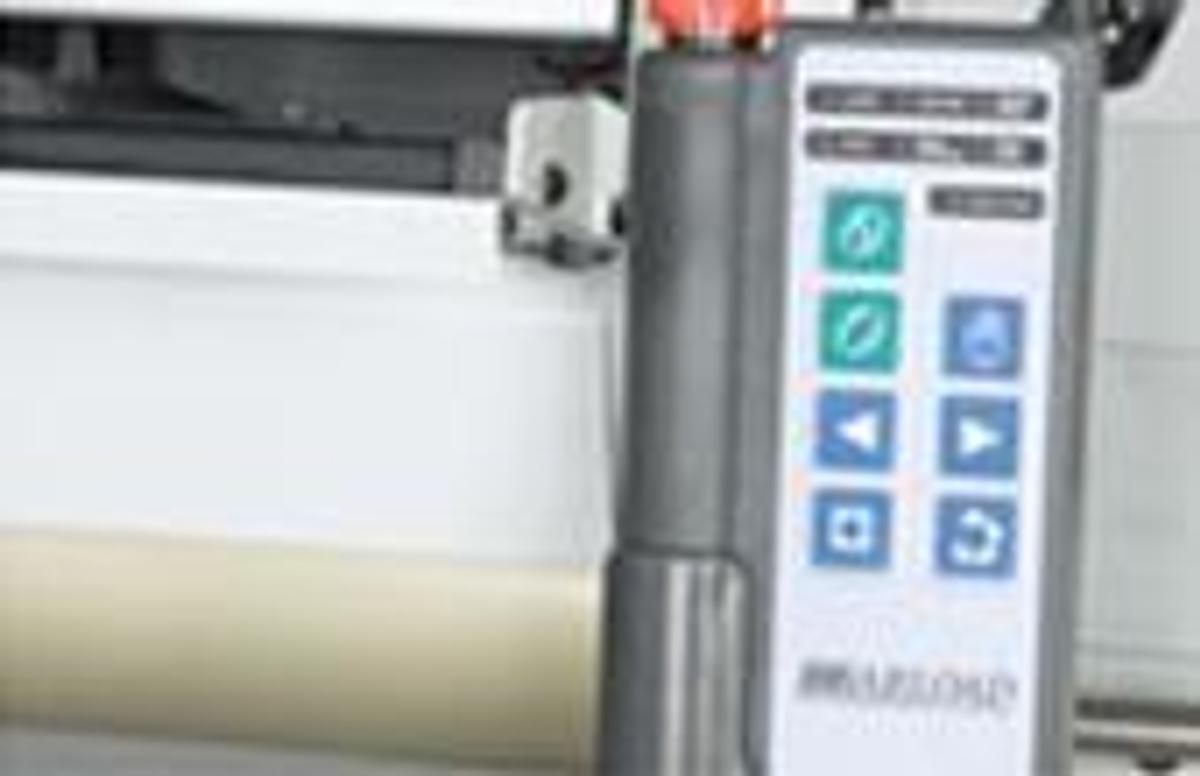

A mobile remote control box is user friendly to operate with.

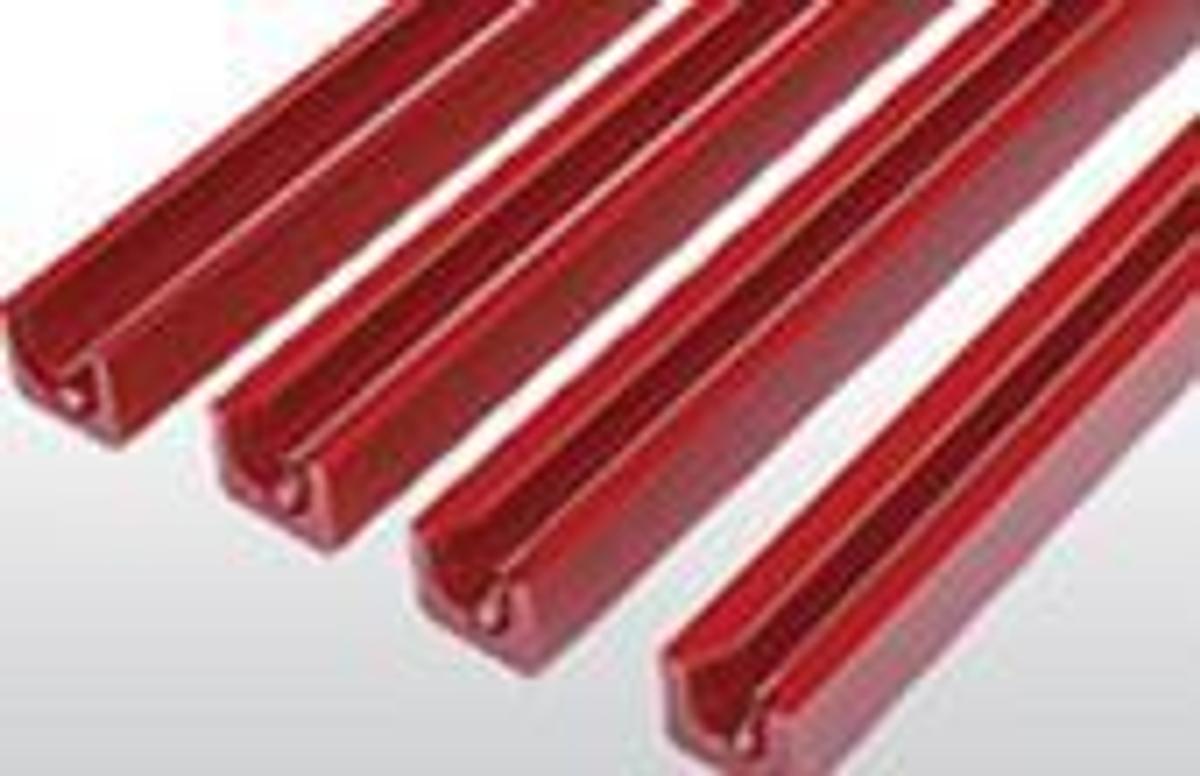

PU guide channel sets of BWG model are easy & quick to changeover.

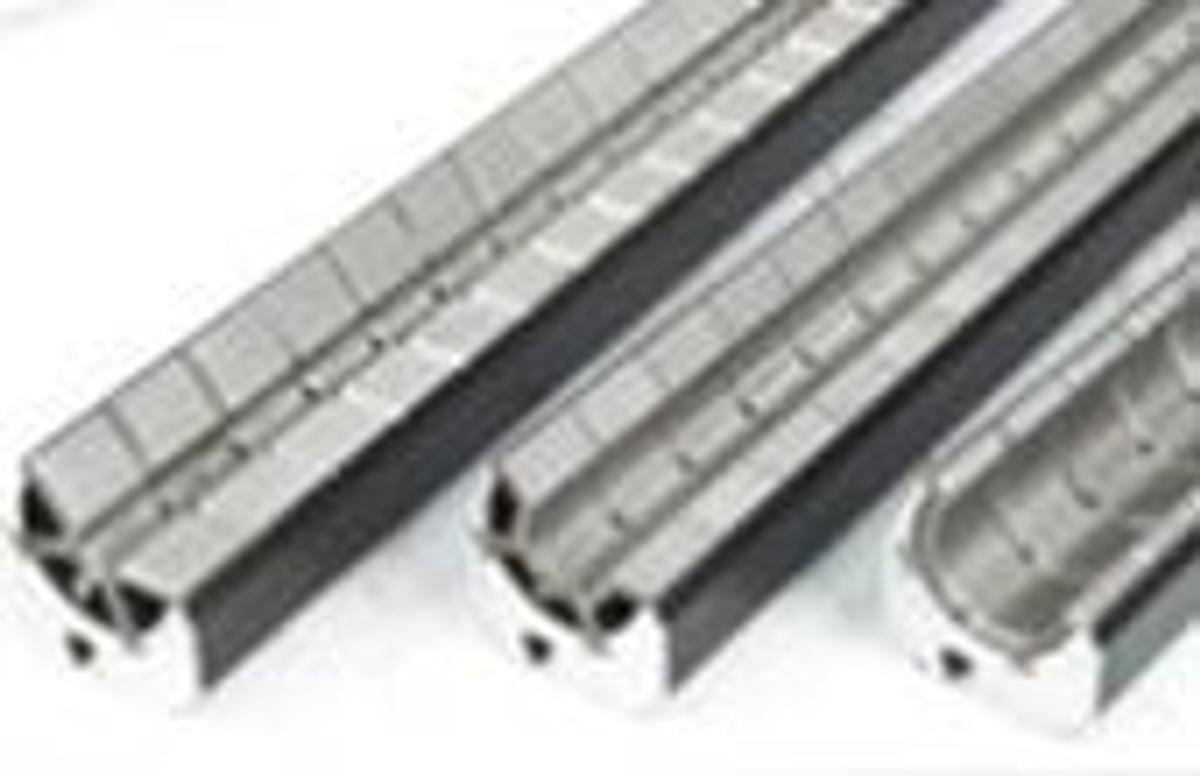

Powder-metallurgy guide channel sets of EWG model are super durable to run guarantying to provide a longevity ever.wear-resistance, high rigidity, accuracy and durability.

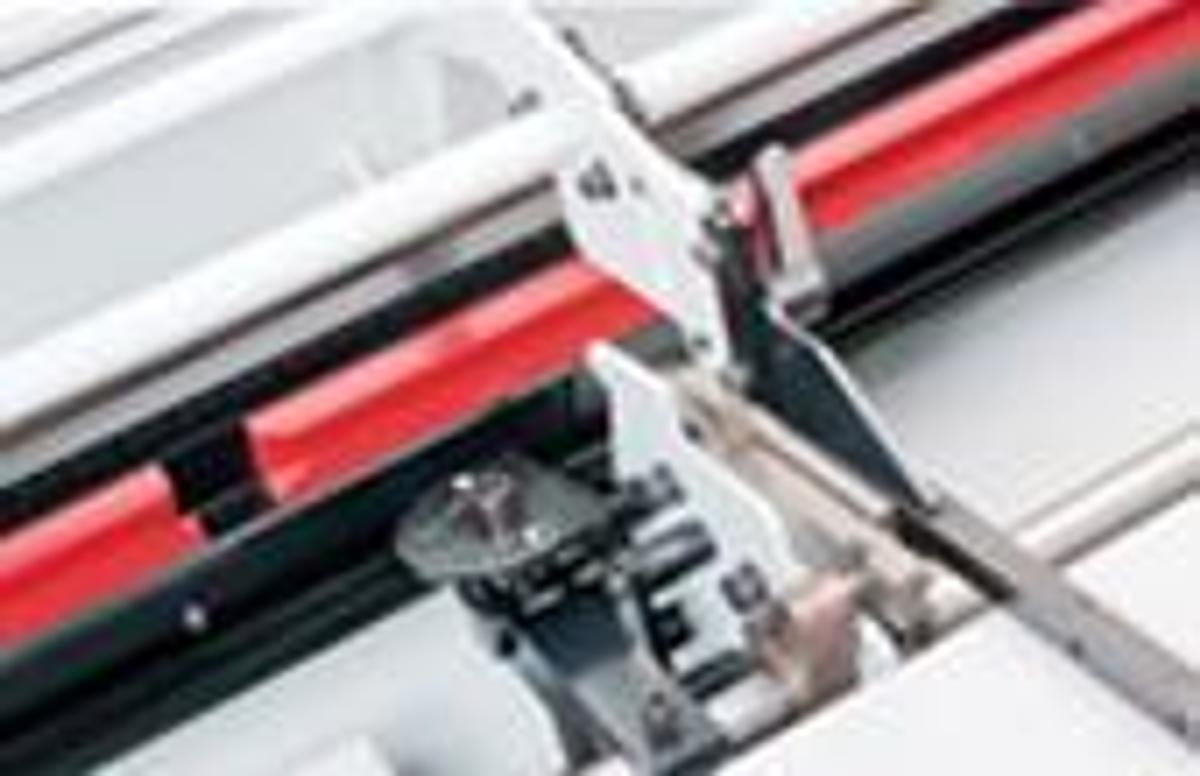

Free adjustment of clamping device while bar material is changed.
Specifications
| Model | BWG / EWG |
| Condition | New |

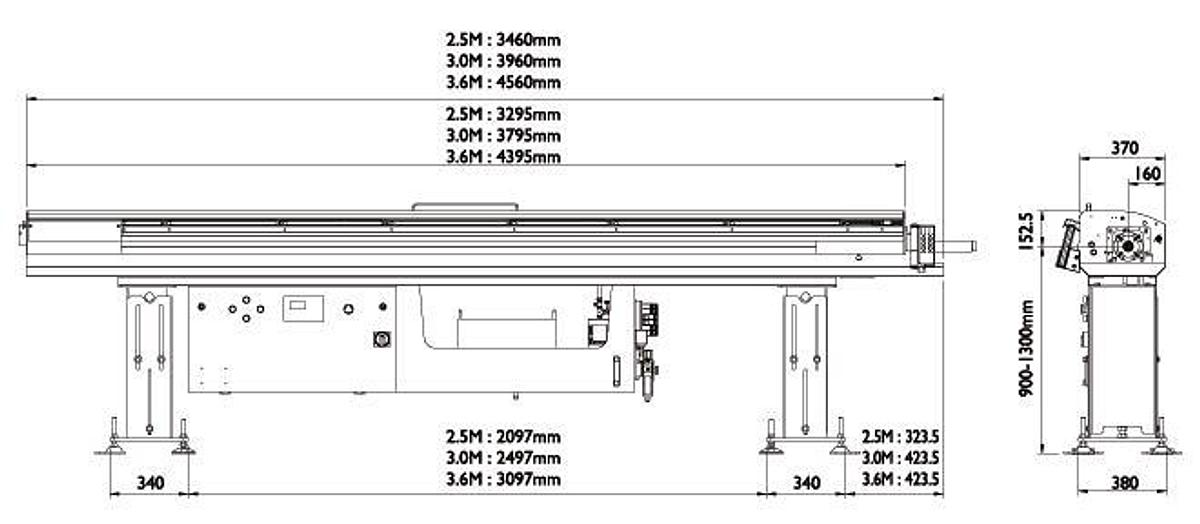

| Specifications | 2.5M / 3.0M / 3.6M |
| BWG PU Guide Channel | 11mm，14mm，17mm，19mm，21mm，23mm，25mm，27mm |
| BWG Bar Diameter | 3~10mm，3~13mm，3~16mm，3~18mm，5~20mm，5~22mm，5~24mm，5~26mm |
| EWG Steel Guide Channel | 11mm，13mm，17mm， 21mm，24mm，27mm |
| EWG Bar Diameter | 3~10mm，3~12mm，3~16mm，5~20mm，5~23mm， 5~26mm |
| Bar Capacity | 10mm(3/8”)X23pcs |
| Bar Length | Long |
| Machine Weight | 2.5M–450kg，3.0M–500 kg，3.6M–650 kg |
| Air Pressure | 6kgf/cm² 70psi |
| Transmission | SERVO MOTOR |
| Lubricant | FK ISO VG68，FK HYDRAULIC OIL 68 |
| Capacity | 38L(10 GALLON) |
| Power Consumption | 630W |
| Powre Supply | 3φx220V 50/60Hz |
| Type | Manual |
| Headstock Type | Sliding |
