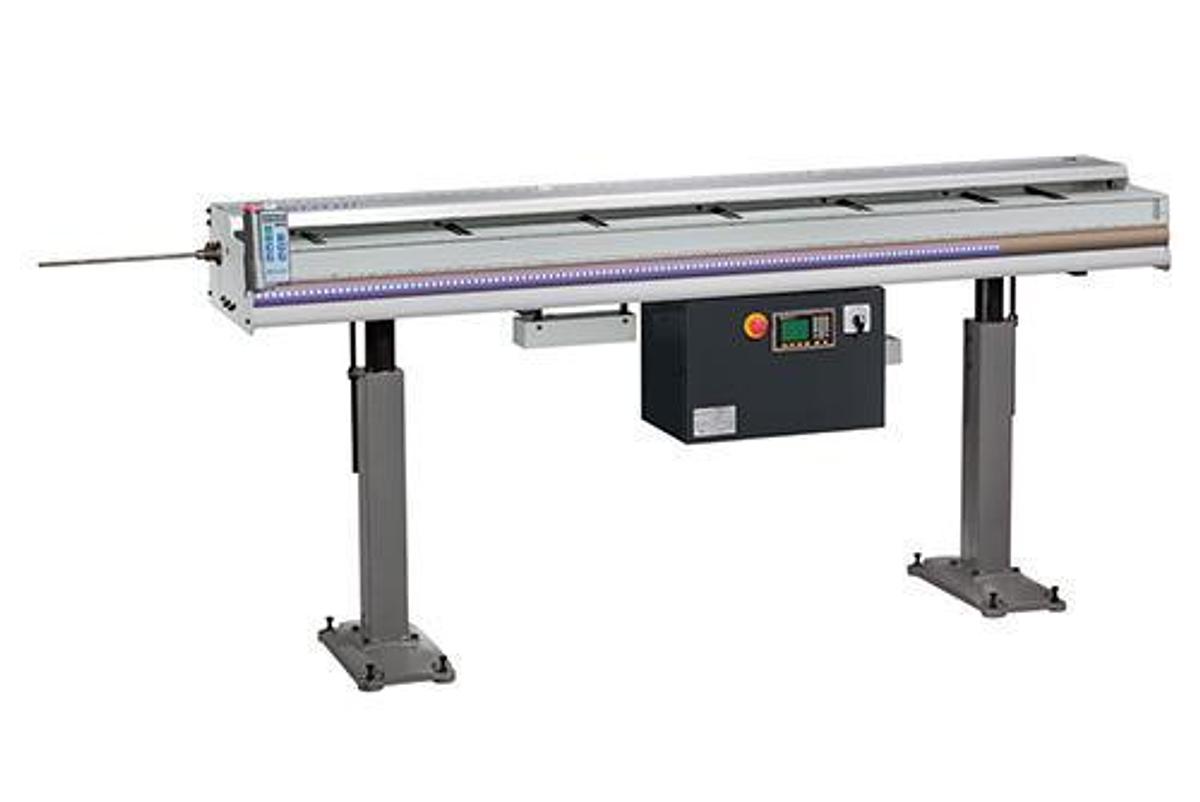

MINI Magazined-type Hydraulic Long Bar Feeder

Contact us for price
or
Call (519) 212-1782

Description

  • No adjustment is required for material clamping(patented)
  • Concealed and safe wiring
  • A material change is quickly accomplished
  • Torque and speed are adjustable to meet the requirement
  • Oil and remnants are separately collected

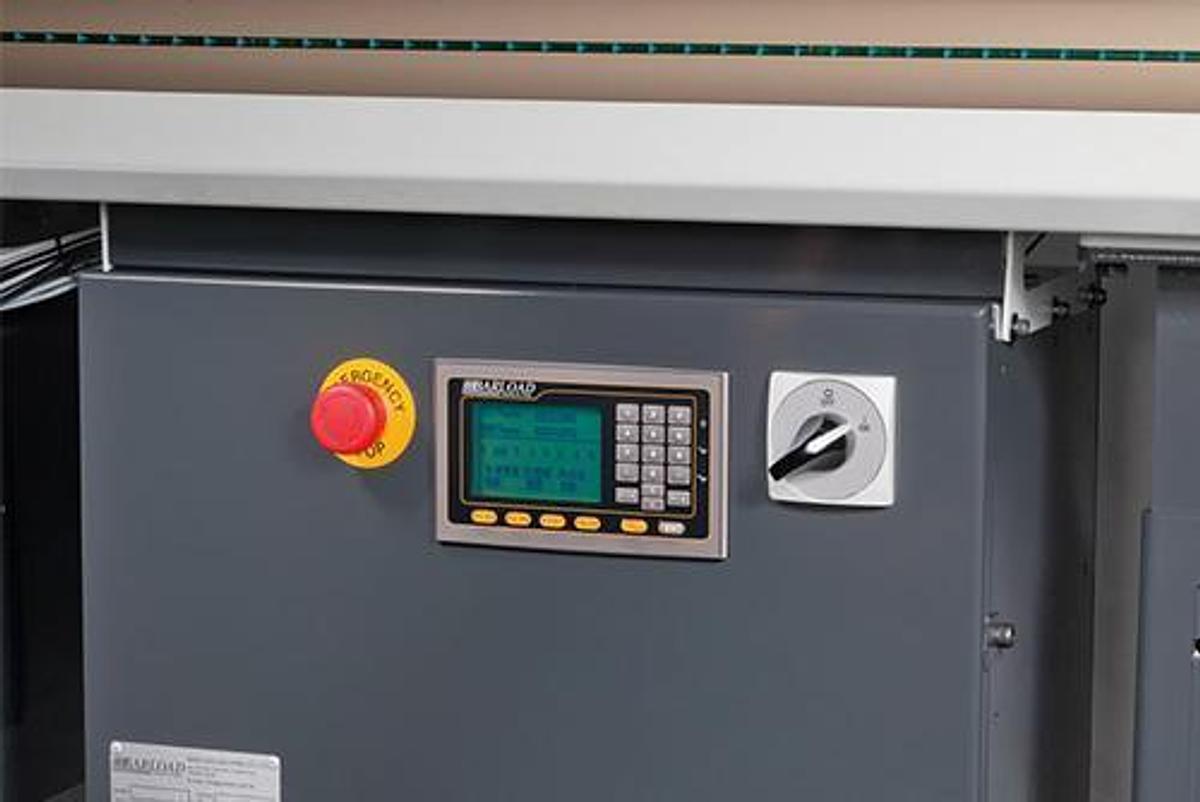

    • The MN series bar feeder employs PLC control in combination with personified human-machine interface,providing easy setting and operation.
    Multiple mode selections meet various application requirements.

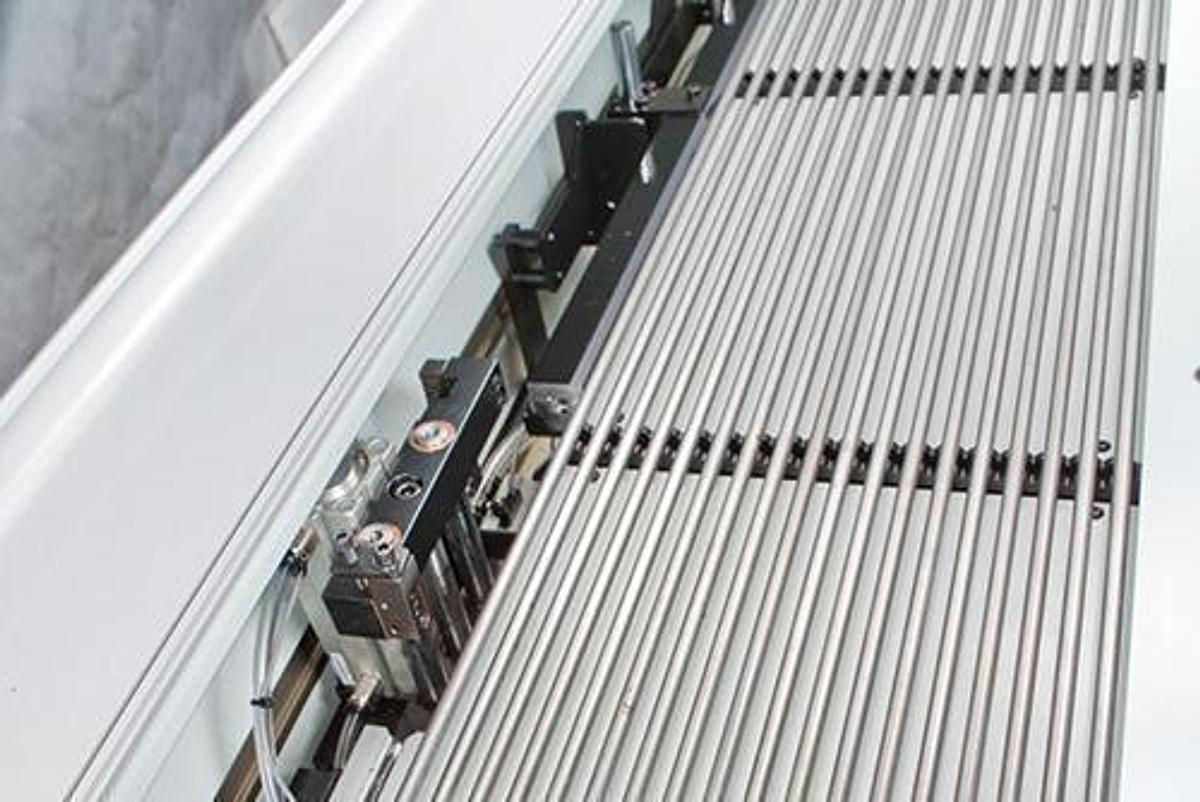

    The loading capacity of the device is :
    Φ1mm~7mm bar:35 pieces
    Φ7.1mm~12mm bar:18 pieces

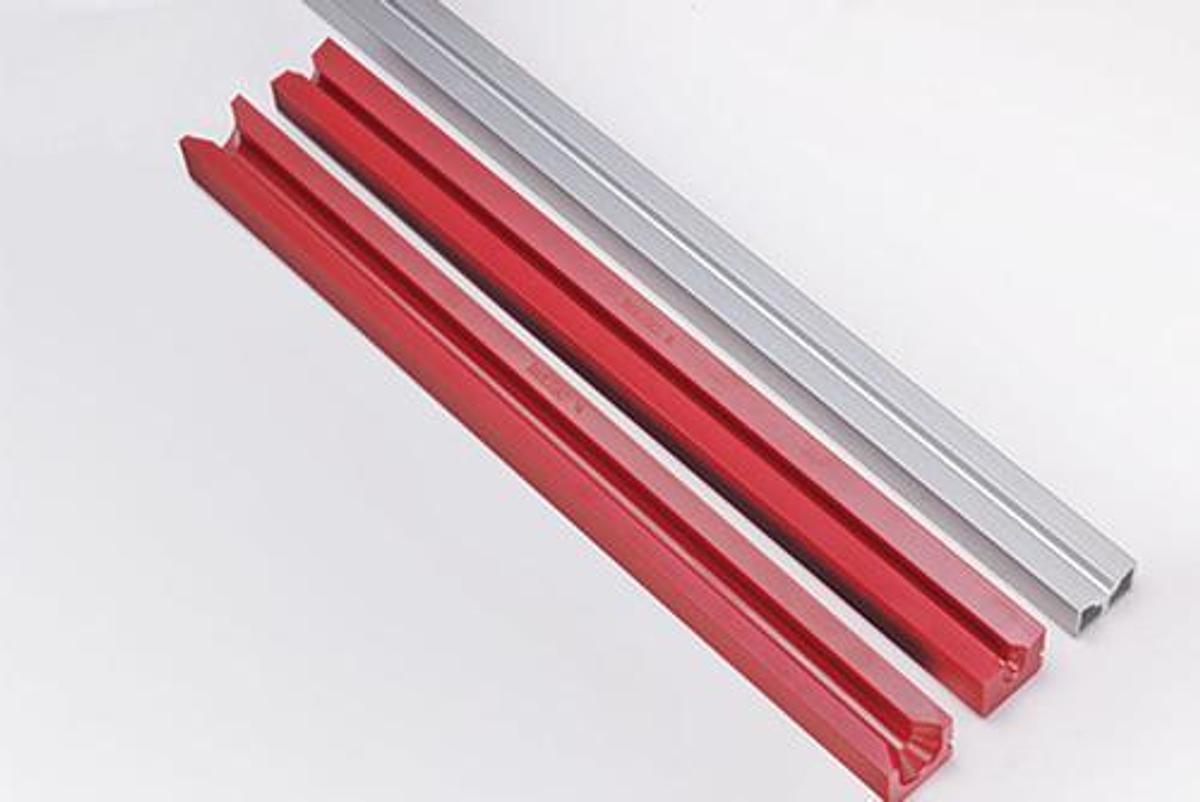

    Choice of various sizes of guide channel: Φ5, Φ8, Φ13mm

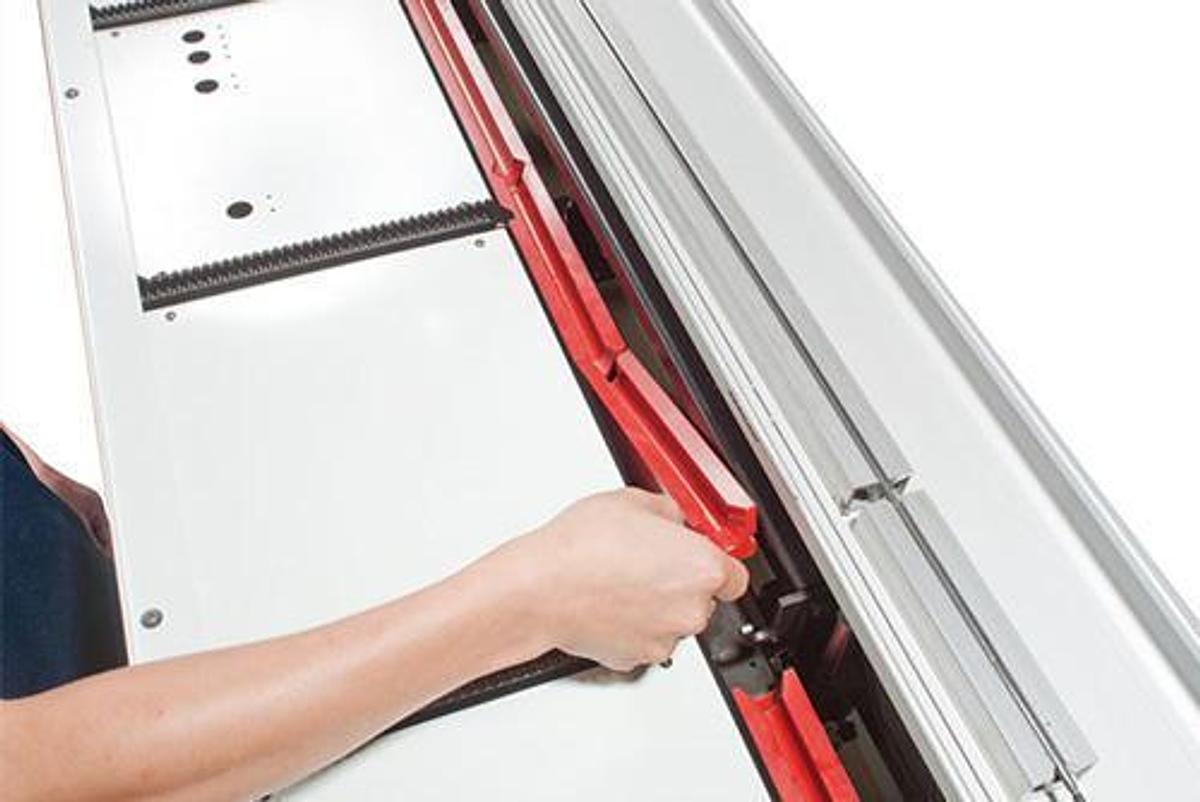

    The MN series bar feeder provides fast change of guide channel for saving time and increasing efficiency.

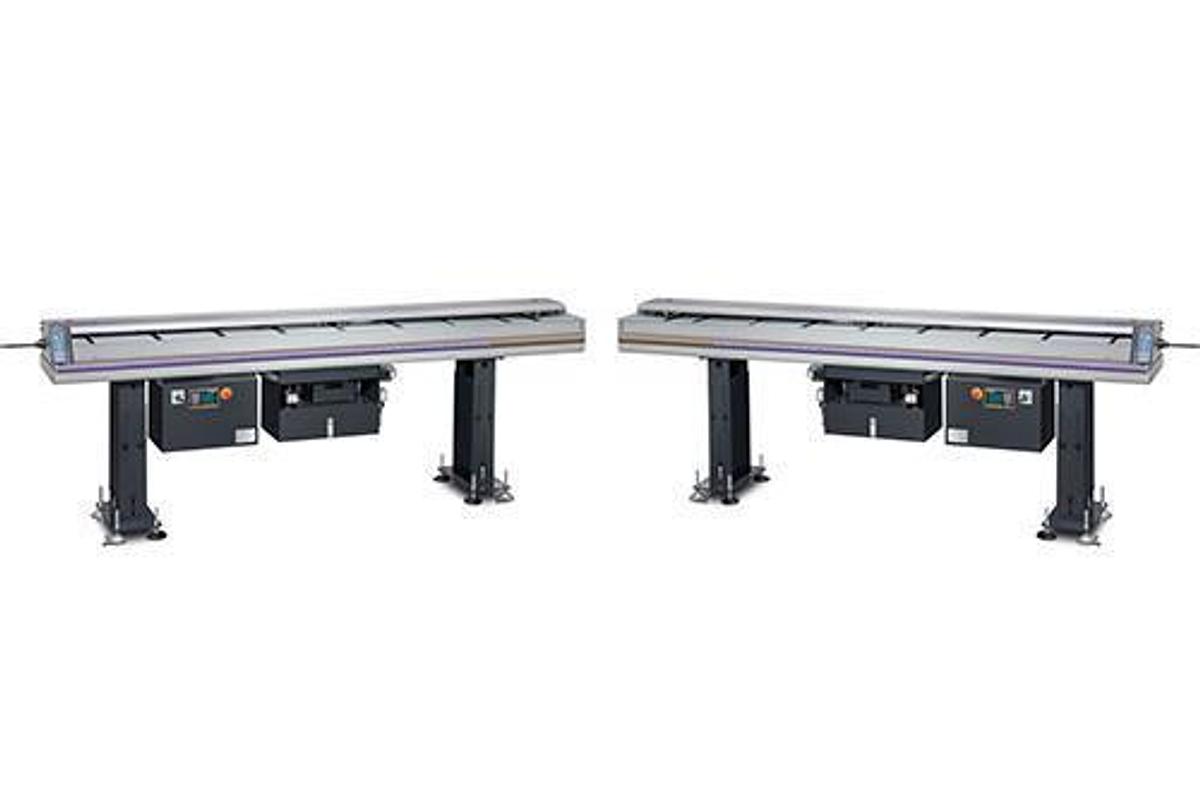

    Suitable for right hand or left hand type lathe.
    User-friendiy operation for bar loading and machine operation.

    The non-oil film type is applicable for various lathes.
    Choice of 2M and 2.5M

    Show All

    Specifications

    ModelMINI
    ConditionNew
    Applicable Lathe TypeFix Head Type,Swiss Type
    Feeding DirectionLEFT,RIGHT

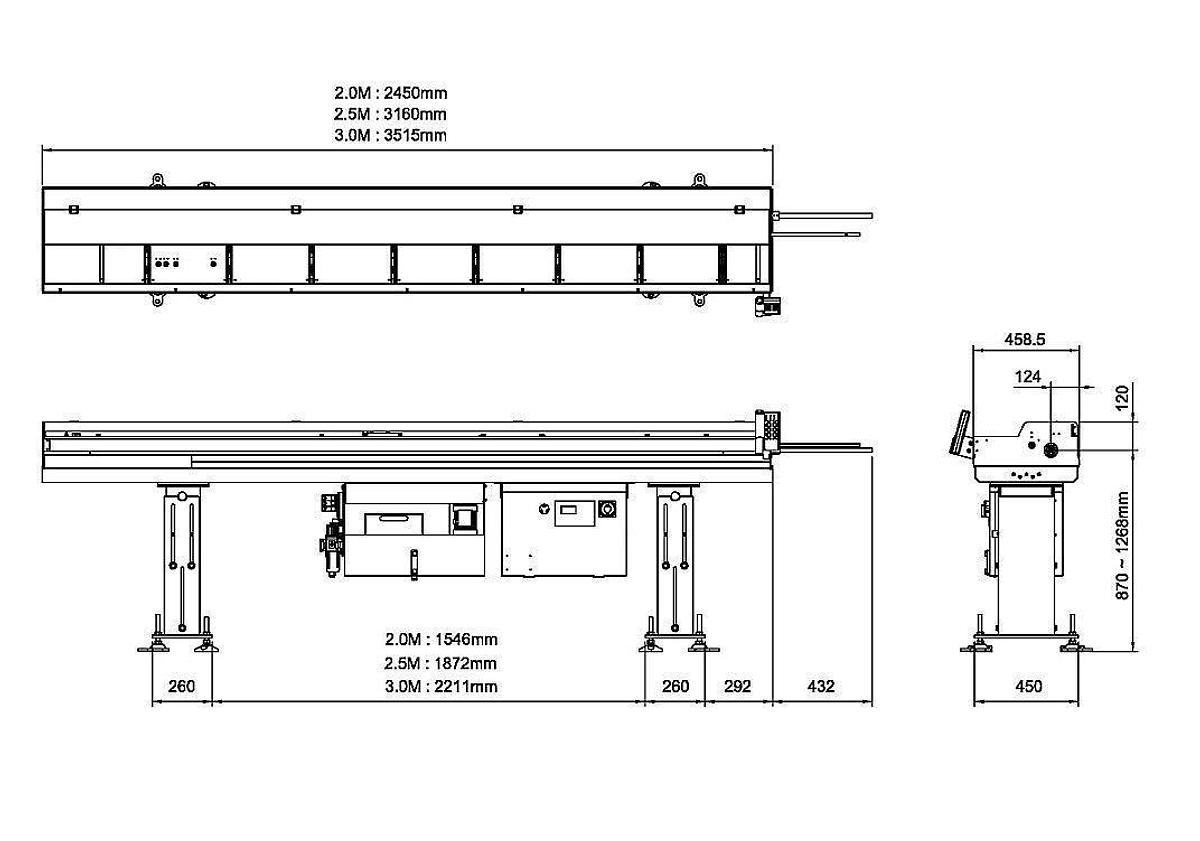

    Specifications2.0M,2.5M,3.0M,3.6M
    Guide Channel5mm,8mm,13mm
    Bar Diameter0.8-4mm,1-7mm,2-12mm
    Bar Capacity1-7mm/35pcs , 7.1-12mm/18pcs
    Bar Length2100,2800,3100mm
    Machine WeightNON-OIL FILM TYPE 2.0M-270KG,2.5M-300KG OIL FILM TYPE 2.0M-350KG,2.5M-380KG,3.0M-410KG
    Air Pressure6 kgf / cm² 70 psi
    TransmissionSERVO MOTOR
    LubricantFK ISO VG68,FK HYDRAULIC OIL 68
    Oil Tank Capacity26L(6.5 GALLON)
    Power Consumption685W
    Power Supply1Φx 220v 50/60Hz
