VITO56 Magazine Hydraulic Bar Feeder
Contact us for price
Description

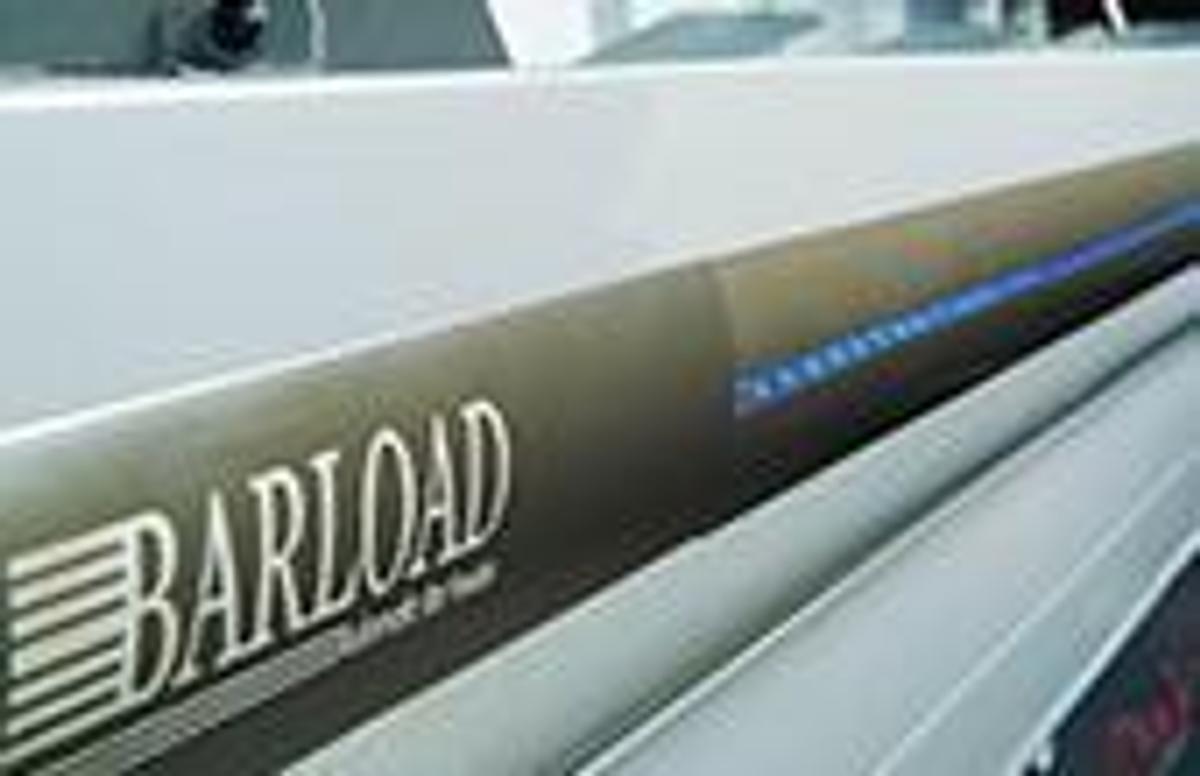

A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).

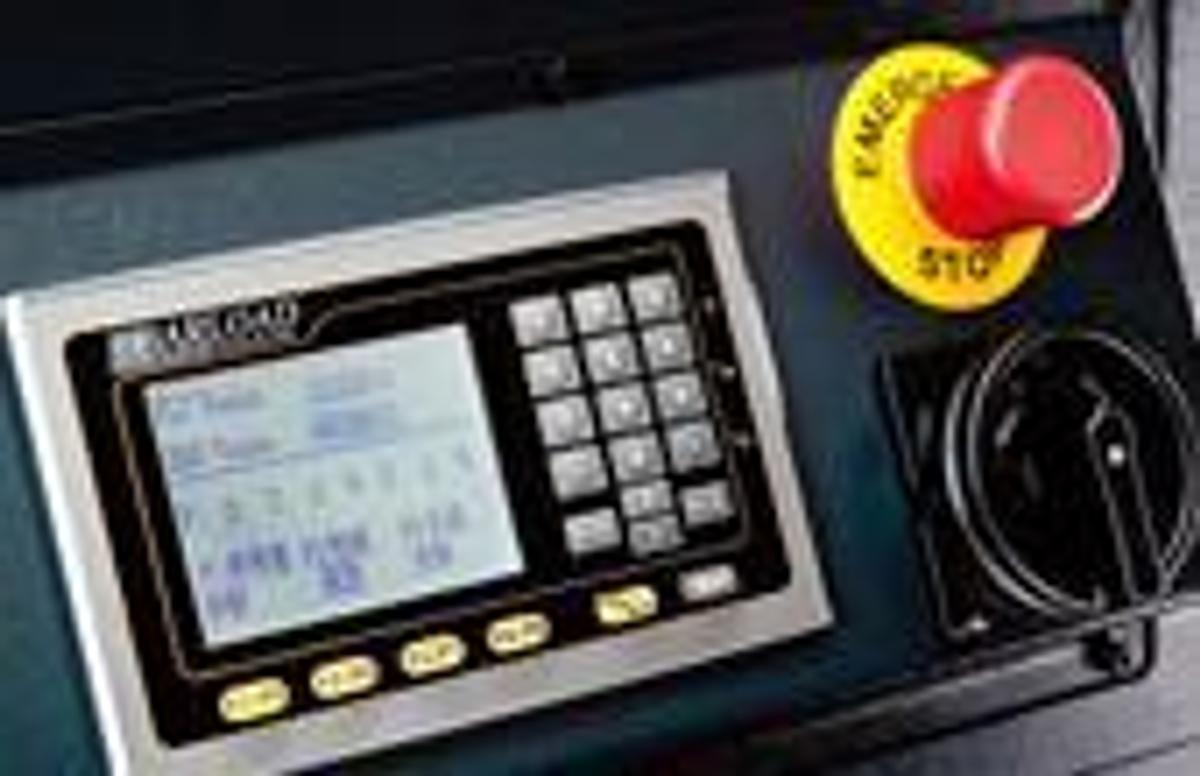

A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.

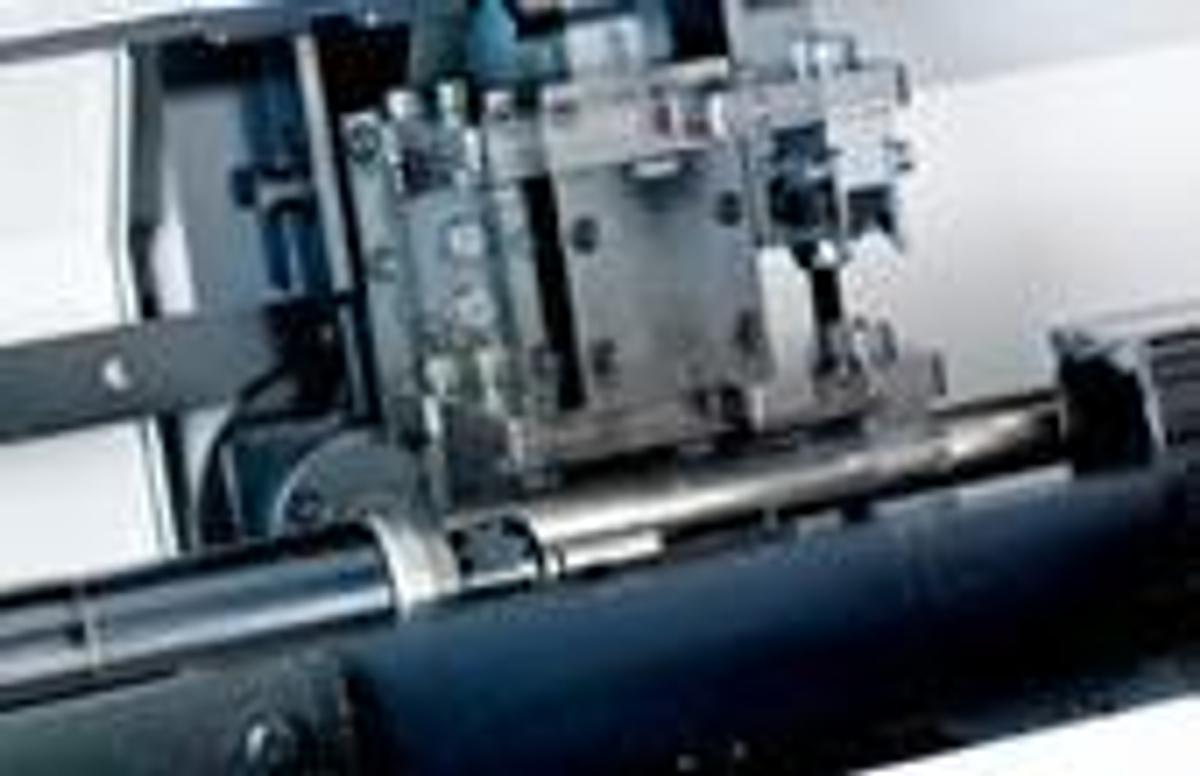

Free adjustment of clamping device while bar material is changed.
A V-shape anti-vibration device ( bush pairs) is one size to fit all in terms of economy and efficiency.

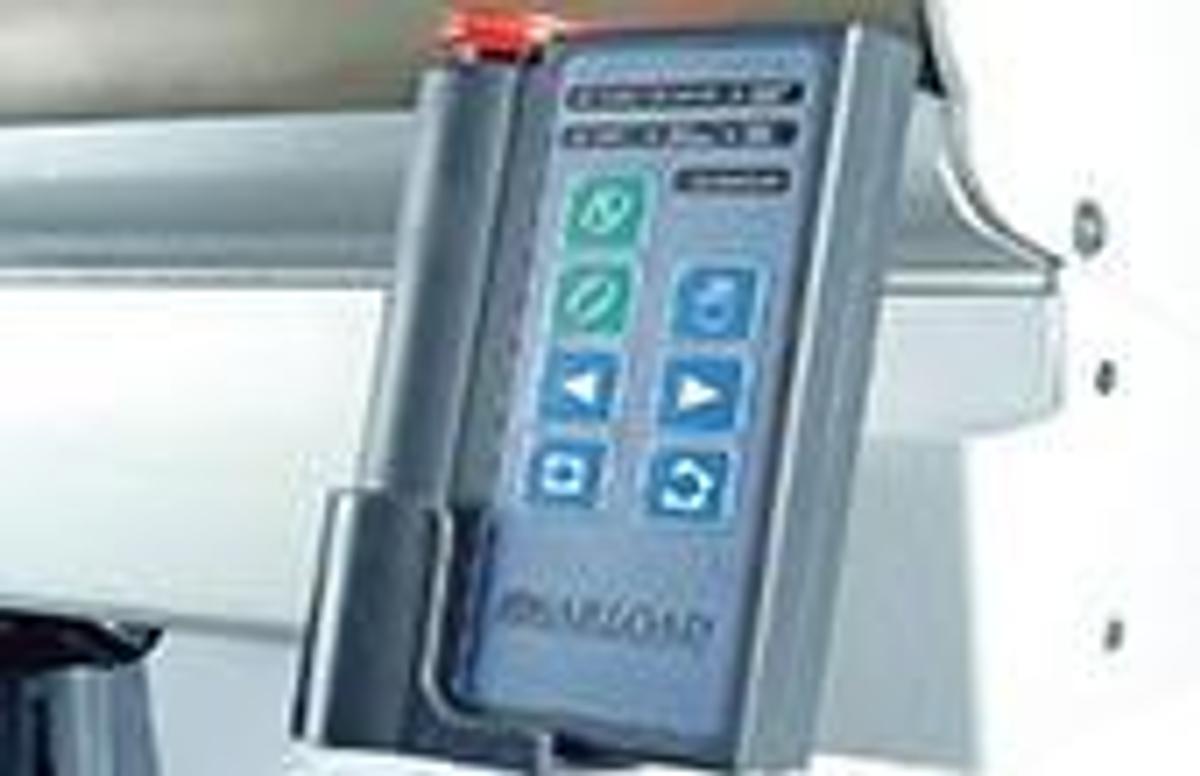

A mobile remote control box is user friendly to operate with.

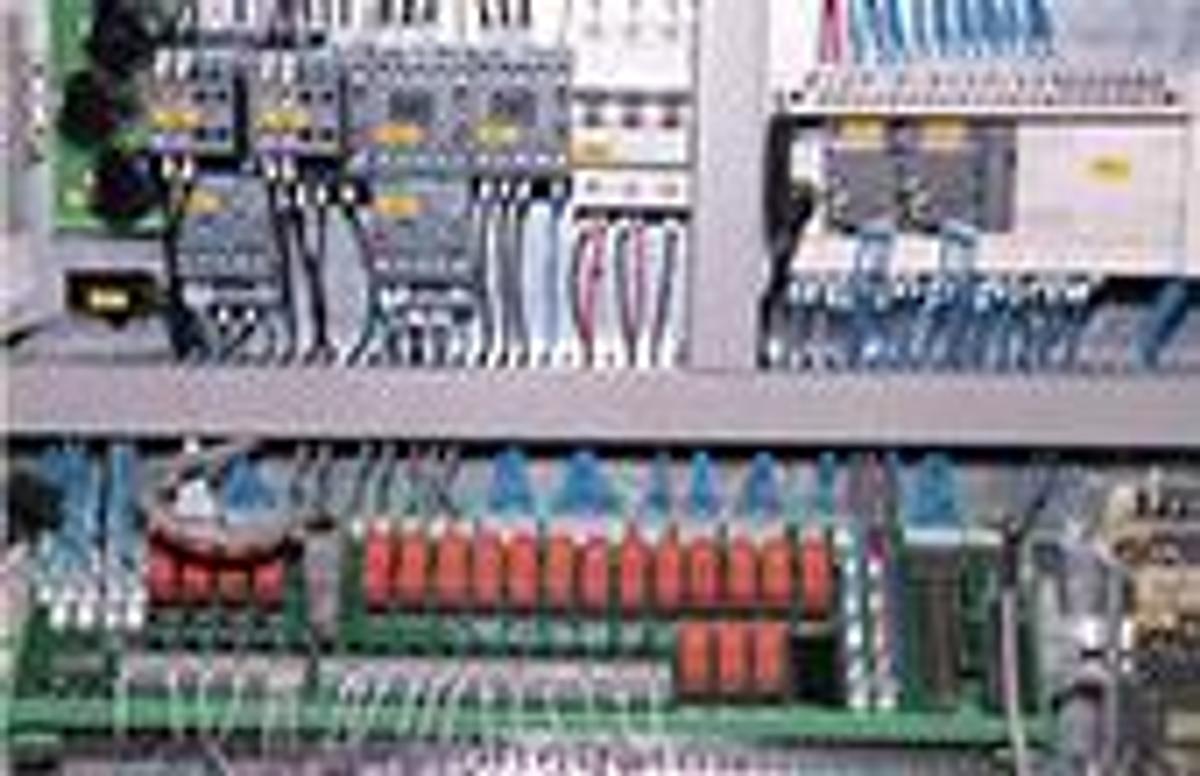

A hi-end PLC controller is with completed software concept and module-assembly electrical cabinet.
Specifications
| Model | VITO |
| Condition | New |
| Specifications | 2.5M ， 3.0M ， 3.6M |
| Guide Channel | 21mm， 27mm，33mm，37mm，39mm，43mm，46mm，52mm，57mm |
| Bar Diameter | 5-20mm，5-26mm，5-32mm，5-36mm，5-38mm，5-42mm，5-45mm，8-51mm，8-56mm |
| Bar Capacity | 10mm/26 pcs |
| Bar Length | 2700mm，3200mm，3800mm |
| Machine Weight | 2.5M – 860kg ， 3.0M – 950kg ， 3.6M – 1060kg |
| Air Pressure | 6 kgf / cm² 70psi |
| Transmission | SERVO MOTOR |
| Lubricant | FK ISO VG68/ FK HYDRAULIC OIL68 |
| Capacity | 38L (10 GALLON) |
| Power Consumption | 810W |
| Power Supply | 3 X 220V 50/60Hz |
