MT Magazined-type Mechanical Bar Feeder

Contact us for price
or
Call (519) 212-1782

Description

  • Easily adjust the loading system.
  • Suited for NC auto camshaft lathe and CNC lathe as well.
  • User-friendly & easy for trouble-shooting,
  • A standard model: 2.5m-long material.
  • Free heat on the motor while operating.

    • A wear-resisting guide-channel set.

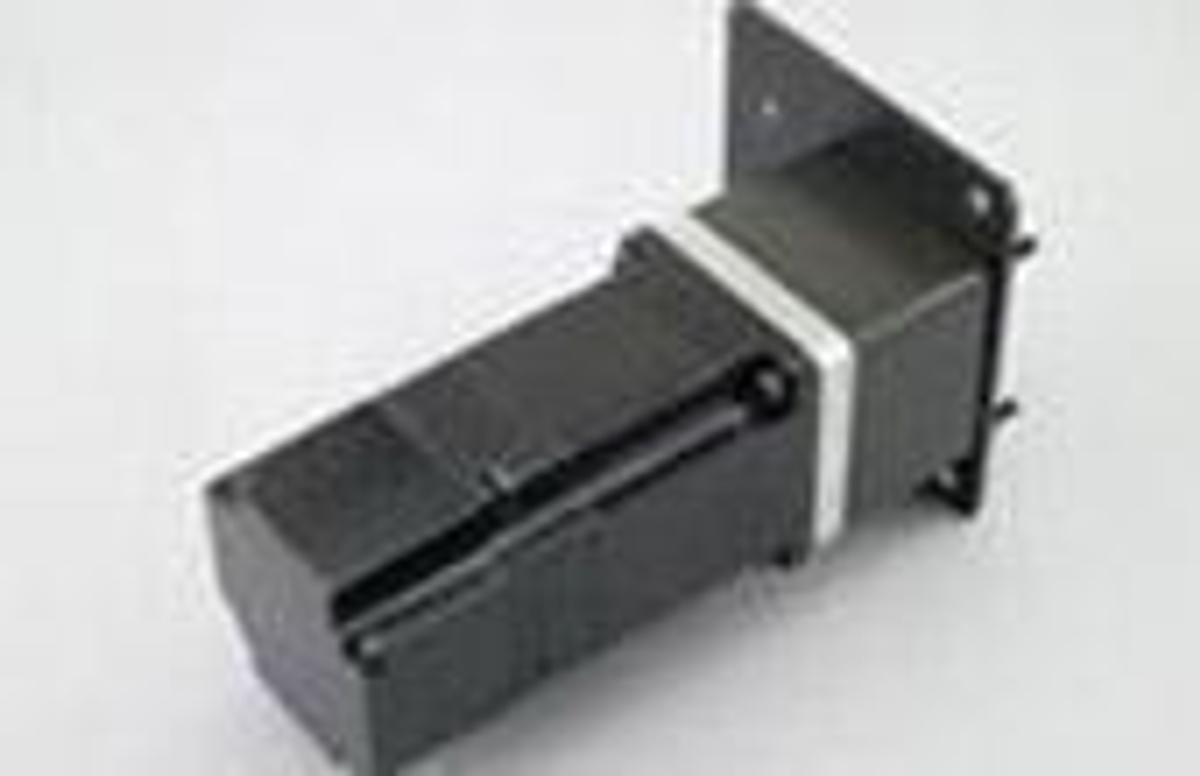

    Free heat on the motor while operated.

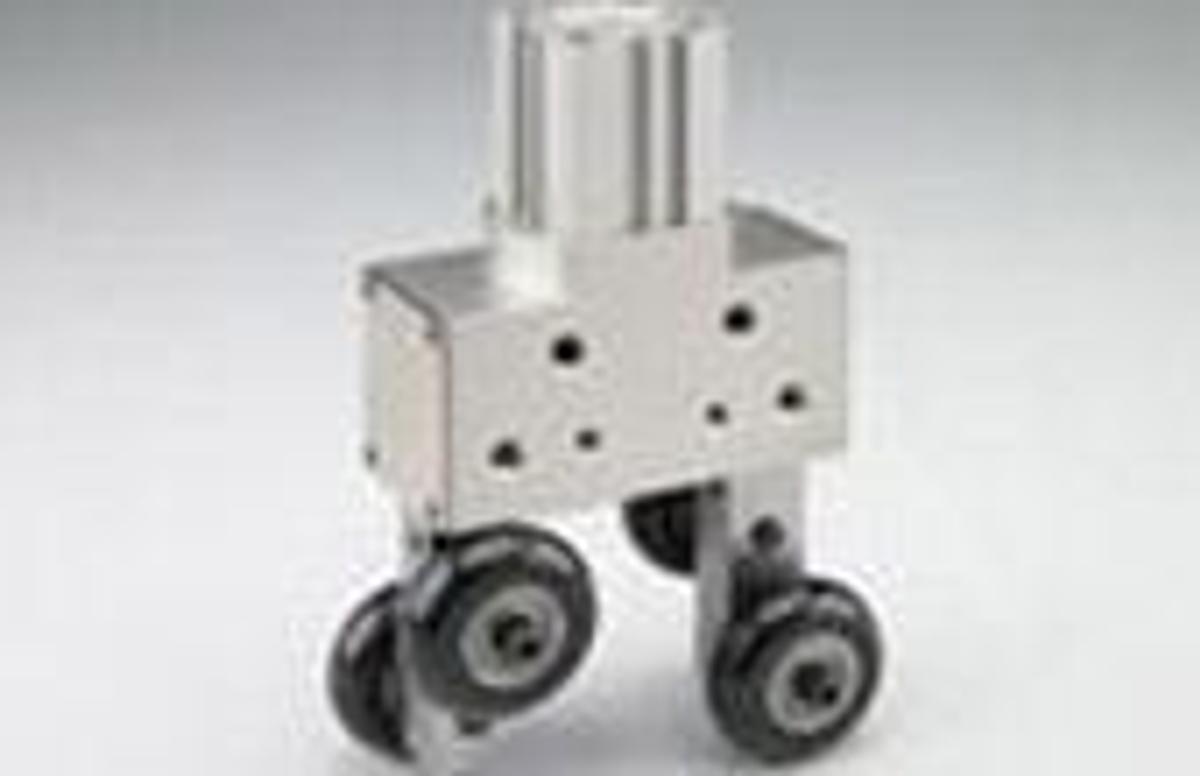

     An optional anti-vibration-roller set.

    Show All

    Specifications

    ModelMT-20, MT-15, MT-12, MT-10
    ConditionNew
    Bar Material Length3.0M,2.7M
    Feeding Capacity4~20mm,3~16mm,2~12mm,2~10mm
    Bar Material Q’TY Placed On The Rack10 pcs for 20mm bars, 102 pcs for 2mm bars.

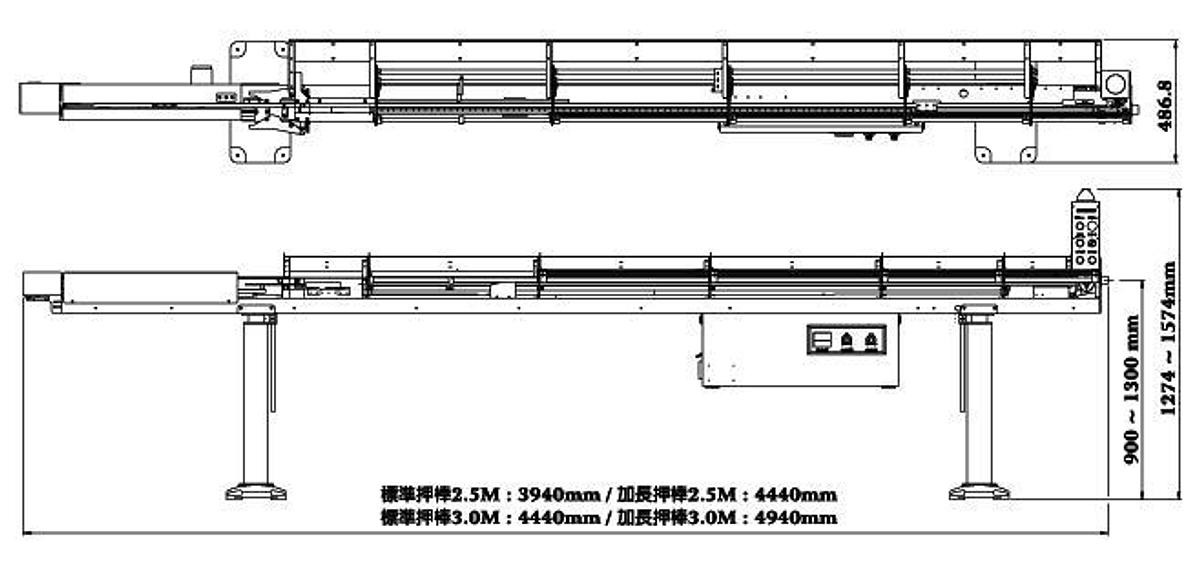

    A Total Length Of Barfeeder4440mm ( 3.2m type)
    A Total Width Of Barfeeder486.8mm
    Net Weight220 KGS.
    Power Supply220V, 60HZ, or 380V, 50 HZ.
    Air Supply8 KGS. ( anti-vibration device is optional)
