Shimada-Kitako 4-Spindle Horizontal CNC Lathe

Contact us for price
or
Call (519) 212-1782

Description

HS4200n Ultra High-Speed Production CNC Lathe with High-Speed Automatic Part Loading System

  • The newest version of the uniquely designed 4-spindle lathe.
  • By increasing the rapid feed rate on each axis, spindle idle time is greatly reduced, and efficiency has been increased.
  • Wide-ranging machine layouts and options are offered to meet a range of requirements.
  • HS4200n machine also available (with part loading system)

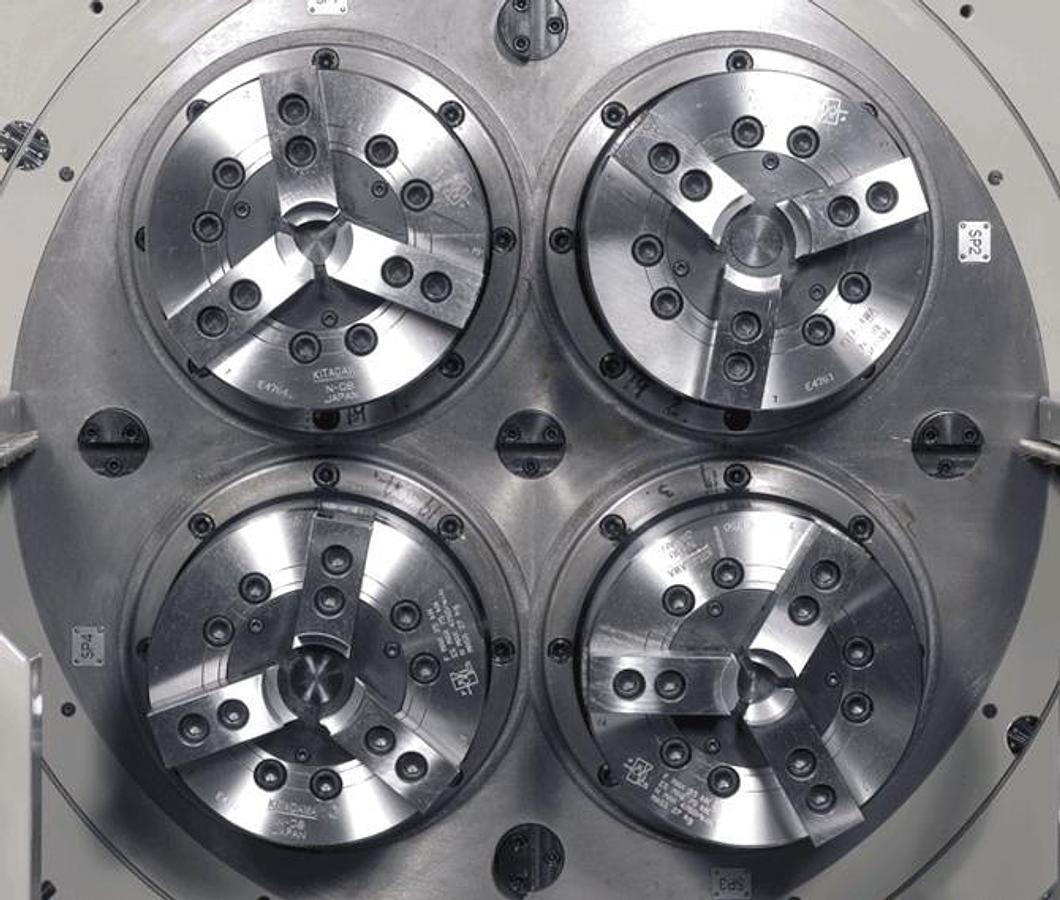

    • 4-Spindle Drum Turret (2 Machining Spindles / 2 Loading Spindles)

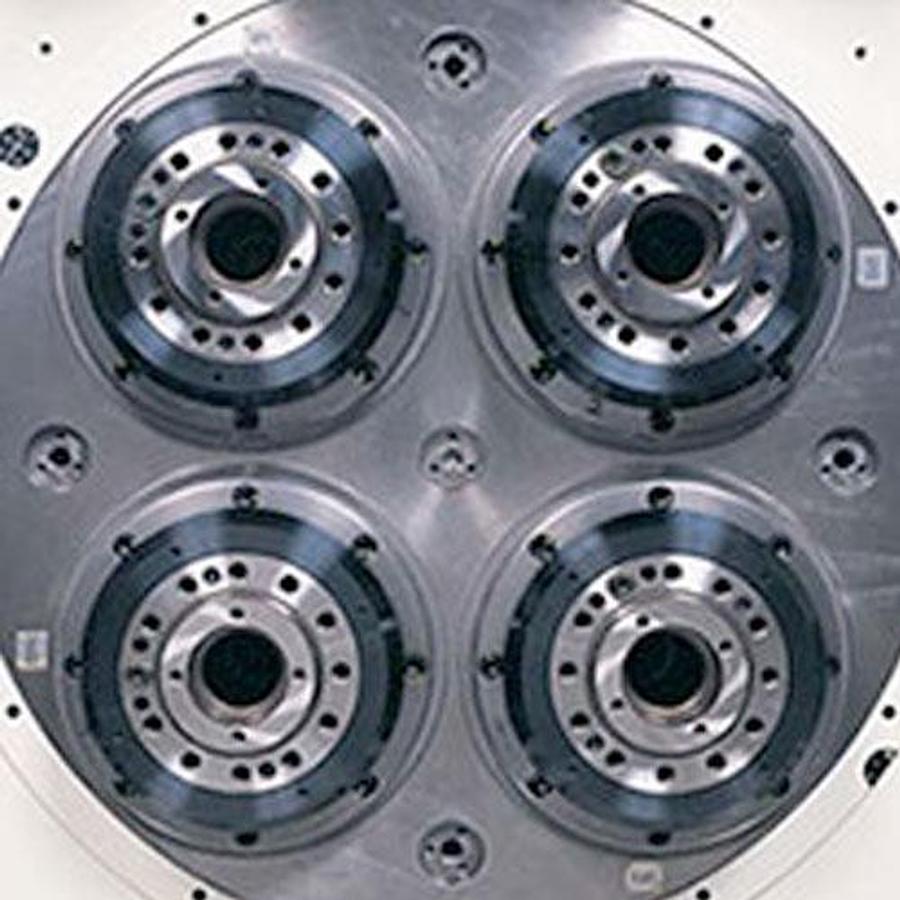

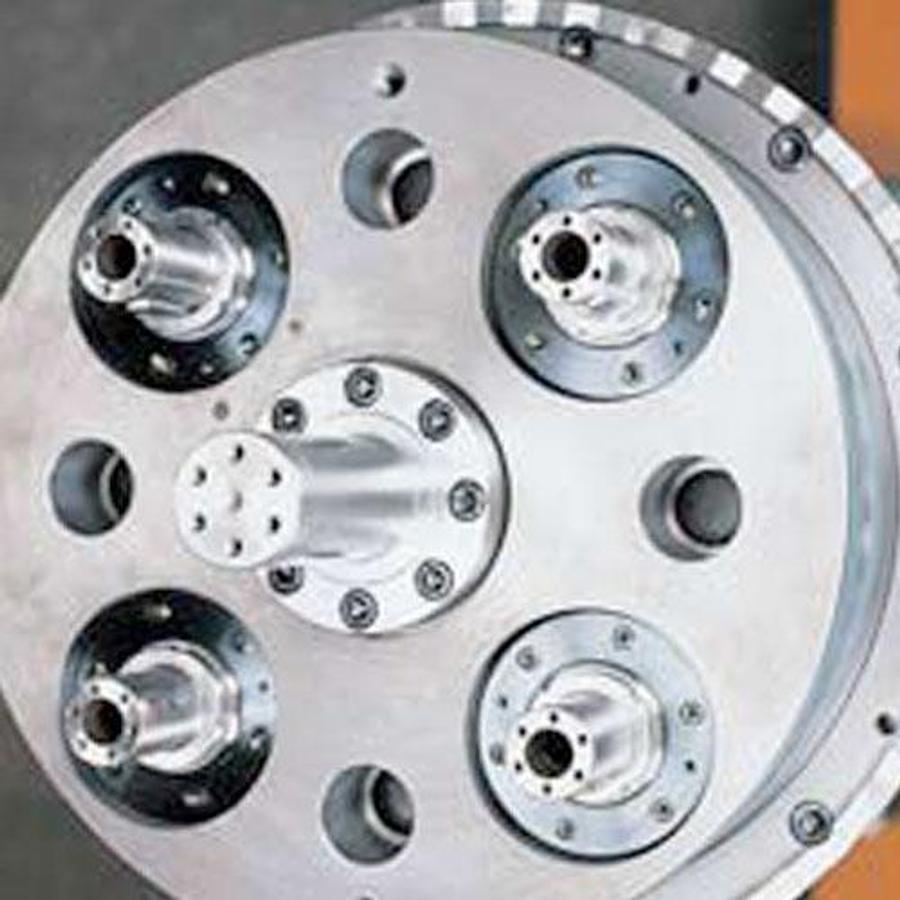

    Spindles Mounted to Carrier Drum

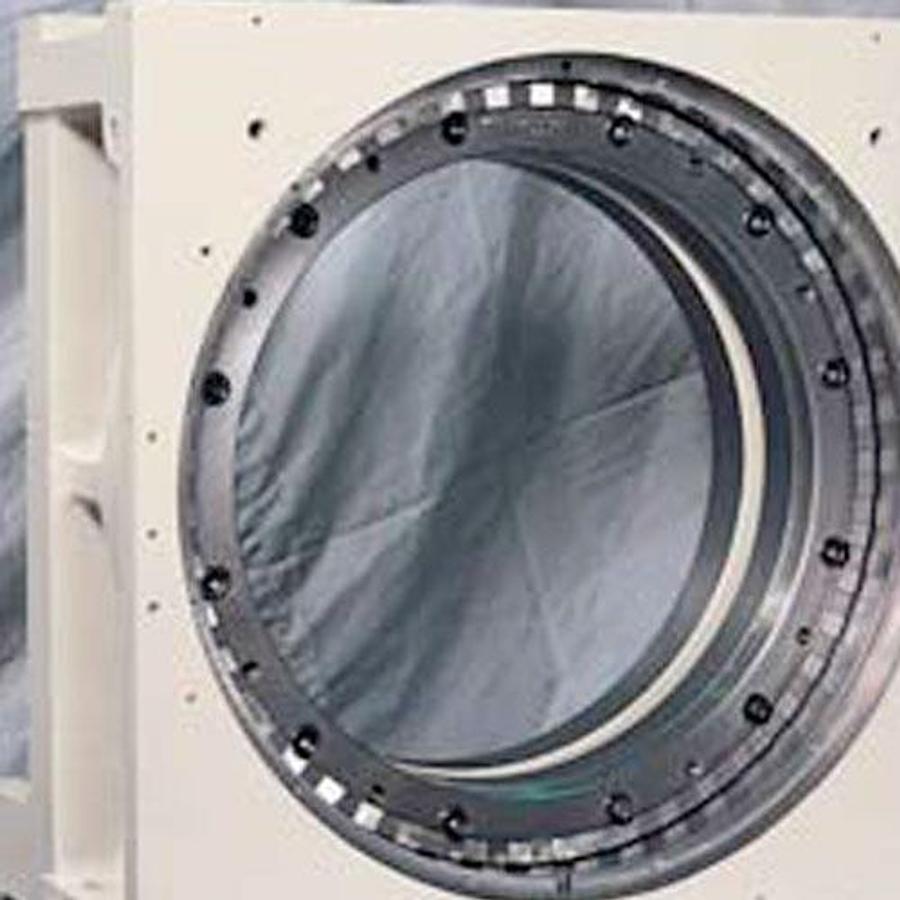

    Large Curvic Coupling to Ensure Accuracy

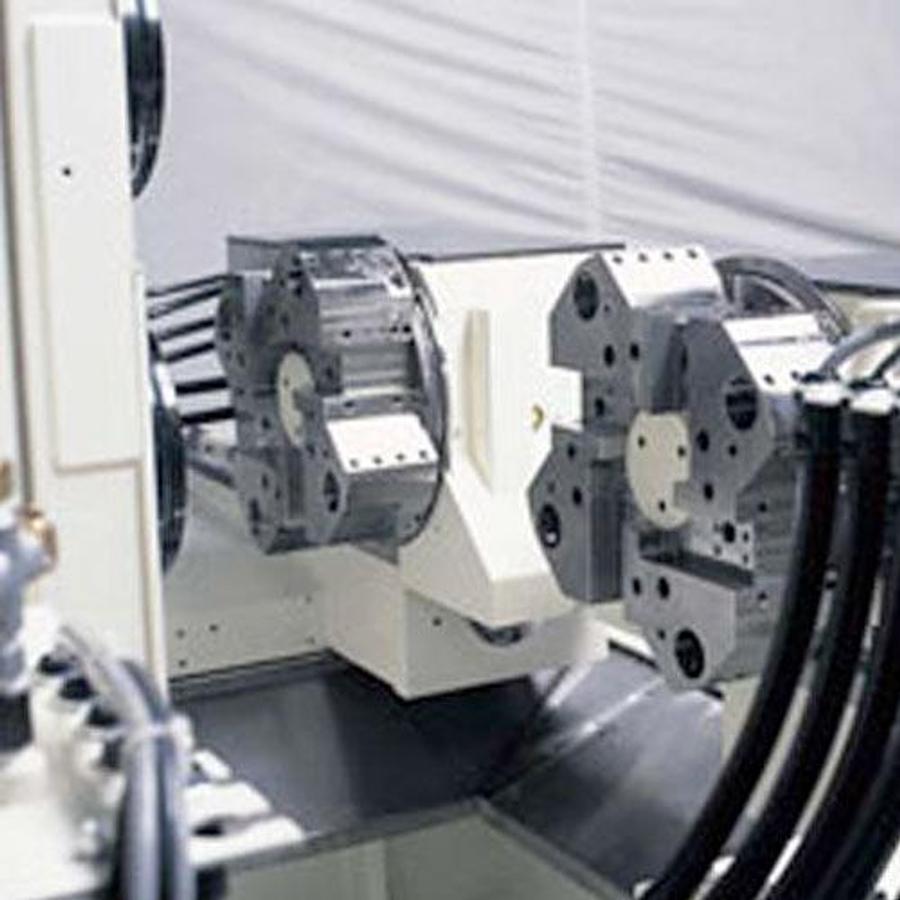

    Standard 8-Station Tool Turrets (L side and R side)

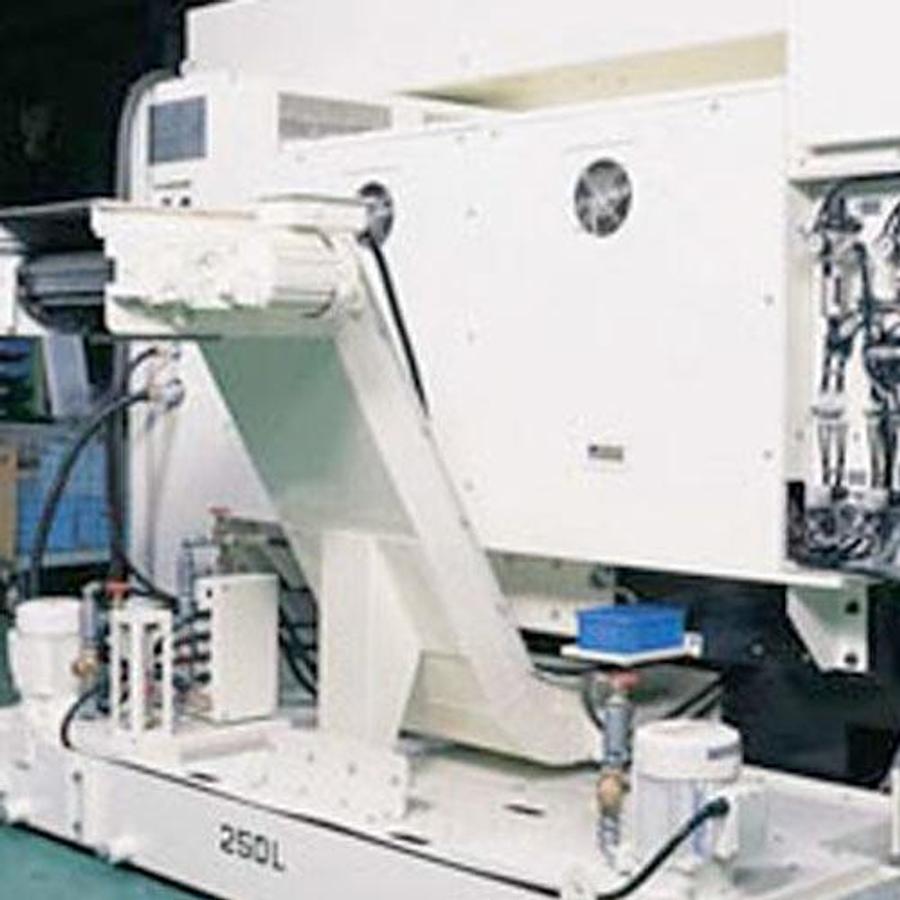

    Chip Conveyor

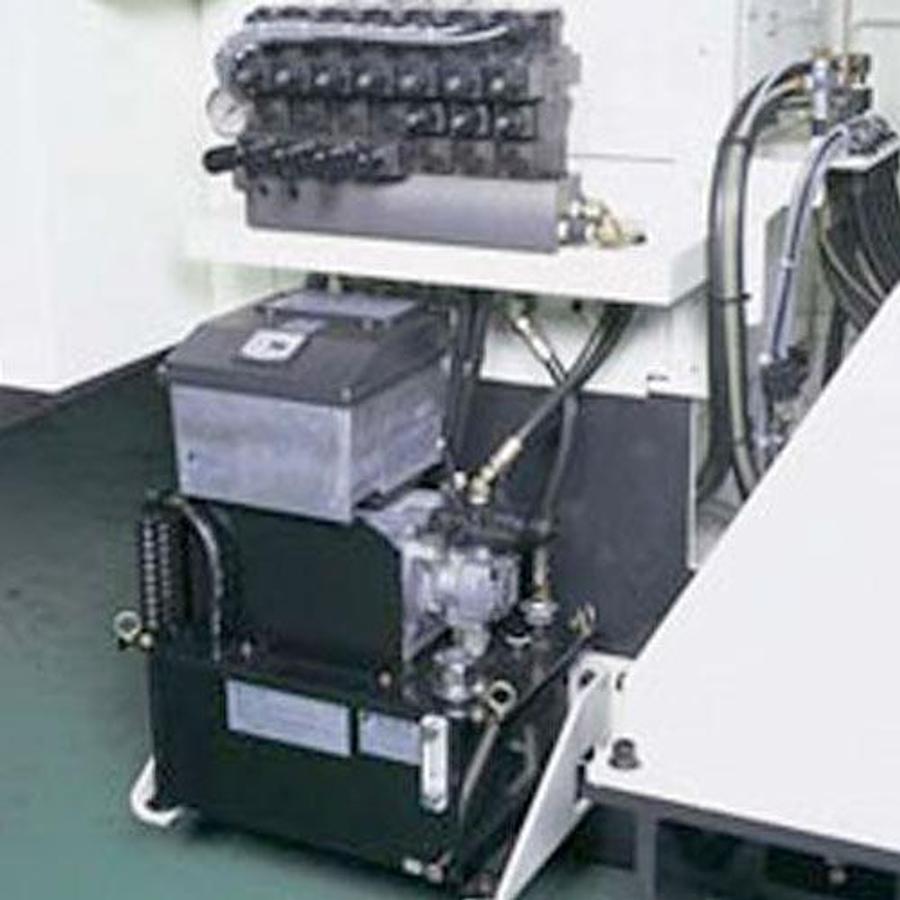

    Hydraulic Unit

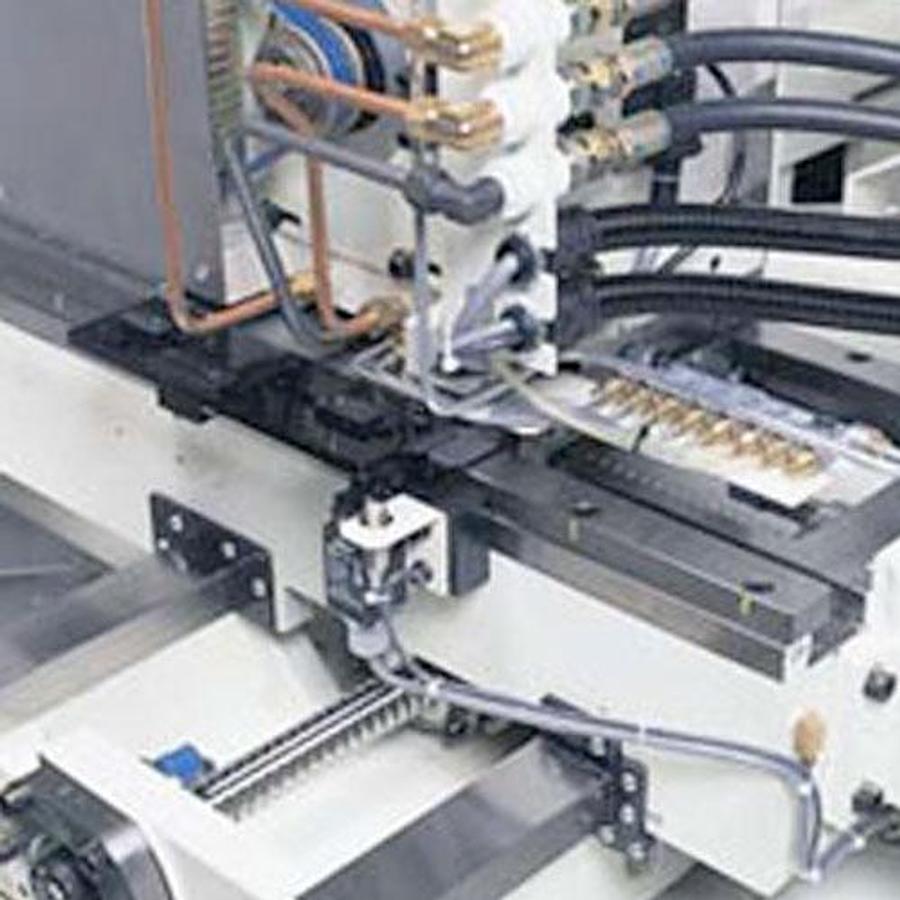

    Box-Shaped Slideways

    Work Reversing Unit

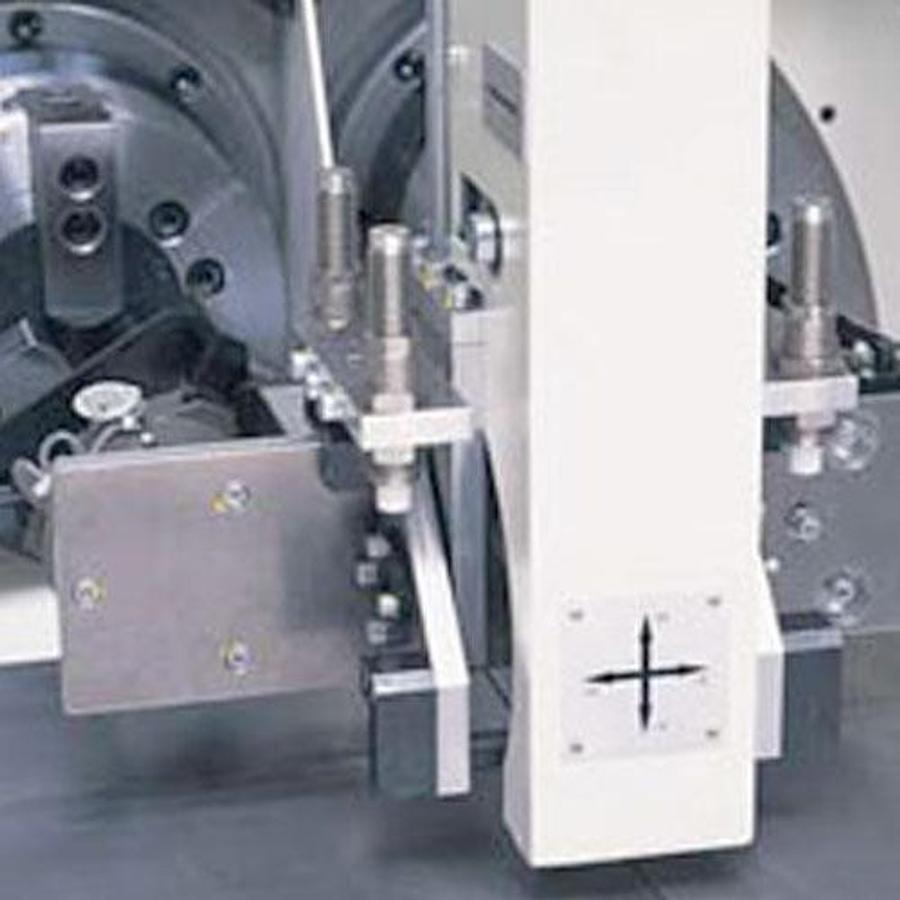

    Loading/Unloading

    Show All

    Specifications

    ManufacturerShimada-Kitako
    ModelHS4200n
    ConditionNew
    Max. Turning Diameter and Length7.8" x 4"
    Chuck Size8"
    Spindle NoseA2-6
    Spindle Motor15HP / 20HP
    Maximum Spindle Speed4,500 rpm (Option: 5,000 rpm)
    Carrier Index1.5 seconds / 180
    X-Axis Travel6.3"
    Z-Axis Travel9.8"
    Rapid Traverse945 IPM (X), 1181 IPM (Z)
    Turret8 Station Turret x 2
    Turret Index0.3 second per Station
