Shimada-Kitako 4-Spindle Vertical CNC Lathe

Contact us for price
or
Call (519) 212-1782

Description

VT4-350 Productive CNC 4 Spindle Vertical Lathe

  • Part loading/unloading time is ZERO.
  • As a FM cell, the machine facilitates automization of a manufacturing line.
  • Vertical design enables handling of heavy workpieces.
  • Loading spindle is covered to protect from coolant and chips.
  • Spindle offset function compensates for earrors between spindles in the microns.
  • Spindle speeds can be independently controlled for each spindle.

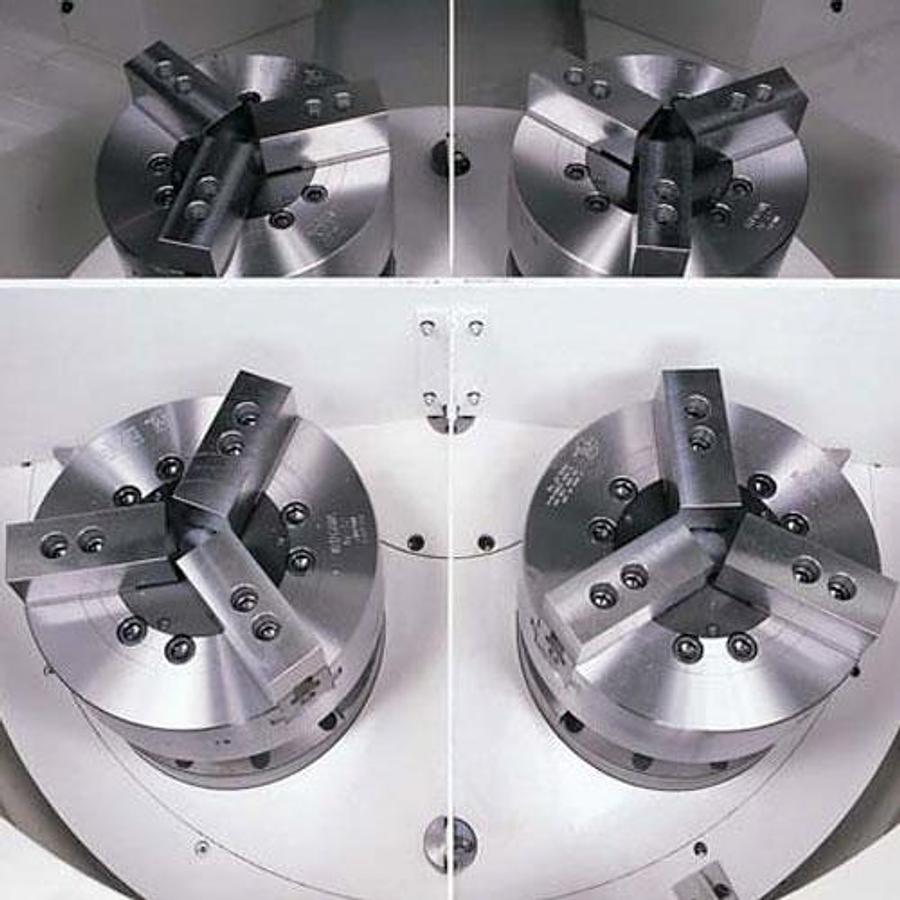

    • 4 Spindle Unit, 2 Machine While 2 Are Loaded

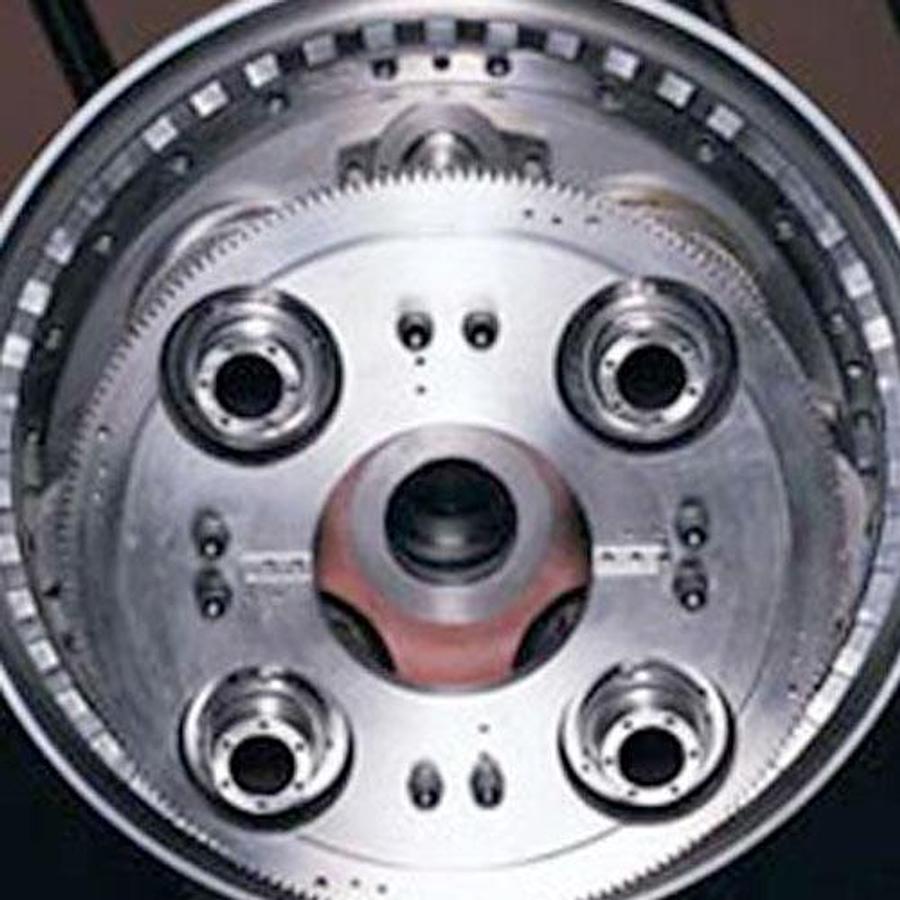

    High Accuracy Indexing

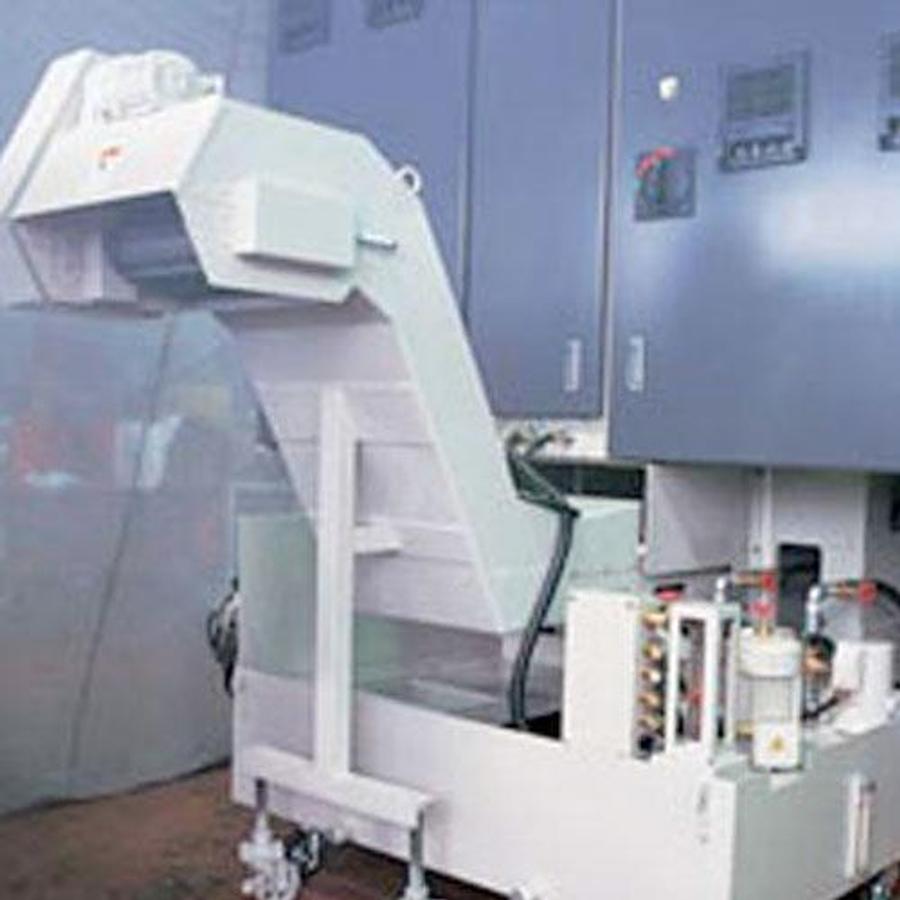

    Chip Conveyor

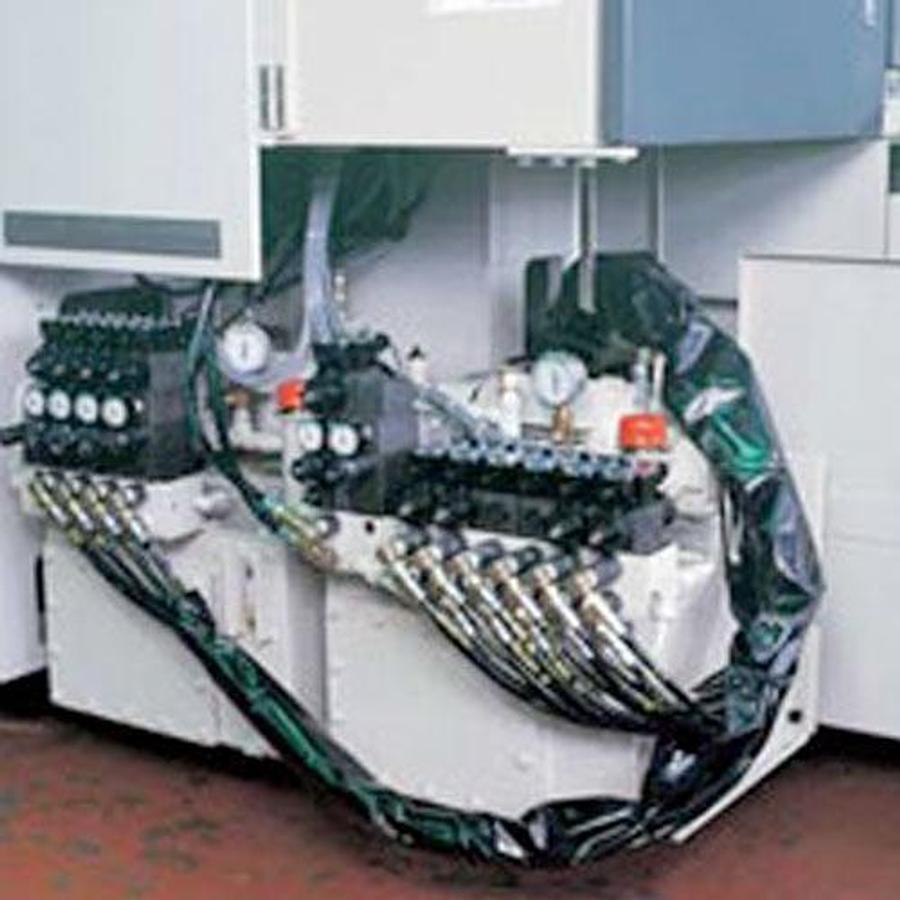

    Hydraulic Unit

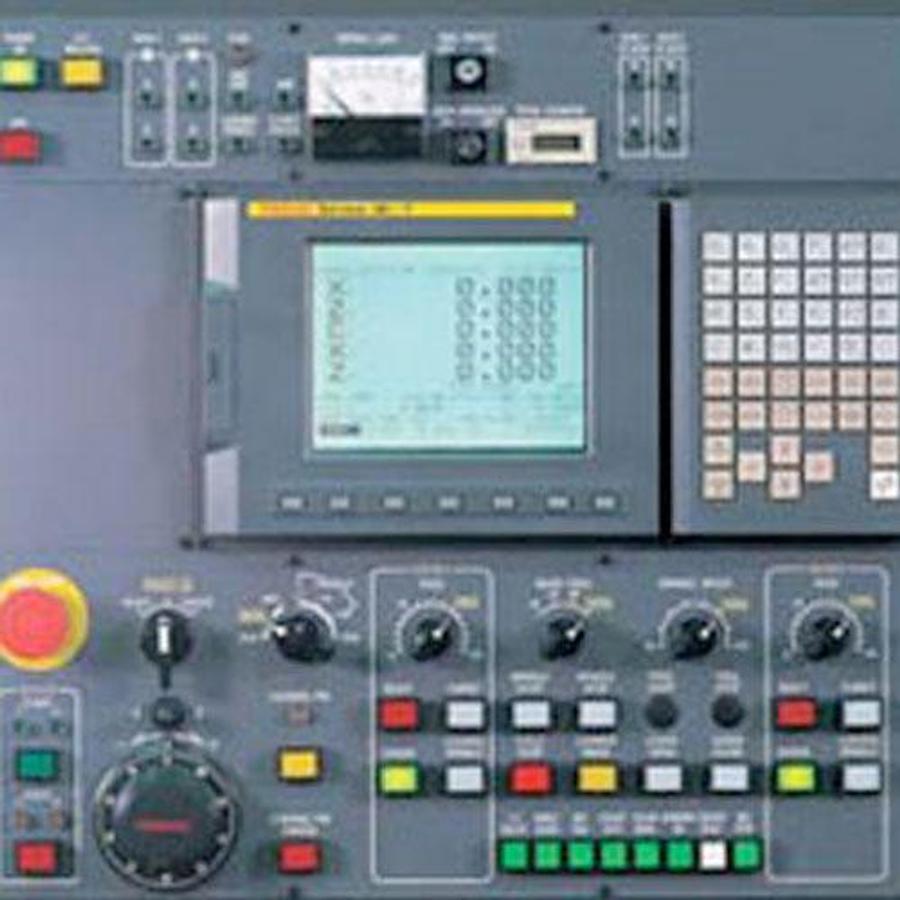

    Centralized Operation Panel

    Show All

    Specifications

    ManufacturerShimada-Kitako
    ModelVT4-350
    ConditionNew
    Max. Turning Diameter13.8"
    Max. Turning Length7.9"
    X-Axis Stroke12"
    Z-Axis Stroke18"
    X-Axis Rapid Feed788"/min.
    Z-Axis Rapid Feed788"/min.
    Spindle Speed Range3200 rpm
    Number of Spindles4
    Spindle NoseASA A2-8
    Carrier Index Time180° / 6.0sec. 90°/ 5.0sec.
    Turret Tool Capacity8 (OD:4, ID:4)
