Dainichi CNC Roll Turning Lathes
Contact us for price
Description
Dainichi’s DRNC Series Roll Lathes have set the standards and raised the bar; strong enough to handle the largest rolls, with the rigidity to accurately machine the longest shaft. Equipped with Dainichi’s original and revolutionary tooling system, the DRNC 80/100 models significantly outperform conventional lathes using formed tools. Each of the Dainichi DRNC Series models provides a proven and total solution for roll turning.
DAINICHI - CNC Roll Turning Lathe

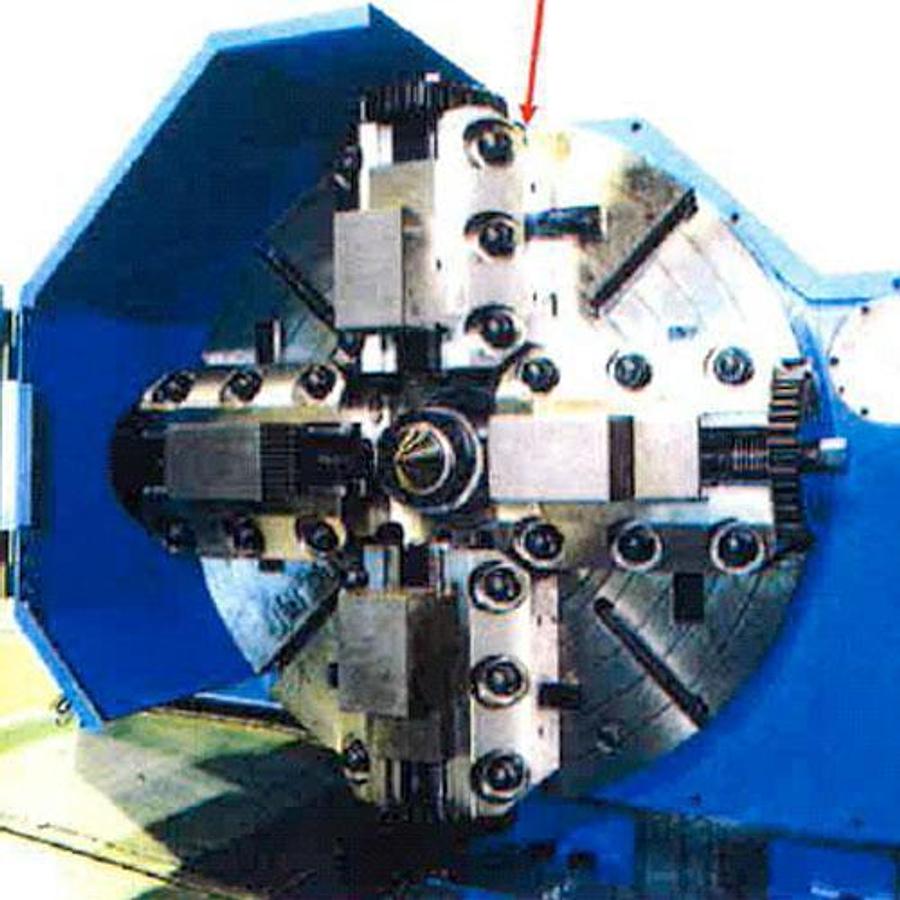

Special Chuck

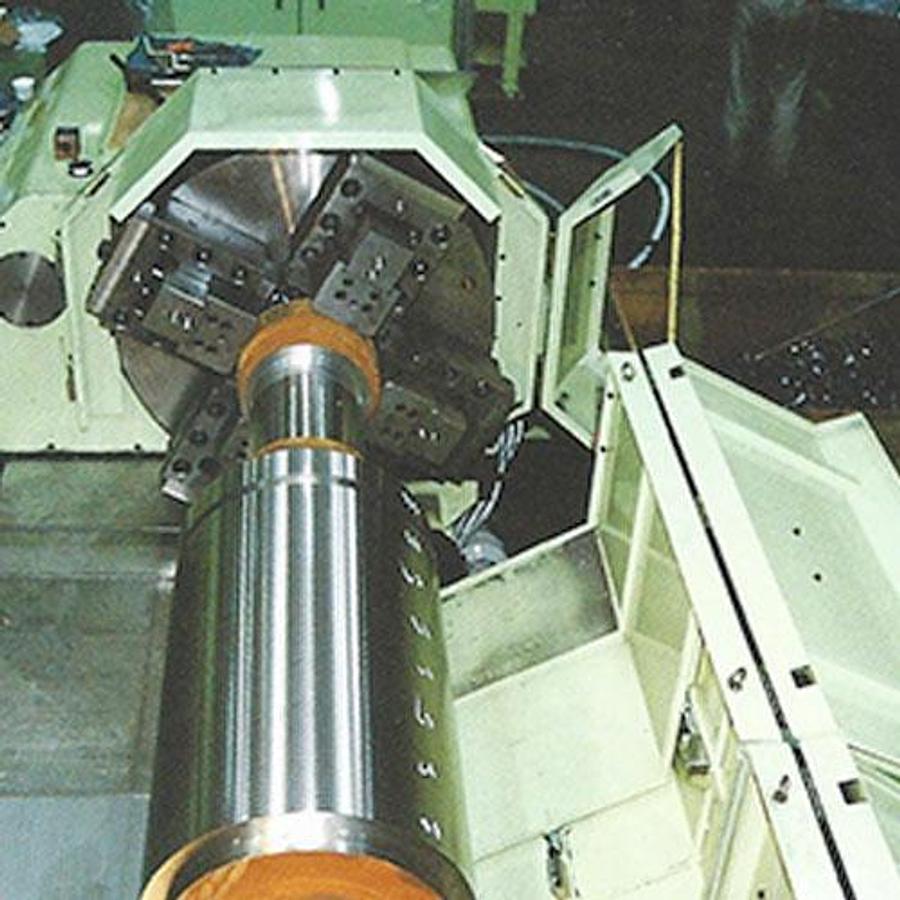

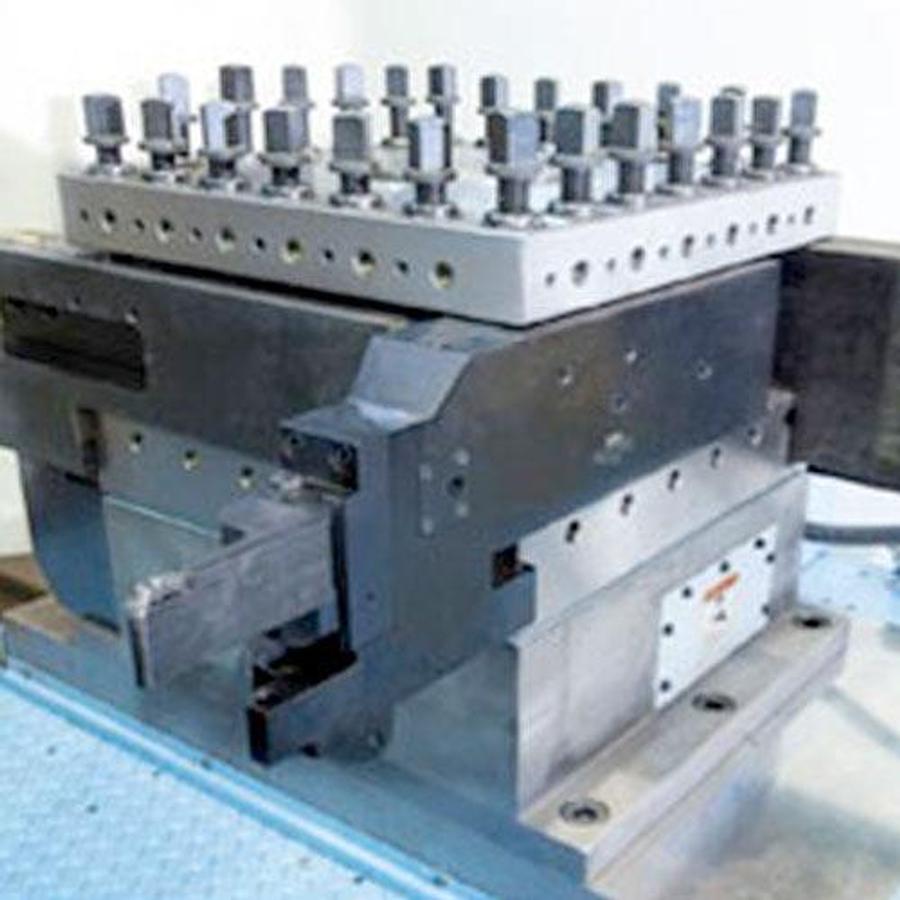

Special Turret

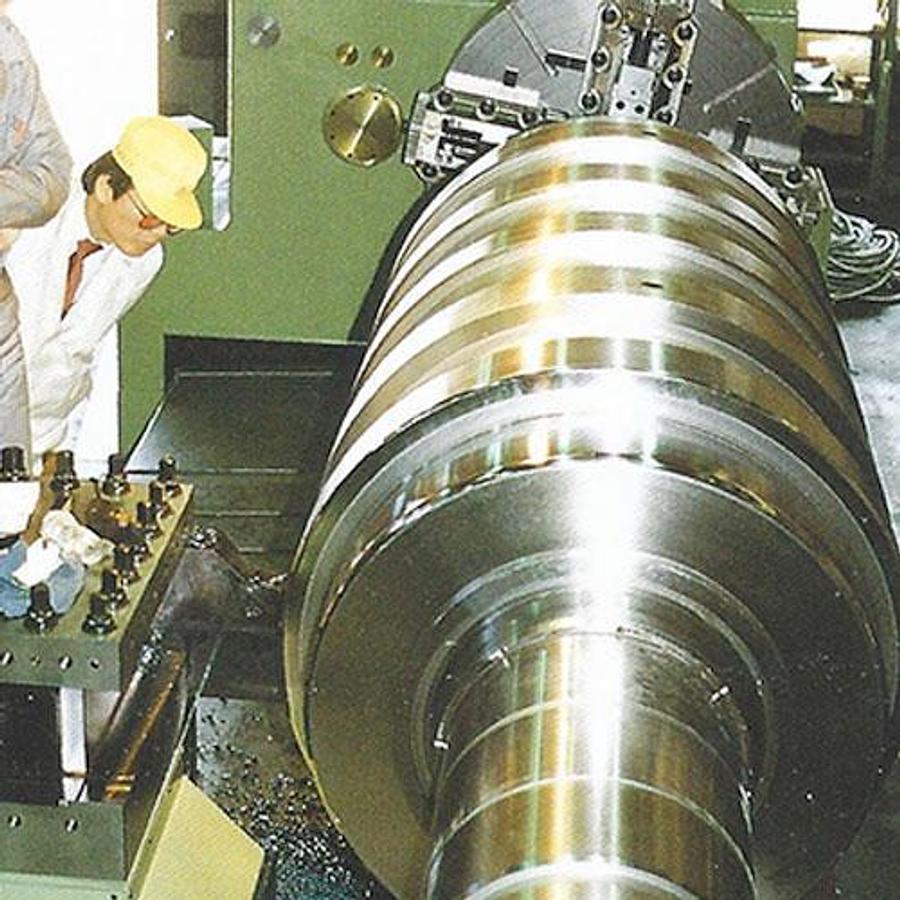

DR80 / Roll Manufacturing

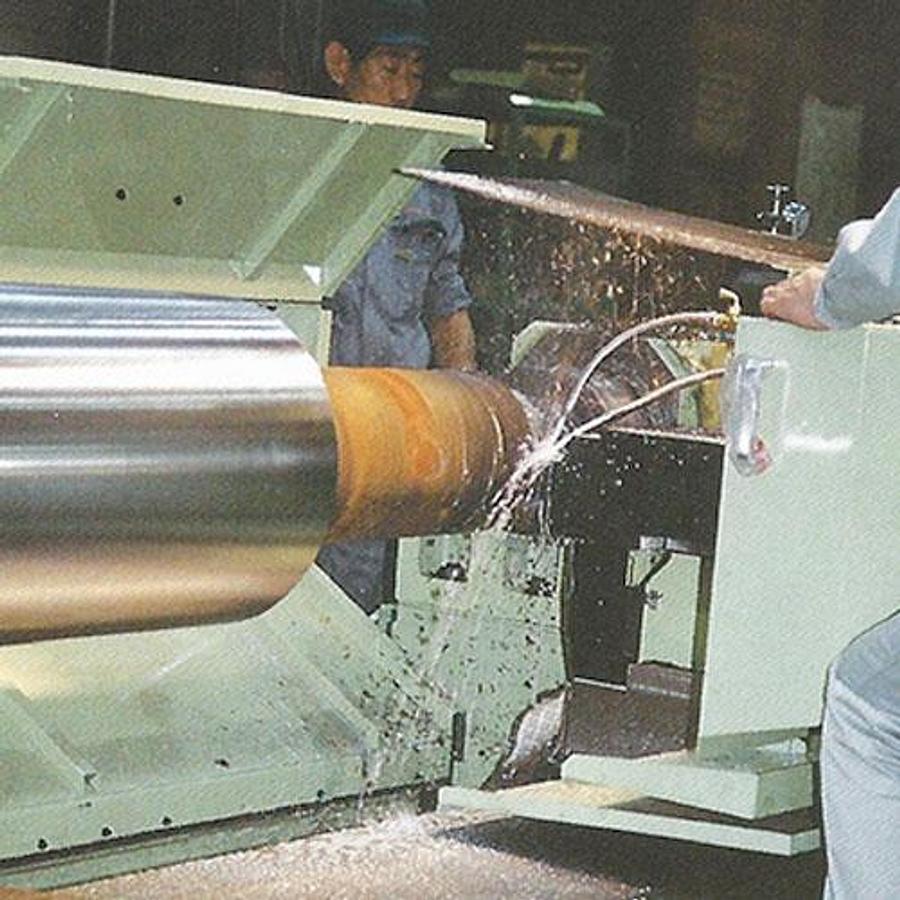

DR80 / Wet Turning Technology
DR100 / Deep Rolling Pass Process
Specifications
| Manufacturer | SB Machine Tools |
| Model | DR80 DR100 Larger Table Available Upon Request |
| Condition | New |
| Swing over Bed | 35" 47" |
| Swing over Carriage | 32" 39" |
| Distance between Centers | 79" - 197" 79" - 197" |
| Max. Supporting Capacity | 22,000 lbs 35,200 - 110,000 lbs |
| Main Drive Motor | 50/60 hp 60/74 hp |
| Spindle Speed | 1~224 rpm 1~280 rpm |
