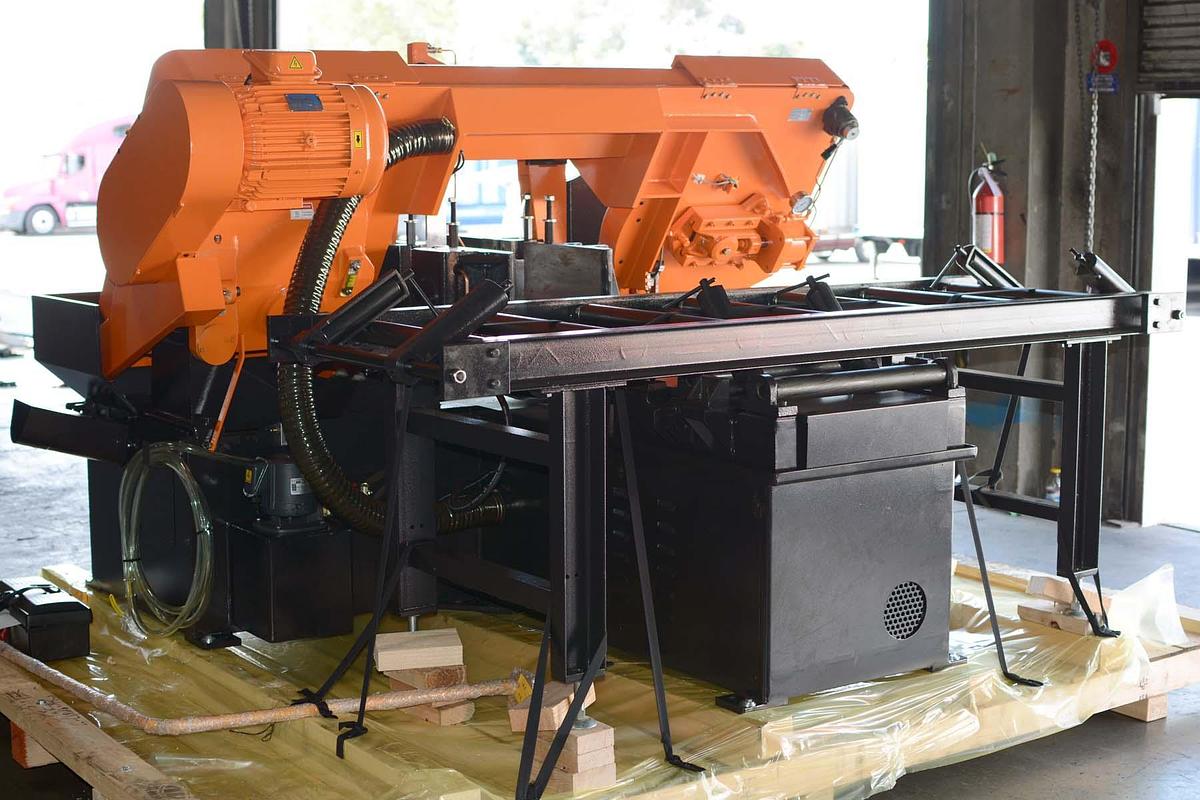

Auto-400H Auto Shuttle Vise Horizontal Bandsaw

Contact us for price
or
Call (519) 212-1782

Description

FEATURES:

  • Pivot type bandsaw

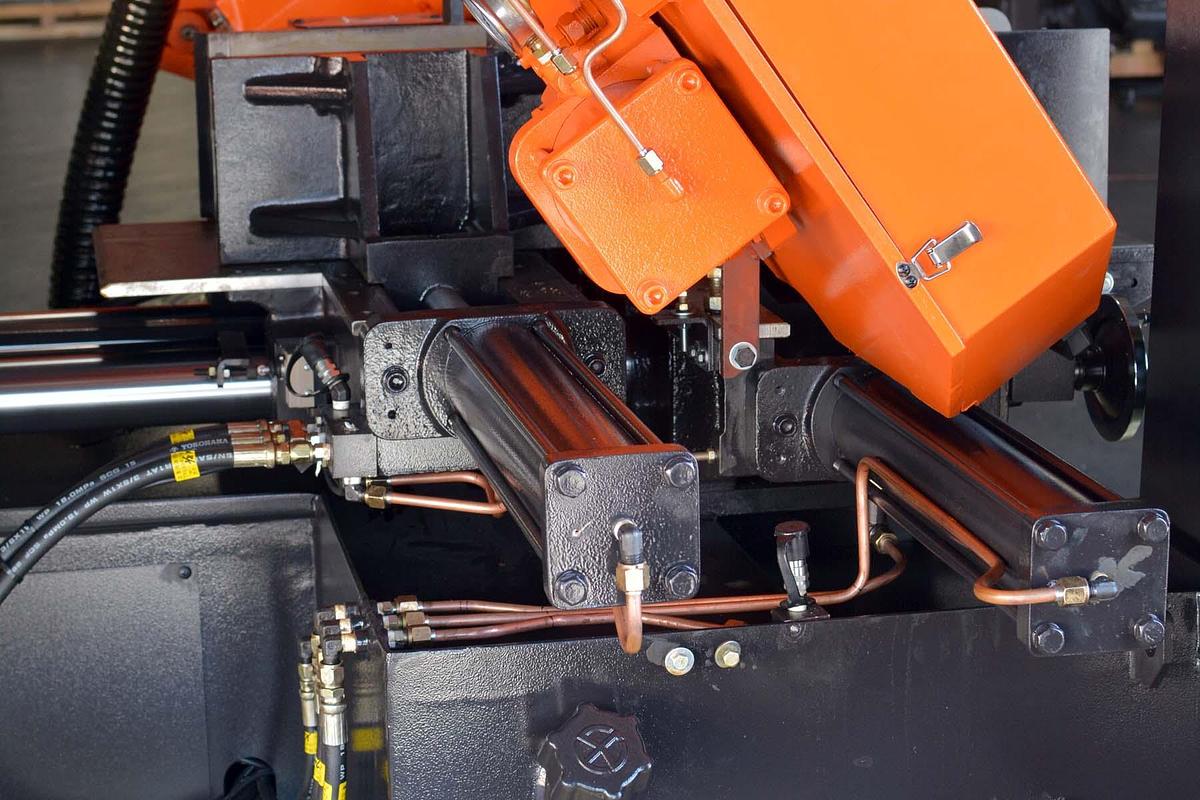

  • Hydraulic full stroke dual-vise clamping system
  • Shuttle type automatic feed
  • Roller bearing with carbide blade guide system
  • Preset cut counter with shut off
  • Out-of-stock shut off
  • Automatic work height control by fast approach bar sensor
  • Infinitely variable speed control by inverter
  • Power driven blade cleaning brush
  • Hydraulic blade tensioning
  • Floating shuttle vise system
  • PLC control for all electric and hydraulic functions
  • Nesting fixture for bundle cutting
  • Split front vise
  • Idler wheel motion detector with blade stalling and breakage shut off
  • Flushing hose for machine cleaning
  • Work light
  • Blade speed tachometer
  • Automatic chip conveyor

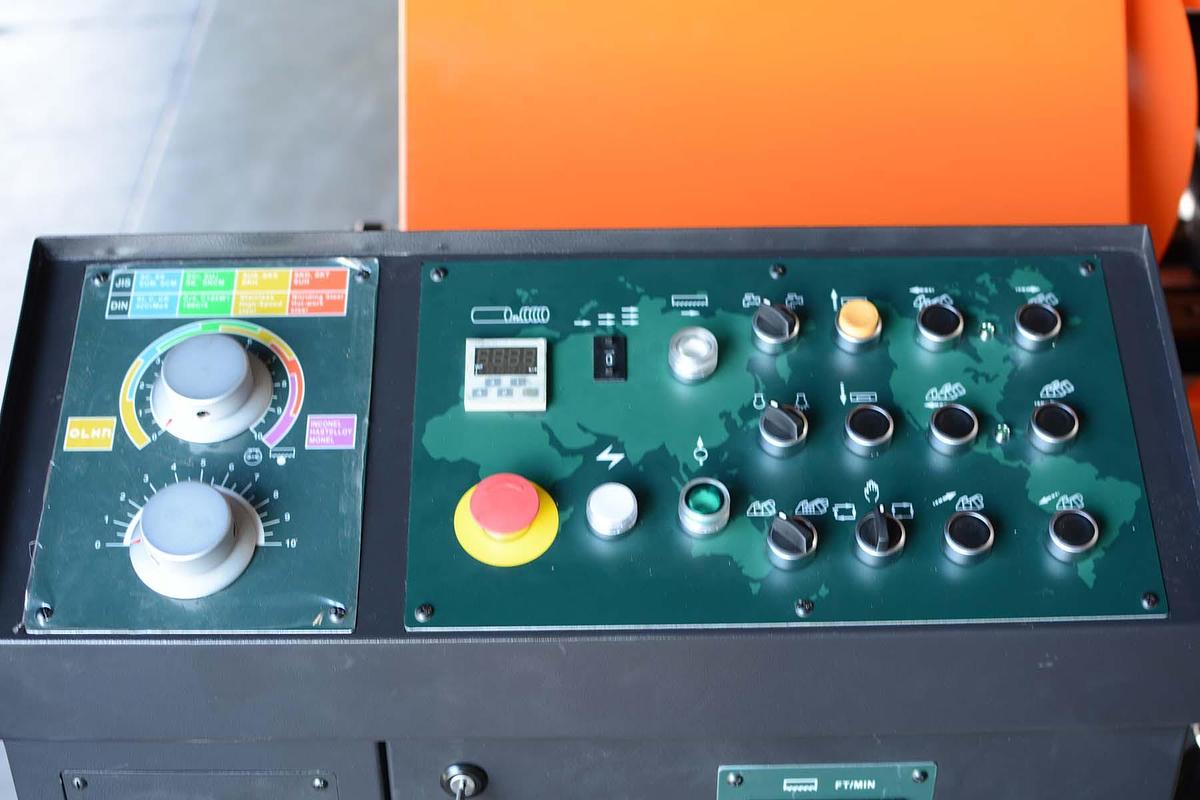

  • NC touch screen control with a self-diagnostic system

    • STANDARD ACCESSORIES:

  • NC touch screen control
  • Automatic chip conveyor
  • Roller table
  • Standard saw blade
  • Work light

    • Show All

    Specifications

    ModelAuto-400H
    ConditionNew
    TypeAuto Shuttle Vise Horizontal Bandsaw
    Round capacity (90º)16.5"
    Rectangular (90º)16.5" x 16.5"
    Speed65 ~ 330 fpm
    Size180" x 1.6" x 0.05"
    TensionHydraulic
    GuidesRoller bearing Carbide guides
    CleaningPowered wire brush & flood coolant
    Blade motor7.5 HP 3 Phase
    Hydraulic motor2 HP
    Coolant pump motor1/4 HP
    Work feeding typeHydraulic automatic
    Vise typeHydraulic dual-vise clamping system
    Dimensions (LxWxH)91" x 100" x 80"
    Gross weight5,190 lb.
