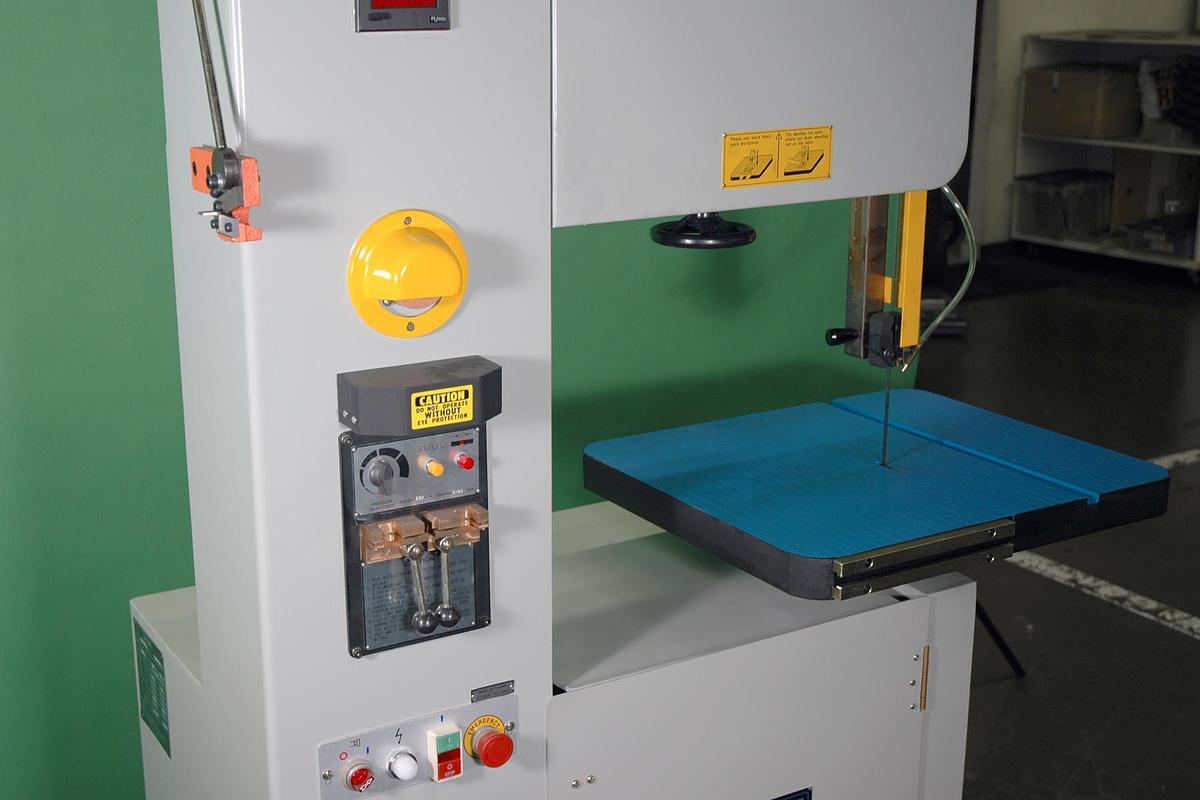

DCM-5TS Vertical Bandsaw

FEATURES:

Machine frame is completely enclosed steel construction. Sturdiness design guarantees highest efficiency and quiet operation

4-way tilting heavy cast iron table with T-slot

2-speed transmission is powered by enclosed gears running in continuous bath of oil with infinite vari-speed control unit

Convenient blade speed tachometer display

Easy quick adjustable blade guides firmly support blade

Upper / lower V-type saw guide with ground carbide inserts corresponding to blade size in use. Air nozzle blows off chips as in sawing

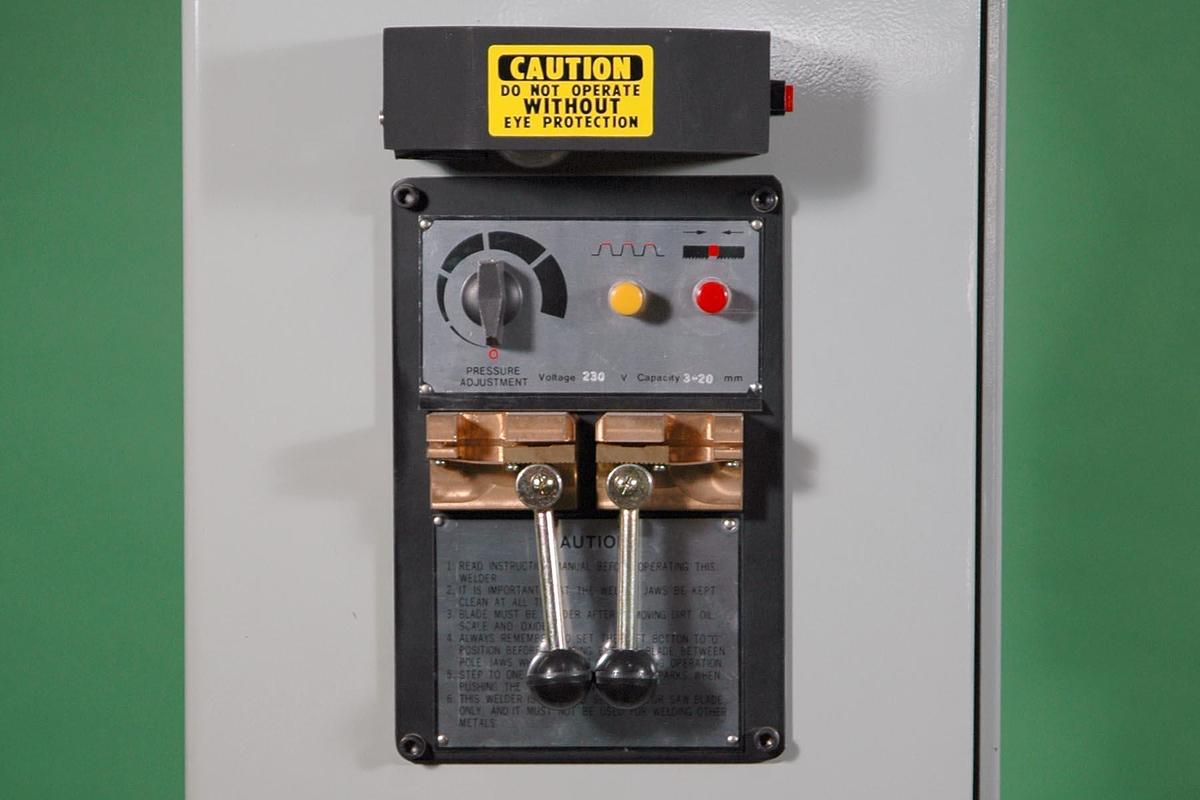

Butt welder and annealing unit provides easy welding work

Built-in work light

STANDARD ACCESSORIES:

Saw blade cutter

Saw blade welder

Saw blade grinder

LED blade speed display

Air nozzle

Halogen work light

Standard saw blade - 1 piece

OPTIONAL ACCESSORIES:

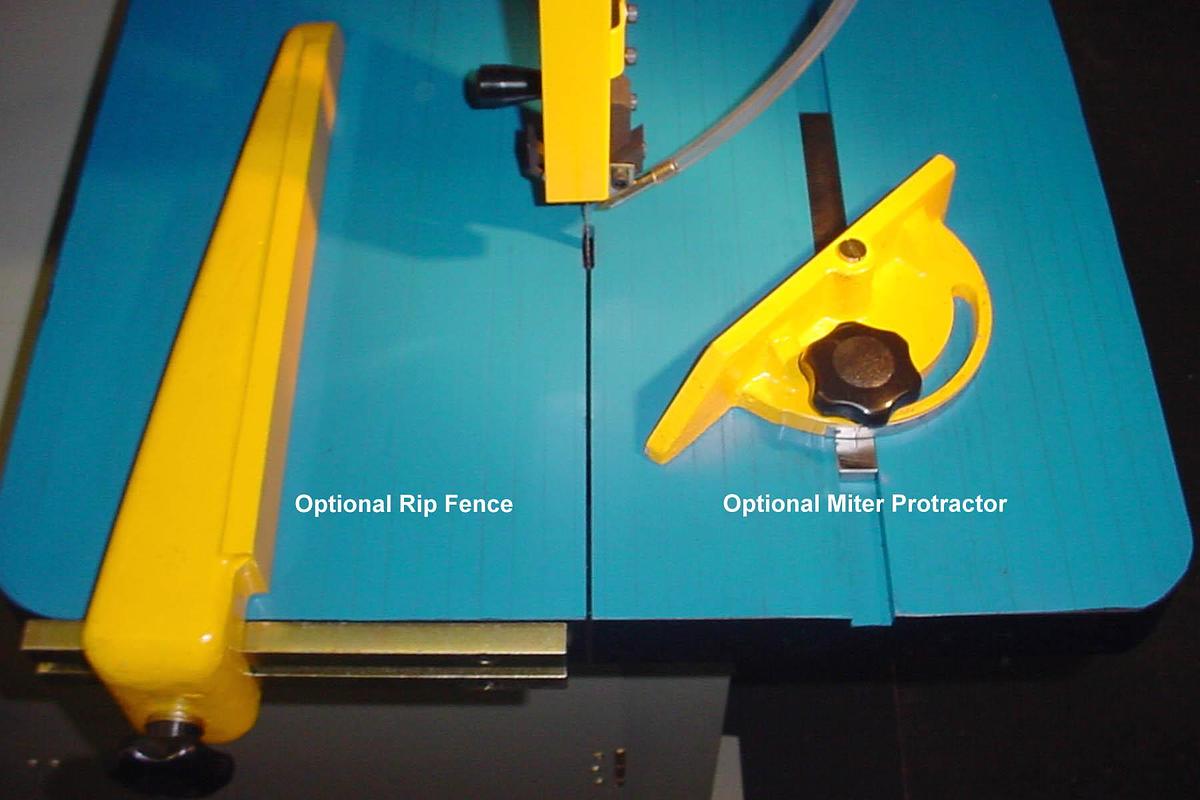

Rip fence for straight cutting

Miter protractor for angular cutting

Model	DCM-5TS
Condition	New
Type	Vertical Bandsaw (with T-slot Table)
Throat capacity	19.625"
Max. thickness	11.00"
Table size	23.50" x 19.50"
Table inclination (4-way)	15°
Speed	Low 65 ~ 280 fpm / High 400 ~ 1,640 fpm (98 ~ 2,300 fpm optional high speed)
Length	153"
Width	1/8" ~ 5/8"
Butt welder capacity	1/8" ~ 5/8"
Main motor	2 HP 3 Phase
Dimensions (LxWxH)	51" x 30" x 85"
Net weight	960 lb.
Gross weight	1,125 lb.
