JF-5EVS Mill 10"x54" Table
Contact us for price
Description

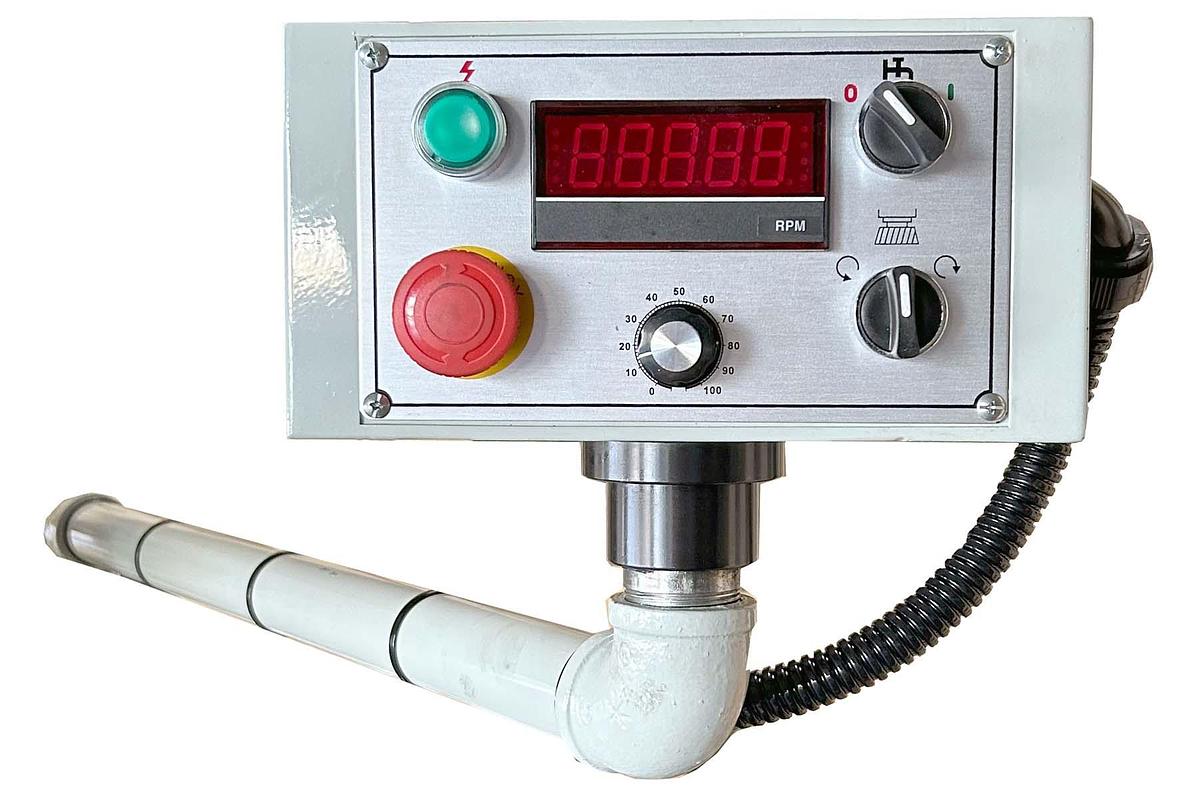

Victor JF-5EVS electronic variable speed vertical knee mill is driven by 5 HP frequency inverter drive comes with rigid one-piece bed and a special double wall designed box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.
FEATURES:
STANDARD ACCESSORIES:
STANDARD ACCESSORIES:
STANDARD ACCESSORIES:
STANDARD ACCESSORIES:
STANDARD ACCESSORIES:
Specifications
| Model | JF-5EVS |
| Condition | New |
| Type | Electronic Variable Speed Mill |
| Table size | 10" x 54" |
| Longitudinal travel (X-axis) | 40" (no powerfeed) 36" (with powerfeed) |
| Cross travel (Y-axis) | 16" |
| Vertical travel of knee | 16" |
| Distance from spindle nose to table | 20.75" |
| Slide ways | Square |
| Spindle motor | 5 HP 3 Ph. (single phase optional) |
| Spindle taper | NMTB 40 |
| Spindle speeds | 60 ~ 3,600 rpm (inverter drive electronic variable speed) |
| Quill travel | 6" |
| Quill feeds | 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm) |
| Quill diameter | 4.13" |
| Swiveling angle of head | 90° |
| Head inward & outward | 45° |
| Overall height | 84" |
| Overall depth | 77.18" |
| Overall width | 105" |
| Packing Dimensions (LxWxH) | 70" x 62" x 76" |
| Approx. Net weight | 3,590 lb. |
