JF-2EVS Mill 9"x49" Table
Contact us for price
Description

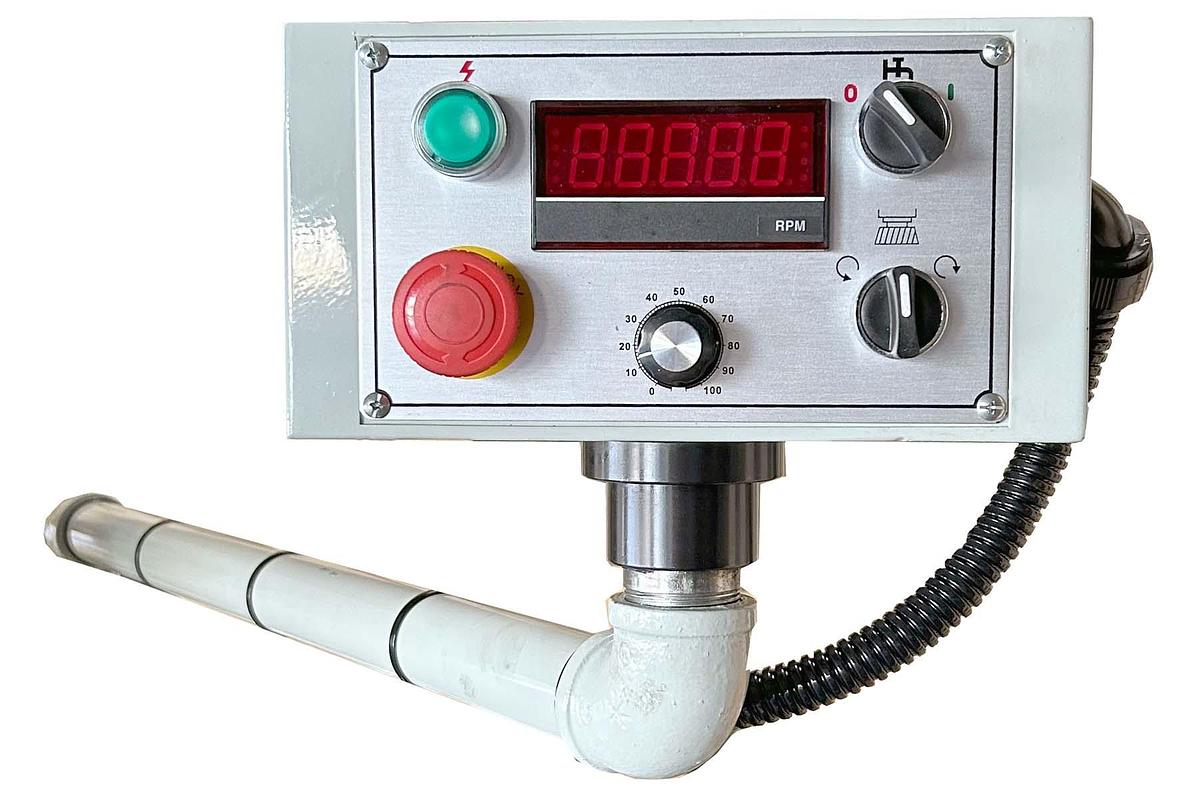

Victor JF-2EVS electronic variable speed vertical knee mill is driven by 3 HP frequency inverter drive is built to highest quality standards to ensure reliability and consistency.
FEATURES:
STANDARD ACCESSORIES:
Specifications
| Model | JF-2EVS |
| Condition | New |
| Type | Electronic Variable Speed Mill |
| Table size | 9" x 49" |
| Longitudinal travel (X-axis) | 35" (no powerfeed) 32" (with powerfeed) |
| Cross travel (Y-axis) | 12" |
| Vertical travel of knee | 16" |
| Distance from spindle nose to table | 18.5" |
| Slide ways | Dovetail |
| Spindle motor | 3 HP 3 Ph. (single phase optional) |
| Spindle taper | R8 |
| Spindle speeds | 60 ~ 4,200 rpm (inverter drive electronic variable speed) |
| Quill travel | 5" |
| Quill feeds | 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm) |
| Quill diameter | 3-3/8" |
| Swiveling angle of head | 90° |
| Head inward & outward | 45° |
| Overall height | 83" |
| Overall depth | 76.15" |
| Overall width | 89" |
| Packing Dimensions (LxWxH) | 55" x 54" x 74" |
| Approx. Net weight | 2,050 lb. |
