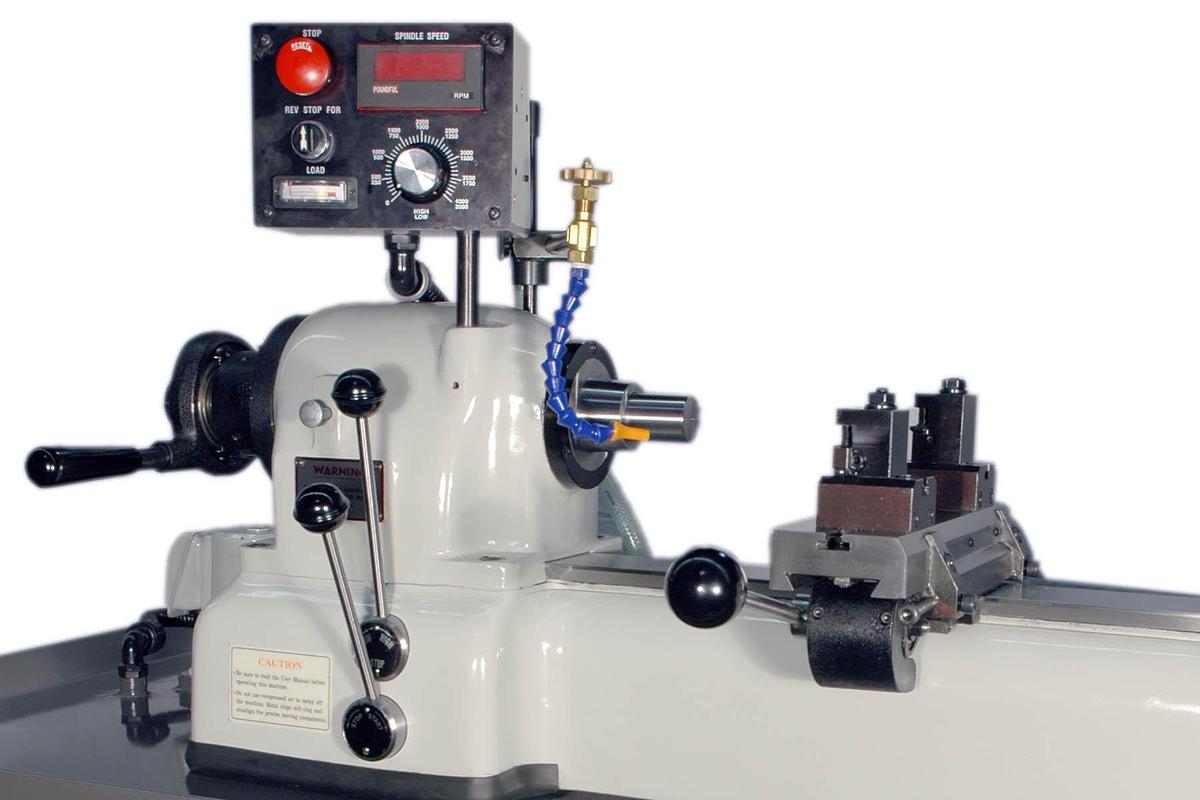

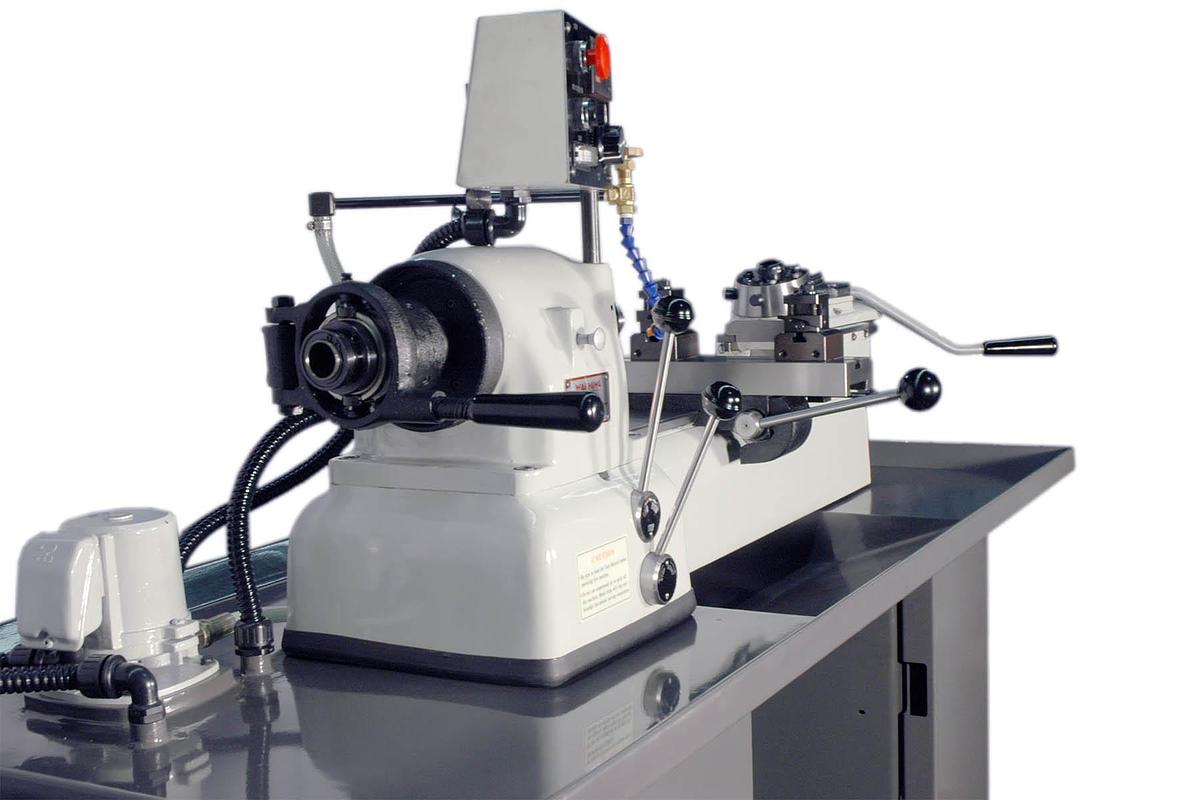

616EVS with Turret

Contact us for price
or
Call (519) 212-1782

Description

FEATURES:

  • Easy to read digital display on actual spindle rpm
  • High precision preloaded ball bearing 6-station turret with indexing lever
  • Fully enclosed preloaded angular contact ball bearing headstock with splash shield for spindle
  • Fast lever collet chucking with a single movement
  • Hardened and ground alloy tool steel bedways.
  • Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings

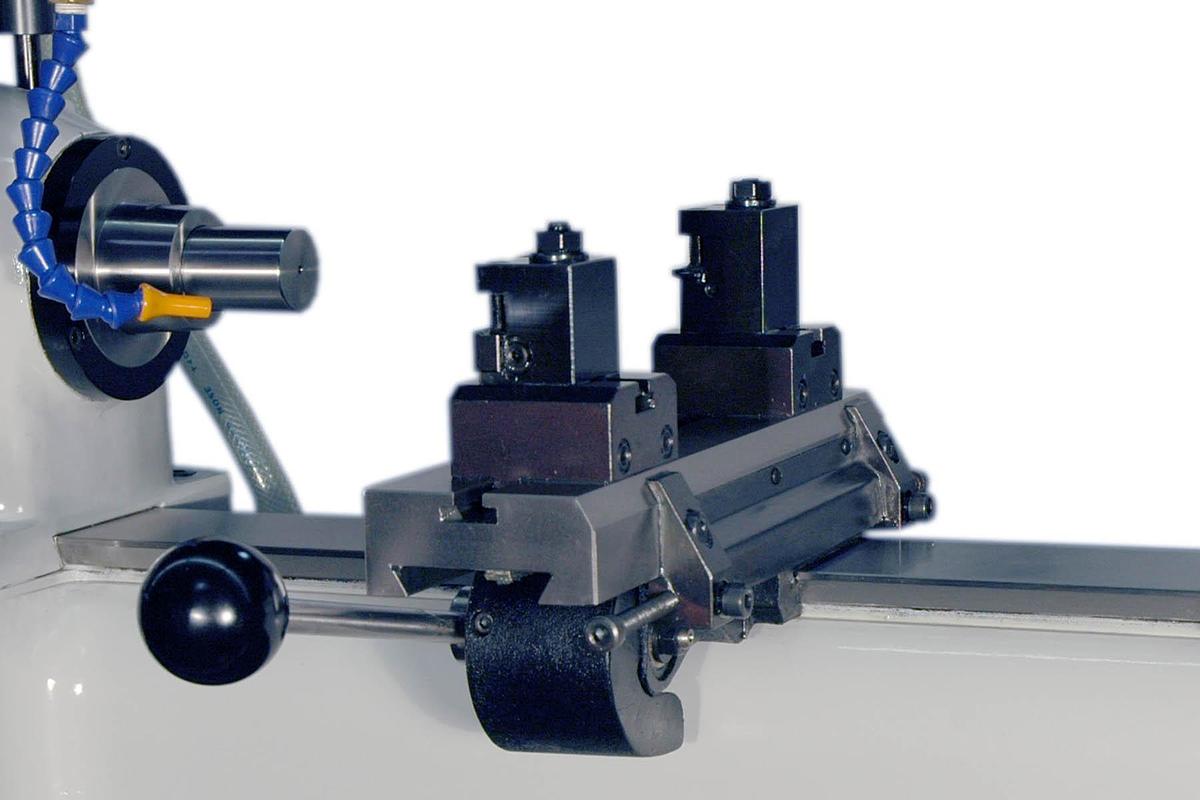

  • Double cross slide is held securely to the bed by a mating dovetail section and can be locked in any position on the bed.
  • 5C lever type collet closer standard
  • 3 HP frequency controlled motor
  • Yaskawa Inverter Drive

    • STANDARD ACCESSORIES:

  • Variable frequency drive
  • 5C lever type collet closer
  • Double tool cross slide
  • 6-station turret with indexing lever
  • Coolant system
  • Leveling screws and pads
  • Manual and parts list
    • OPTIONAL ACCESSORIES:

     Releasing tap holder

    Adjustable rotary stop

    Drill chuck arbor

    Drill chuck



    Knee tool

    Tool holder extension

     5C collet fixture plate

     5C collet set



     Vertical cut-off slide without cut-off blade

     Straight and taper turning slide for double tool cross slide


    6" zero-set 3-jaw scroll chuck with 4º taper back plate

    6" 4-jaw independent chuck with 4º taper back plate

     Chip and coolant shield

    Step chuck and closer

    Compound slide

    Threaded positive stops

     Slide tool

     Quick action recessing tool

    Fixture plate

     Adjustable holder

     Radius turning attachment

     Centering and facing tool

     Tool setting gage

     Universal collet stop

     Quick change adjustable holder

     Knurling holder

     End-working slide

     Releasing die nut holder

    Show All

    Specifications

    Model616EVS
    ConditionNew
    TypeElectronic Variable Speed Second Operation Lathe
    With jaw chucks6"
    With expanding collets3"
    With round 5C collets1-1/16"
    With hexagon 5C collets7/8"
    With square 5C collets3/4"
    With step chucks1-1/16" to 6"
    Spindle nose diameter2.189"
    Spindle nose I.D. / O.D.5C / 4° taper
    Variable spindle speeds0 ~ 4,000 rpm (5C collet)
    Swing over bed9"
    I.D. of turret head5/8"
    Double tool cross slide travel3-3/4"
    Turret slide travel4"
    Inverter spindle motor3 HP 220V 3PH
    Coolant pump1/8 HP
    Machine dimensions (LxWxH)69"x28"x63"
    Gross weight1,364 lb.
