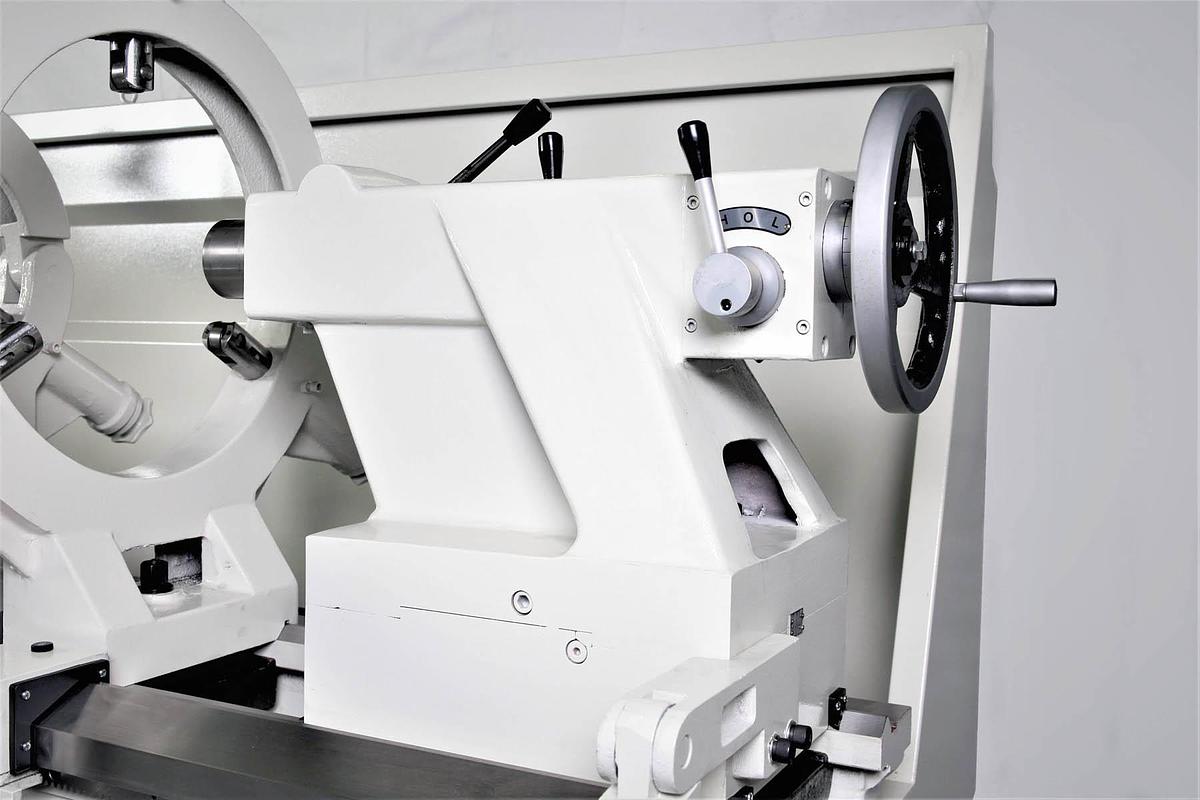

3260RS / 3280RS / 32120RS / 32160RS / 32200RS / 32240RS

Contact us for price
or
Call (519) 212-1782

Description

Victor 3200RS series lathe is designed to provide outstanding performance and structural rigidity with a 4-1/8" spindle bore and 20 HP main motor.

FEATURES:

  • 4-1/8" spindle bore with D1-11 camlock spindle nose
  • The precision ground spindle is supported at three points by high-precision bearings
  • Heavily ribbed wide bed with induction hardened and precision ground bed ways for rigidity and low vibration

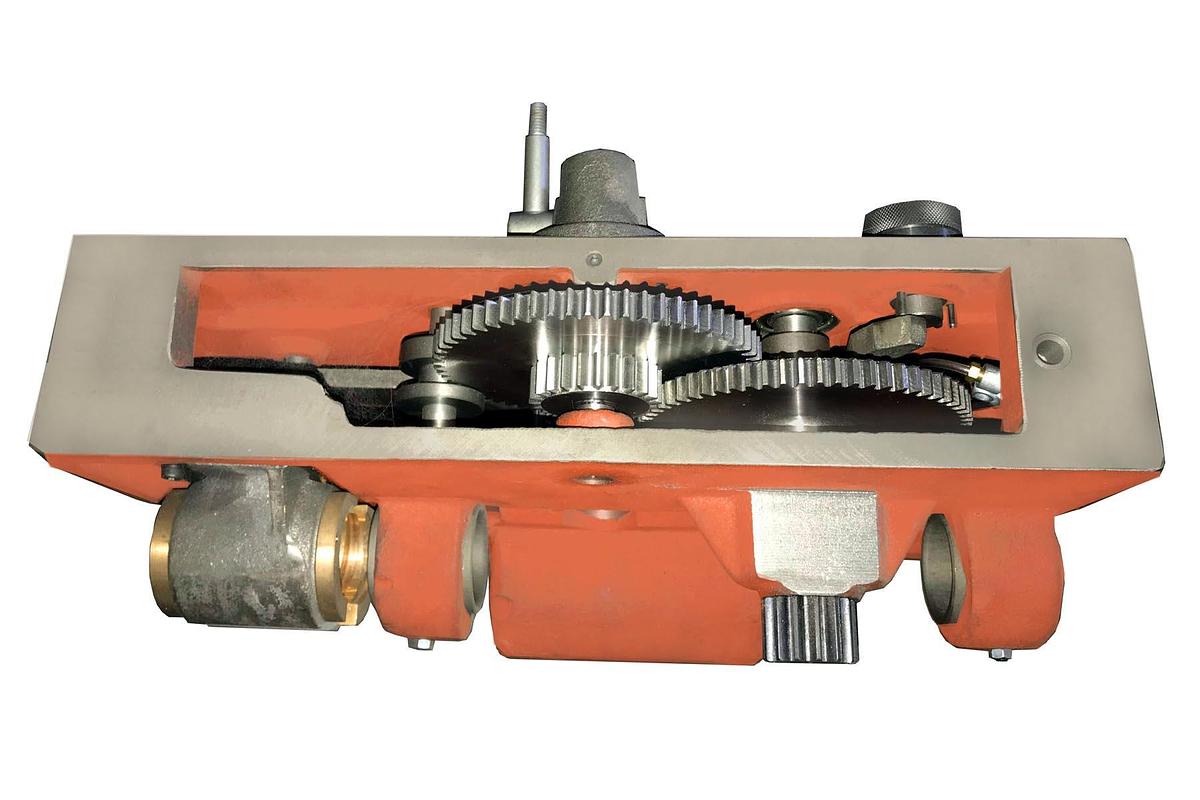

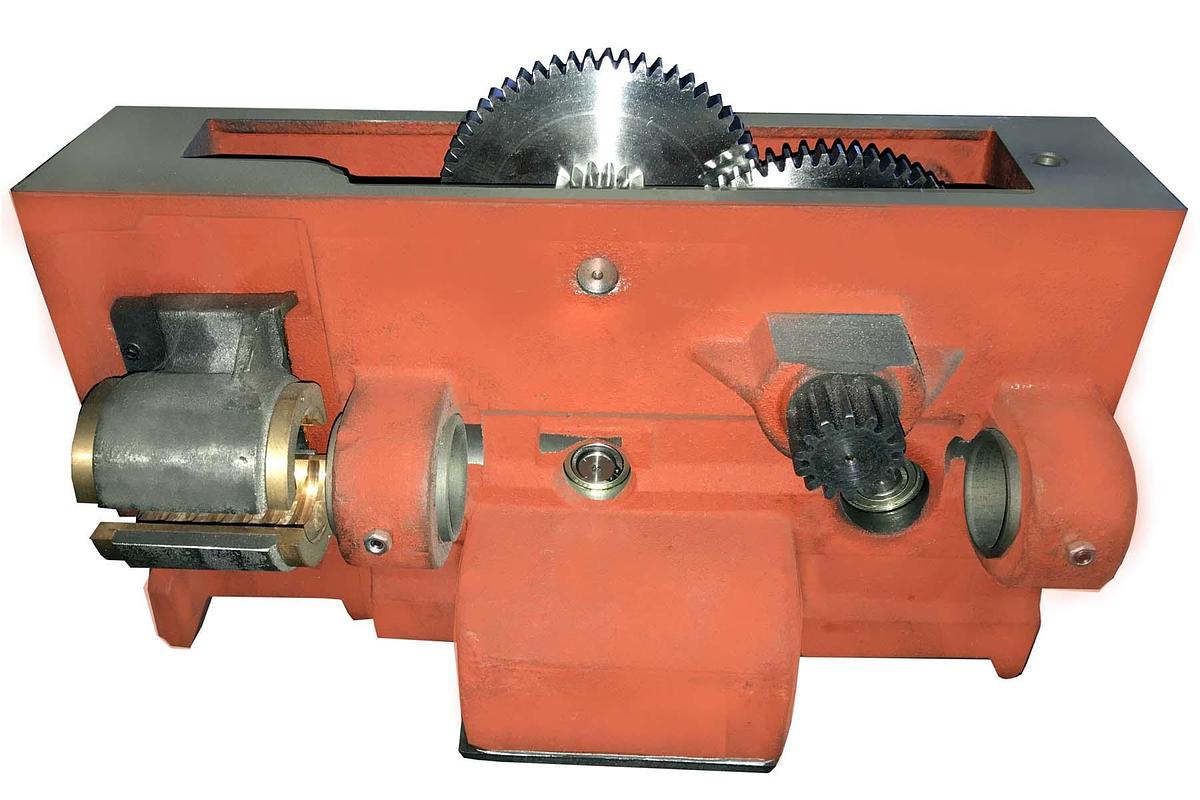

  • Hardened and precision ground alloy steel gears and shafts

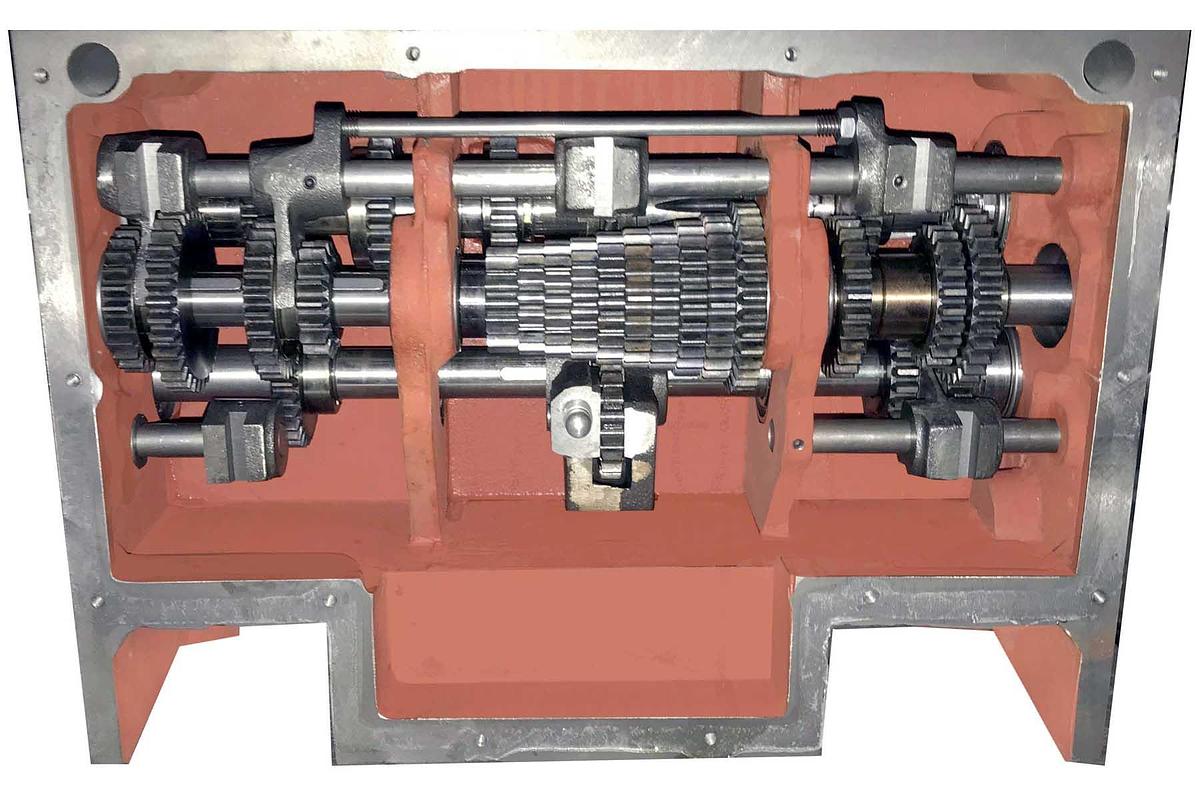

  • Universal gearbox for inch, metric, D.P., and module threading without changing gears
  • Automatic and manual dual-mode lubrication system for slideways
  • Adjustable safety overload device
  • The tailstock quill is equipped with 4:1 reduction gearing ratio to provide easy drilling operation

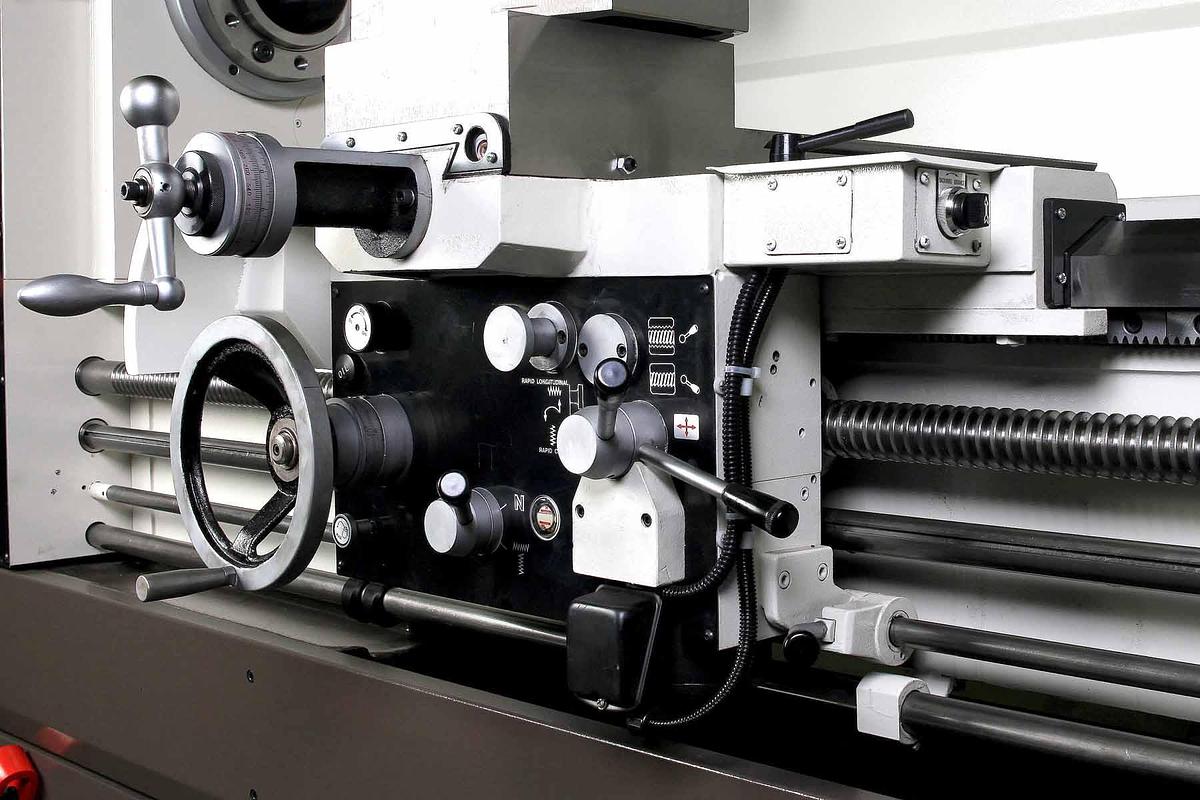

  • Two-way longitudinal power rapid traverse on the model with 120" between centers or longer
  • Automatic stopper for longitudinal feeds
  • 20 HP main motor

    • STANDARD ACCESSORIES:

  • Center sleeve
  • Dead center M.T. #5
  • Threading dial indicator
  • Coolant system
  • Leveling screws and pads
  • Tailstock with two-speed quill
  • Removable gap
  • Two-way power rapid traverse on model with 120" between centers or longer
  • Manual and parts list

    • MACHINE INCLUDES:

  • Steady rest with rollers

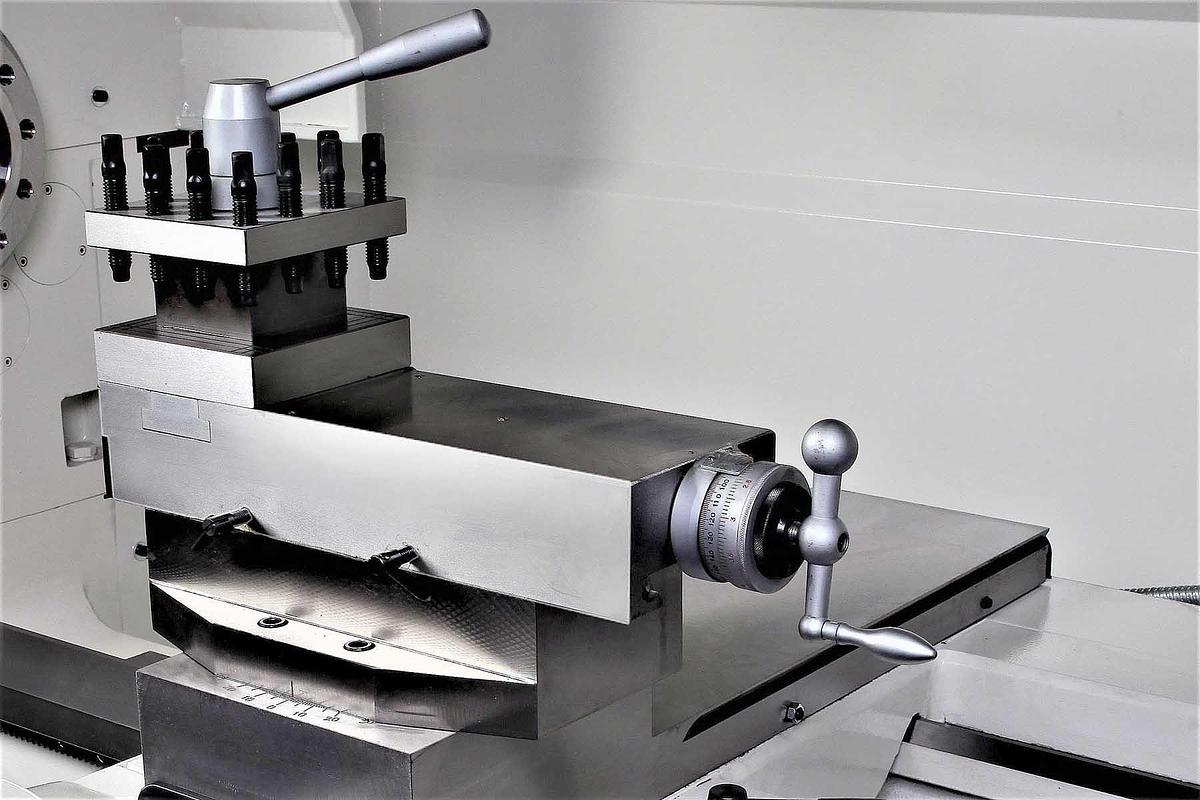

  • 4-way tool post
  • Halogen work light
  • Chuck cover with limit switch

    • Show All

    Specifications

    Model3260RS 3280RS 32120RS 32160RS 32200RS 32240RS
    ConditionNew
    TypePrecision Heavy-Duty Lathe
    Swing over bed32"
    Swing over cross slide23.50"
    Swing over gap44"
    Bed width18-1/8"
    Distance between centers59.06" 78.74" 118.11" 157.48" 196.85" 236.22"

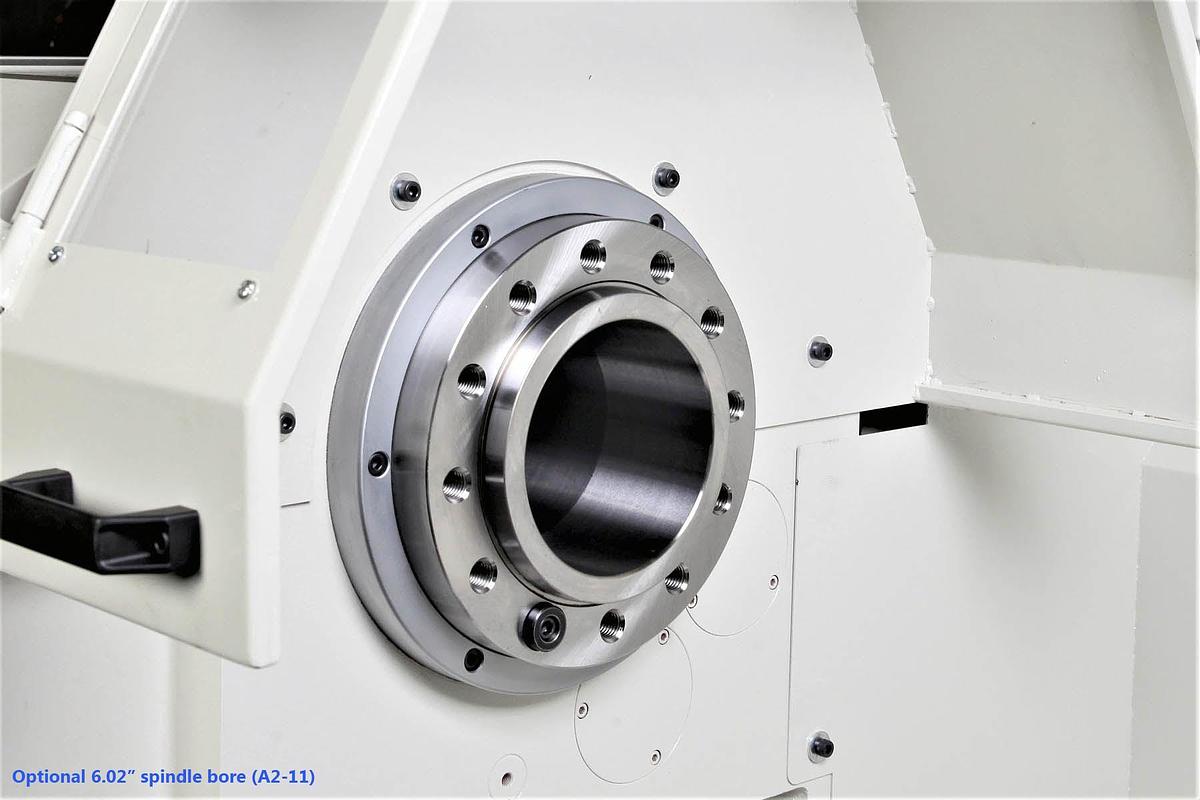

    Spindle bore diameter4.13" (6.02" Opt.)
    Taper of center in sleeveM.T. 5
    Spindle noseD1-11 (Opt. 6.02" bore is A2-11)

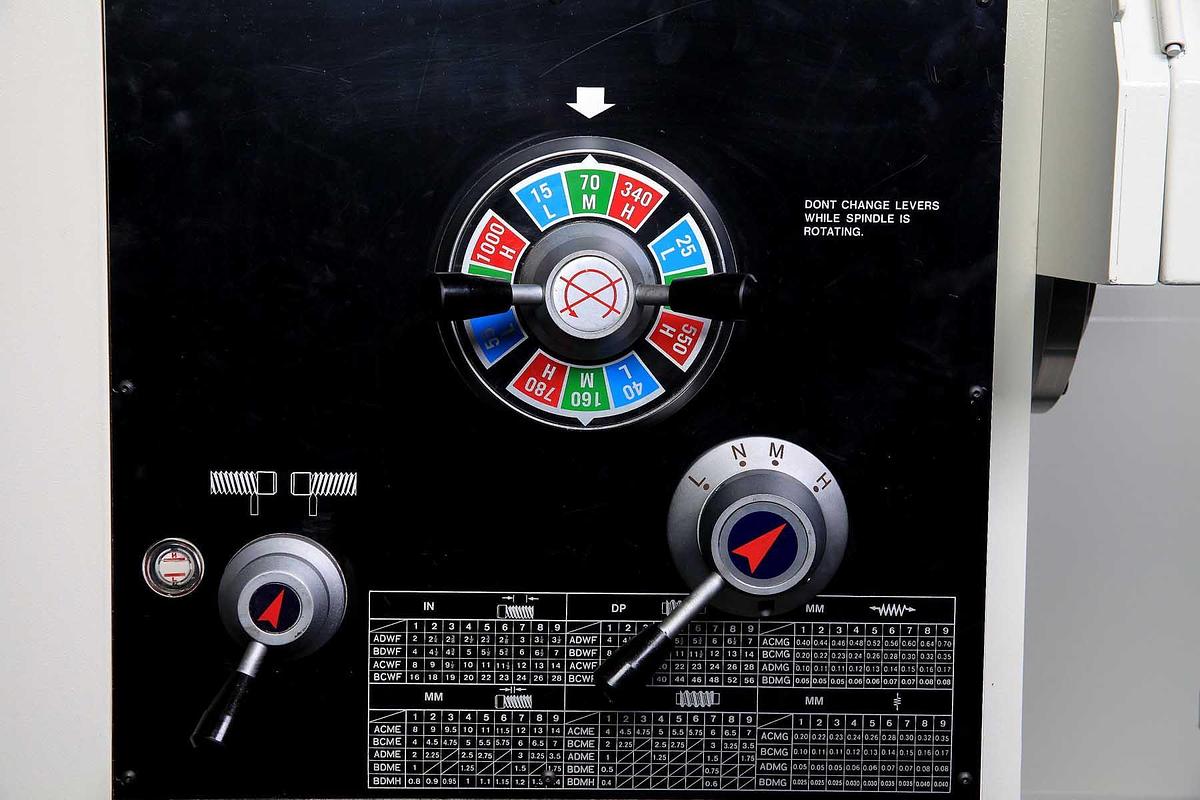

    Number of spindle speeds12 Steps
    Range of spindle speeds (rpm)15 ~ 1,000 rpm
    Range of longitudinal feeds0.0020" ~ 0.0276"/rev.
    Range of cross feeds0.0010" ~ 0.0138"/rev.
    Inch threads2 ~ 28 TPI x 36 kinds
    Metric threads0.8 ~ 14 mm x 38 kinds
    Cross slide travel16-1/2"
    Compound slide travel10"
    Tailstock taper centerM.T. 5
    Tailstock quill travel9"
    Main motor20 HP 3 Phase
    Coolant pump1/8 HP
    Shipping dimensions (LxWxH)136"x52"x71" 156"x52"x71" 197"x52"x71" 237"x52"x71" 276"x52"x71" 315"x52"x71"
    Gross weight7,280 lb. 7,940 lb. 9,480 lb. 10,800 lb. 12,130 lb. 13,450 lb.
