3060E / 3080E / 30100E / 30130E / 30170E Lathe

Contact us for price
or
Call (519) 212-1782

Description

Equipped with a large 4.6" spindle bore, 4-way power rapid traverse, and 15 HP 6 pole motor to handle the utmost demanding work conditions.

FEATURES:

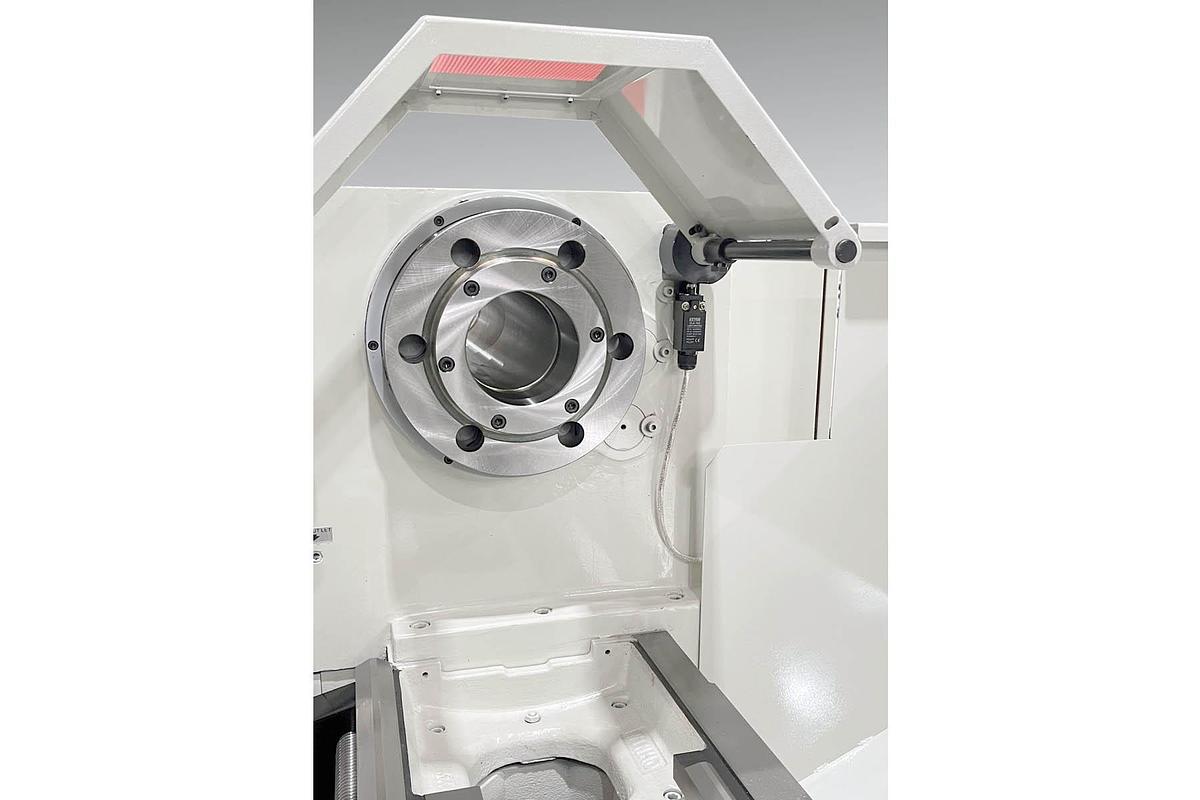

  • 4.6" spindle bore with D1-11 camlock spindle nose

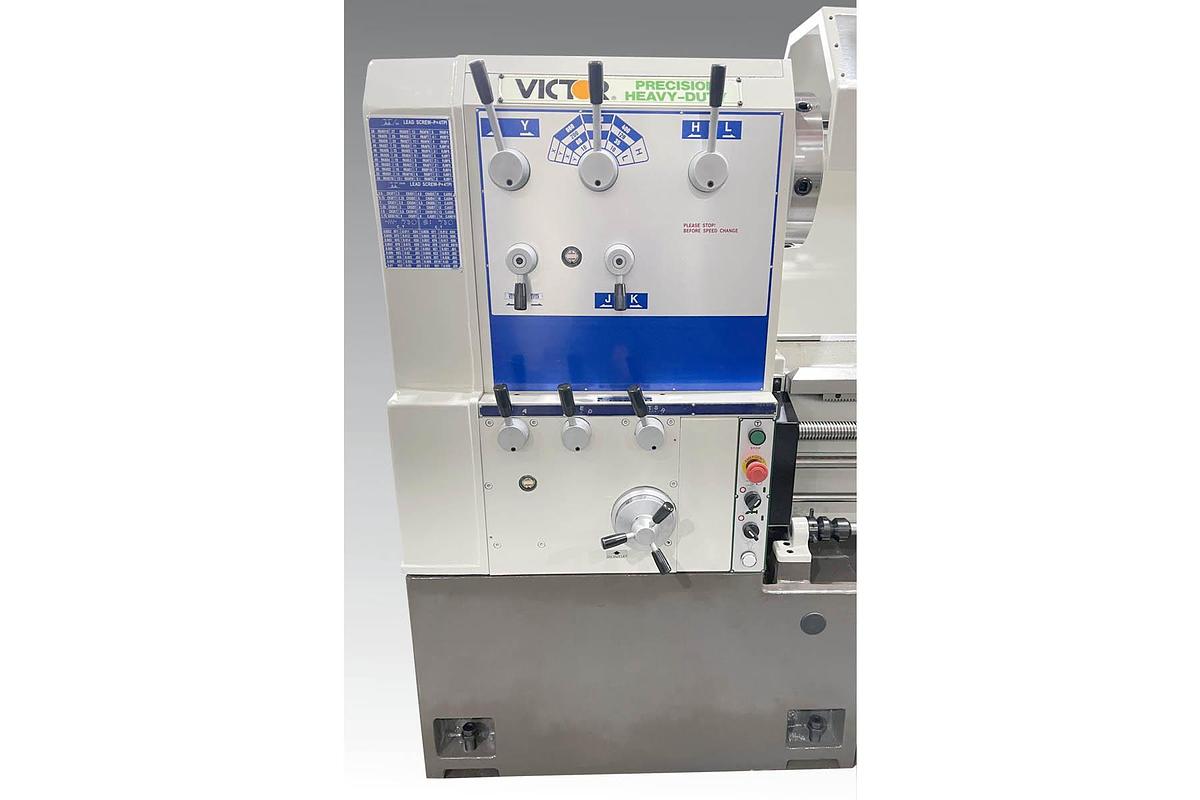

  • Headstock gears are hardened and ground alloy steel for long lasting accuracy
  • One-piece solid base for high rigidity and low vibration
  • Thermal treated Meehanite casting bed
  • Spindle is supported at 3 points with high-precision bearings
  • Overload device to ensure safety when operating

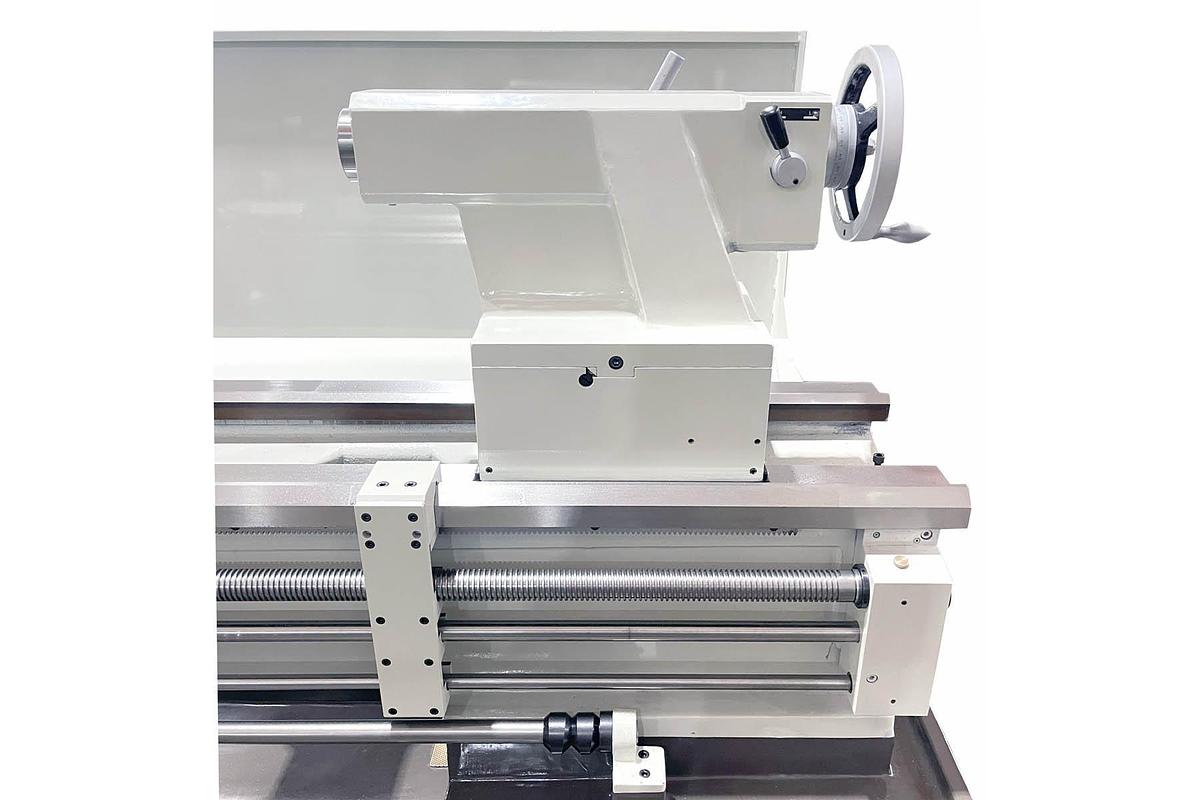

  • Dual-speed tailstock quill provides faster setups
  • Universal gearbox design for both inch and metric threading
  • 4-way power rapid traverse
  • 15 HP 6 pole motor features more torque at a lower RPM

    • STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Center sleeve
  • Auto-feed stopper rings
  • Coolant system
  • Thread dial indicator
  • Safety pin
  • Dead centers M.T. #5
  • Tool box
  • Leveling pads

    • MACHINE INCLUDES:

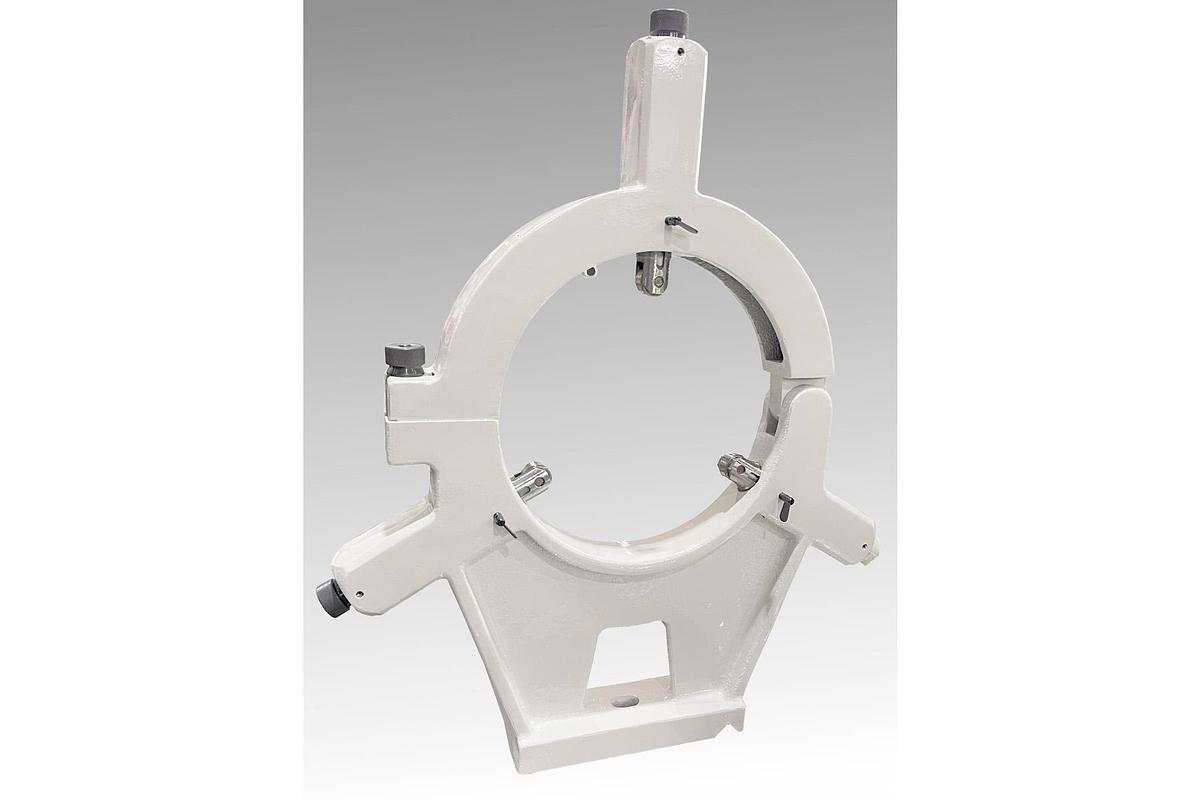

  • Steady rest with rollers

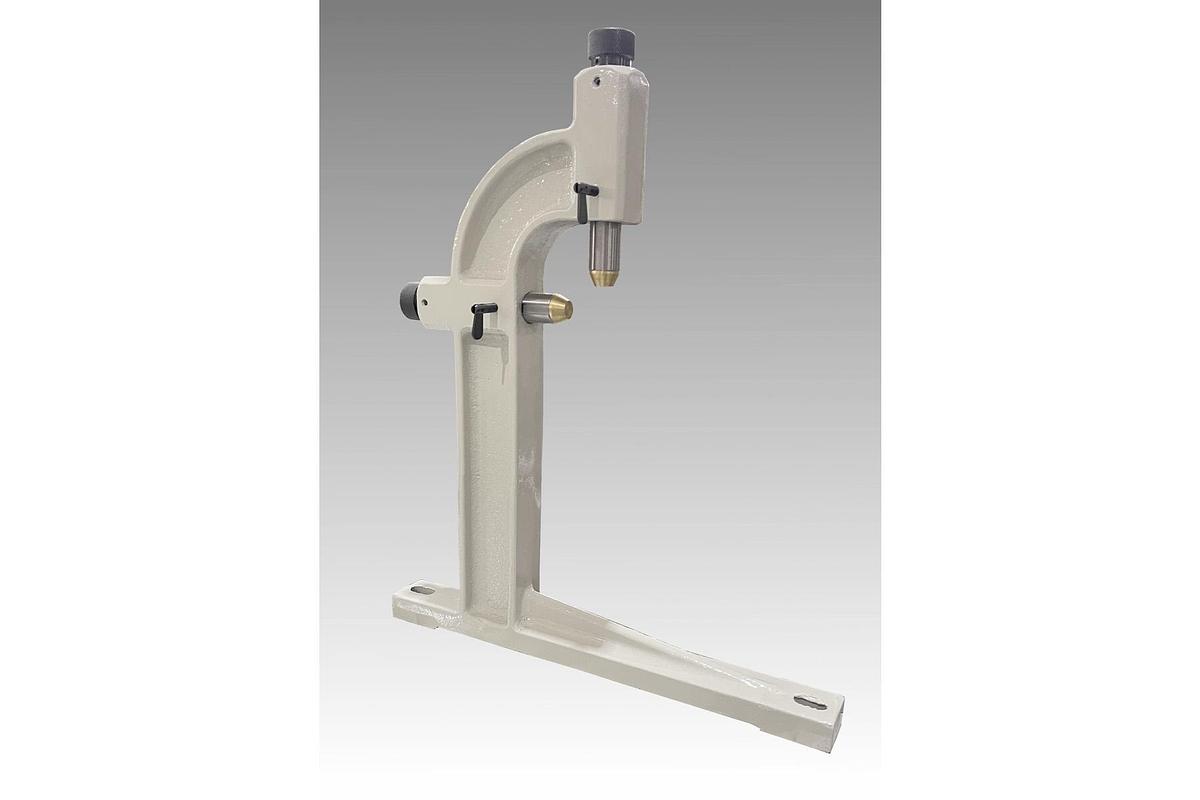

  • Follow rest

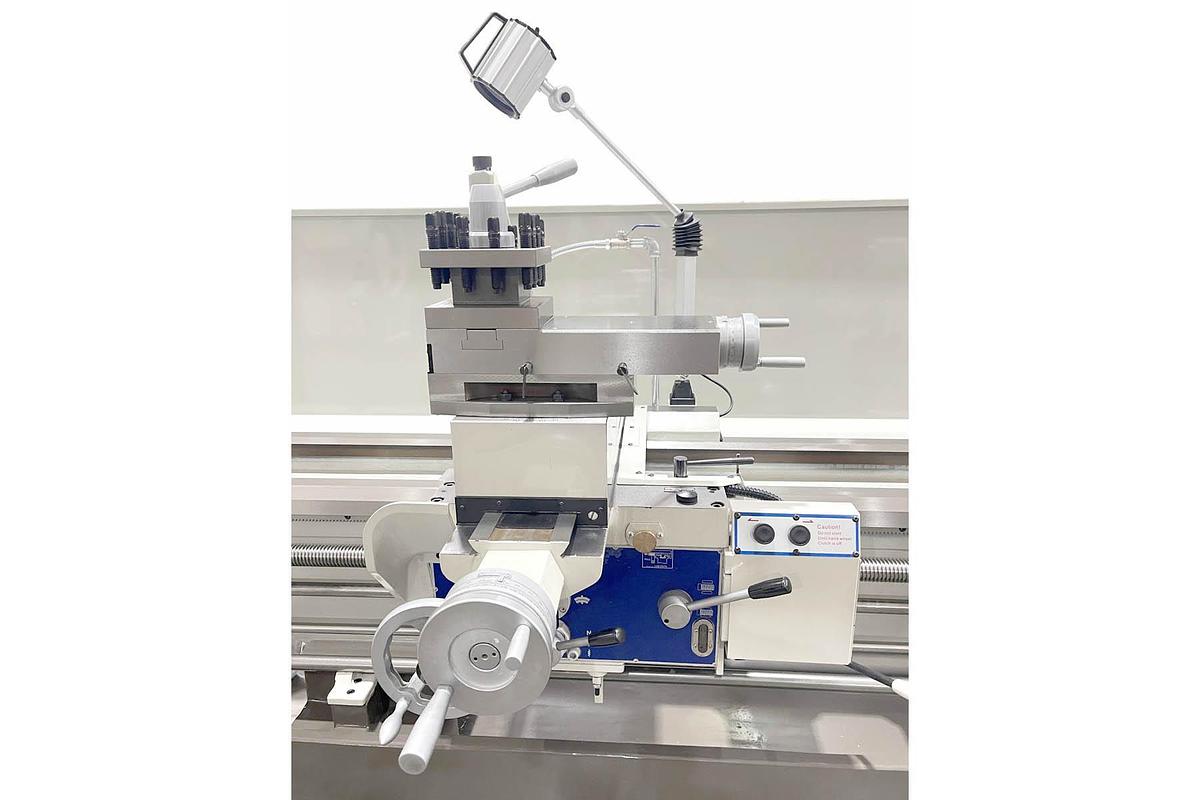

  • 4-way tool post
  • Full length splash guard

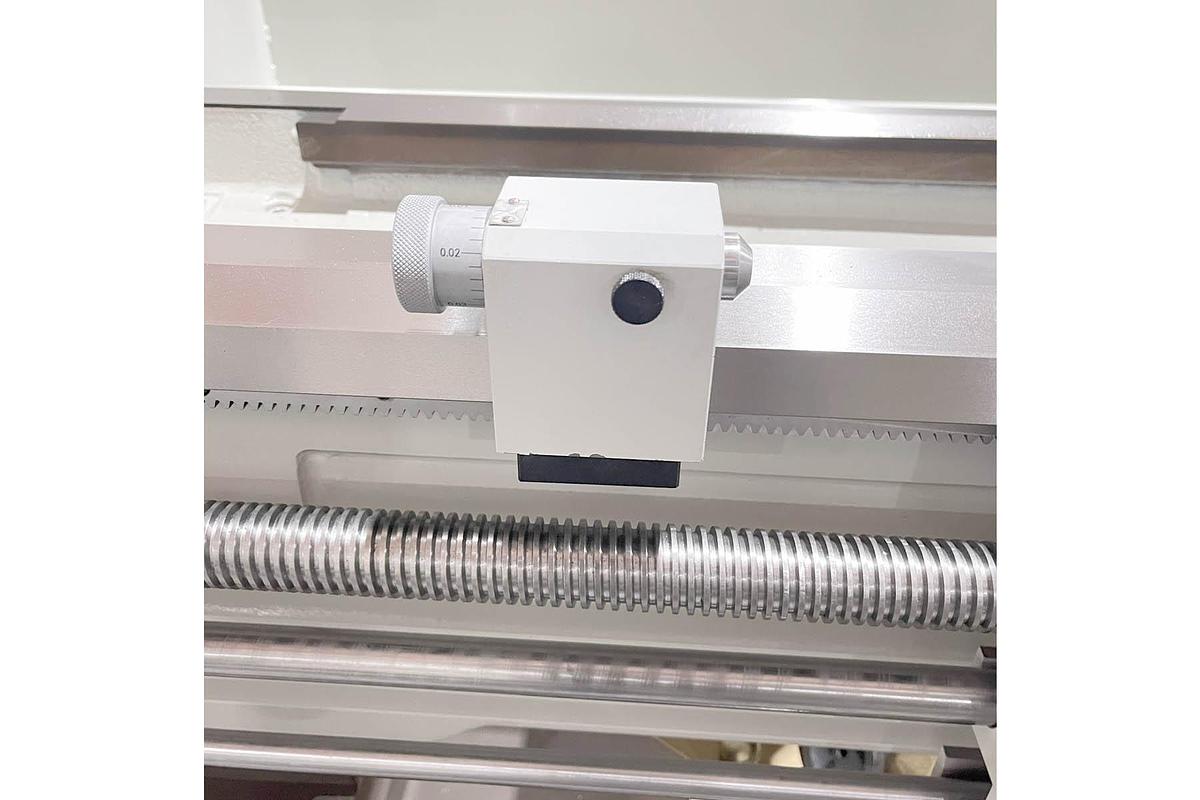

  • Micro carriage stop
  • Halogen work light
  • Chuck cover (16") with limit switch

    • STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Center sleeve
  • Auto-feed stopper rings
  • Coolant system
  • Thread dial indicator
  • Safety pin
  • Dead centers M.T. #5
  • Tool box
  • Leveling pads

    • MACHINE INCLUDES:

  • Steady rest with rollers
  • Follow rest
  • 4-way tool post
  • Full length splash guard
  • Micro carriage stop
  • Halogen work light
  • Chuck cover (16") with limit switch

    • STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Center sleeve
  • Auto-feed stopper rings
  • Coolant system
  • Thread dial indicator
  • Safety pin
  • Dead centers M.T. #5
  • Tool box
  • Leveling pads

    • MACHINE INCLUDES:

  • Steady rest with rollers
  • Follow rest
  • 4-way tool post
  • Full length splash guard
  • Micro carriage stop
  • Halogen work light
  • Chuck cover (16") with limit switch

    • STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Center sleeve
  • Auto-feed stopper rings
  • Coolant system
  • Thread dial indicator
  • Safety pin
  • Dead centers M.T. #5
  • Tool box
  • Leveling pads

    • MACHINE INCLUDES:

  • Steady rest with rollers
  • Follow rest
  • 4-way tool post
  • Full length splash guard
  • Micro carriage stop
  • Halogen work light
  • Chuck cover (16") with limit switch

    • STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Center sleeve
  • Auto-feed stopper rings
  • Coolant system
  • Thread dial indicator
  • Safety pin
  • Dead centers M.T. #5
  • Tool box
  • Leveling pads

    • MACHINE INCLUDES:

  • Steady rest with rollers
  • Follow rest
  • 4-way tool post
  • Full length splash guard
  • Micro carriage stop
  • Halogen work light
  • Chuck cover (16") with limit switch

    • Show All

    Specifications

    Model3060E 3080E 30100E 30130E 30170E
    ConditionNew
    TypePrecision Heavy-Duty Lathe
    Swing over bed30"
    Swing over cross slide21-1/4"
    Swing over gap39"
    Bed width15-3/4"
    Distance between centers59" 79" 98" 126" 166"
    Spindle bore diameter4.6"
    Spindle bore taperM.T. 7
    Taper of center in sleeveM.T. 5
    Spindle noseD1-11
    Number of spindle speeds12 Steps
    Range of spindle speeds (rpm)10 ~ 1,000 rpm
    Speed selections10, 18, 25, 35, 60, 85, 120, 200, 280, 400, 660, 1000
    Range of longitudinal feeds0.0022" ~ 0.03"/rev.
    Range of cross feeds0.0013" ~ 0.0175"/rev.
    Inch threads2 ~ 56 TPI x 44 kinds
    Metric threads0.5 ~ 14 mm x 24 kinds
    Cross slide travel17-3/4"
    Compound slide travel7-7/8"
    Tailstock taper centerM.T. 5
    Tailstock quill travel6-1/2"
    Main motor15 HP (6 pole) 3 Phase
    Coolant pump1/8 HP
    Shipping dimensions (LxWxH)120"x46"x76" 145"x46"x76" 170"x46"x76" 195"x46"x76" 235"x46"x76"
    Gross weight6,200 lb. 7,080 lb. 7,630 lb. 8,730 lb. 11,510 lb.
