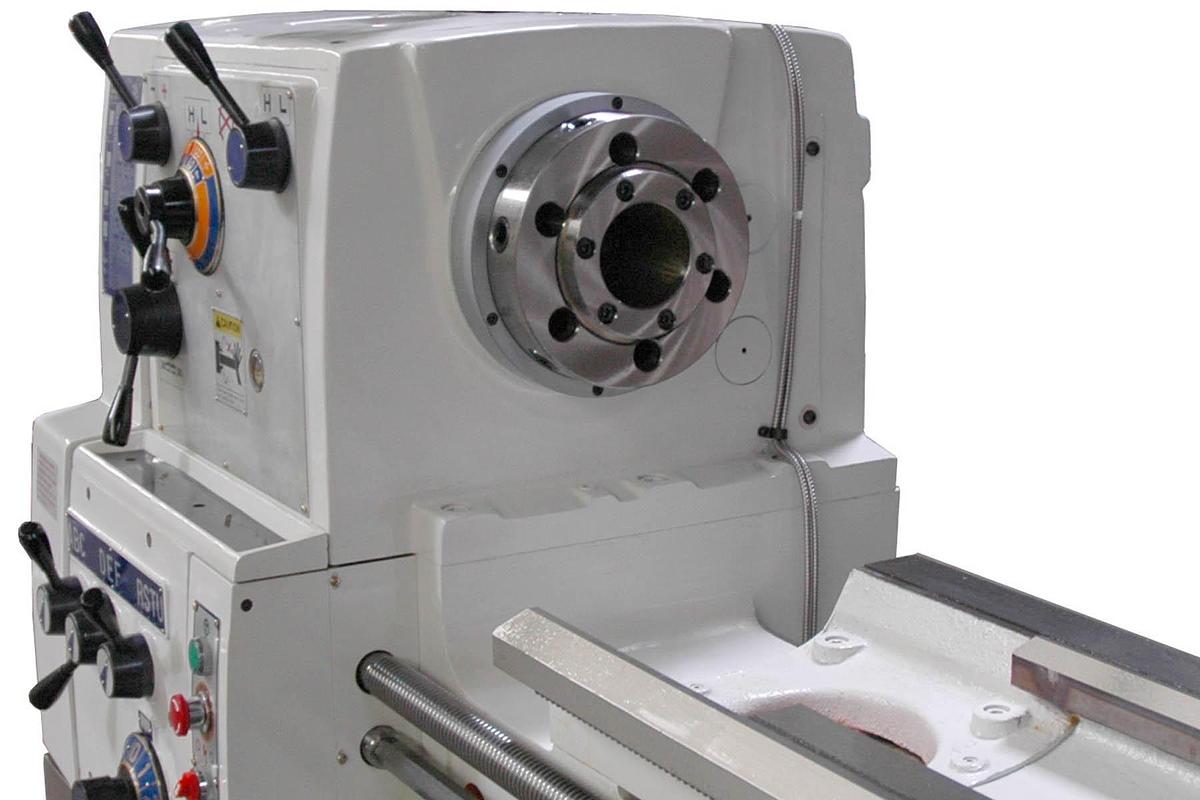

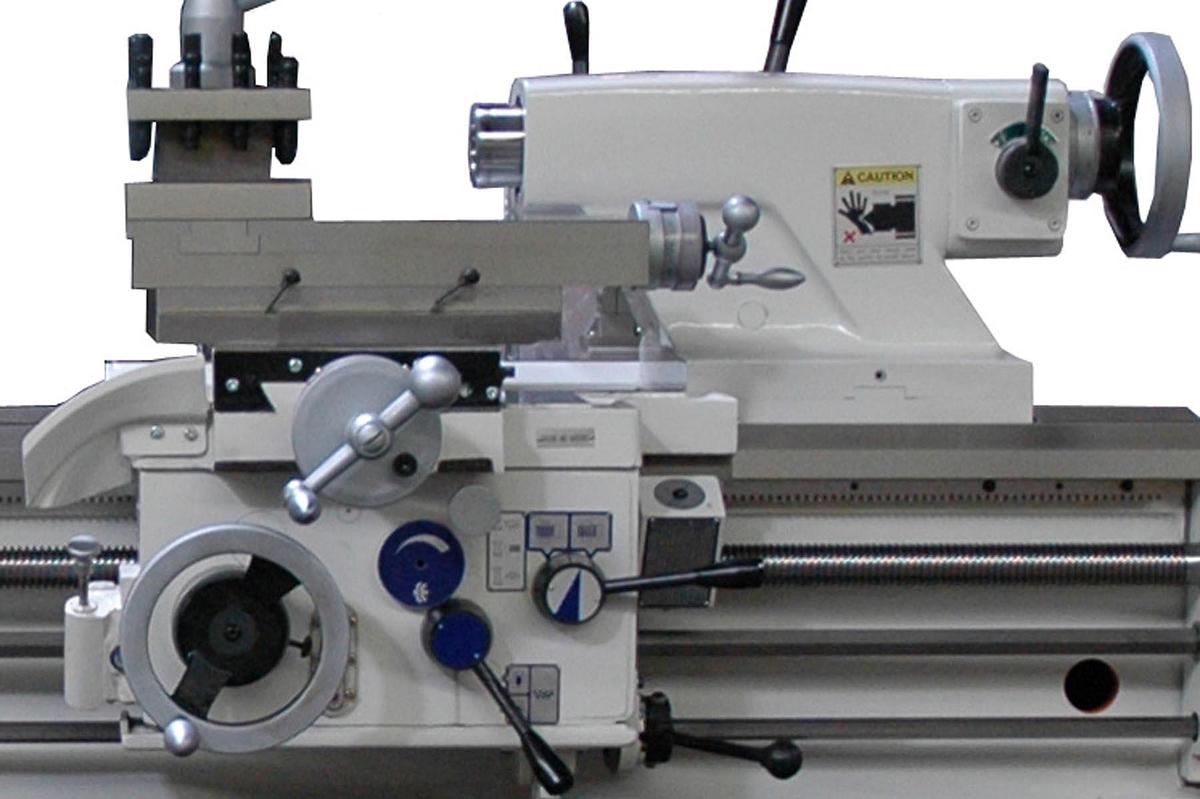

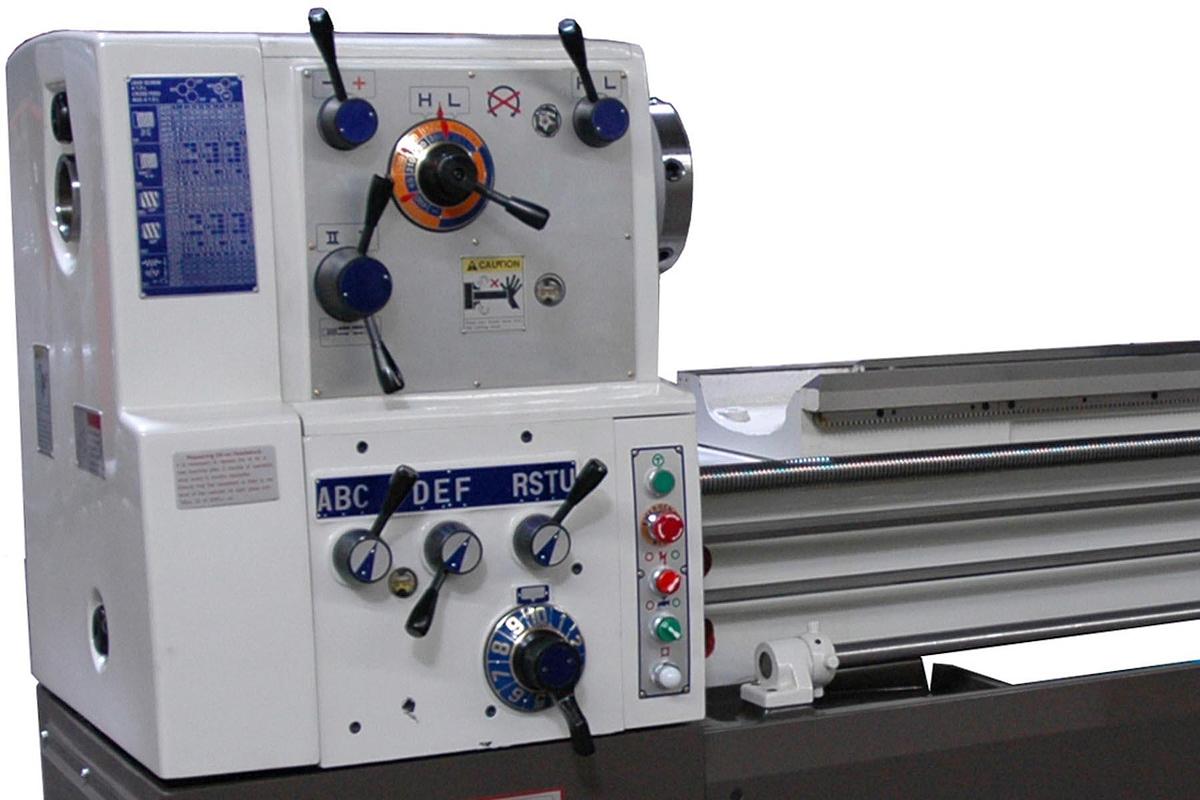

2040S / 2060S / 2080S / 20120S / 20160S Lathe

Description

Extra large rigid compound rest and Meehanite casting bed provide excellent stability and consistency during machining. Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.

FEATURES:

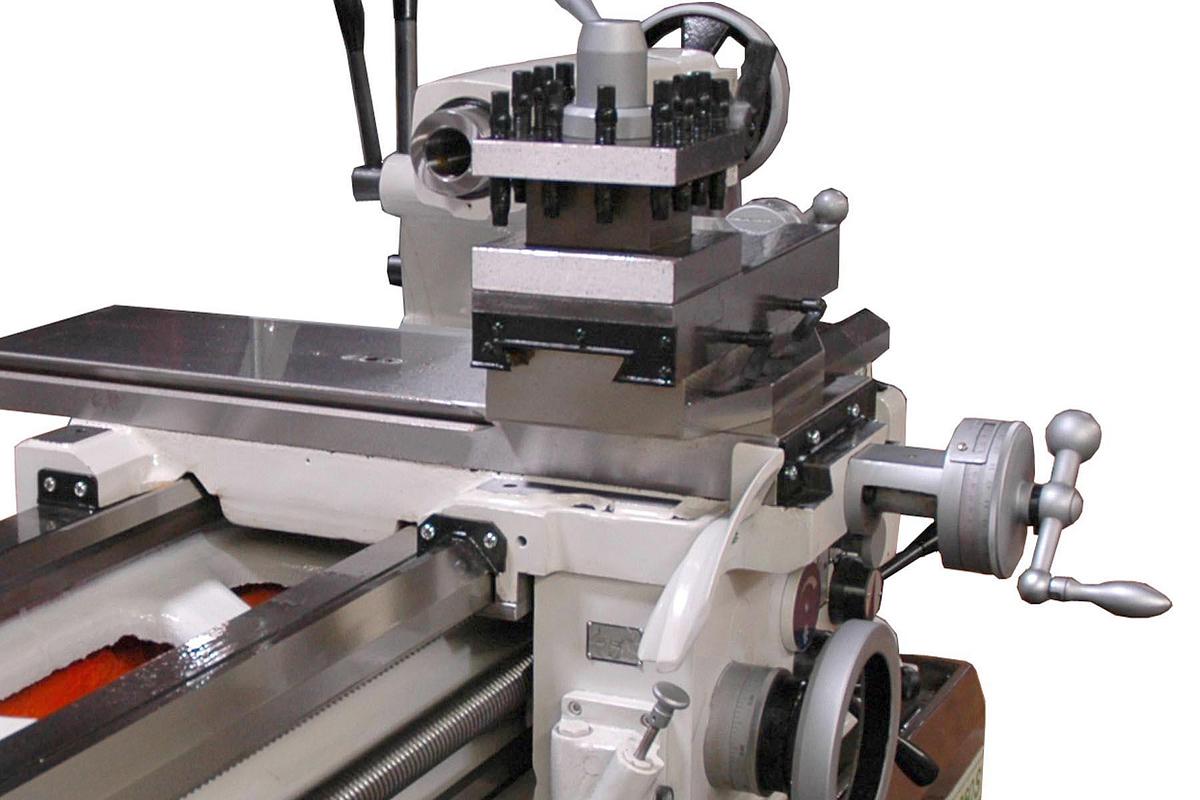

Oversized rigid compound rest for heavy cutting

Hardened and precision ground gears and bedways

Hardened and ground spindle nose

Full Meehanite casting bed

Headstock transmission gears driven by spline shafts

The spindle is supported at 3 points by precision bearings

Safety overload device

Inch/metric threading without changing gears

10 HP main motor delivers full power at all 12 speeds

Dual speed tailstock quill (ratio 1:1 and 1:5) provides easy drilling operation

2-way longitudinal (z-axis) power rapid traverse on 20120S and 20160S

STANDARD ACCESSORIES:

Removable gap

Tailstock with duo speed quill

Coolant system

Chuck cover with limit switch

D.P. / module thread change gears

Threading dial indicator

Center sleeve

Dead center M.T. #5

2-way longitudinal z-axis power rapid traverse (20120S and 20160S only)

Leveling screws and pads

Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

10" 3-jaw chuck

16" 4-jaw chuck

Steady rest with rollers

Follow rest

4-way tool post

Halogen work light

Full length splash guard for 2040S, 2060S and 2080S only

On-carriage splash guard for 20120S and 20160S only

Specifications

Manufacturer	Victor Machines
Model	2040S 2060S 2080S 20120S 20160S
Condition	New
Type	Precision Heavy-Duty Lathe
Swing over bed	20"
Swing over cross slide	13"
Swing over gap	26-3/8"
Bed width	15-3/4"
Distance between centers	40" 60" 80" 120" 160"
Spindle bore diameter	3.13"
Spindle bore taper	M.T. 7
Taper of center in sleeve	M.T. 5
Spindle nose	D1-8
Number of spindle speeds	12 Steps
Range of spindle speeds (rpm)	20 ~ 1,550 rpm
Speed selections	20, 30, 45, 60, 100, 150, 210, 350, 490, 680, 1100, 1550
Range of longitudinal feeds	0.0014" ~ 0.0387"/rev.
Range of cross feeds	0.0007" ~ 0.01935"/rev.
Inch threads	2 ~ 112 TPI x 60 kinds
Metric threads	0.2 ~ 14 mm x 60 kinds
Cross slide travel	12-1/2"
Compound slide travel	10"
Tailstock taper center	M.T. 5
Tailstock quill travel	6-5/16"
Main motor	10 HP 3 Phase
Coolant pump	1/8 HP
Shipping dimensions (LxWxH)	89"x44"x65" 110"x44"x65" 140"x44"x65" 185"x44"x65" 230"x44"x65"
Gross weight	4,660 lb. 5,320 lb. 5,870 lb. 7,230 lb. 8,330 lb.
