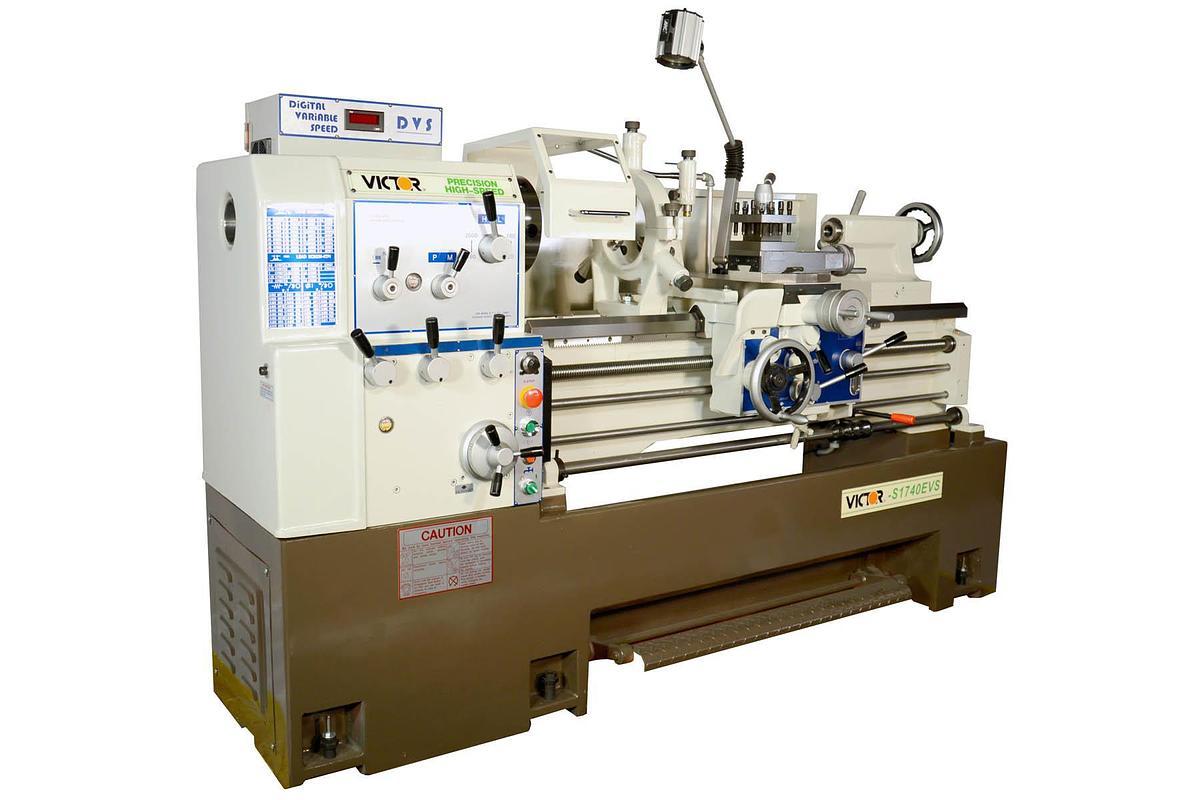

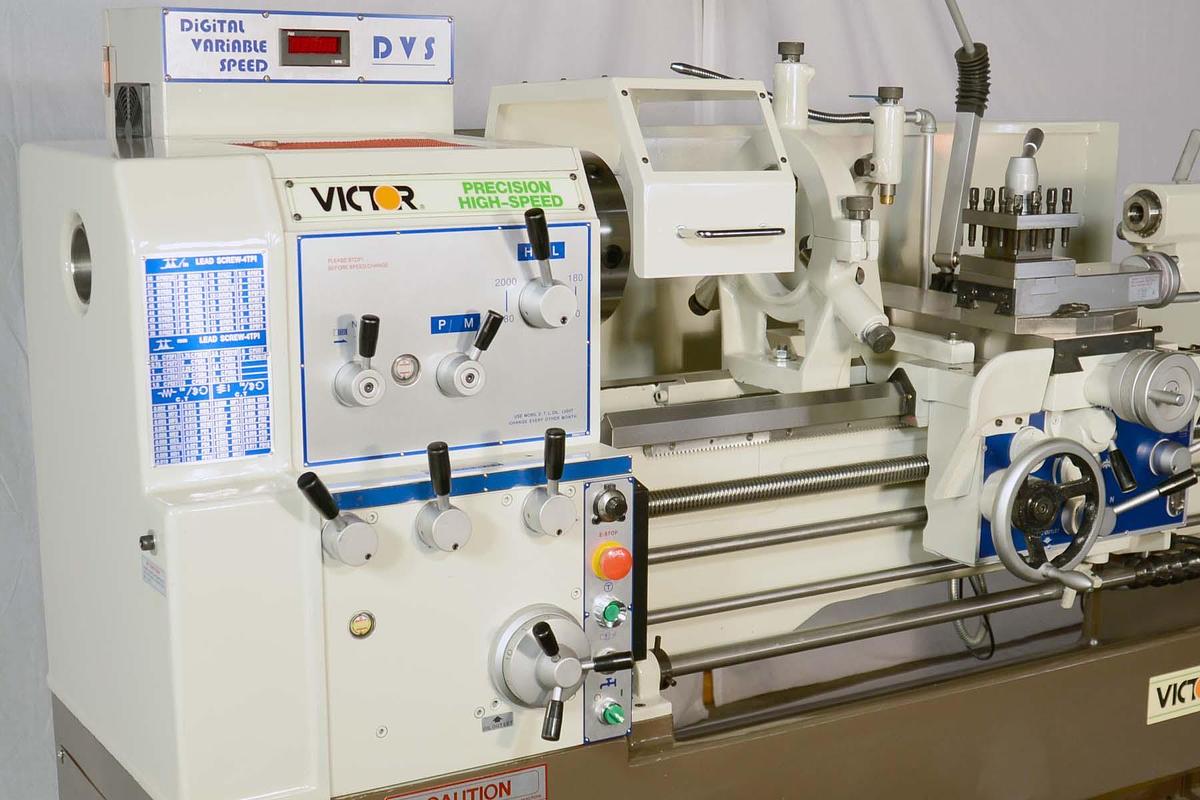

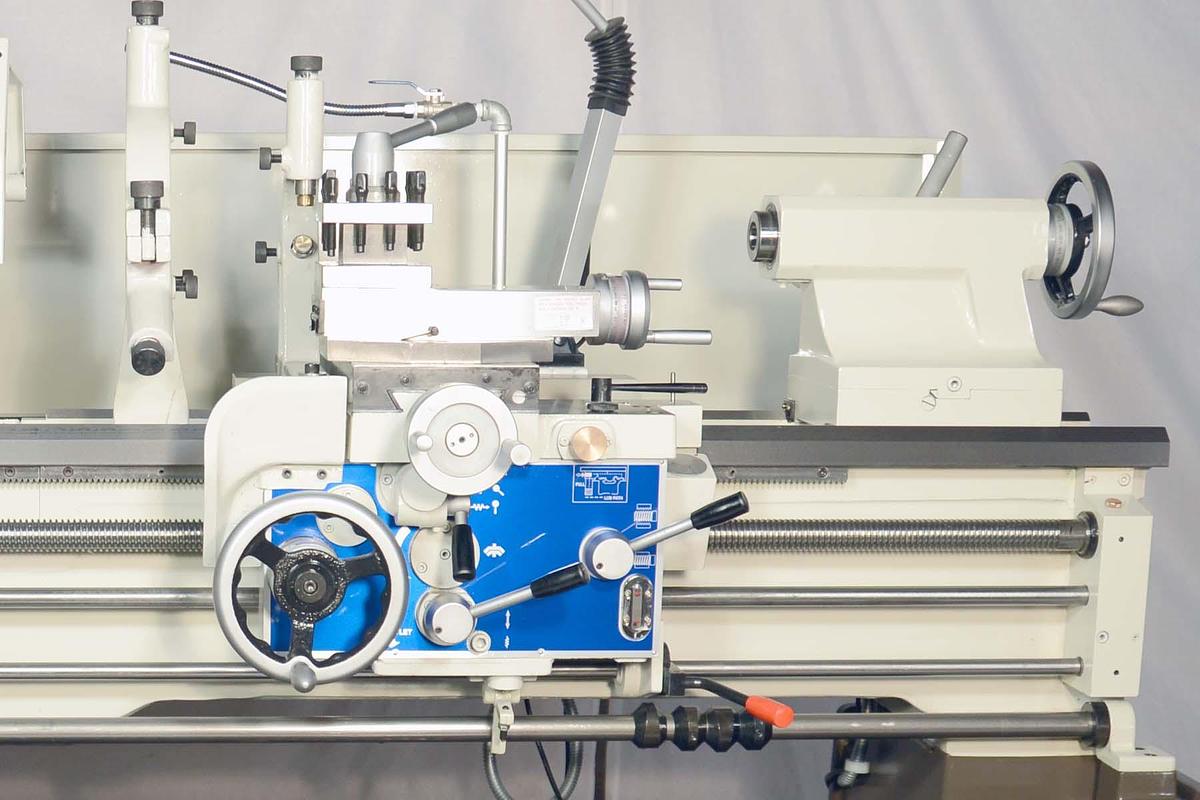

S1740EVS / S1760EVS / S1790EVS Vari-Spd Lathe (3" Bore)
Contact us for price
Description
Precision-built electronic variable speed lathe combines accuracy, ease of use, rigidity, and large 3-1/8" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.
FEATURES:
STANDARD ACCESSORIES:
MACHINE INCLUDES:
STANDARD ACCESSORIES:
MACHINE INCLUDES:
STANDARD ACCESSORIES:
MACHINE INCLUDES:
STANDARD ACCESSORIES:
MACHINE INCLUDES:
STANDARD ACCESSORIES:
MACHINE INCLUDES:
Specifications
| Model | S1740EVS S1760EVS S1790EVS |
| Condition | New |
| Type | Precision Electronic Variable High-Speed Lathe |
| Swing over bed | 17" |
| Swing over cross slide | 9.45" |
| Swing over gap | 25.59" |
| Bed width | 11.81" |
| Distance between centers | 39.37" 59" 86.60" |
| Spindle bore diameter | 3.13" |
| Spindle bore taper | M.T. 7 |
| Taper of center in sleeve | M.T. 4 |
| Spindle nose | D1-8 |
| Number of spindle speeds | Variable - 2 ranges (Inverter control) |
| Range of spindle speeds (rpm) | 20 ~ 2,000 rpm |
| Speed selections | Low gear: 20 ~ 180 rpm / High gear: 180 ~ 2,000 rpm |
| Range of longitudinal feeds | 0.002" ~ 0.03"/rev. |
| Range of cross feeds | 0.0008" ~ 0.011"/rev. |
| Inch threads | 4 ~ 56 TPI x 36 kinds |
| Metric threads | 0.5 ~ 7 mm x 17 kinds |
| Cross slide travel | 9.65" |
| Compound slide travel | 4.92" |
| Tailstock taper center | M.T. 4 |
| Tailstock quill travel | 5.91" |
| Main motor | 10 HP 3 Phase (inverter drive) |
| Coolant pump | 1/8 HP |
| Shipping dimensions (LxWxH) | 90"x38"x64" 110"x38"x64" 143"x38"x64" |
| Gross weight | 4,100 lb. 4,850 lb. 5,450 lb. |
