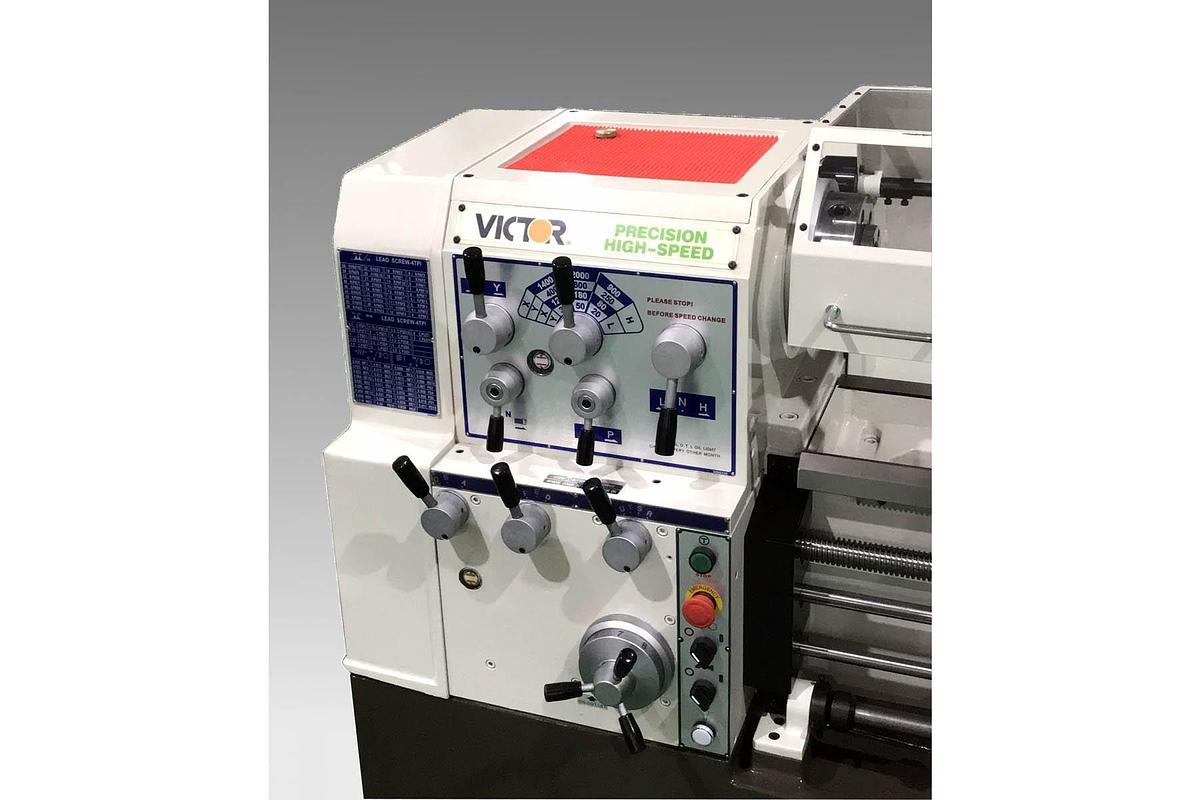

1740E / 1760E / 1790E Lathe

Description

Precision built lathe combines with accuracy and rigidity for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.

FEATURES:

One-piece high rigidity and low vibration base

Thermal treated Meehanite cast bed

Hardened and precision ground bedways

Thermal treated and precision ground alloy gears

Universal gearbox for both inch and metric threading

Double reservoir oil bath type cross slide

Safety overload device

Wear-resistant phosphor bronze leadscrew nuts

High capacity coolant tank provides sufficient coolant output

7.5 HP main motor

STANDARD ACCESSORIES:

Removable gap

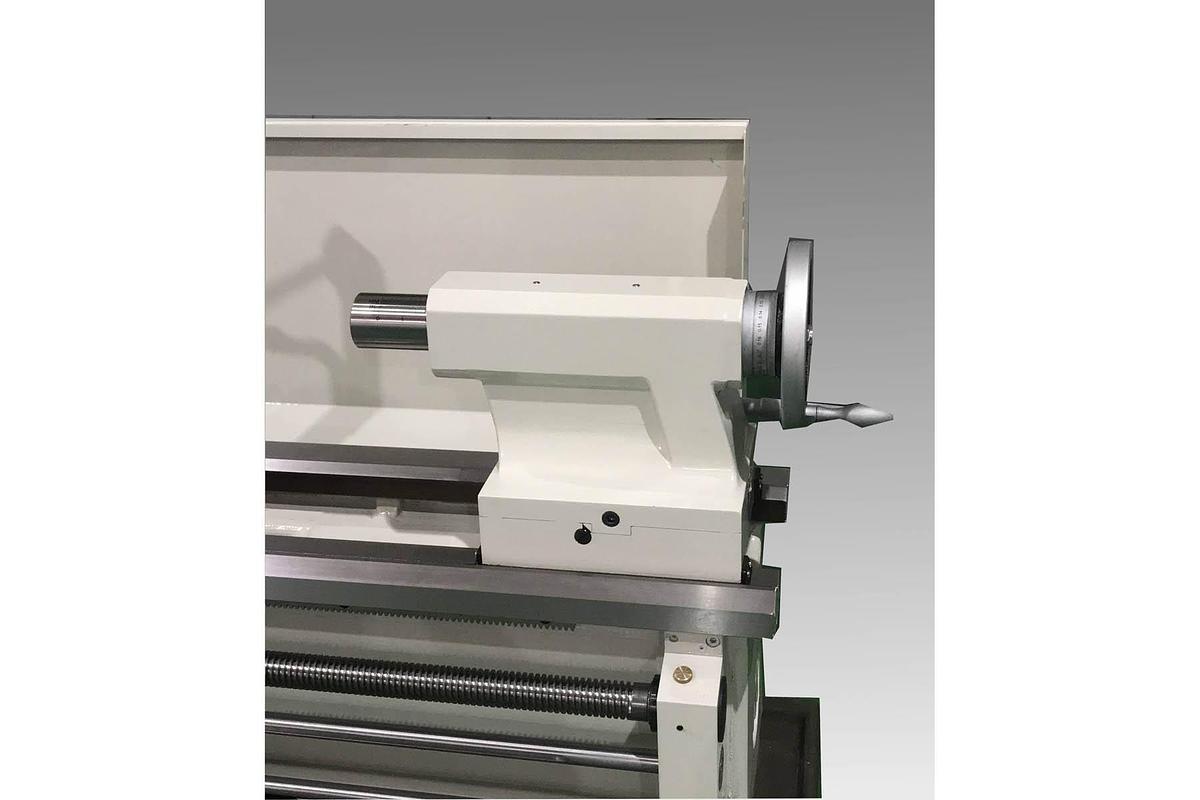

Tailstock

Coolant system

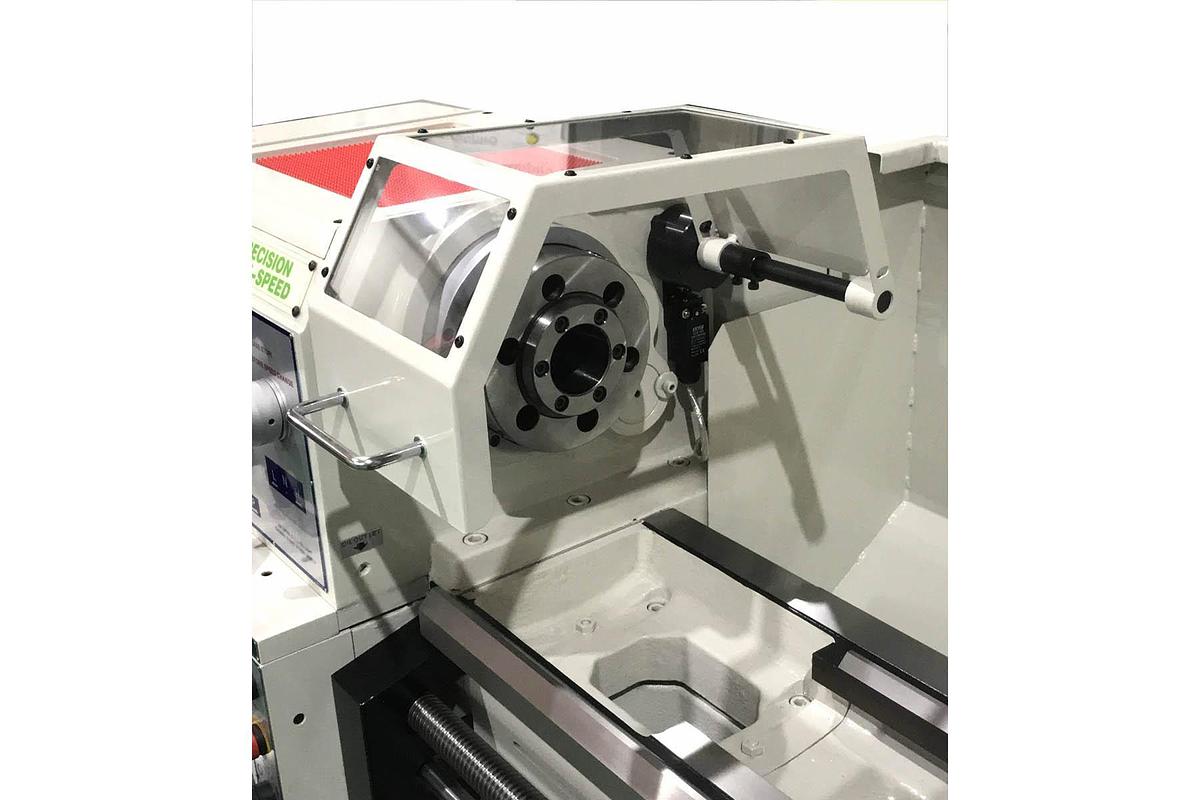

Chuck cover with limit switch

Full length foot brake

Threading dial indicator

Auto-feed stopper ring

Center sleeve

Dead center M.T. #4

Leveling screws and pads

Manual and parts list

MACHINE INCLUDES:

8" 3-jaw chuck

Steady rest with rollers

Follow rest

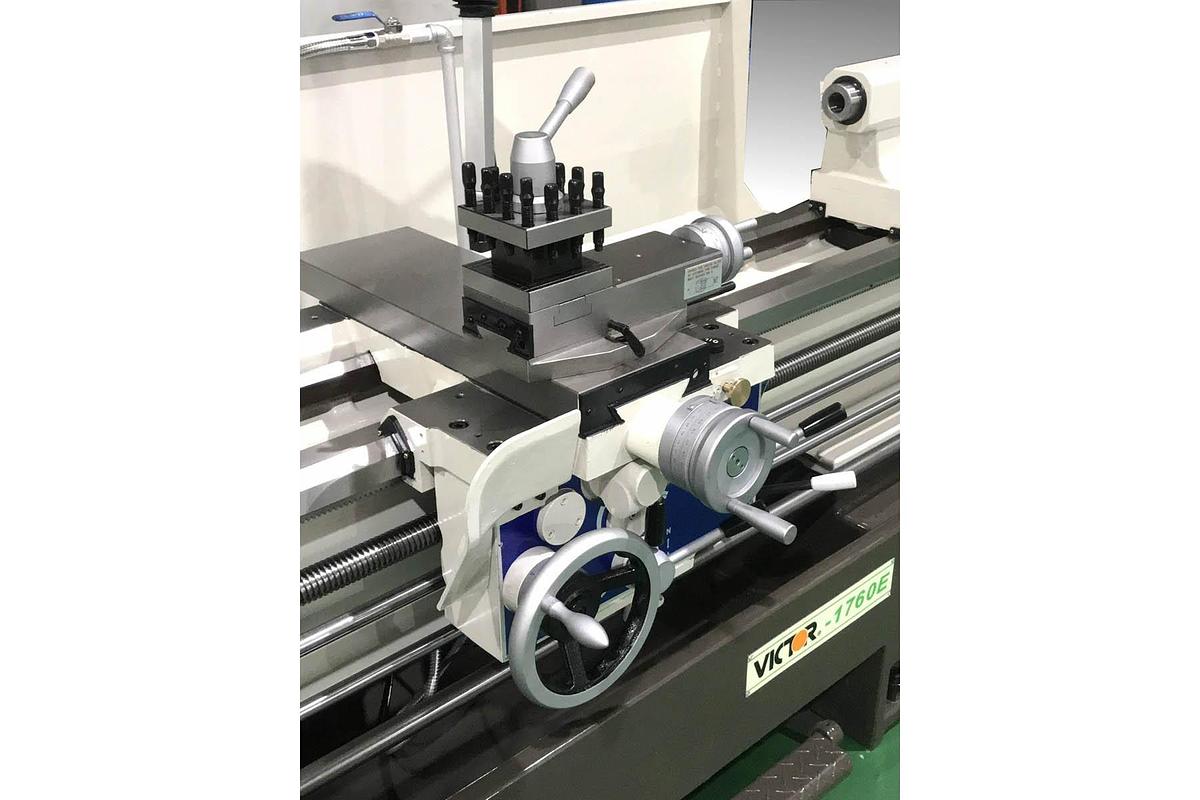

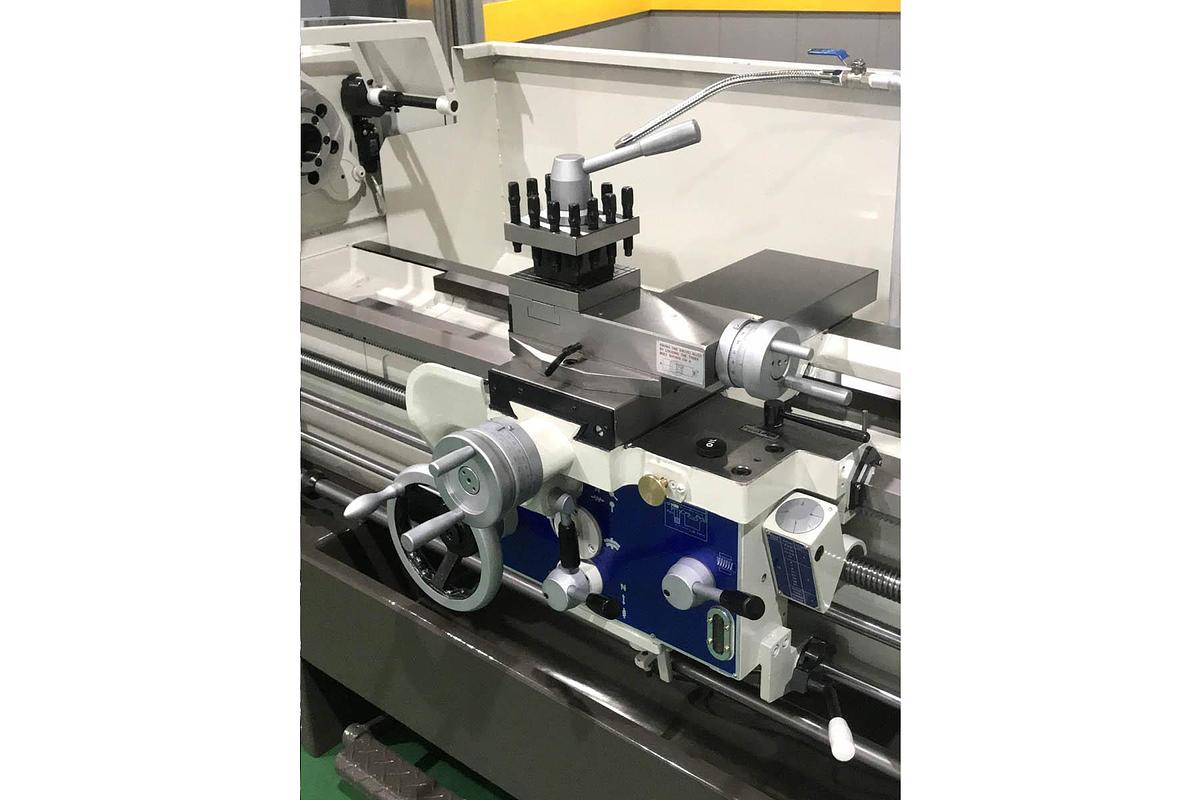

4-way tool post

Halogen work light

Full length splash guard

Chuck cover w/ limit switch

Specifications

Model	1740E 1760E 1790E
Condition	New
Type	Precision High-Speed Heavy-Duty Lathe
Swing over bed	17"
Swing over cross slide	9.45"
Swing over gap	25.59"
Bed width	11.81"
Distance between centers	39.37" 59" 86.60"
Spindle bore diameter	2.28"
Spindle bore taper	M.T. 6
Taper of center in sleeve	M.T. 4
Spindle nose	D1-6
Number of spindle speeds	12 steps
Range of spindle speeds (rpm)	20 ~ 2,000 rpm
Speed selections	20, 35, 50, 80, 125, 180, 250, 400, 600, 900, 1400, 2000
Range of longitudinal feeds	0.002" ~ 0.03"/rev.
Range of cross feeds	0.0008" ~ 0.011"/rev.
Inch threads	4 ~ 56 TPI x 36 kinds
Metric threads	0.5 ~ 7 mm x 17 kinds
Cross slide travel	9.65"
Compound slide travel	4.92"
Tailstock taper center	M.T. 4
Tailstock quill travel	5.91"
Main motor	7.5 HP 3 Phase
Coolant pump	1/8 HP
Shipping dimensions (LxWxH)	90"x38"x64" 110"x38"x64" 143"x38"x64"
Gross weight	4,100 lb. 4,850 lb. 5,450 lb.
