1640S / 1660S Lathe
Contact us for price
Description
High-performance precision high-speed heavy-duty lathe with rigid one-piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high-quality construction results in stability and consistency.
STANDARD ACCESSORIES:
OPTIONAL SPECIAL PACKAGE INCLUDES:
Specifications
| Model | 1640S 1660S |
| Condition | New |
| Type | Precision High-Speed Heavy-Duty Lathe |
| Swing over bed | 16" |
| Swing over cross slide | 9.44" |
| Swing over gap | 23-7/16" |
| Bed width | 11-13/16" |
| Distance between centers | 40" 60" |
| Spindle bore diameter | 2.03" |
| Spindle bore taper | M.T. 6 |
| Taper of center in sleeve | M.T. 4 |

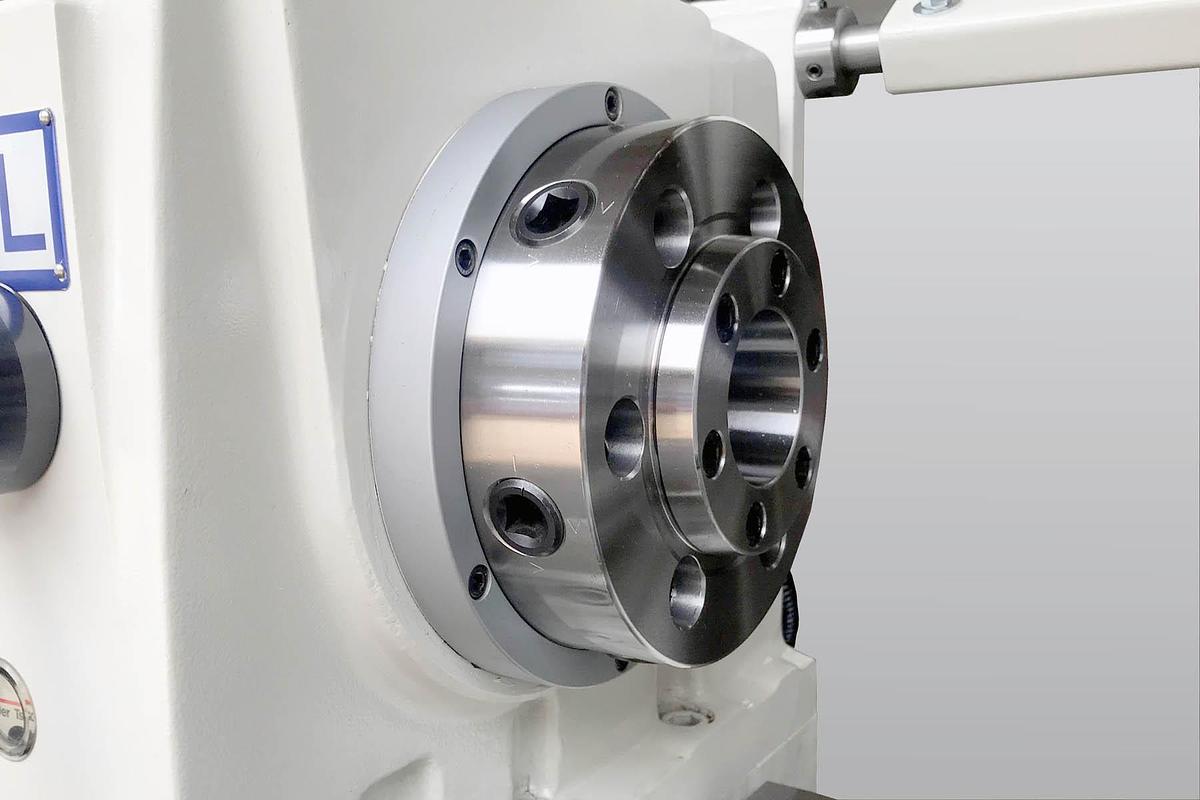

| Spindle nose | D1-6 |

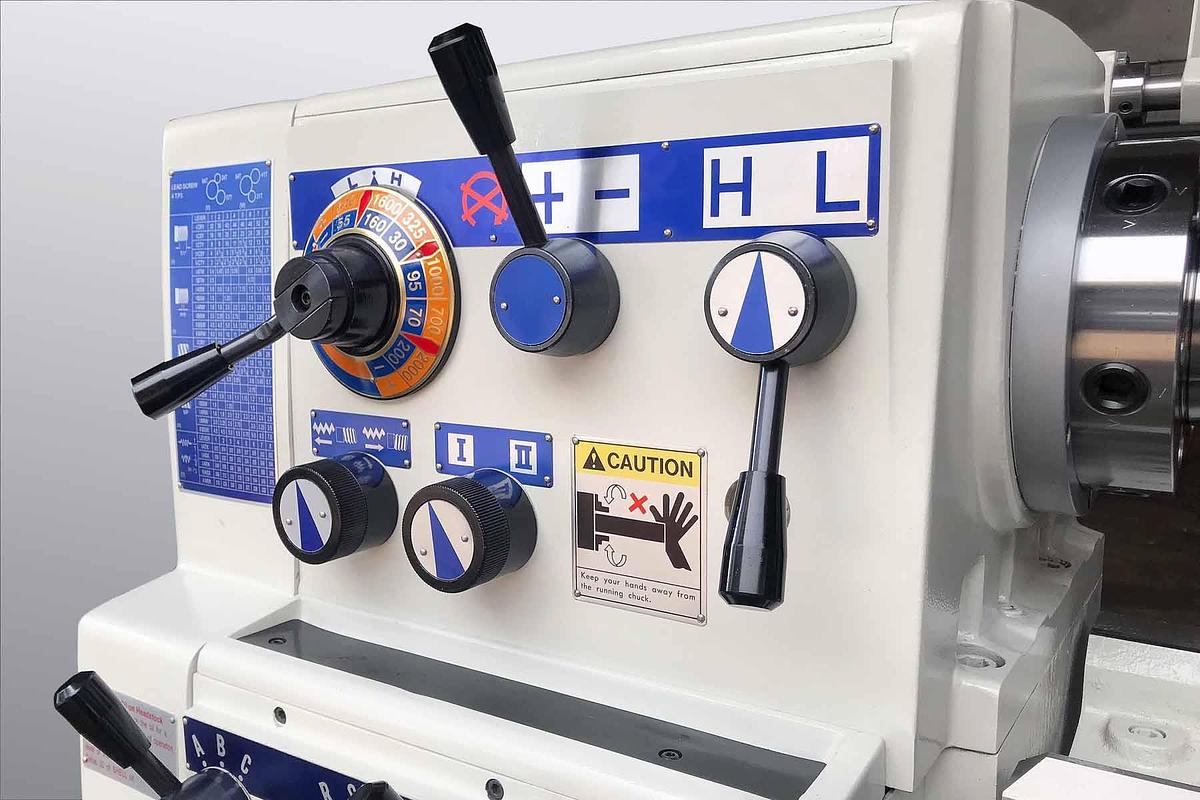

| Number of spindle speeds | 12 Steps |
| Range of spindle speeds (rpm) | 30 ~ 2,000 rpm |
| Speed selections | 30, 55, 70, 95, 160, 200, 325, 540, 700, 1000, 1600, 2000 |
| Range of longitudinal feeds | 0.0012" ~ 0.0352"/rev. |
| Range of cross feeds | 0.0006" ~ 0.0176"/rev. |
| Inch threads | 2 ~ 56 TPI x 40 kinds |
| Metric threads | 0.4 ~ 14 mm x 52 kinds |
| Cross slide travel | 9" |
| Compound slide travel | 4-3/4" |

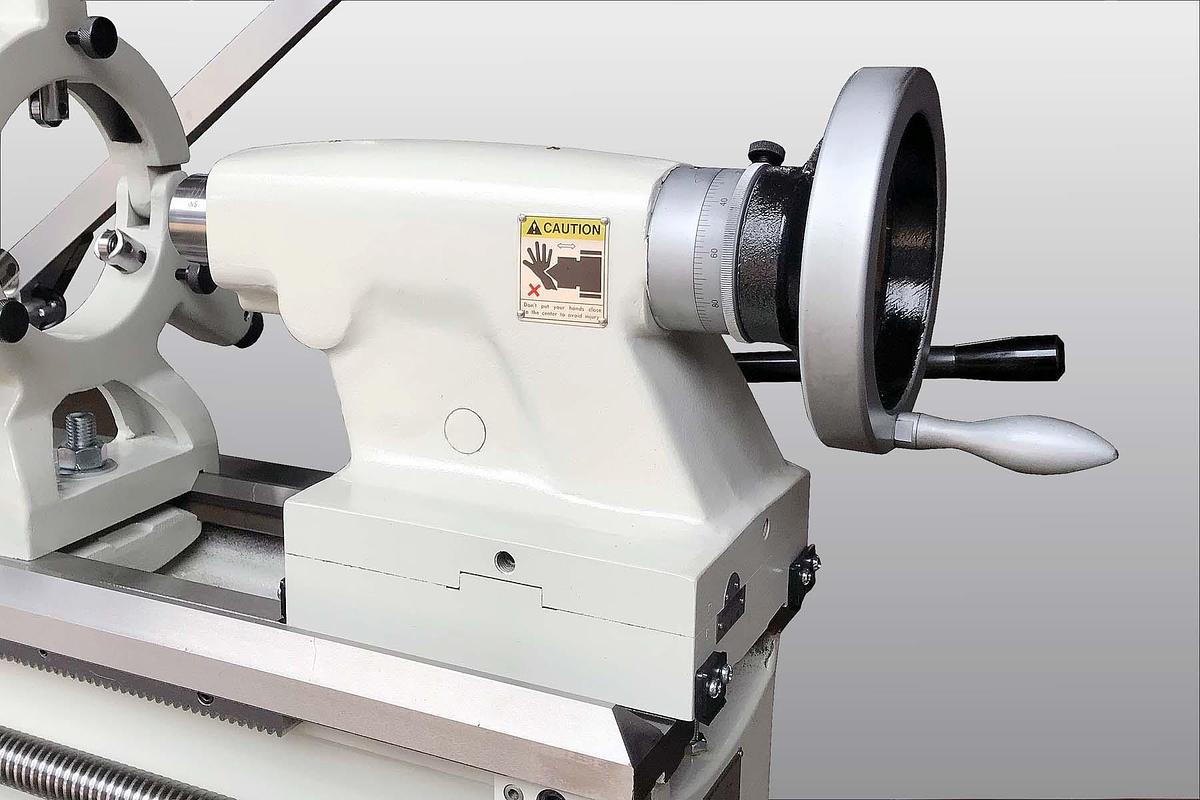

| Tailstock taper center | M.T. 4 |
| Tailstock quill travel | 4-3/4" |
| Main motor | 7.5 HP 3 Phase |
| Coolant pump | 1/8 HP |
| Shipping dimensions (LxWxH) | 89"x38"x65" 110"x38"x65" |
| Gross weight | 4,290 lb. 4,950 lb. |
