1440GL Lathe

Contact us for price
or
Call (519) 212-1782

Description

High-speed precision gear-head lathe that provides outstanding machining performance.

FEATURES:

  • Headstock gears are made of chrome-moly steel
  • Hardened and precision ground spindle and headstock gears
  • A forced lubrication system lubricates all headstock gears and bearings
  • The bed is made of high tensile cast iron FC30
  • Hardened and ground bed ways
  • The leadscrew is equipped with a torque limit safety device
  • The feed rod has a built-in overload safety clutch
  • An interlocking device in the apron to prevent simultaneous engagement of auto feeding and threading operations
  • Jog button for easy spindle speed changes
  • Full length foot brake
  • 5 HP powerful main motor

    • STANDARD ACCESSORIES:

  • Removable gap

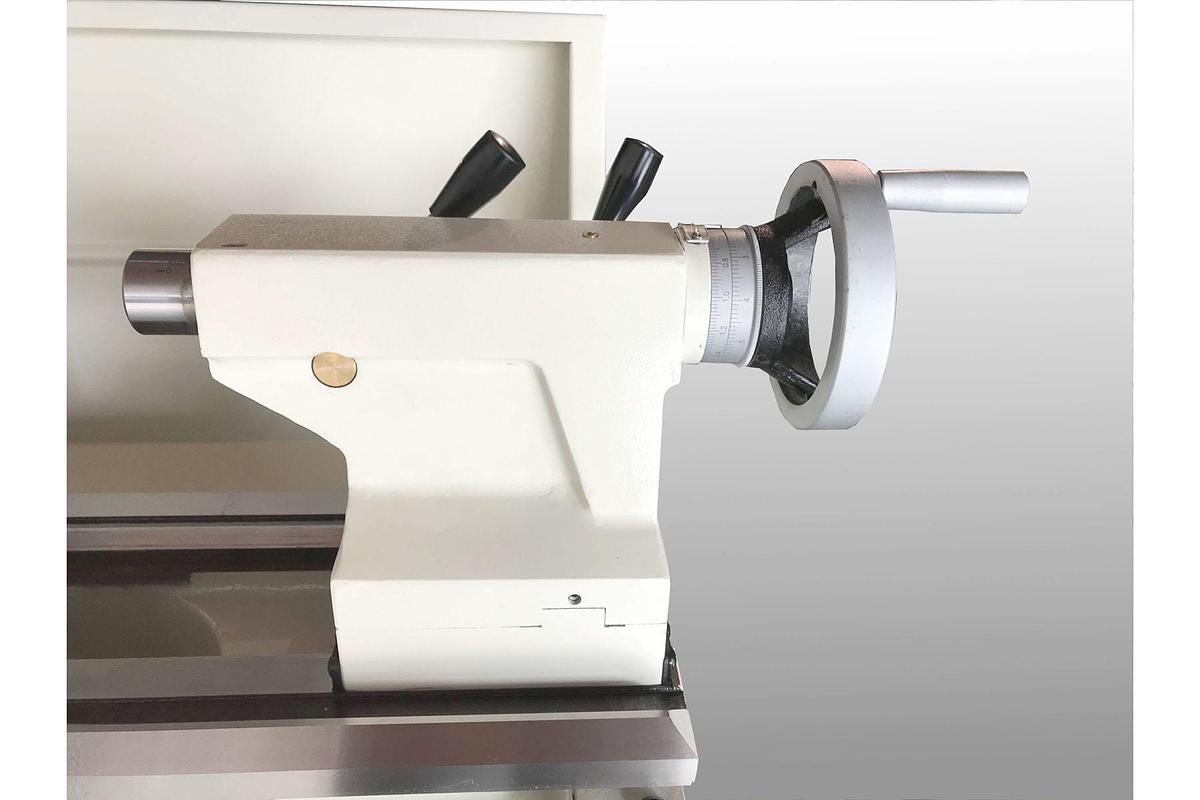

  • Tailstock

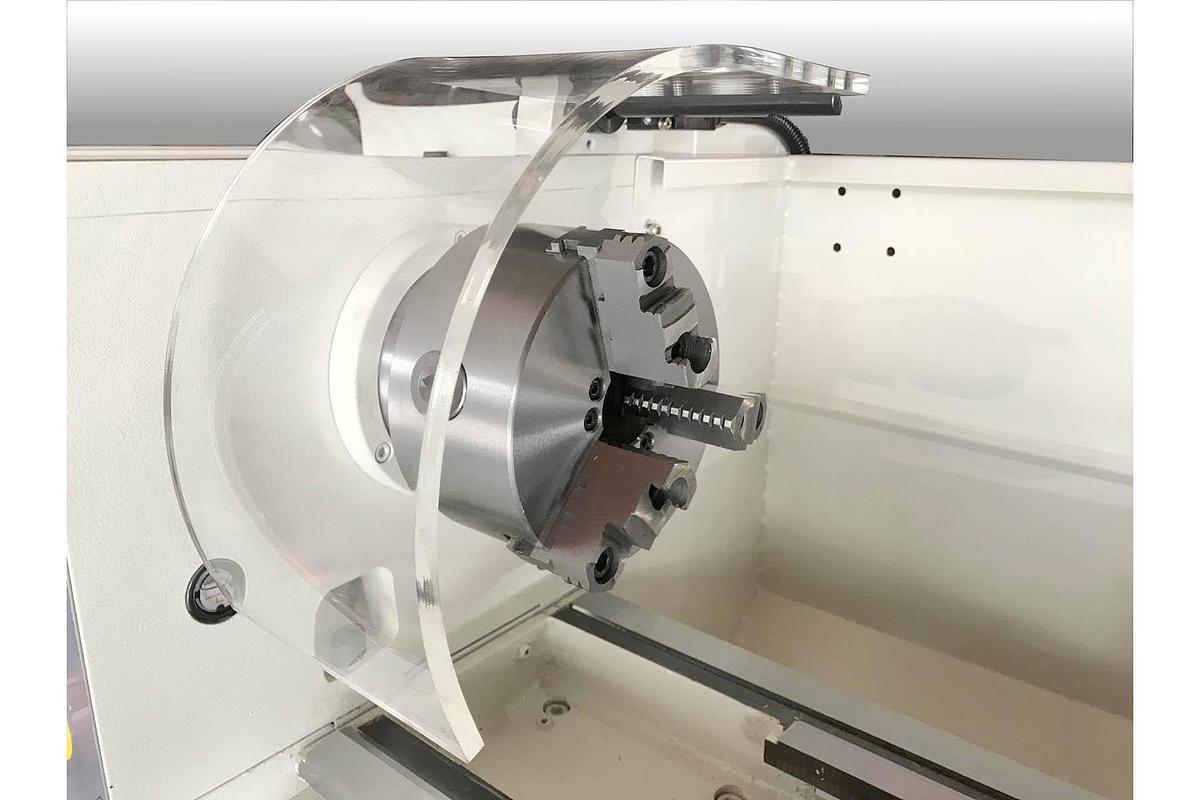

  • Chuck cover with limit switch
  • Coolant system
  • Full length foot brake
  • Dead center M.T. #3
  • Center sleeve
  • Change gears
  • Threading dial indicator
  • Leveling screws and pads
  • Manual and parts list

    • MACHINE INCLUDES:

  • 6" 3-jaw chuck
  • Steady rest with brass tips
  • Follow rest

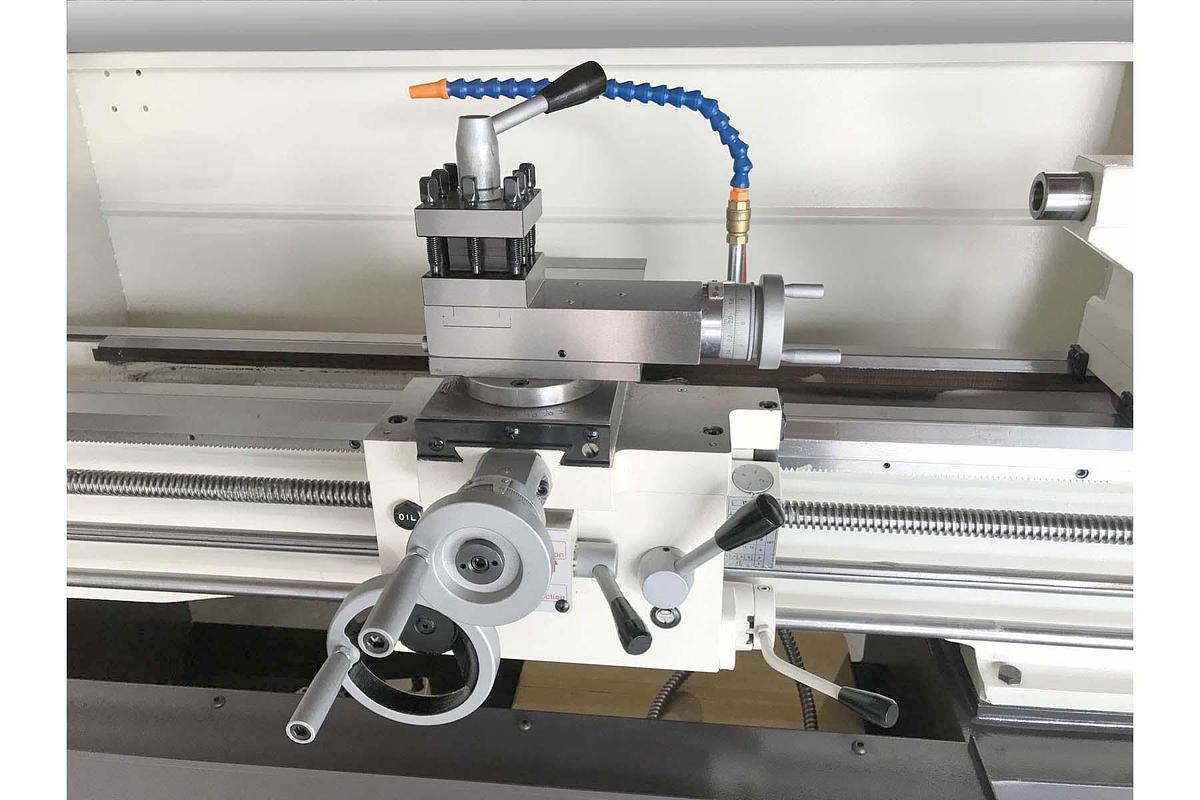

  • 4-way tool post
  • Full length splash guard
  • Halogen work light
  • Chuck cover with limit switch

    • Show All

    Specifications

    Model1440GL
    ConditionNew
    TypePrecision High-Speed Lathe
    Swing over bed14"
    Swing over cross slide8.75"
    Swing over gap20.50"
    Bed width9"
    Distance between centers40"
    Spindle bore diameter1.56"
    Spindle bore taperM.T. 5
    Taper of center in sleeveM.T. 3
    Spindle noseD1-4
    Number of spindle speeds12 Steps
    Range of spindle speeds (rpm)50 ~ 2,000 rpm

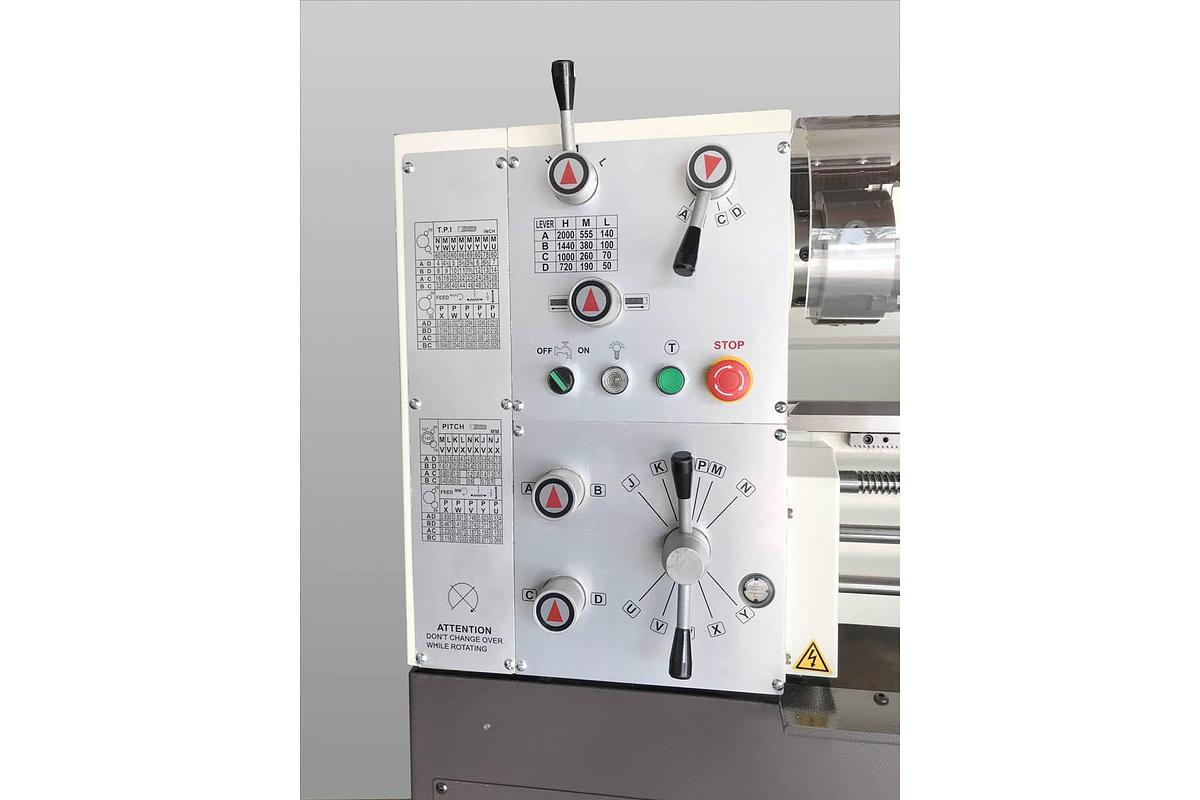

    Speed selections50, 70, 100, 140, 190, 260, 380, 555, 720, 1000, 1440, 2000
    Range of longitudinal feeds0.0026" ~ 0.0368"/rev.
    Range of cross feeds0.0009" ~ 0.0123"/rev.
    Inch threads4 ~ 56 TPI x 32 kinds
    Metric threads0.4 ~ 7 mm x 32 kinds
    Cross slide travel7"
    Compound slide travel3.75"
    Tailstock taper centerM.T. 3
    Tailstock quill travel4"
    Main motor5 HP 3 Phase
    Coolant pump1/8 HP
    Shipping dimensions (LxWxH)76" x 32" x 63"
    Gross weight1,810 lb.
