1440GLV Lathe

Contact us for price
or
Call (519) 212-1782

Description

Electronic infinitely variable high-speed precision gear-head lathe that provides outstanding machining performance.

FEATURES:

  • 2-step infinitely variable speed
  • Headstock gears are made of chrome-moly steel
  • Hardened and precision ground spindle and headstock gears
  • A forced lubrication system lubricates all headstock gears and bearings
  • The bed is made of high tensile cast iron FC30
  • Hardened and ground bed ways
  • The leadscrew is equipped with a torque limit safety device
  • The feed rod has a built-in overload safety clutch
  • An interlocking device in the apron to prevent simultaneous engagement of auto feeding and threading operations

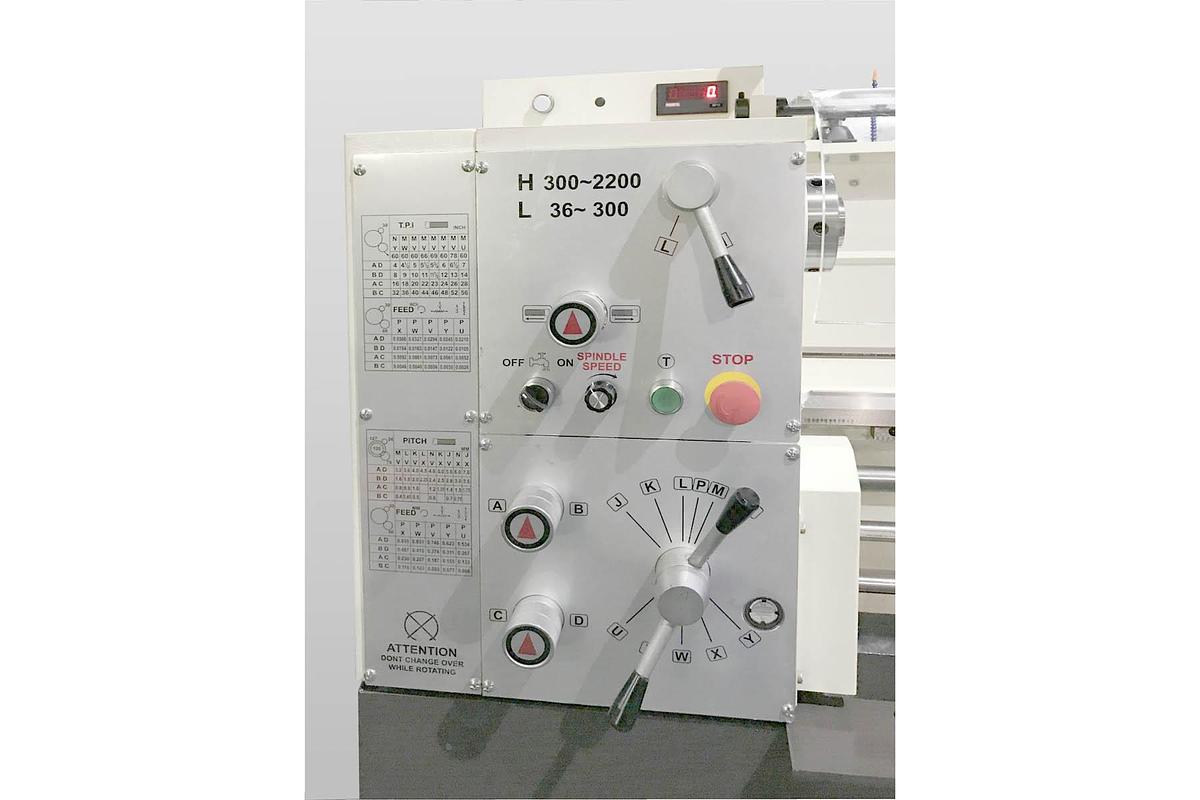

  • Digital spindle speed display
  • Easy spindle speed change while running by a knob control
  • Full length foot brake
  • Equipped with high performance and low-noise variable-frequency drive (VFD)
  • 5 HP powerful main motor

    • STANDARD ACCESSORIES:

  • Variable frequency drive (VFD)
  • Removable gap

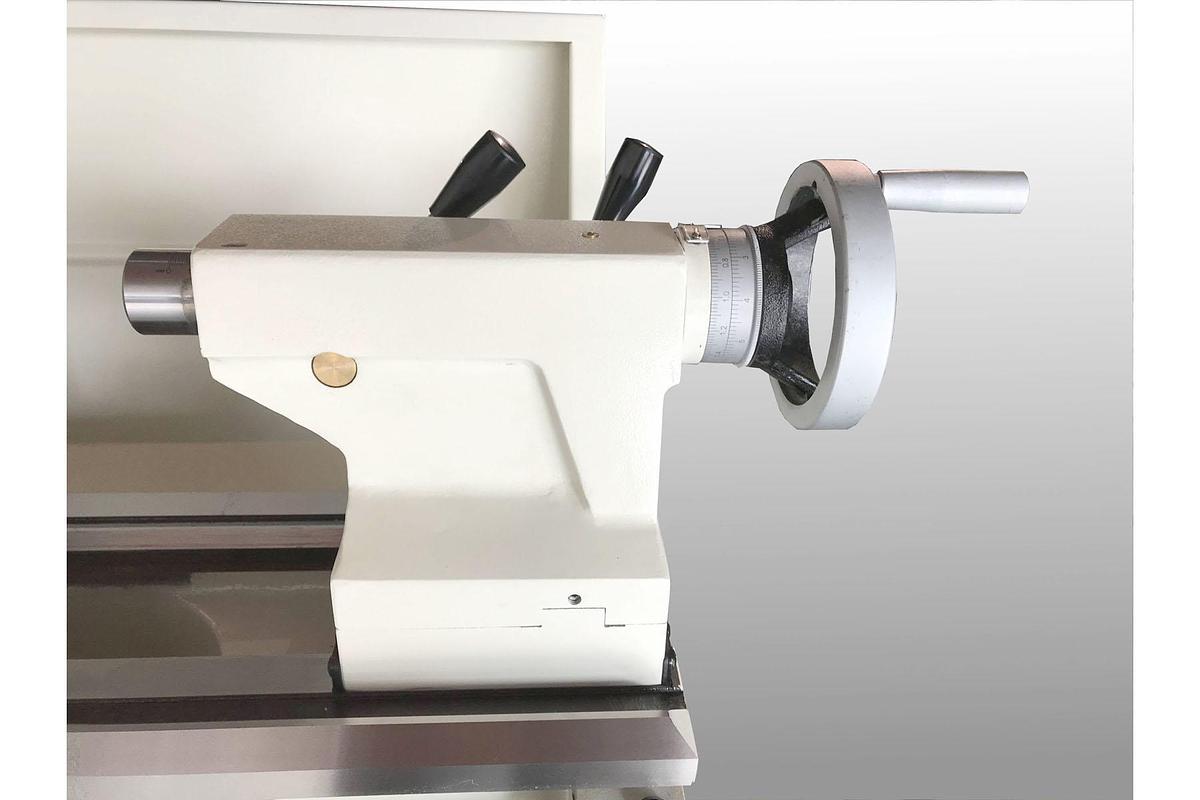

  • Tailstock
  • Chuck cover with limit switch
  • Coolant system
  • Full length foot brake
  • Dead center M.T. #3
  • Center sleeve
  • Change gears
  • Threading dial indicator
  • Leveling screws and pads
  • Manual and parts list

    • MACHINE INCLUDES:

  • 6" 3-jaw chuck
  • Steady rest with brass tips
  • Follow rest

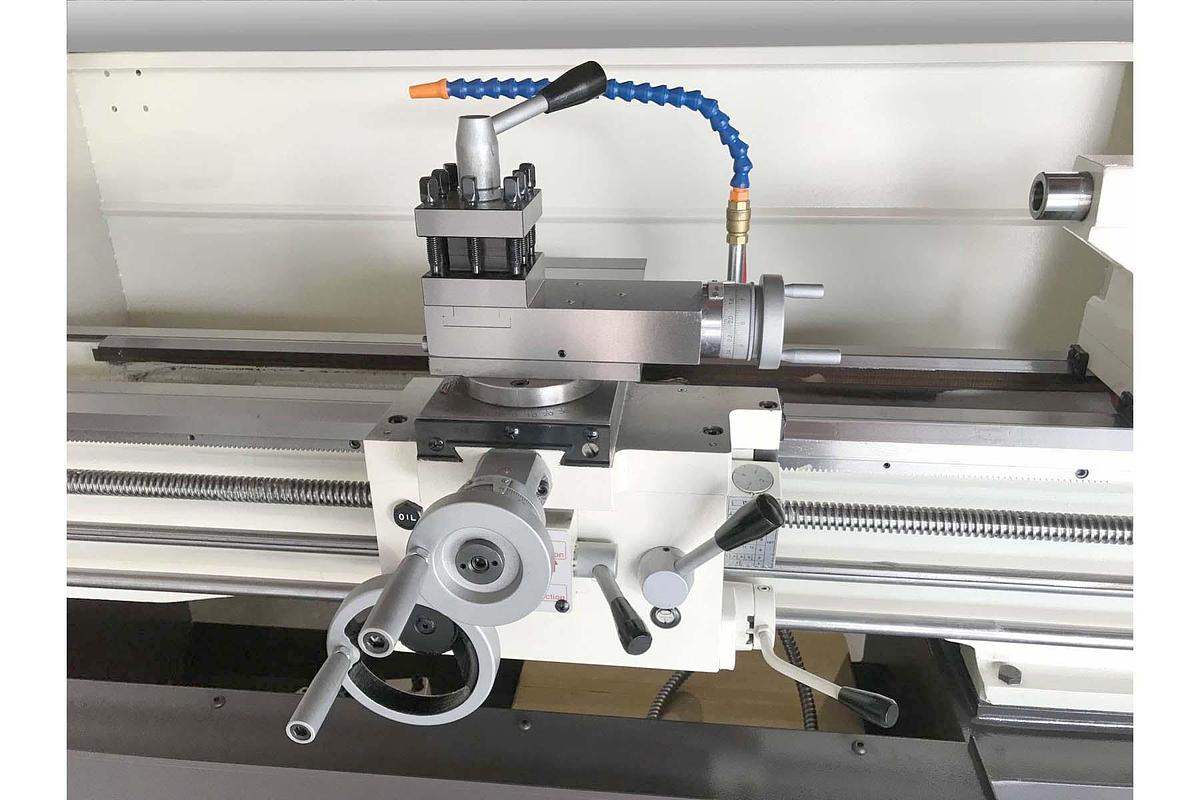

  • 4-way tool post
  • Full length splash guard
  • Halogen work light

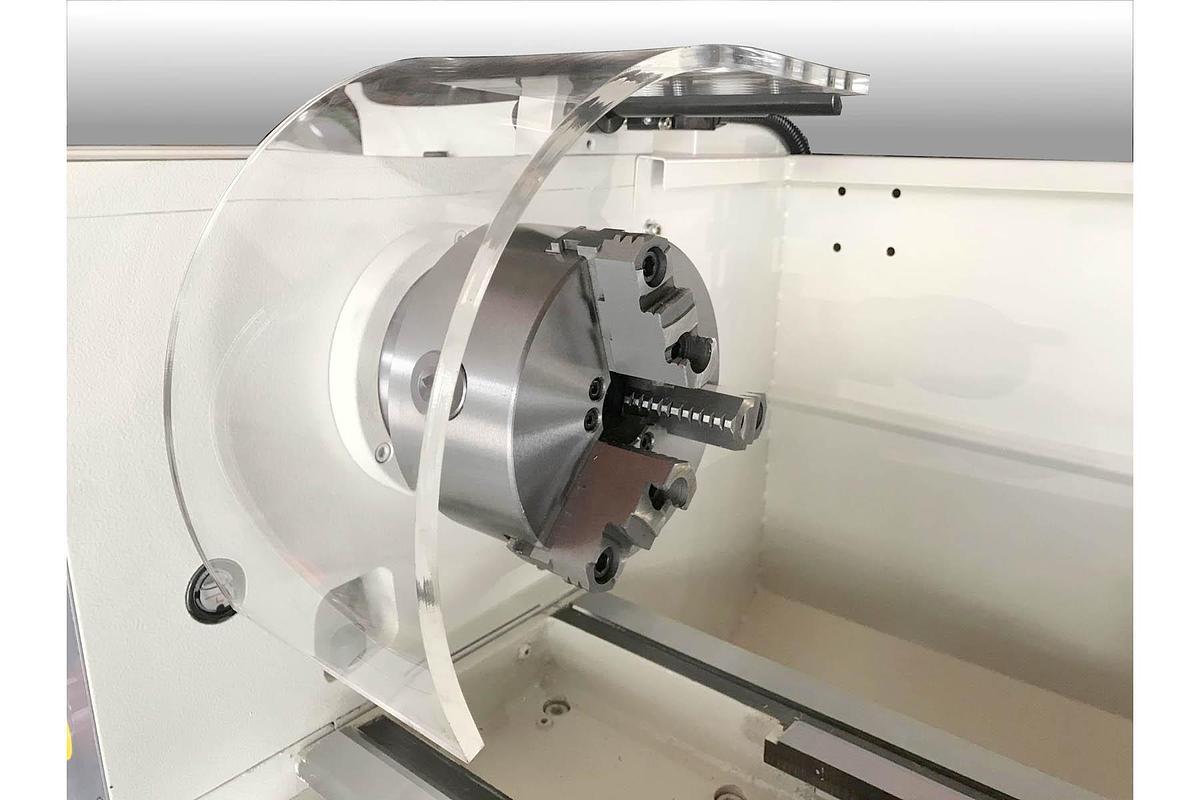

  • Chuck cover with limit switch

    • Show All

    Specifications

    Model1440GLV
    ConditionNew
    TypePrecision Electronic Variable High-Speed Lathe
    Swing over bed14"
    Swing over cross slide8.75"
    Swing over gap20.50"
    Bed width9"
    Distance between centers40"
    Spindle bore diameter1.56"
    Spindle bore taperM.T. 5
    Taper of center in sleeveM.T. 3
    Spindle noseD1-4
    Number of spindle speedsVariable - 2-step
    Range of spindle speeds (rpm)Low gear: 36 ~ 300 rpm High gear: 300 ~ 2,200 rpm
    Range of longitudinal feeds0.0026" ~ 0.0368"/rev.
    Range of cross feeds0.0009" ~ 0.0123"/rev.
    Inch threads4 ~ 56 TPI x 32 kinds
    Metric threads0.4 ~ 7 mm x 32 kinds
    Cross slide travel7"
    Compound slide travel3.75"
    Tailstock taper centerM.T. 3
    Tailstock quill travel4"
    Main motor5 HP 3 Phase
    Coolant pump1/8 HP
    Shipping dimensions (LxWxH)76" x 32" x 63"
    Gross weight1,810 lb.
