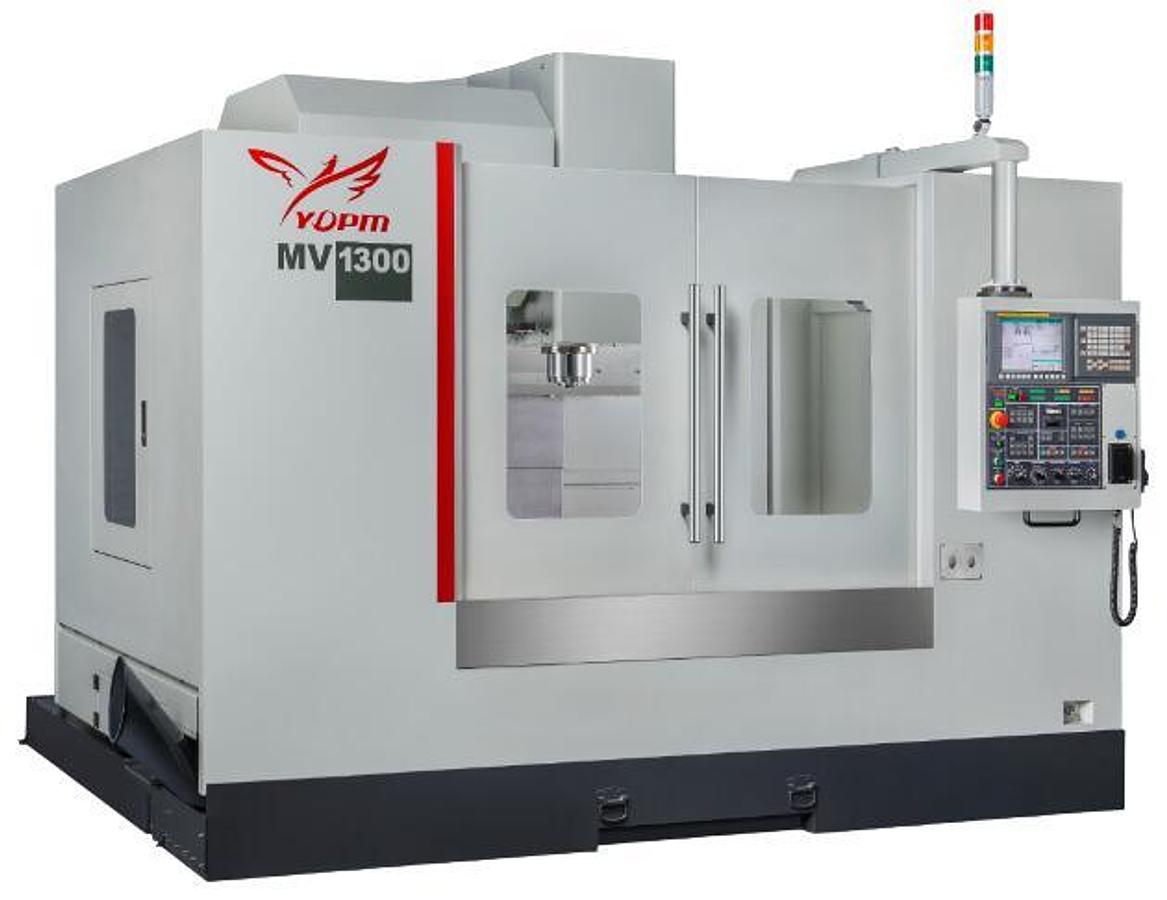

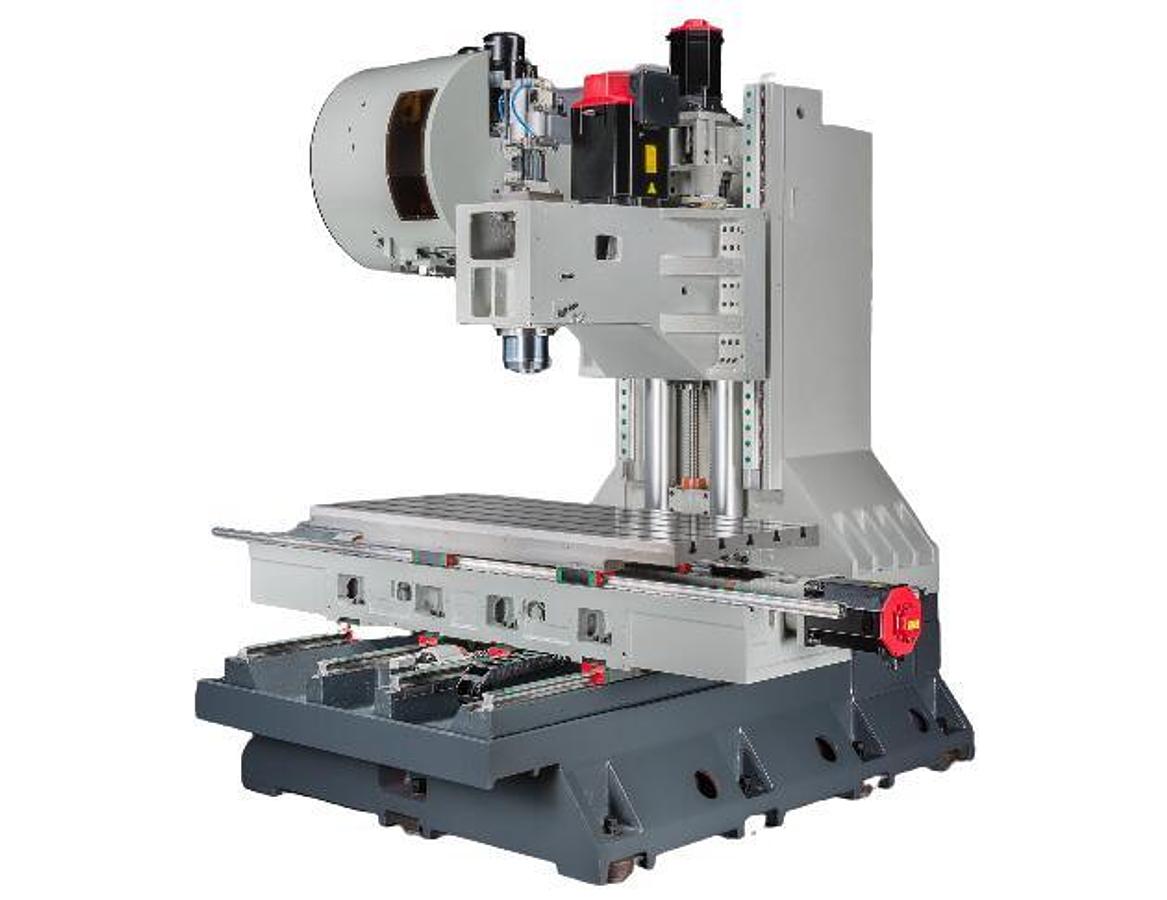

MV-1300
Contact us for price
Specifications
| Manufacturer | Ingenious Machinery |
| Condition | New |
| Stock Number | 00076 |
| ITEM | UNIT MV-1300 BMV-1300 |
| Table dimension | mm 1500 x 650 |
| Woking area | mm 1,300 x 680 |
| T-slot | mm CD125 x 18 x 5 |
| Number of work table | pcs 1 |
| Max. Loading capacity | kgs 1,200 |
| Max. travel range of X/Y/Z-axis | mm 1,300 / 680 / 680 |
| Distance from spindle nose to table surface | mm 150~830 |
| Distance from spindle center to column | mm 765 760 |
| Spindle taper | ISO No. 40 |
| Spindle bearing inner dia. | mm Φ70 |
| Spindle speed | rpm STD: 10,000 belt-drive OPT: 8,000, 12,000 |
| Feedrate of X / Y / Z-axis | mm/min 1~12,000 |
| Slideways of X / Y/ Z-axis | Linear guideway Box way |
| Rapid traverse of X / Y / Z-axis | m/min 30 18 |
| Tool capacity | pcs STD: 24; OPT: 30 |
| Tool selection | Bi-direction |
| Max. tool dia. x length | mm Φ80 x 300 |
| Max. tool weight | kgs 7 |
| Tool shank | STD: BT40; OPT: CAT40, SK40, BBT40, HSK63A, BT50 |
| Spindle drive motor | kw α15 (15/18.5) |
| Servo motors of X / Y / Z-axis | kw α22 (4) |
| Coolant motor | kw 1.08 (50Hz) / 1.62 (60 Hz) |
| Chip conveyor motor | kw 200 |
| APC motor | kw – |
| Positioning | mm ±0.005 |
| Repeatability | mm ±0.003 ±0.004 |
| Power requirement | kVA 380-415 / 220V 30 KVA |
| Floor area (L x W x H) | mm 4,045 x 2,599 x 2,878 |
| Packing dimension | mm 4,420 x 2,300 x 2,530 + 1,050 x 800 x 920 |
| Net weight | kgs Machine: 7,980; Accessory: 1,500 |
| Gross weight | kgs Machine: 9,000; Accessory: 1,650 |
