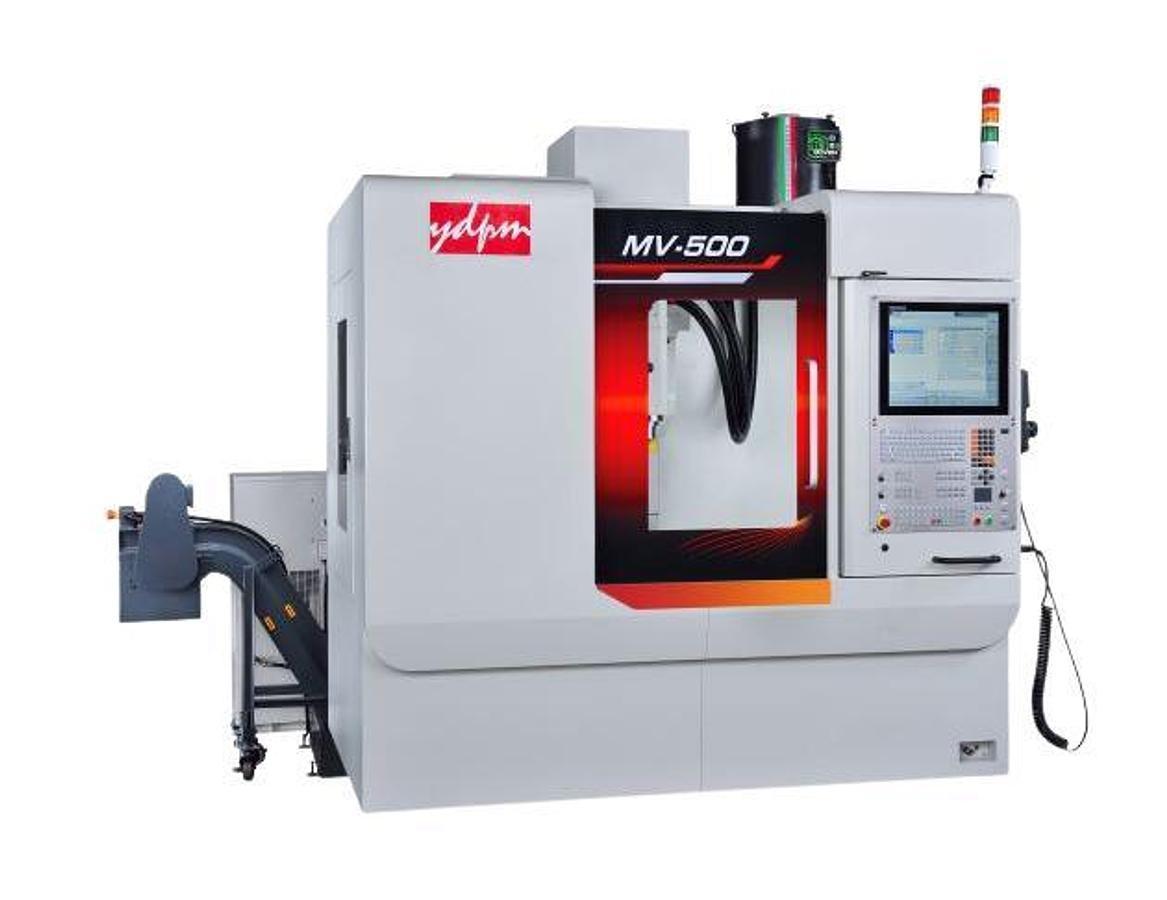

MV-500
Contact us for price
Specifications
| Manufacturer | Yida |
| Condition | New |
| Stock Number | 00079 |
| ITEM | MV-500 MV-800 |
| Working Table Dimension | 600 x 500 mm 900 x 500 mm |
| Working Area | 500 x 500 mm 800 x 500 mm |
| Max. Loading Capacity | 500 kg 500 kg |
| Max. Travel Range of X/Y/Z-axis | 500 / 500/ 500 mm 800/ 500/ 500 mm |
| Distance from Spindle Nose to Table Surface | 100-600 mm 100-600 mm |
| Spindle Speeds | STD: 12,000 rpm (belt-driven) OPT: 12,000/15,000 rpm (direct-drive) 24,000 (built-in) STD: 12,000 rpm (belt-driven) OPT: 12,000/15,000 rpm (direct-drive) 24,000 (built-in) |
| Tool Capacity | STD: 20 pcs (arm type) OPT: 24 pcs STD: 20 pcs (arm type) OPT: 24 pcs |
