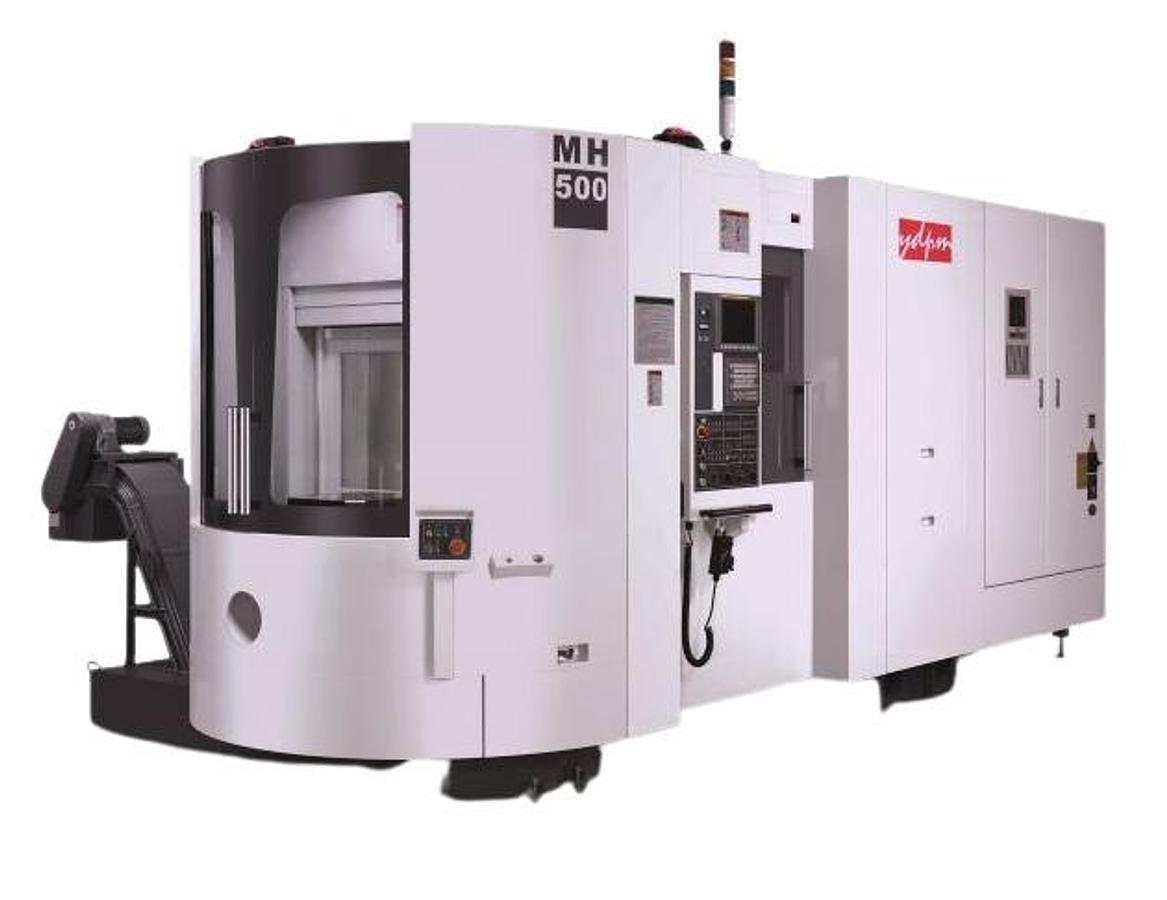

MH-500
Contact us for price
Specifications
| Manufacturer | Ingenious Machinery |
| Condition | New |
| Stock Number | 00052 |
| ITEM | MH-500 |
| Working Table Dimensions | STD: 500 x 500 mm OPT: 400 x 400 mm |
| Max. Loading Capacity | STD: 500 kg OPT: 400 kg |
| B Minimum Indexing | STD: 0.001° OPT: 1° |
| Pallet Capacity | 2 pcs |
| Max. Diameter of Workpiece | Ø570 |
| Max. Height of Workpiece | 640 mm |
| Max. Travel of X/Y/Z-axis | 610 / 510 / 680 mm |
| Distance from Spindle Nose to Table Center | 140-820 mm |
| Spindle Taper | ISO No. 40 |
| Spindle Speeds | STD: 10,000 rpm (belt-driven) OPT: 12,000 rpm (belt-driven) |
| Tool Capacity | STD: 40 pcs OPT: 60 pcs |
