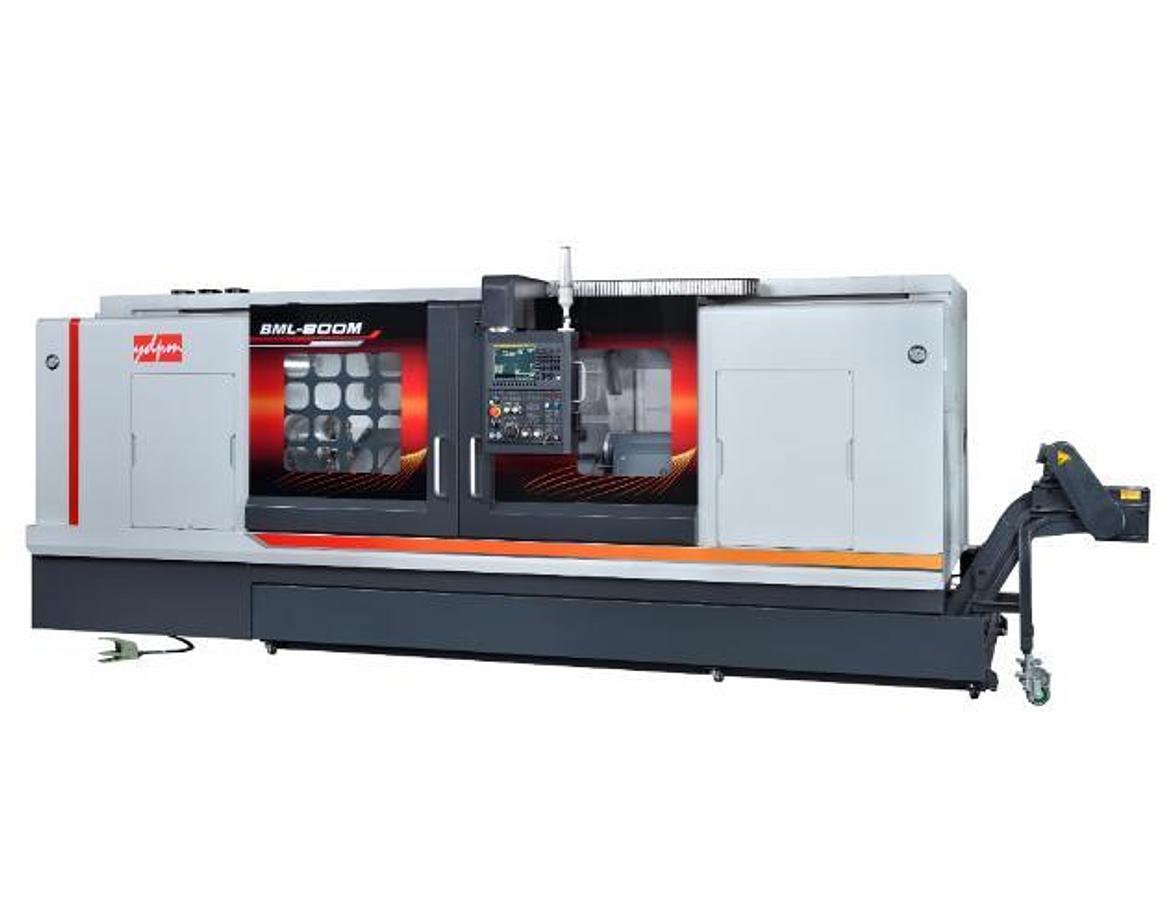

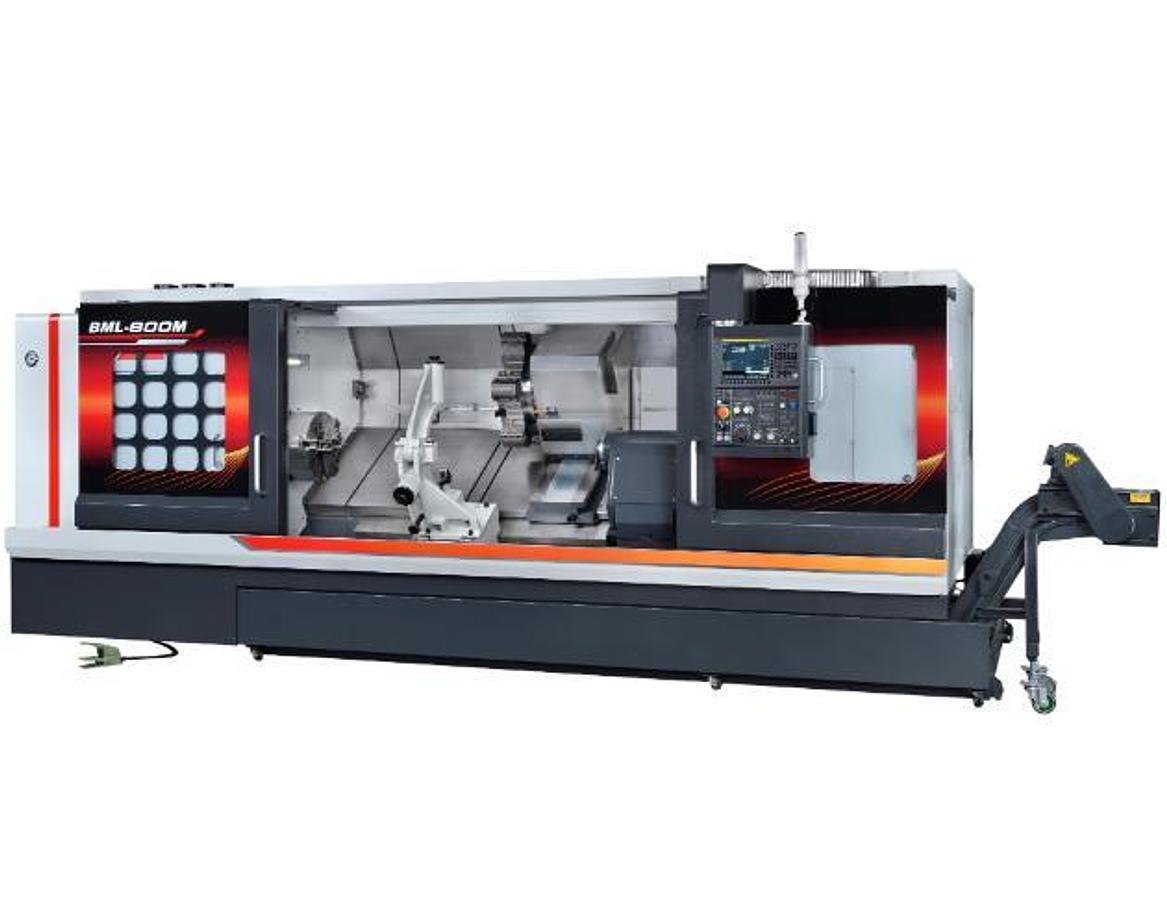

BML-800S
Contact us for price
Specifications
| Manufacturer | Ingenious Machinery |
| Condition | New |
| ITEM | ML-800S ML-800SY ML-800M ML-800MY ML-800L ML-800LY |
| Swing Over bed | Ø800 |
| Swing Over Saddle | Ø600 Ø500 Ø600 Ø500 Ø600 Ø500 |
| Max. Machining Dia. | Ø620 Ø600 Ø620 Ø600 Ø620 Ø600 |
| Max. Machining Length | 1,000 mm 2,000 mm 3,000 mm |
| X-axis | 340(310+30) mm |
| Z-axis | 1,150 mm 2,150 mm 3,150 mm |
| C-axis (Optional) | – 360˚ (0.001˚) – 360˚ (0.001˚) – 360˚ (0.001˚) |
| Tool Capacity | 12 pcs |
| Chuck Diameter | STD: 15” OPT: 12” /15”(Oversize)/18” |
| Spindle Speeds | STD: 2,000 rpm (15”) OPT: 2,500 rpm (12”) /1200 rpm (15”) /1,000rpm (18”) |
| Spindle Nose | STD: A2-11 OPT: A2-8/A2-15 |
