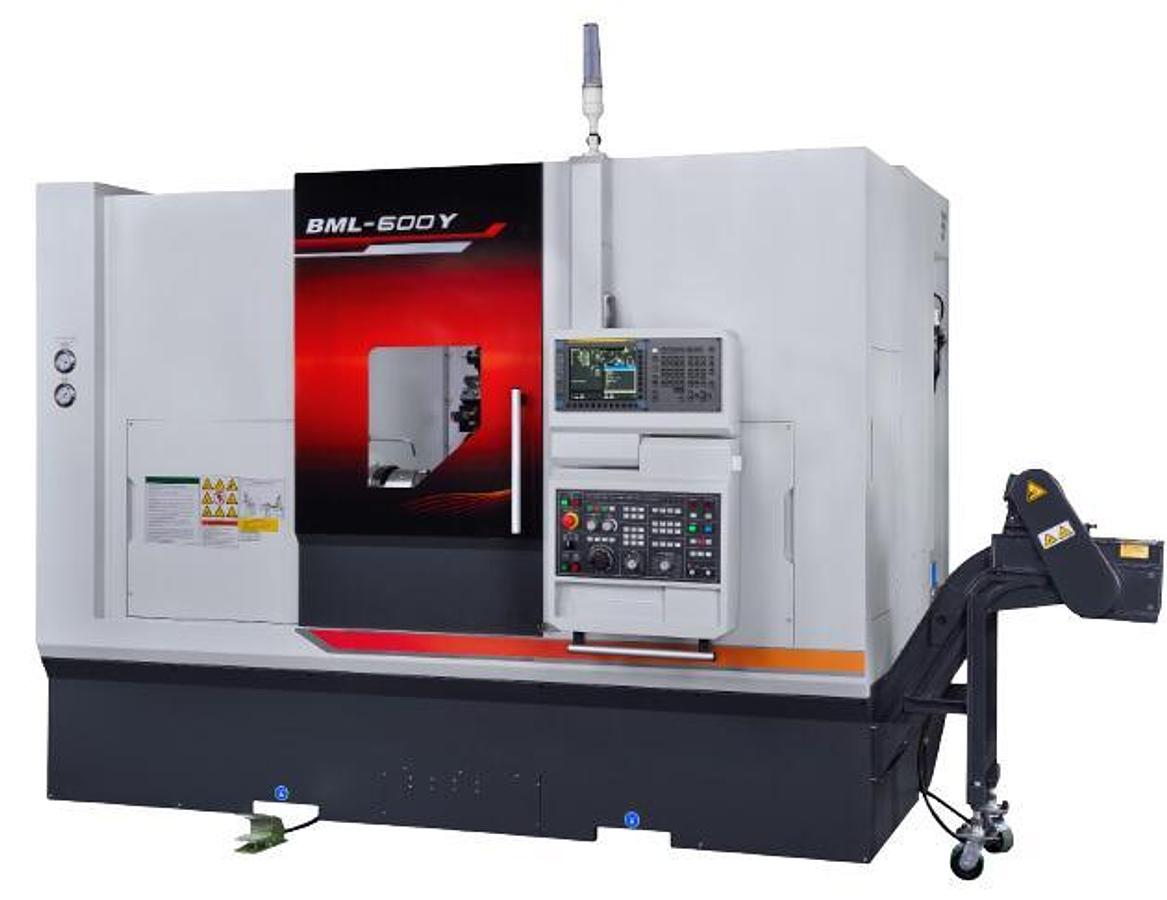

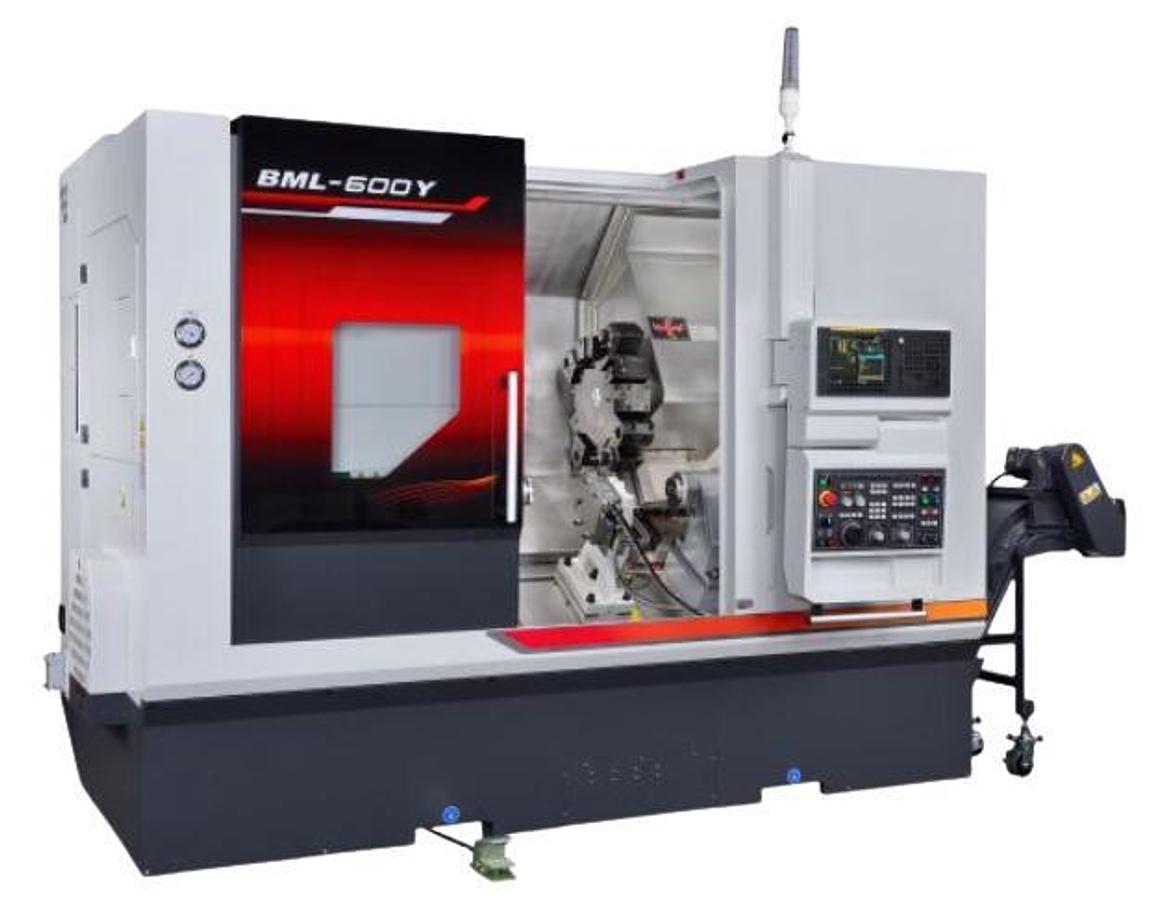

BML-600TY
Contact us for price
Specifications
| Condition | New |
| Swing Over Bed | Ø600 |
| Swing Over Saddle | Ø450 |
| Max. Machining Dia. | BMT65: Ø380 VDI40: Ø285 |
| Max. Machining Length | BMT65: STD: 450 mm (8”) / OPT: 440 mm (10”) VDI40: STD: 475 mm (8”) / OPT: 465 mm (10”) |
| Draw Bar Dia. | Ø45 |
| X-axis | BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm |
| Y-axis | 100 (50+50) mm |
| Z-axis | BMT65: 450 mm VDI40: 495 mm |
| Tool Capacity | 12 pcs |
| Chuck Diameter | STD: 8″+6”(W) OPT: 10”+6”(W) |
| Spindle Speeds | Main Spindle: STD: 50–4,500 (A2-6) STD: 50–3,000 (A2-8) Sub Spindle: 6,000 (A2-5) |
| Spindle Nose | Main: A2-6 STD: A2-8, A2-6 (Built-in) Sub: A2-5 |
