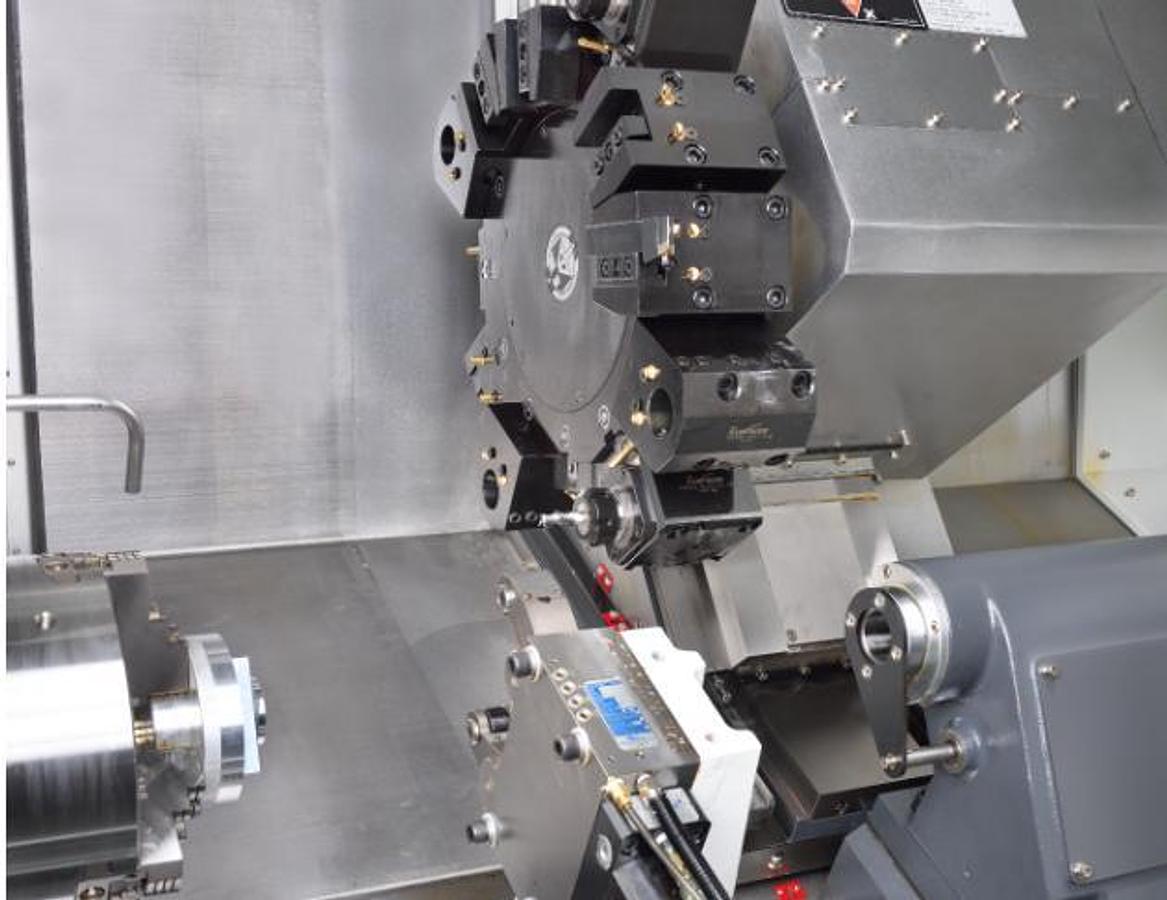

BML-600T
Contact us for price
Specifications
| Condition | New |
| Swing Over Bed | Ø600 |
| Swing Over Saddle | Ø450 |
| Max. Machining Dia. | Ø420 |
| Max. Machining Length | STD: 475 mm (8”) OPT: 565 mm (10”) |
| Draw Bar Dia. | STD: Ø52 OPT: Ø75 |
| X-axis | 230 (210+20) mm |
| Y-axis | – |
| Z-axis | 600 mm |
| Tool Capacity | STD: 10 pcs OPT: 12 pcs |
| Chuck Diameter | STD: 8″+6”(W) OPT: 10”+6”(W) |
| Spindle Speeds | Main Spindle: STD: 50–4,500 (A2-6) STD: 50–3,000 (A2-8) Sub Spindle: 6,000 (A2-5) |
| Spindle Nose | Main: A2-6 STD: A2-8, A2-6 (Built-in) Sub: A2-5 |
