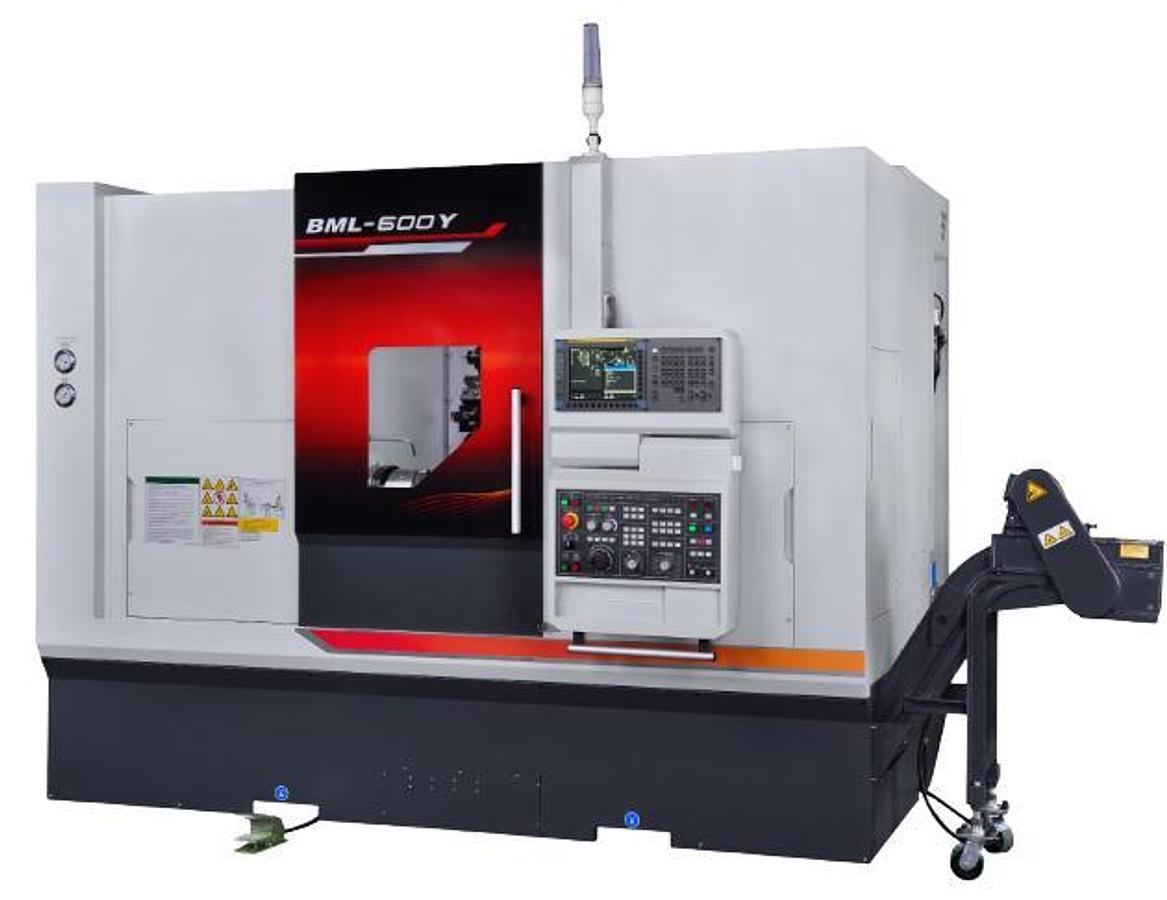

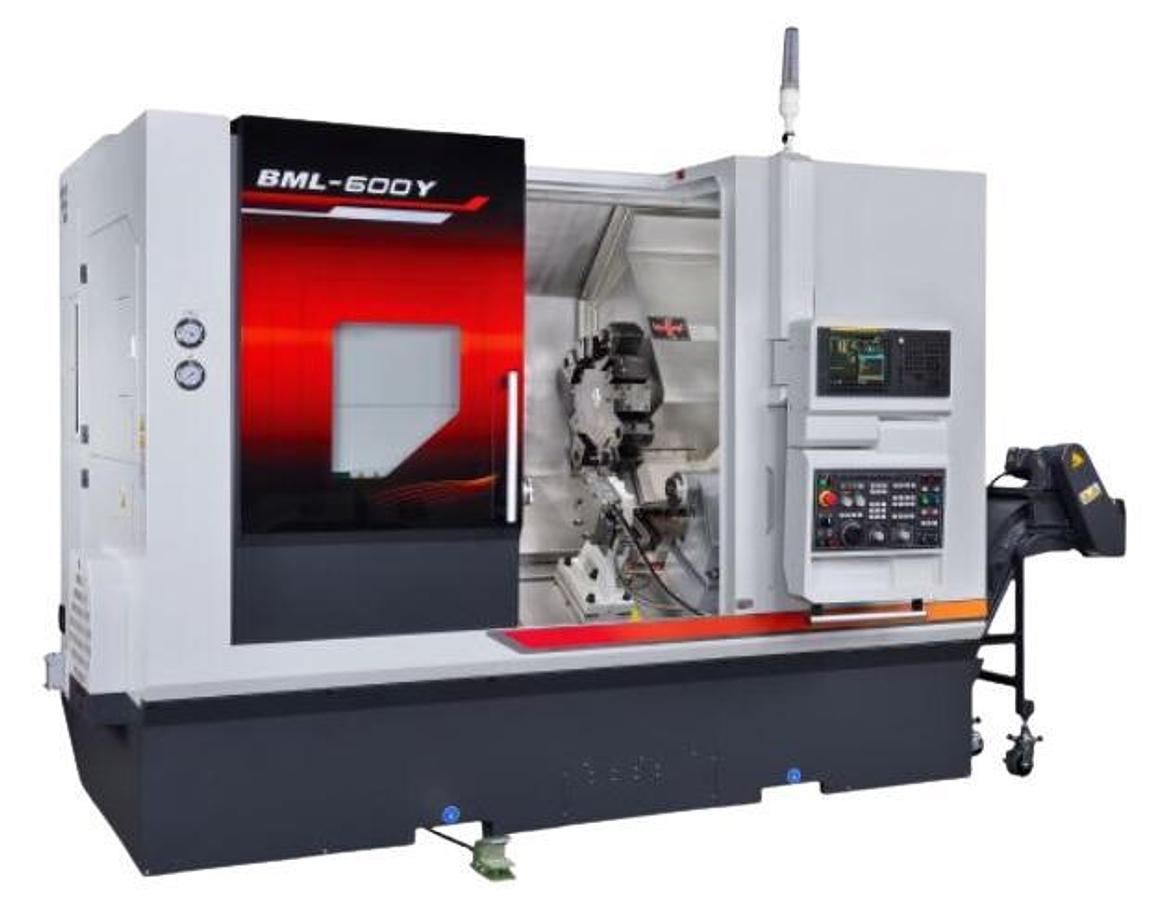

BML-600Y
Contact us for price
Specifications
| Condition | New |
| Swing Over Bed | Ø600 |
| Swing Over Saddle | Ø450 |
| Max. Machining Dia. | BMT65: Ø380 VDI40: Ø285 |
| Max. Machining Length | BMT65: STD: 480 mm (8”) / OPT: 470 mm (10”) VDI40: STD: 520 mm (8”) / OPT: 510 mm (10”) |
| Draw Bar Dia. | STD: Ø52 OPT: Ø75 |
| X-axis | BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm |
| Y-axis | 100 (50+50) mm |
| Z-axis | BMT65: 525 mm VDI40: 565 mm |

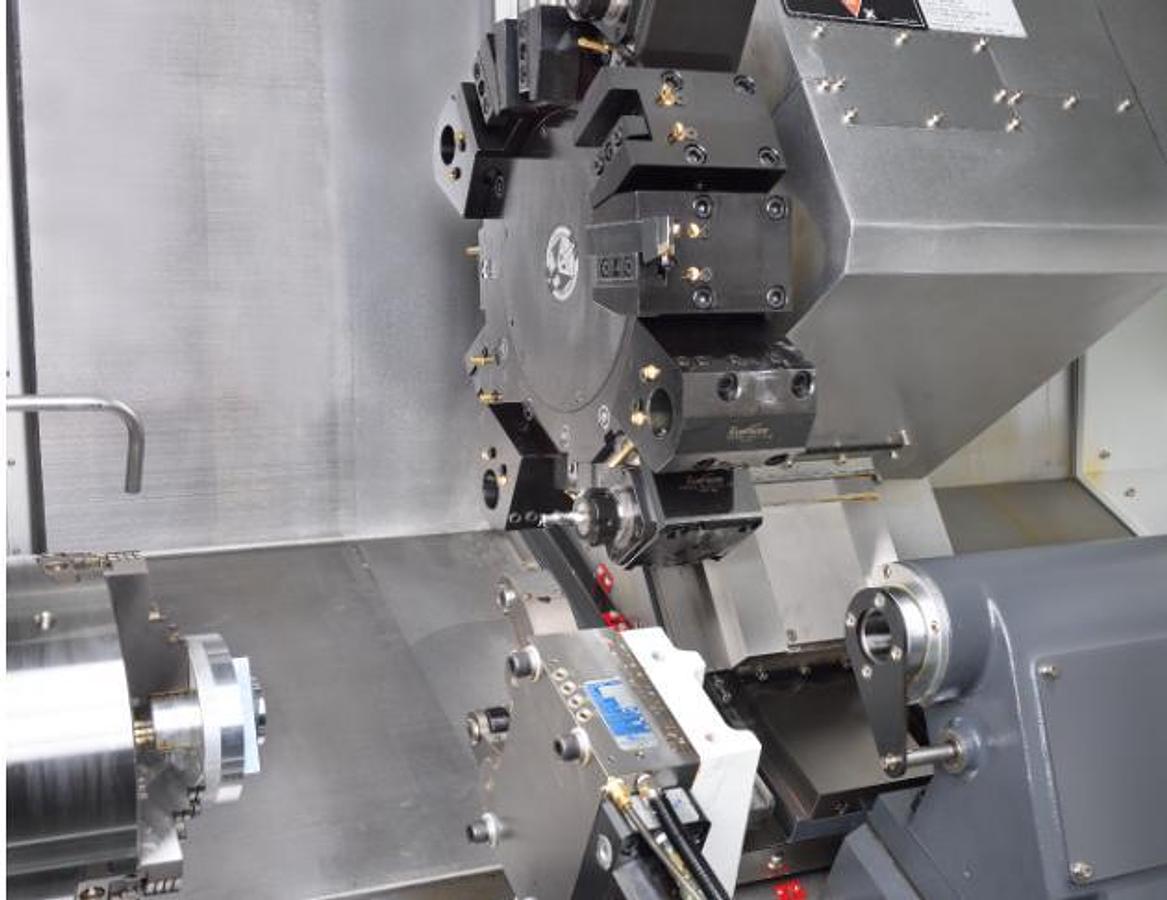

| Tool Capacity | 12 pcs |
| Chuck Diameter | STD: 8″ OPT: 10″ |
| Spindle Speeds | STD: 50–4,500 (A2-6) OPT: 50–3,500 (A2-8) |
| Spindle Nose | STD: A2-6 OPT: A2-8, A2-6 (Built-in) |
