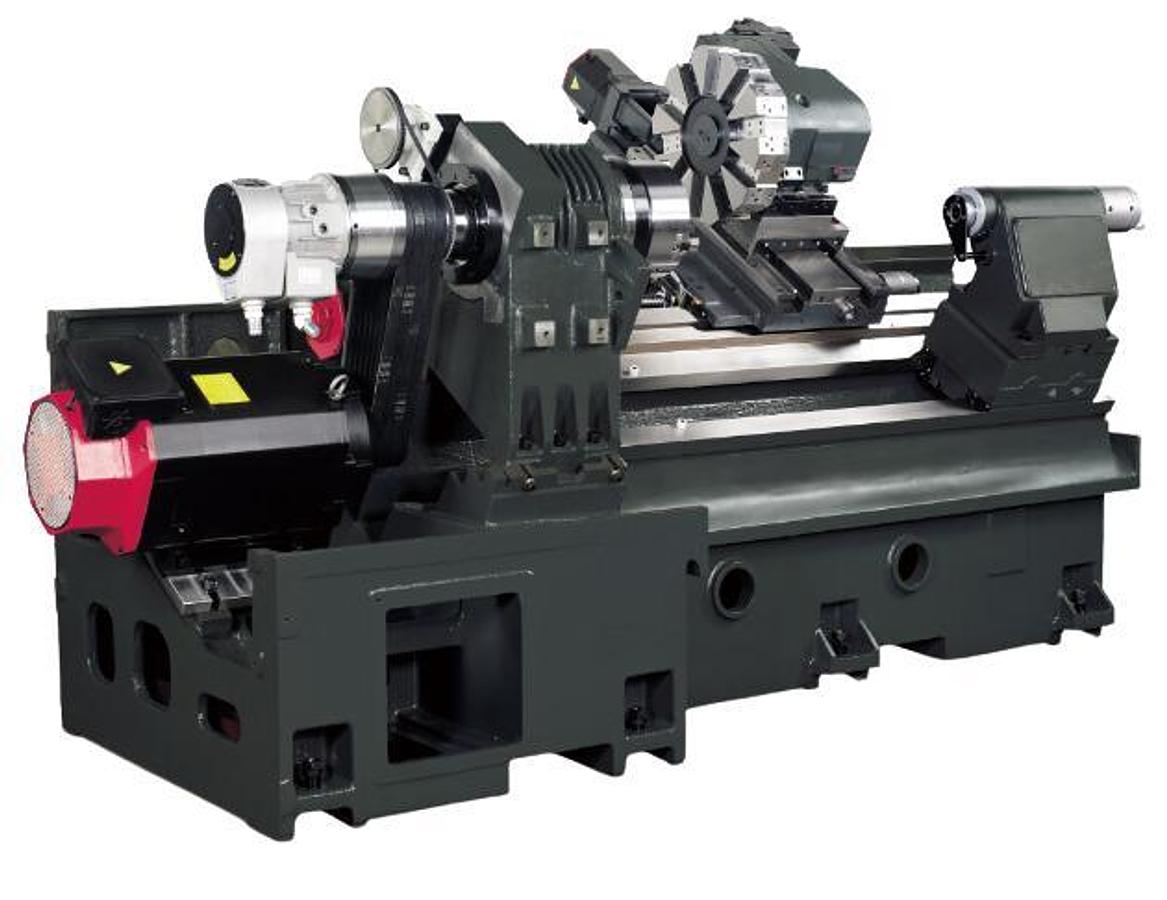

BML-600MY
Contact us for price
Specifications
| Condition | New |
| Swing Over Bed | Ø600 |
| Swing Over Saddle | Ø450 |
| Max. Machining Dia. | BMT65: Ø380 VDI40: Ø285 |
| Max. Machining Length | BMT65: STD: 720 mm (10”) / OPT: 700 mm (12”) VDI40: STD: 760 mm (10”) / OPT: 740 mm (12”) |
| Draw Bar Dia. | STD: Ø75 (10”) OPT: Ø78 (10”) / Ø91 (12”) |
| X-axis | BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm |
| Y-axis | 100 (50+50) mm |
| Z-axis (Optional) | BMT65: 765 mm VDI40: 805 mm |
| Tool Capacity | 12 pcs |
| Chuck Diameter | STD: 10″ OPT: 12″ |
| Spindle Speeds | STD: 50–3,500 (A2-8, 75 mm, 10”) OPT: 50–3,000 (A2-8, 78 mm, 10”) 50–2,500 (A2-8, 91 mm, 12”) |
| Spindle Nose | A2-8 |
