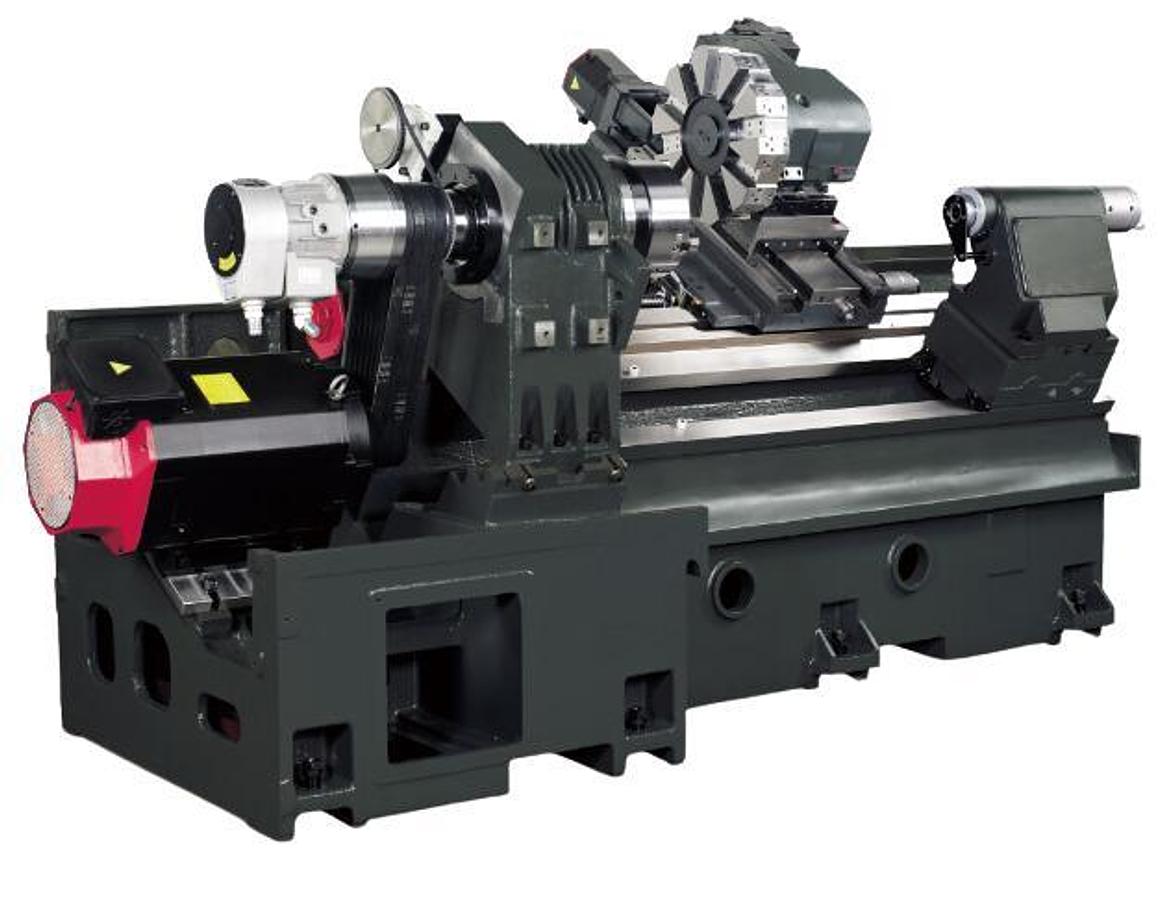

BML-600M
Contact us for price
Specifications
| Manufacturer | Ingenious Machinery |
| Condition | New |
| Swing Over Bed | Ø600 |
| Swing Over Saddle | Ø450 |
| Max. Machining Dia. | Ø420 |
| Max. Machining Length | STD: 780 mm (10”) OPT: 760 mm (12”) |
| Draw Bar Dia. | STD: Ø75 (10”) OPT: Ø78 (10”) / Ø91 (12”) |
| X-axis | 230 (210+20) mm |
| Y-axis | – |
| Z-axis (Optional) | 830 mm (10”) 820 mm (12”) |
| Tool Capacity | STD: 10 pcs OPT: 12 pcs |
| Chuck Diameter | STD: 10″ OPT: 12″ |
| Spindle Speeds | STD: 50–3,500 (A2-8, 75 mm, 10”) OPT: 50–3,000 (A2-8, 78 mm, 10”) 50–2,500 (A2-8, 91 mm, 12”) |
| Spindle Nose | A2-8 |
