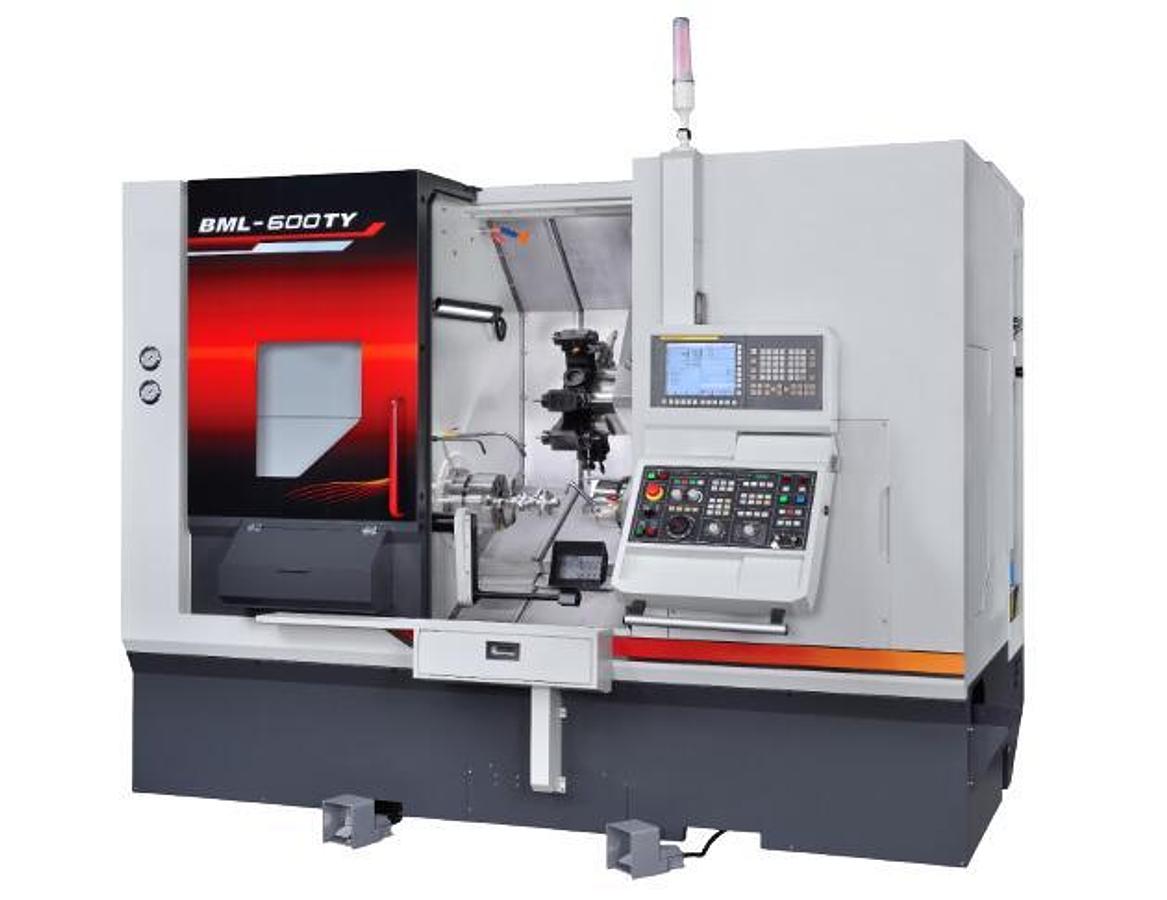

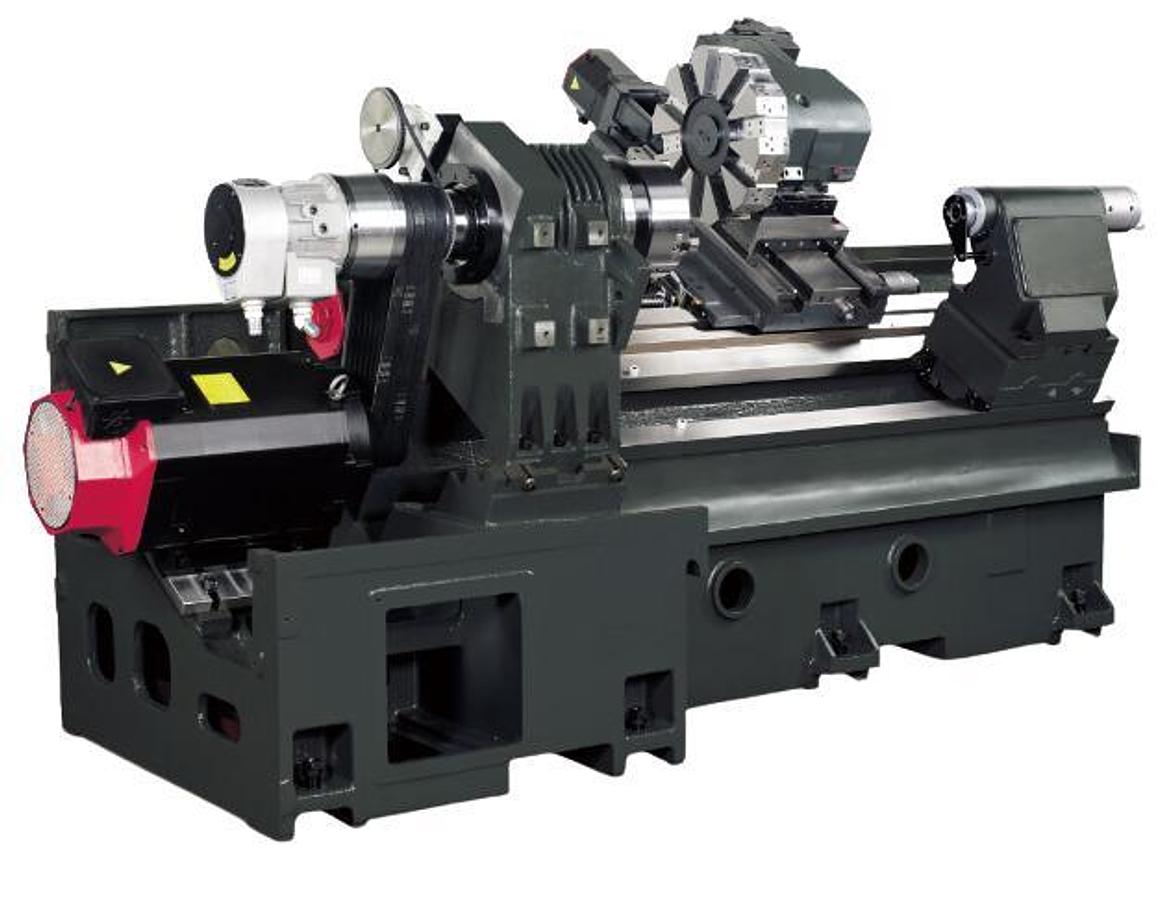

BML-600MTY

Manufacturer	Ingenious Machinery
Condition	New
Swing Over Bed	Ø600
Swing Over Saddle	Ø450
Max. Machining Dia.	BMT65: Ø380 VDI40: Ø285
Max. Machining Length	BMT65: STD: 690 mm (10”) / OPT: 670 mm (12”) VDI40: STD: 710 mm (10”) / OPT: 690 mm (12”)
Draw Bar Dia.	Main Spindle: STD: Ø75 (10”) OPT: Ø78 (10”) / Ø91 (12”) Sub Spindle: Ø45
X-axis	BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm
Y-axis	100 (50+50) mm
Z-axis (Optional)	BMT65: 690 mm VDI40: 735 mm
Tool Capacity	12 pcs
Chuck Diameter	STD: 10″+6”(W) OPT: 12”+6”(W)
Spindle Speeds	Main Spindle: STD: 50–3,500 (A2-8, 75 mm, 10”) OPT: 50–3,000 (A2-8, 78 mm, 10”) 50–2,500 (A2-8, 91 mm, 12”) Sub Spindle: 6,000 (A2-5)
Spindle Nose	Main Spindle: A2-8 Sub Spindle: A2-5
