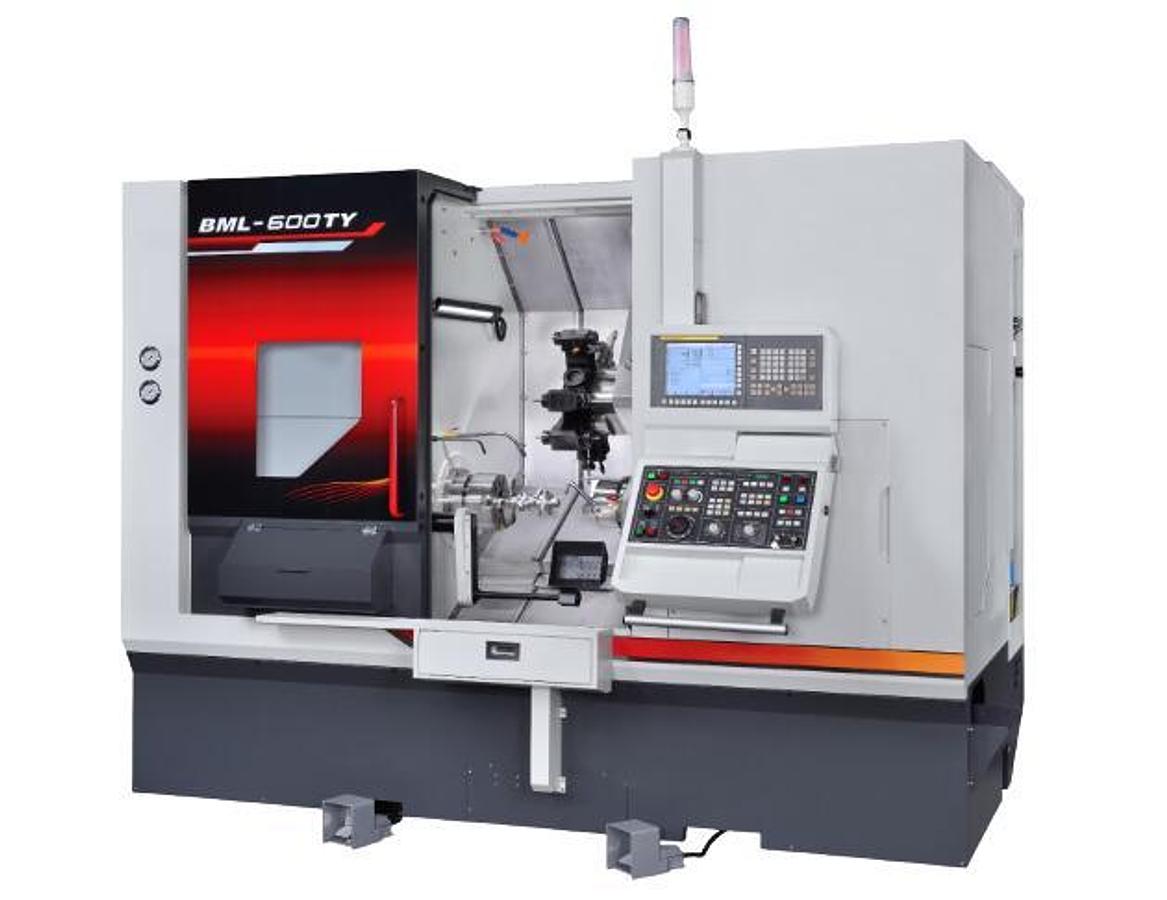

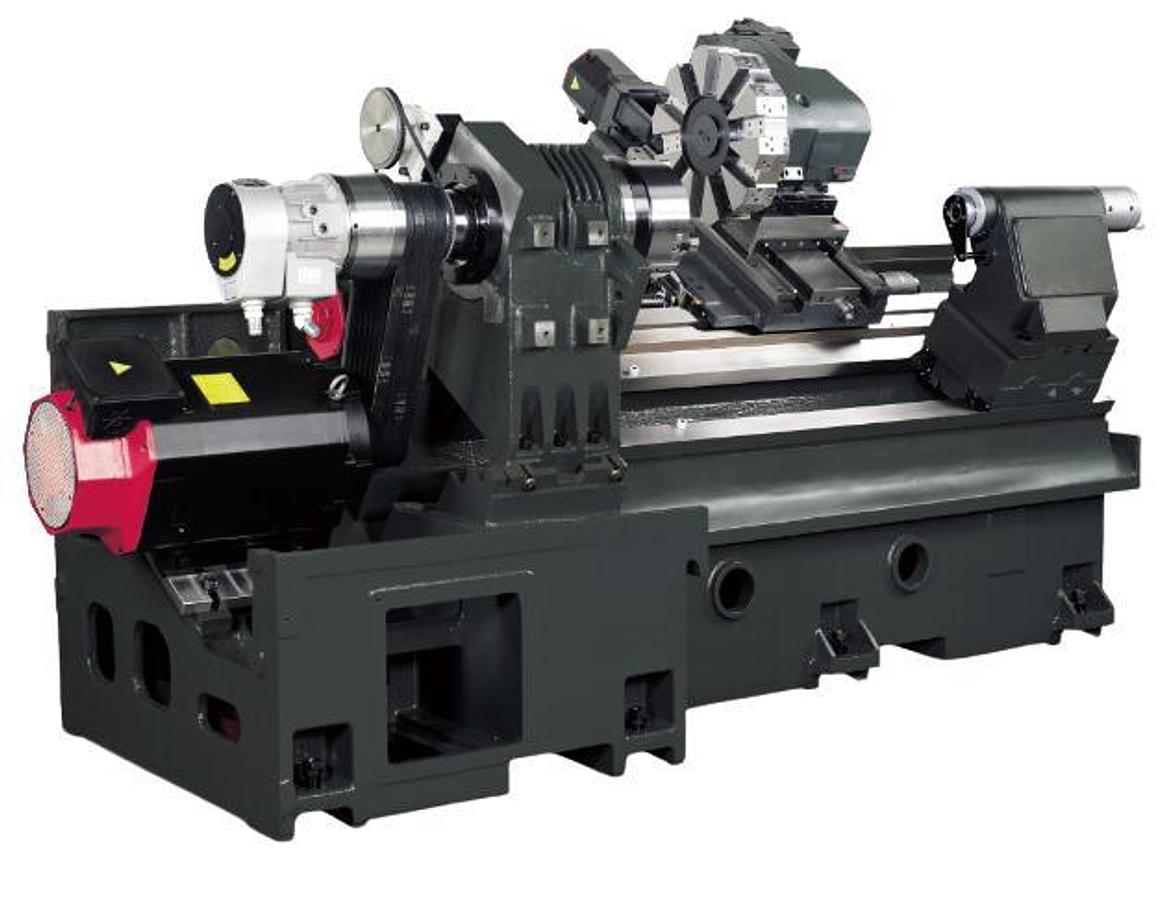

BML-600L

Specifications

Manufacturer	Ingenious Machinery
Condition	New
Swing Over Bed	Ø600 Ø600 Ø600 Ø600
Swing Over Saddle	Ø450 Ø450 Ø450 Ø450
Max. Machining Dia.	Ø420 BMT65: Ø380 VDI40: Ø285 Ø420 BMT65: Ø380 VDI40: Ø285
Max. Machining Length	STD: 1,280 mm (10”) OPT: 1,260 mm (12”) BMT65: STD: 1,220 mm (10”) / OPT: 1,200 mm (12”) VDI40: STD: 1,260 mm (10”) / OPT: 1,240 mm (12”) STD: 1,210 mm (10”) OPT: 1,190 mm (12”) BMT65: STD: 1,190 mm (10”) / OPT: 1,170 mm (12”) VDI40: STD: 1,210 mm (10”) / OPT: 1,190 mm (12”)
Draw Bar Dia.	STD: Ø75 (10”) OPT: Ø78 (10”) / Ø91 (12”) STD: Ø75 (10”) OPT: Ø78 (10”) / Ø91 (12”) Main Spindle: STD: Ø75 (10”) OPT: Ø78 (10”) / Ø91 (12”) Sub Spindle: Ø45 Main Spindle: STD: Ø75 (10”) OPT: Ø78 (10”) / Ø91 (12”) Sub Spindle: Ø45
X-axis	230 (210+20) mm BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm 230 (210+20) mm BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm
Y-axis	– 100 (50+50) mm – 100 (50+50) mm
Z-axis	1,330 mm (10”) 1,320 mm (12”) BMT65: 1,265 mm VDI40: 1,305 mm 1,330 mm BMT65: 1,190 mm VDI40: 1,235 mm
Tool Capacity	STD: 10 pcs OPT: 12 pcs 12 pcs STD: 10 pcs OPT: 12 pcs 12 pcs
Chuck Diameter	STD: 10″ OPT: 12″ STD: 10″ OPT: 12″ STD: 10″+6”(W) OPT: 12”+6”(W) STD: 10″+6”(W) OPT: 12”+6”(W)
Spindle Speeds	STD: 50–3,500 (A2-8, 75 mm, 10”) OPT: 50–3,000 (A2-8, 78 mm, 10”) 50–2,500 (A2-8, 91 mm, 12”) STD: 50–3,500 (A2-8, 75 mm, 10”) OPT: 50–3,000 (A2-8, 78 mm, 10”) 50–2,500 (A2-8, 91 mm, 12”) Main Spindle: STD: 50–3,500 (A2-8, 75 mm, 10”) OPT: 50–3,000 (A2-8, 78 mm, 10”) 50–2,500 (A2-8, 91 mm, 12”) Sub Spindle: 6,000 (A2-5) Main Spindle: STD: 50–3,500 (A2-8, 75 mm, 10”) OPT: 50–3,000 (A2-8, 78 mm, 10”) 50–2,500 (A2-8, 91 mm, 12”) Sub Spindle: 6,000 (A2-5)
Spindle Nose	A2-8 A2-8 Main Spindle: A2-8 Sub Spindle: A2-5 Main Spindle: A2-8 Sub Spindle: A2-5
