PSG-820AD
Contact us for price
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
| Model | Unit PSG-1A820 PSG-2A820 PSG-3A820 PSG-820AD |
| Condition | New |
| General Capacity | |
| Table Working Surface | mm 200x500 |
| Max. Table Travel | mm 230x530 |
| Max. Grinding Surface | mm 200x500 |
| Max. Distance Center of Spindle to Table | mm 420 / 450(Opt.) |
| Longitudinal Movement | |
| Table Guideway | V & Flat Way |
| Table Speed | M/min 3~25 |
| Cross Movement | |
| Rapid Power (Approx.) | mm/min 1,100(60HZ)/ 900(50HZ) |
| Hand Wheel(1 rev) | mm 1 |
| Hand Wheel(1 gra) | mm 0.005 |
| Microfeed(1 gra) / Opt. | mm 0.002 |
| Increment (Approx.) | mm 0.15 ~ 7.5 |
| Vertical Movement | |
| Rapid Power Elevation(Approx.)(3A/Ad) | mm/min 220 (60HZ) |
| MPG Micro Feed / Opt. | mm (x1)0.001 (x10)0.01 (x100)0.1 |

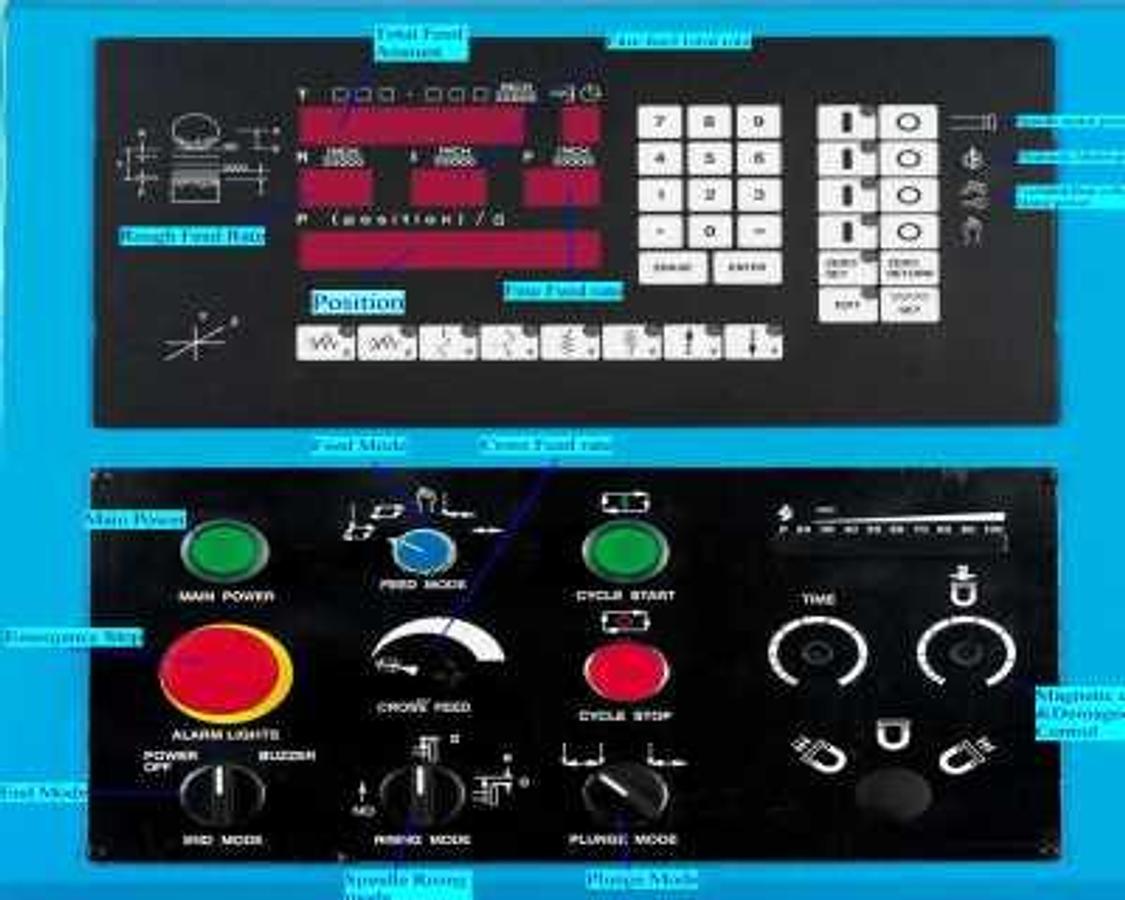

| Auto. Downfeed (Only for AD Series) | |
| Feed Rate (Coarse / Fine) | mm 0.001~0.099 |
| Total Stock Removal | mm 0.001~999.999 |
| Fine Feed Stock Removal | mm 0.001 |
| Spark Out | passes 0~9 |
| Grinding Wheel | |
| Wheel Dimensions (DiaxWidthxBore) | mm 180x13x31.75 |
| Wheel Speed | rpm 3,000/3,600 |
| Motor | |
| Spindle Motor | HP 2 |
| Cross Feed | W 40 |

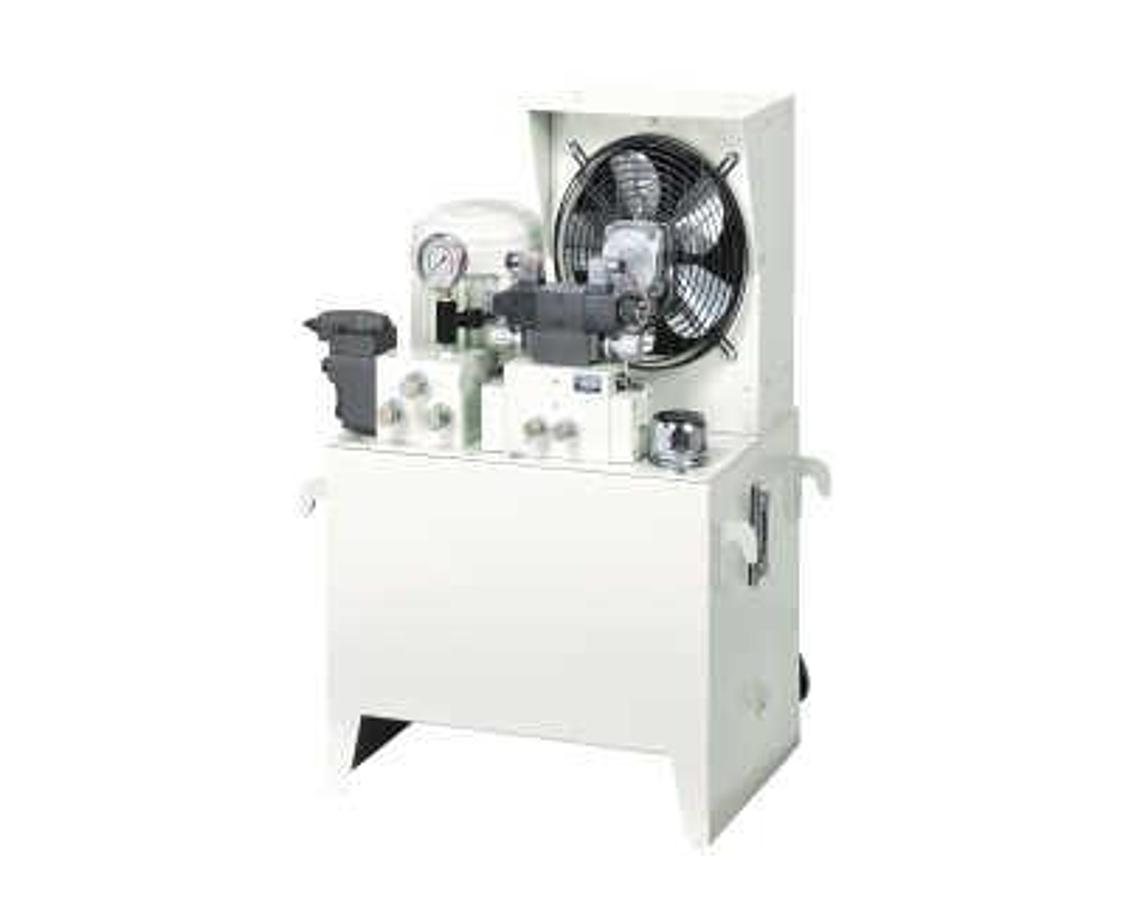

| Hydraulic | hpxp 1x6 |
| Vertical Feed (Only for 3A/AD Series) | 25W (3A) / 21.6 kg-cm (AD) |
| Coolant Pump | HP 1/8 |
| Weight | kgs 920 / 1,020 |
| Packing Size (LxWxH) | cm 172x125x210 190x150x210 (AD) |
