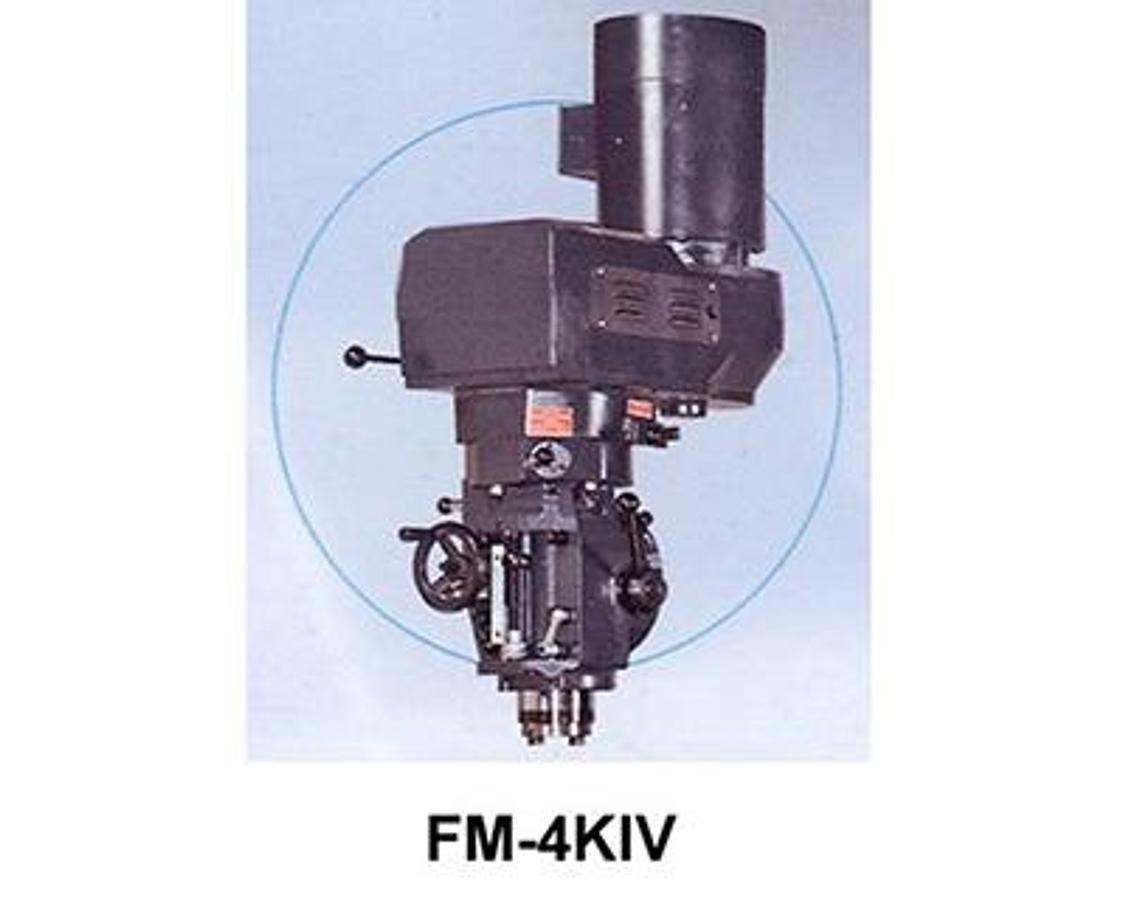

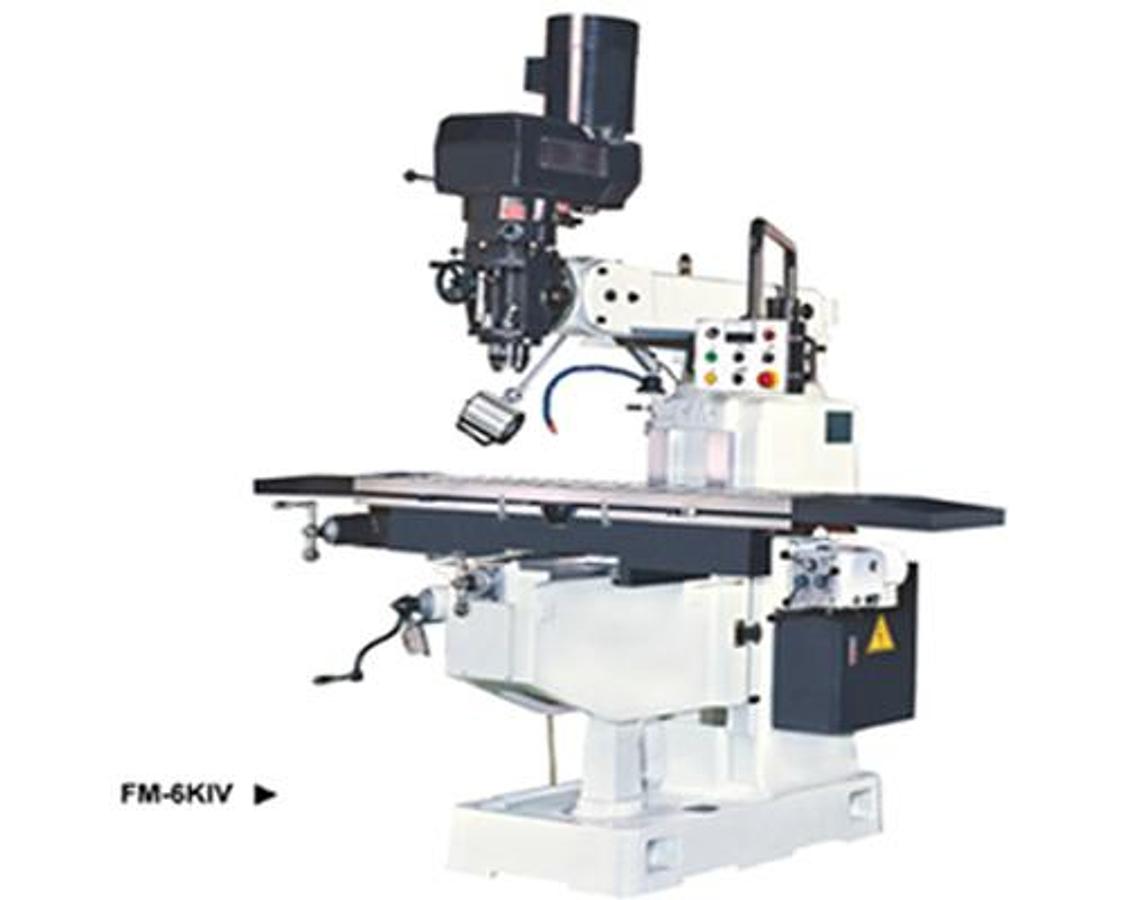

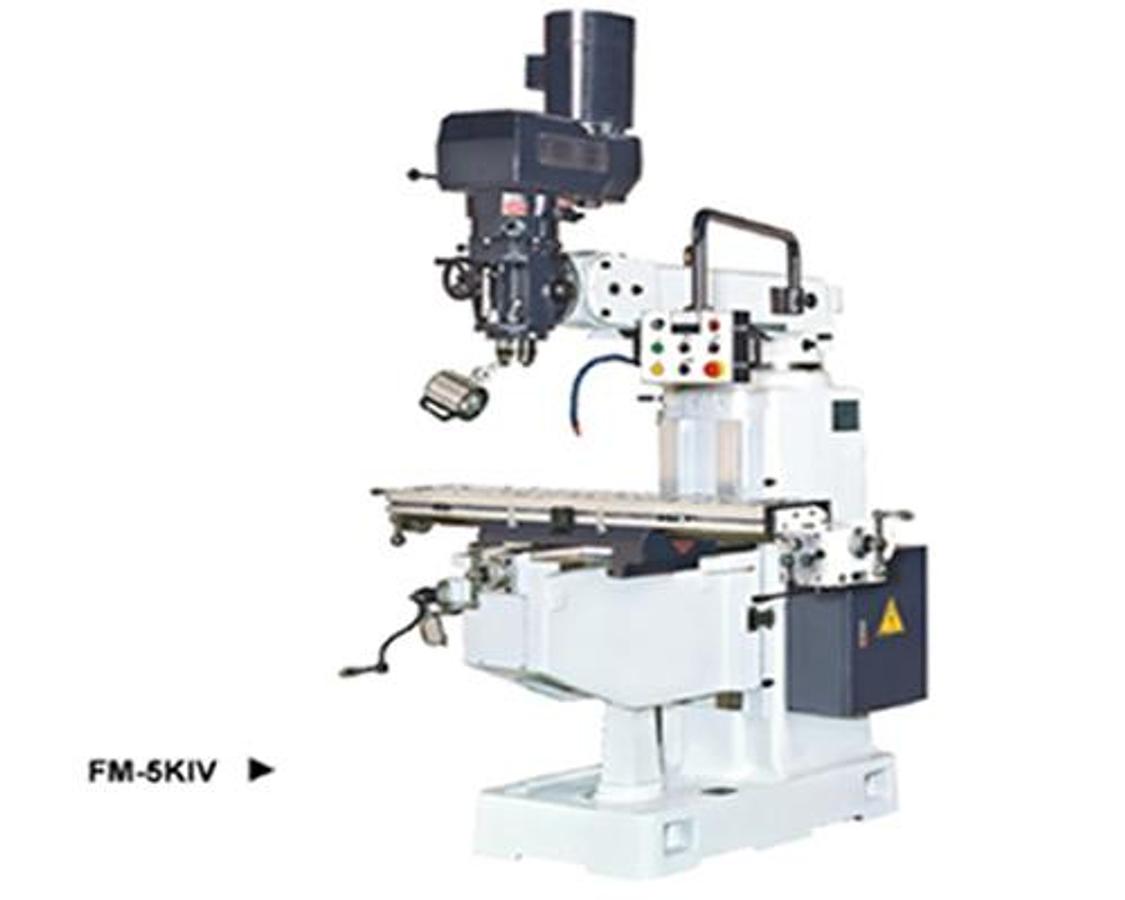

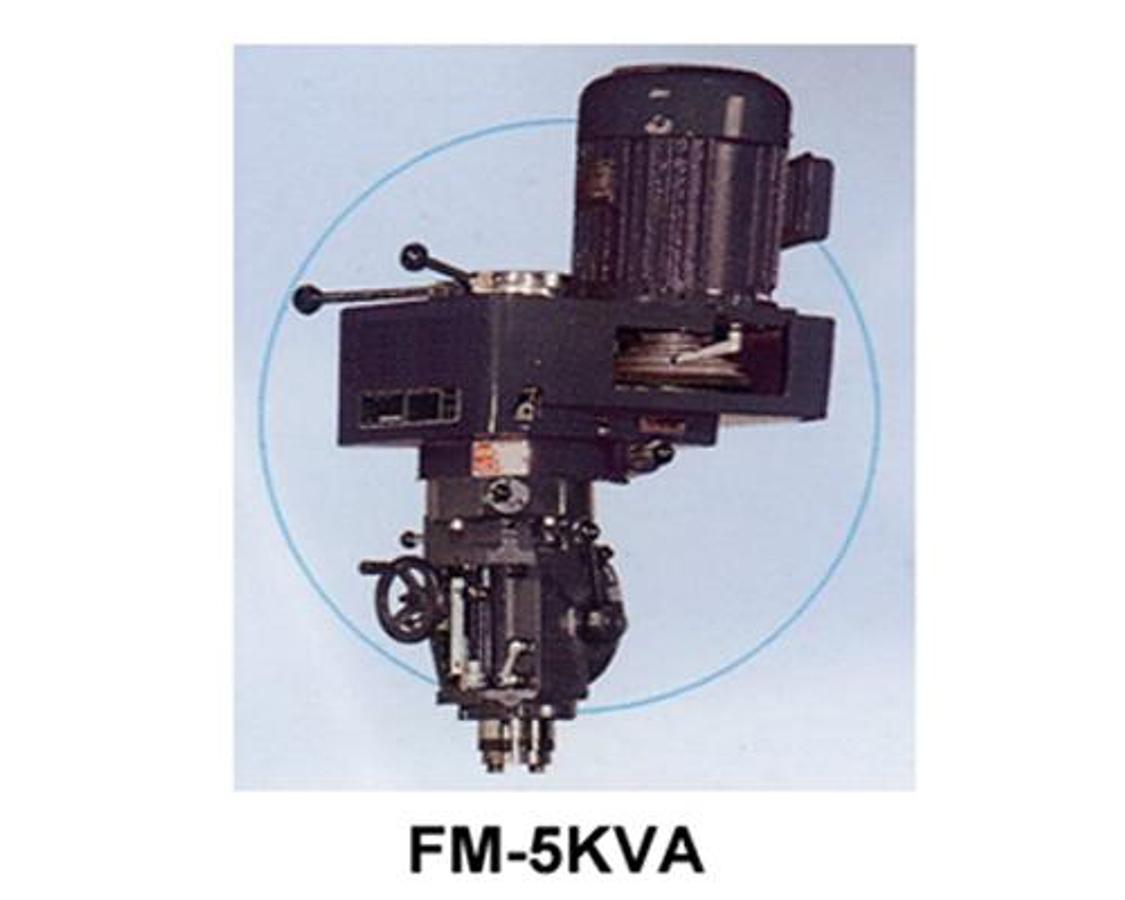

VERTICAL TYPE TURRET MILLING MACHINE FM-4~6KVA/KVS/KIV
Contact us for price
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
| Model | 70~4200 r.p.m.(50/60HZ) |
| Condition | New |
| Table size | 1270x254mm (50"x10") 1370x254mm (54"x10")(opt.) 1370x305mm (54"x12") 1524x305mm(60"x12")(opt.) |
| No. of T-slots | 3 |
| T-slots width | 16 |
| Slideway hardened & surface ground | YES |
| Table surface hardened & ground | YES |
| Slideway "dovetail" or "square" | X Axis : Dovetail Y/Z Axes : Square |
| X axis | 800mm (31-1/2") 915mm (36") (w/opt. 54"x10" table) 800mm (31-1/2") 1100mm(43-5/16") (w/opt. 60"x12" table) |
| Y axis | 380mm(15") 430mm(17") 380mm(15") |
| Z axis | 430mm(17") 520mm(20-7/16") 480mm(18-7/8") |
| Distance from spindle nose to table surface | 50~480mm (2"~18-7/8") 50~570mm (2"~22-7/16") 50~530mm (2"~20-7/8") |
| Distance from spindle center to column | 120~660mm (4-11/16"~26") 220~750mm (8-5/8"~29-1/2") |
| Travel reduced with power feed | 60mm (X axis) None |
| Head swivel angle (R/L) | ±90° |
| Head tilting angle (up/down) | ±45° |
| Ram travel | 508mm(20") / 530mm (20-13/16")(NT40) 530mm(20-13/16") |
| Main motor | 3HP / 5HP(opt.) 5HP |
| Spindle taper | R8 or NT30, NT40(opt.) NT40 |
| Spindle travel | 127mm(5") |
| Quill feed rate | 0.04, 0.08, 0.15 mm/rev |
| Quill diameter | 85.7mm(3-3/8") / 100mm(3-15/16")(opt.) 100mm(3-15/16") |
| Machine net weight | 1050 kgs 1300 kgs 1400 kgs |
