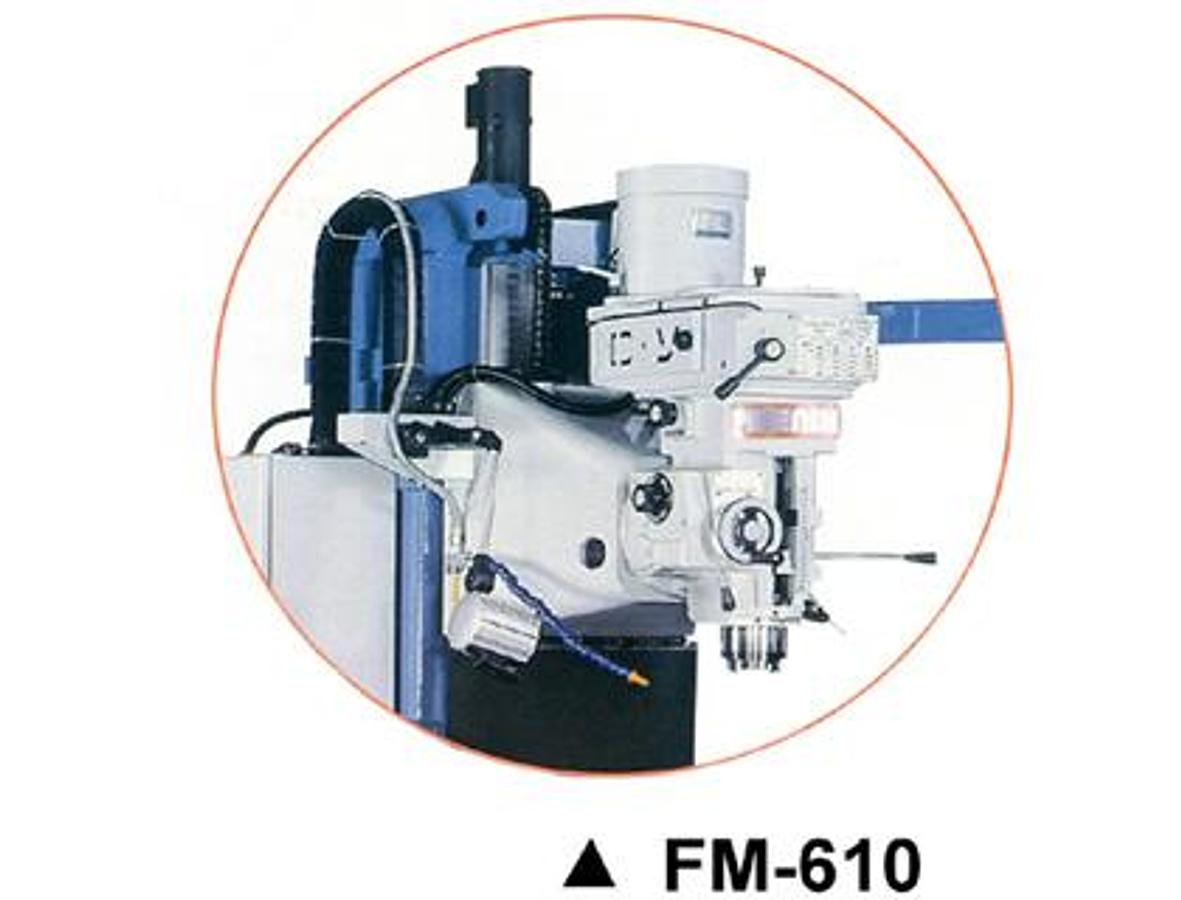

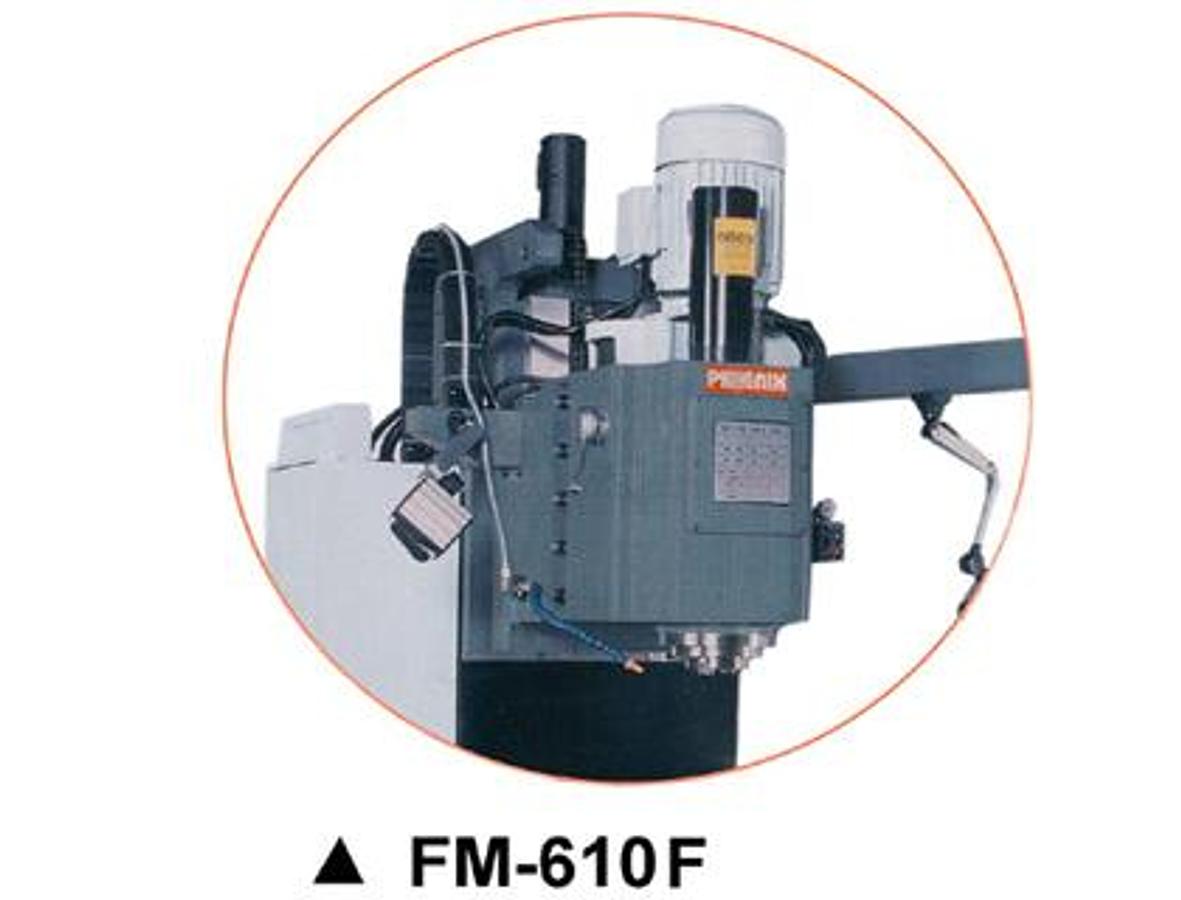

BED TYPE PRECISION MILLING MACHINE FM-610/610F/610G
Contact us for price
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference
Specifications
| Model | FM-610 FM-610F FM-610G |
| Condition | New |
| Working surface | 2450 x 580mm (96-7/16"x22-13/16") |
| T-slot (size x number x pitch) | 18mmx4x70mm (0.708"x4x2.755") |
| Max. table load | 1500kgs (3315 lbs) |
| Longitudinal travel (X axis) | 2000mm (78-3/4") |
| Cross travel (Y axis) | 650mm (25-5/8") |
| Vertical travel (Z axis) | 700mm (27-9/16") or 800/900/1000 mm (opt.) 600mm (23-5/8") or 700/800/900mm (opt.) |
| Distance from spindle end to table | 100~800/900/1000/ 1100mm 90~690/790/890/ 990mm 120~720/820/920/ 1020mm |
| Distance from spindle center to cloumn | 650mm (25-9/16") 610mm (24") |
| Spindle nose taper | NT40 / BT40 NT50 / BT50 |
| Spindle speeds | Inverter operated vari 85~3600r.p.m. Inverter operated vari 60~3000r.p.m. (3 steps) 6 steps 125~1100r.p.m. (60HZ) or 104~1400r.p.m. (50HZ) |
| Quill dia | Ø110mm (4-5/16") Ø128.57mm (5") |
| Cutting feed rate X,Y,Z axes | vari 10~3000 mm/min. |
| Rapid traverse X,Y,Z axes | vari 4800 mm/min. |
| Spindle drive motor | 7-1/2HP 10HP/ 4P or 15HP/4P (opt.) 10HP 2P/4P |
| X,Y,Z axes motor | 4.5Nm |
| Coolant pump | 1/8HP |
| Machine weight (net) | 5700kgs (12597 lbs) 6000kgs (13260 lbs) |
