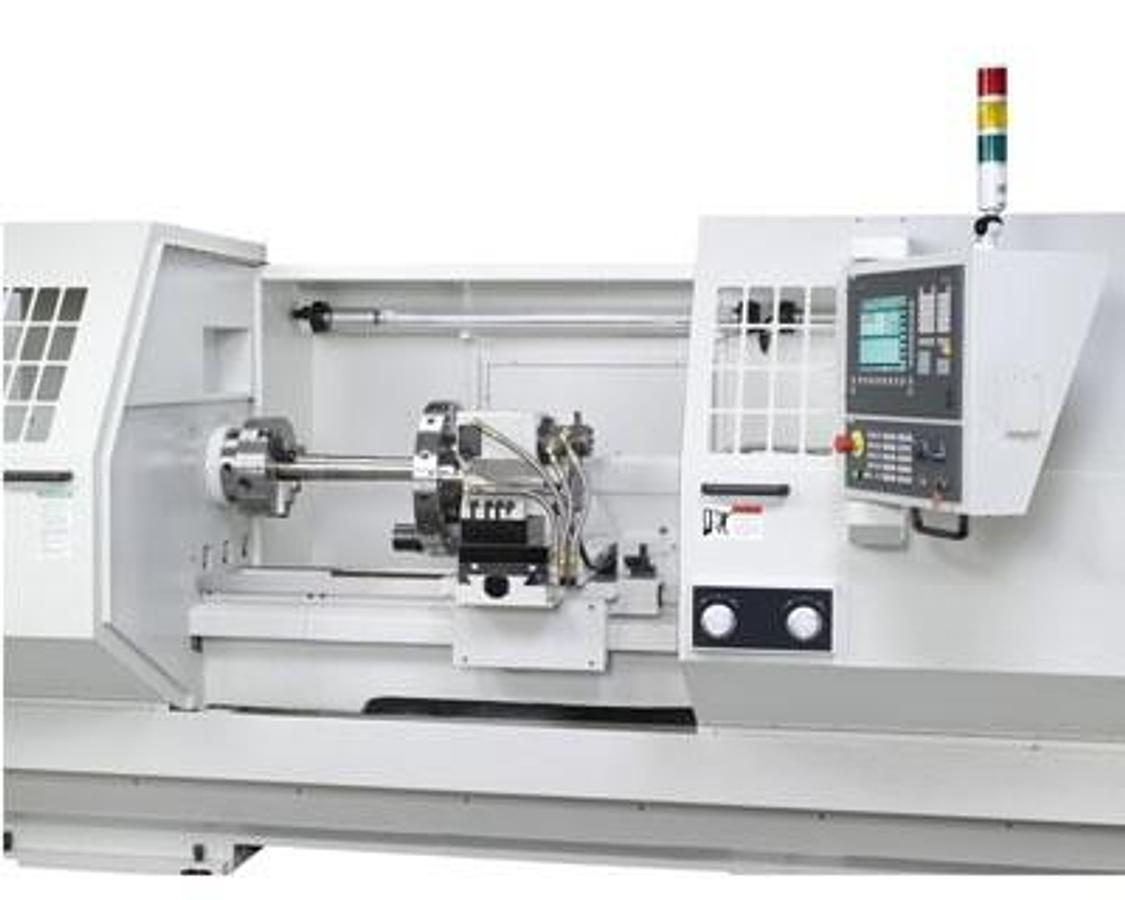

FL-76 CNC lathe series

Contact us for price
or
Call (519) 212-1782

Description

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Show All

Specifications

ModelFL-7610CNC FL-7615CNC FL-7620CNC FL-7630CNC FL-7640CNC
ConditionNew
Swing over bed760mm (30")
Center height380mm (15")
Swing over cross slide530mm (20-7/8")
Distance between centers900mm (35-7/16") 1400mm (55-1/8") 1900mm (74-13/16") 2900mm (114-1/8") 3900mm (153-1/2")
Width of bed450mm (17-11/16")
Max. cutting diameter over bed760mm (30")
Max. cutting diameter over cross slide530mm (20-7/8")
Spindle speeds30~2000 r.p.m. (Ø85mm bore)  3 ranges, infinitely variable
Spindle noseA1-8 or D1-8 (Ø85mm bore)  or A2-11 (Ø105mm/Ø155mm bore), (opt.)
Spindle nose taper1/19.231 (same taper as MT No.7)
Spindle boreØ85mm (3-3/8") or Ø105mm (4-1/8")(opt.) or Ø155mm (6-1/8") (opt.)
Longitudinal travel (Z axis)900mm (35-7/16") 1400mm (55-1/8") 1900mm (74-13/16") 2900mm (114-1/8") 3900mm (153-1/2")
Cross slide travel (X axis)415mm (16-3/8")
Quill diameter105mm (4-1/8")
Quill travel225mm (9")
Quill taperMT No.5
Spindle motorAC 15HP or AC 20HP/AC 30HP (opt.)
X/Z axis motorX axis：AC servo 1KW,2000 r.p.m.                           Z axis：AC servo 2KW,2000 r.p.m.(FL-7610/15/20/30 CNC)                                        AC servo 3.5KW,2000 r.p.m.(FL-7640 CNC)
Coolant pump motor1/6 HP
Cutting feed rateX/Z axis：3m/min. (max.)
Rapid traverseX/Z axis：7.5m/min. (max.)
Machine weight (approx.)3900kgs 4400kgs 4900kgs 5900kgs 6900kgs
