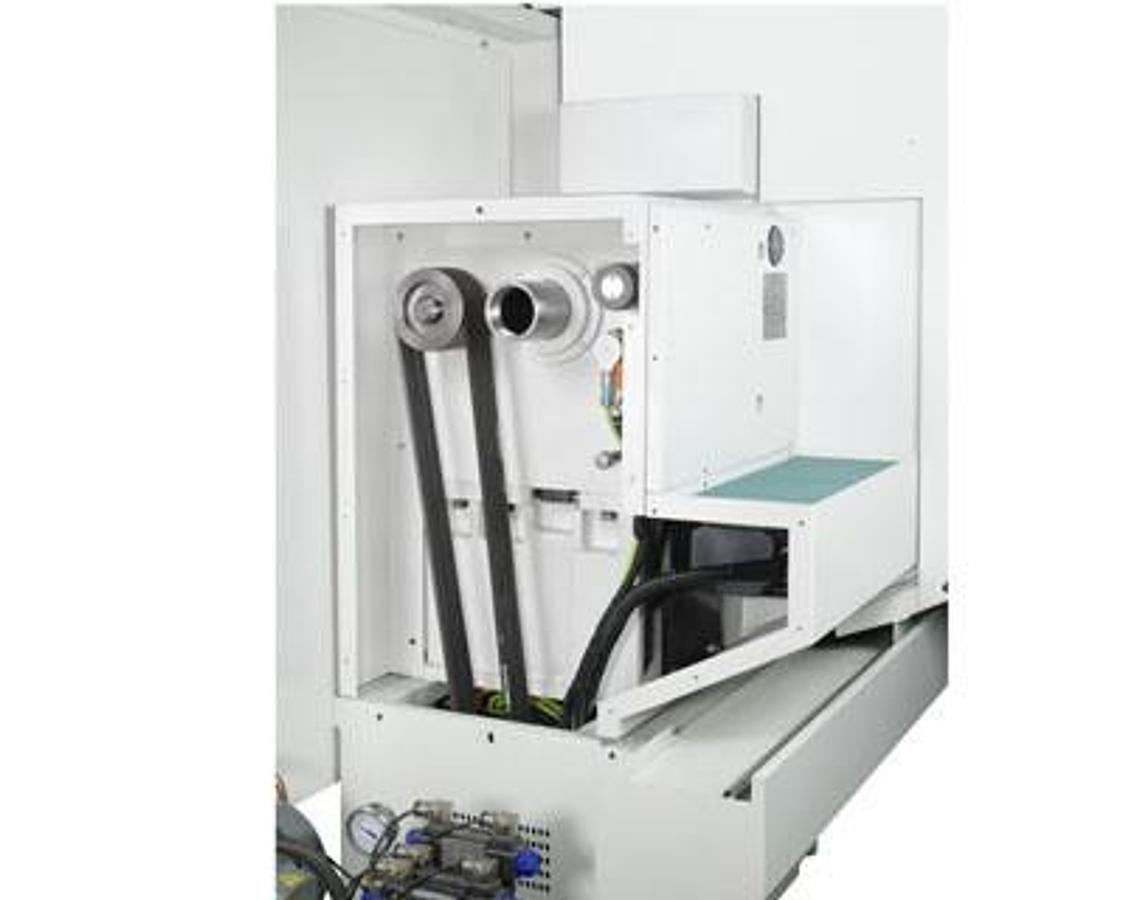

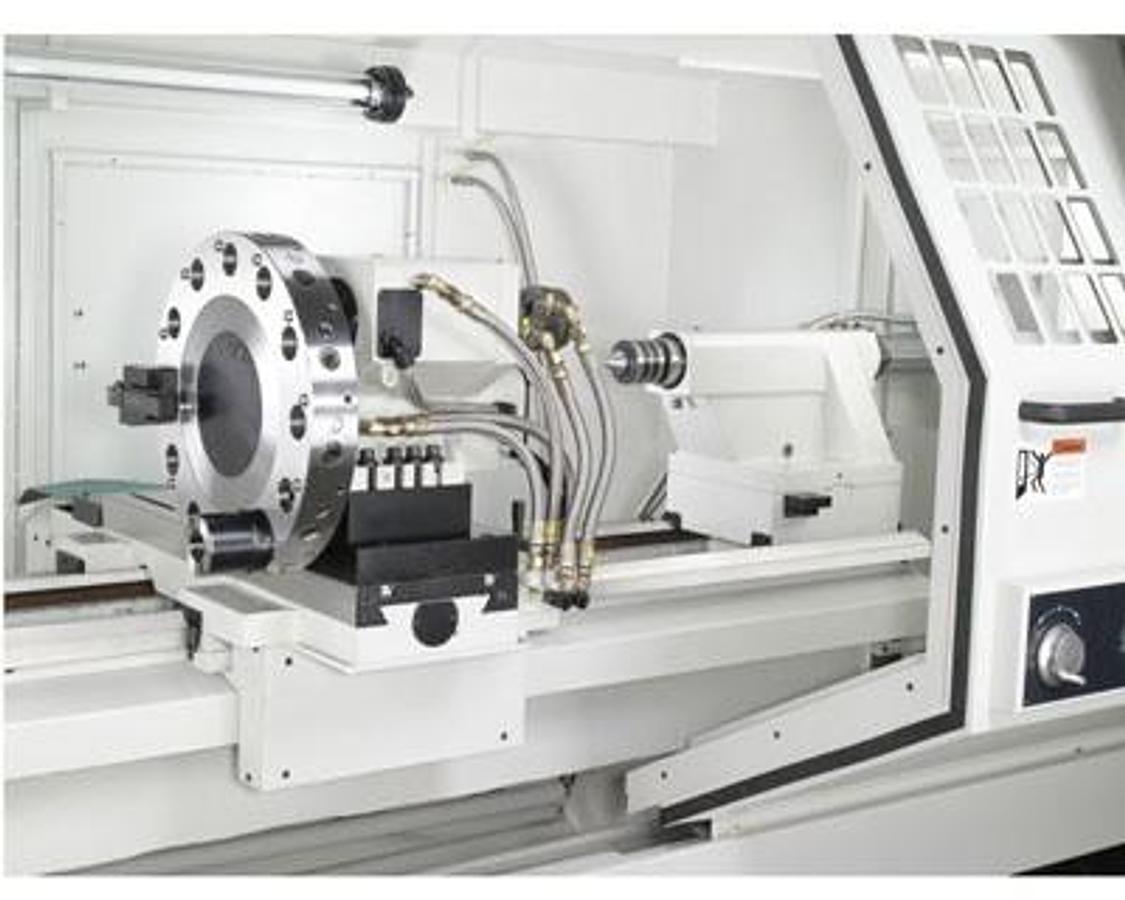

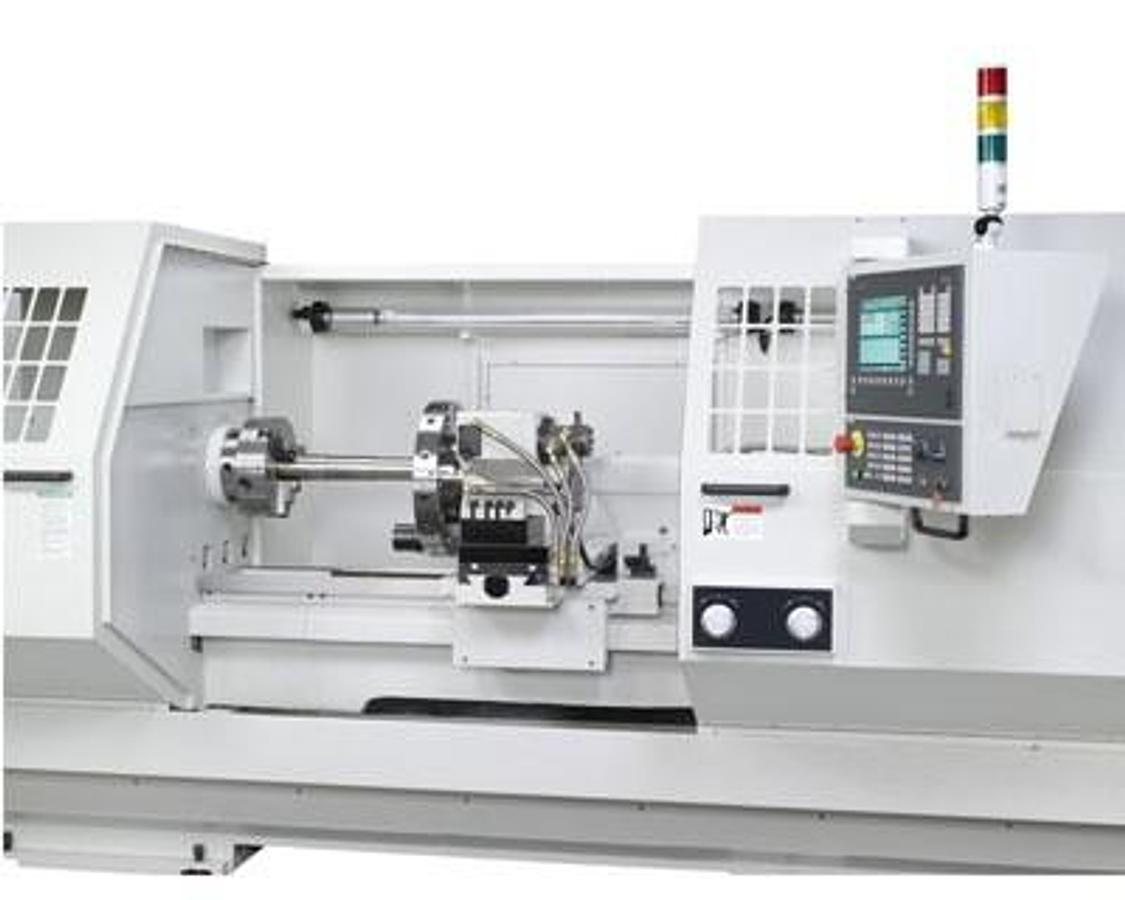

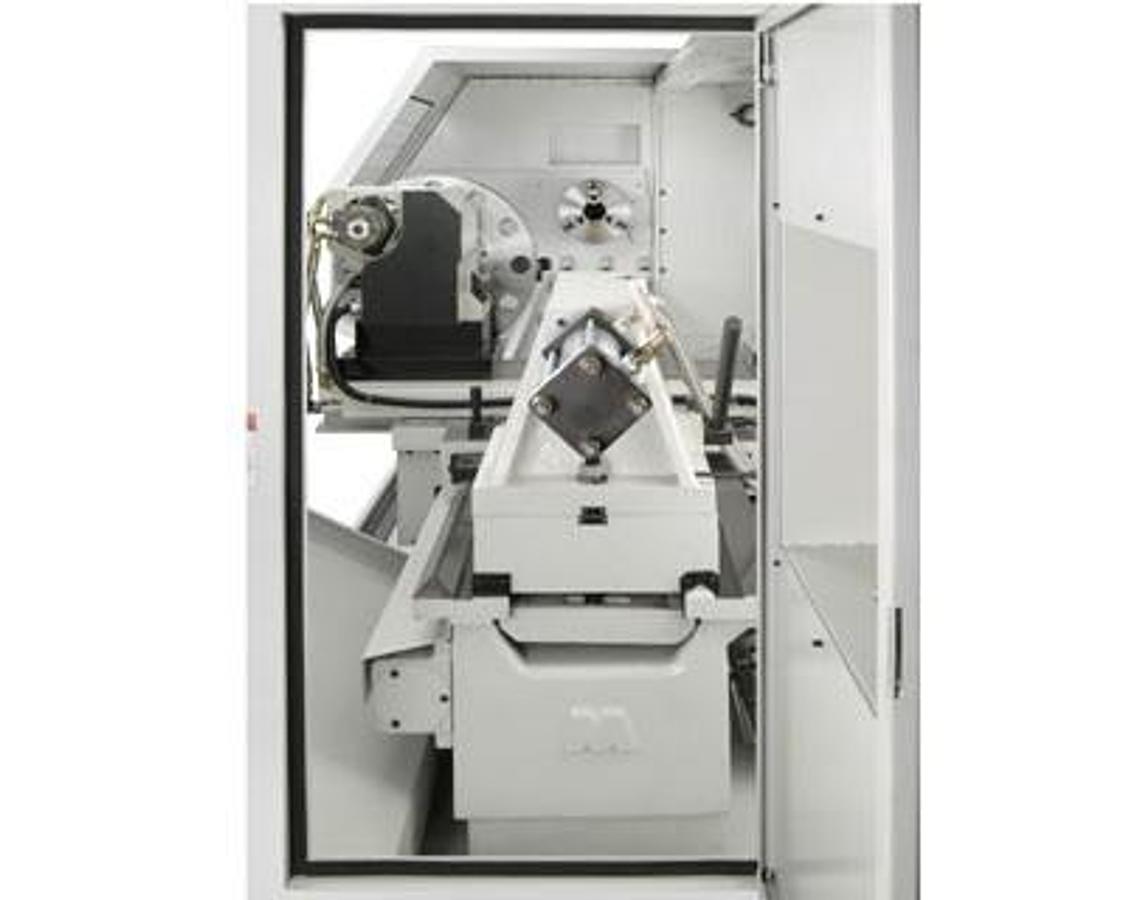

FL-80 CNC lathe series
Contact us for price
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
| Model | FL-8010CNC FL-8020CNC FL-8030CNC FL-8040CNC FL-8050CNC |
| Condition | New |
| Swing over bed | 800mm (31-1/2") |
| Center height | 400mm (15-3/4") |
| Swing over cross slide | 510mm (20") |
| Distance between centers | 1100mm (43-5/16") 2100mm (82-5/8") 3100mm (122") 3900mm (153-1/2") 4900mm (192- 7/8") |
| Width of bed | 550mm (21-5/8") |
| Max. cutting diameter over bed | 800mm (31-1/2") |
| Max. cutting diameter over cross slide | 510mm (20") |
| Spindle speeds | 5~800 r.p.m. (Ø155mm bore) 4 ranges, infinitely variable |
| Spindle nose | A2-11 (Ø155mm bore) or A2-15 (Ø250mm bore)/ A2-20 (Ø305/380mm bore) (opt.) |
| Spindle nose taper | 1/19.231 (same taper as MT No.7) (Ø155mm bore) |
| Spindle bore | Ø155mm (6-1/8") or Ø250mm(9-13/16") / Ø305mm(12") / Ø380mm(15") (opt.) |
| Longitudinal travel (Z axis) | 1000mm (39-3/8") 2000mm (78-3/4") 3000mm (118-1/8") 3800mm (149-9/16") 4800mm (188-15/16") |
| Cross slide travel (X axis) | 450mm (17-3/4") |
| Quill diameter | 125mm (4-15/16") |
| Quill travel | 275mm (10-13/16") |
| Quill taper | MT No.6 |
| Spindle motor | AC 30HP or AC 40HP (opt.) |
| Coolant pump motor | 1/4 HP |
| Cutting feed rate | X/Z axis：3 m/min. (max.) |
| Rapid traverse | X/Z axis：7.5 m/min. (max.) |
| Machine weight (approx.) | 5000kgs 5800kgs 6600kgs 7500kgs 9200kgs |
