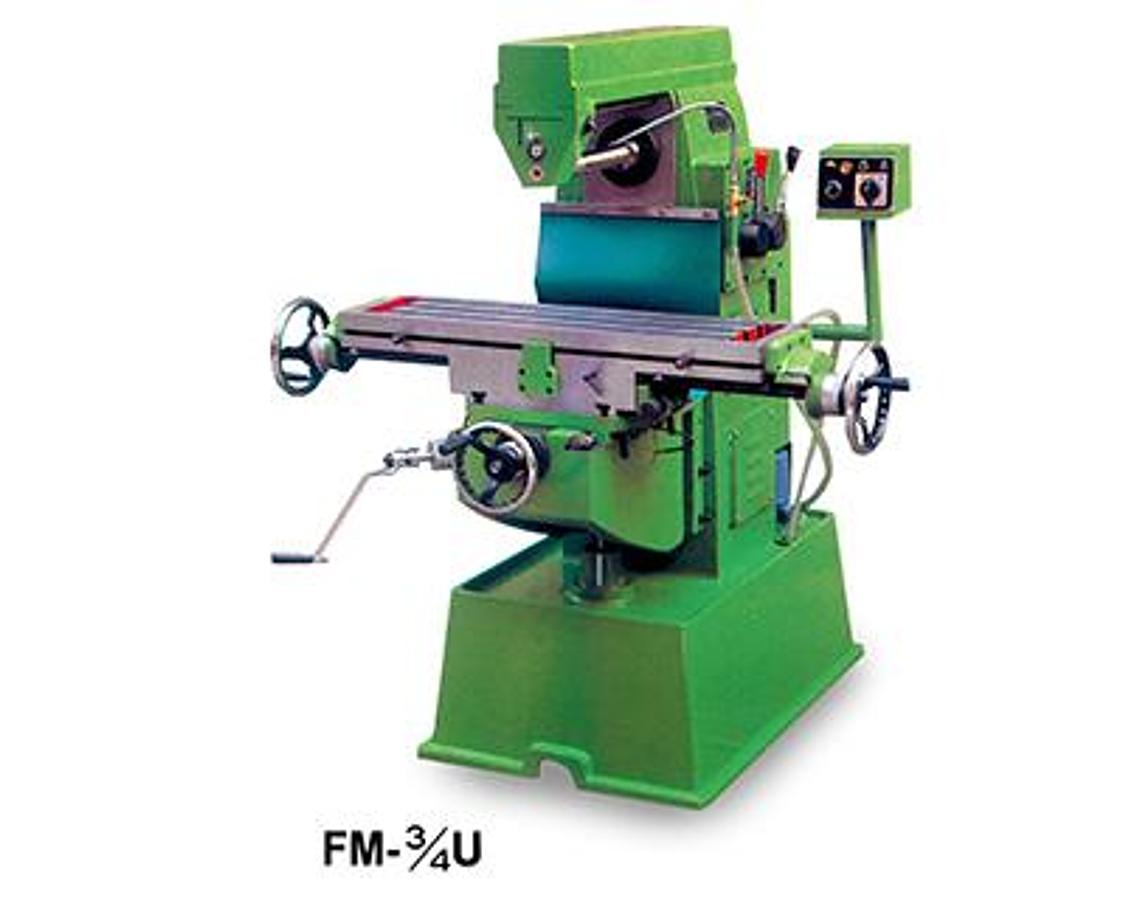

Horizontal milling machine: FM-1/4U / 3/4U
Contact us for price
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
| Model | FM-1/4U FM-3/4U |
| Condition | New |
| Working table | 160x545mm (6-1/4"x21-7/16") 220x815mm (8-11/16"x32-1/16") / 220x1000mm (8-11/16"x39-3/8")(opt.) |
| Longitudinal travel (X-axis) | 270mm (10-5/8") 420mm(16-1/12") / 500mm(19-11/16")(opt.) |
| Traverse travel (Y-axis) | 125mm (4-15/16") 220mm (8-5/8") |
| Traverse travel (Z-axis) | 230mm (9") 370mm(14-9/16") |
| Spindle size | N.S.T. 30 x 1" |
| Spindle motor | 3ph, 2HP |
| No. of l spindle speeds | 4 Nos. 6 Nos. |
| Range of spindle speeds | 240~1200 r.p.m. (240, 410, 710, 1200 r.p.m.) 80~760 r.p.m. (80, 105, 220, 290, 370, 760 r.p.m.) |
| Packing dimension | 800 x 800 x1300mm (31-1/2"x31-1/2"x51-3/16") 1300x1200x1700mm (51-3/16"x47-1/4"x66-15/16") |
| Net weight | 300kgs (661 lbs) 680kgs (1499 lbs) |
