FM-340MH, FM-340ATC, FM-395MH, FM-395ATC
Contact us for price
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms… etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
| Manufacturer | Top Phoenix |
| Model | FM-340MH FM-340ATC FM-395MH FM-395ATC |
| Condition | New |
| Stock Number | 00070 |

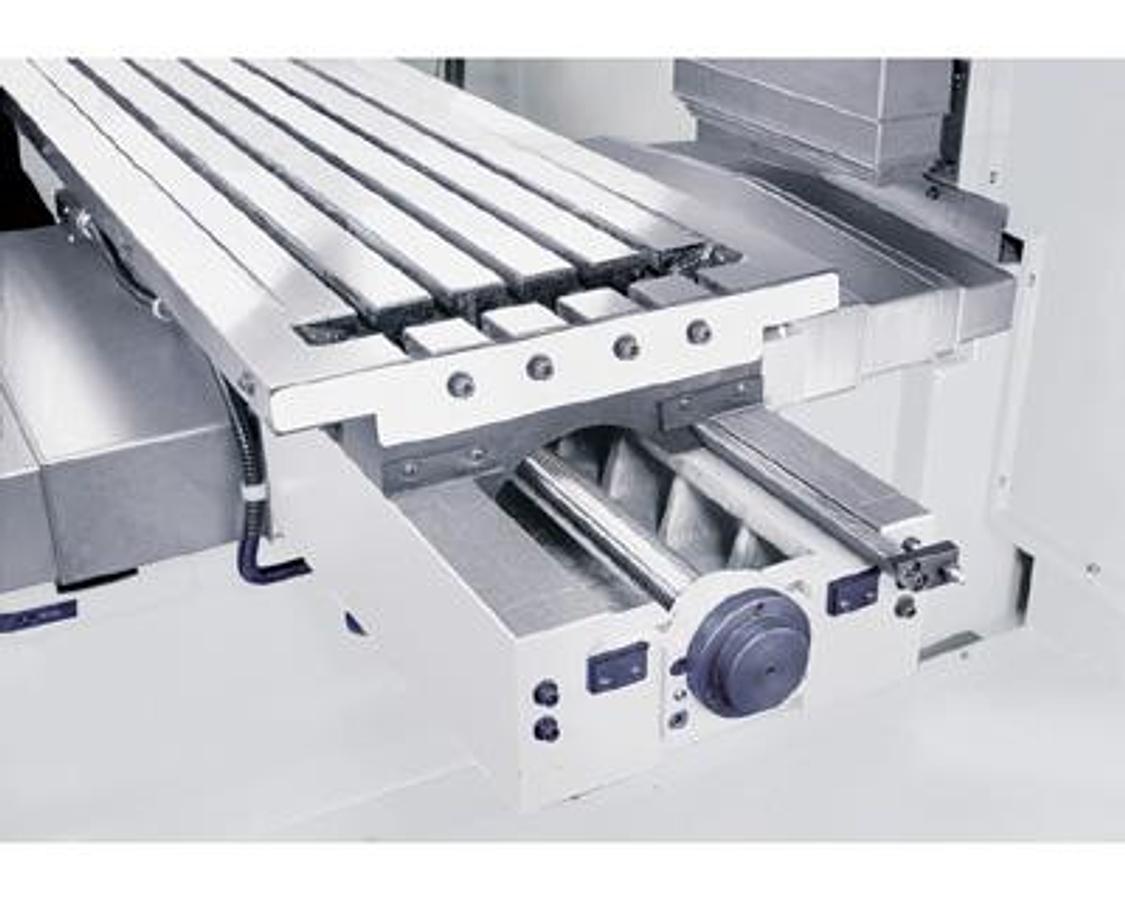

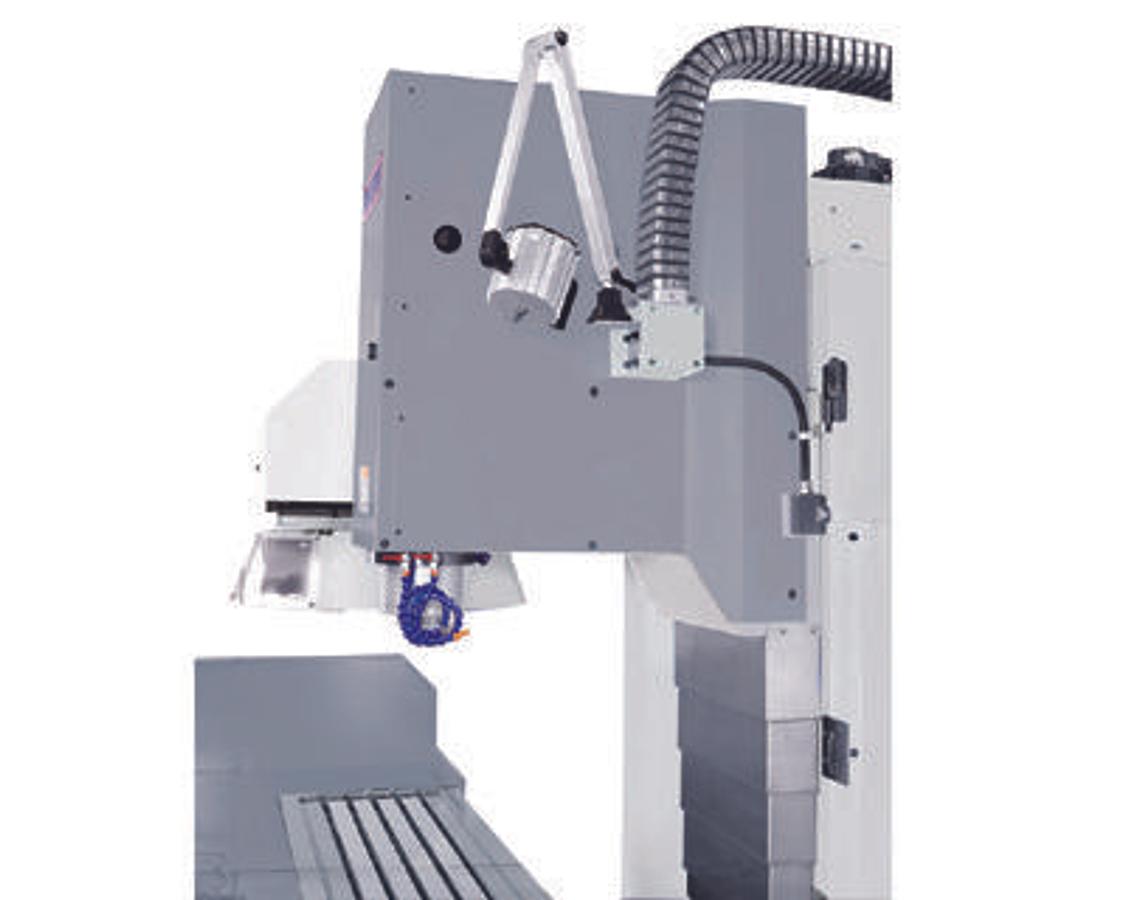

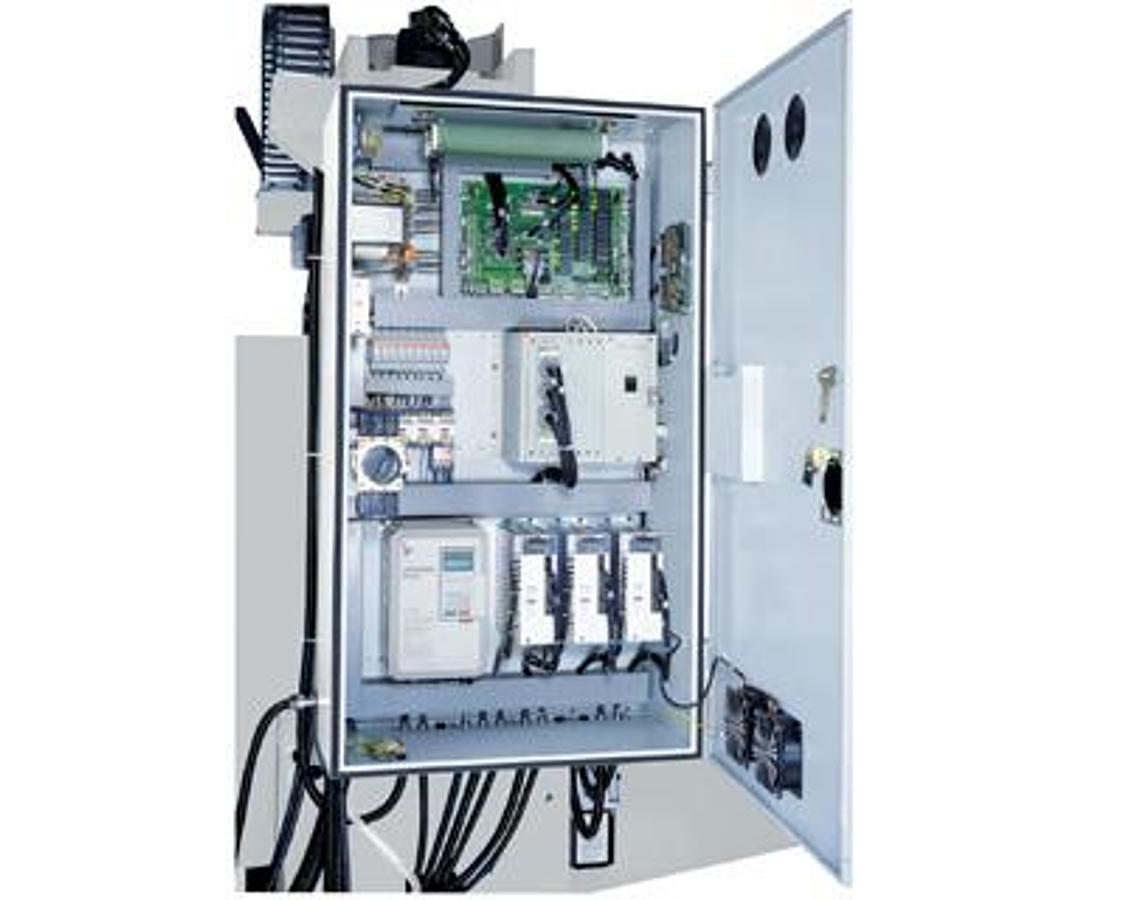

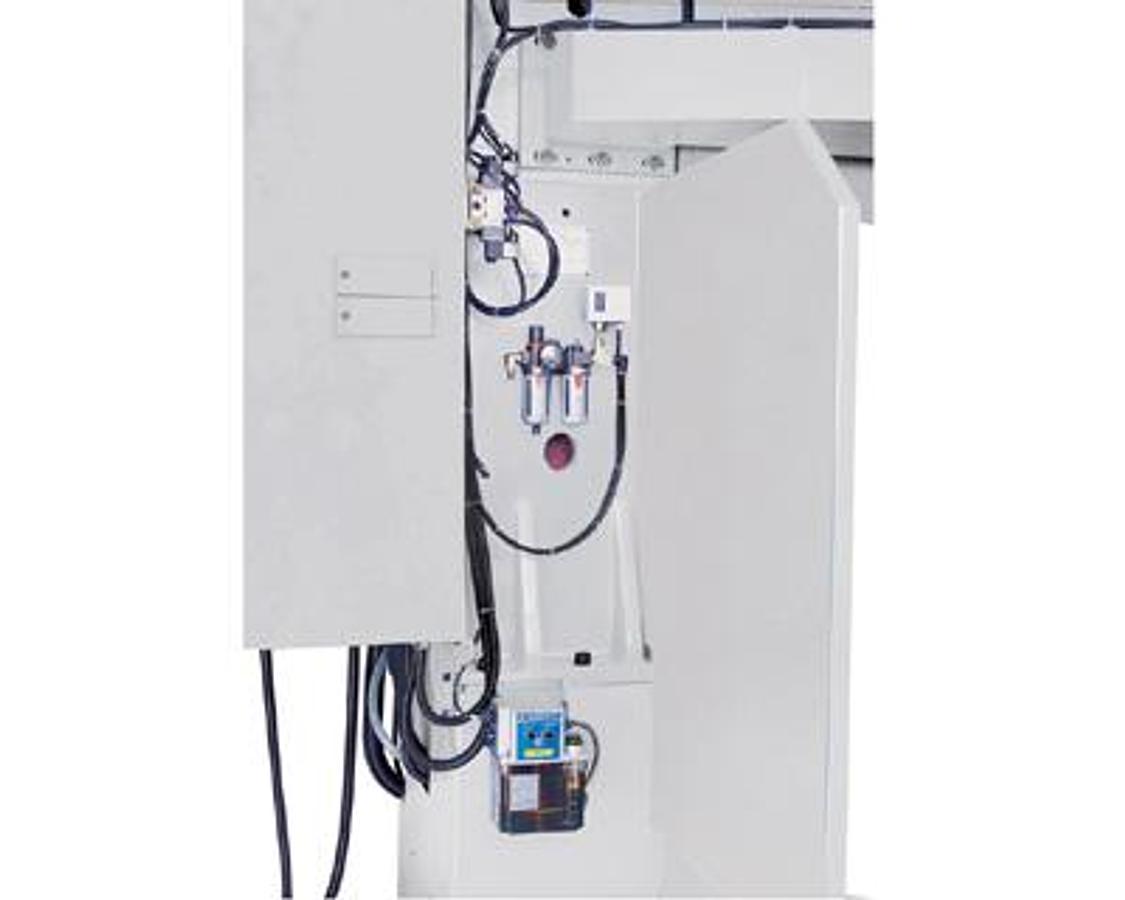

| Working surface | 762x1830mm(30"x72") 813x2185mm (32"x86") |
| T-slots (size x number x pitch) | 18mmx5x100mm (0.709"x5x3.9") |
| Max. table load | 1800kgs (3960 lbs) |
| Longitudinal travel (X axis) | 1700mm (66-7/8") 2000mm (78-3/4") |
| Cross travel (Y axis) | 850mm (33-7/16") |
| Vertical travel (Z axis) | 710mm (28") |
| Distance from spindle end to table | 105~815mm (4-1/8"~32") |
| Distance from spindle center to column | 870mm (34"-1/4") |
| Distance from floor to table surface | 885mm (34-13/16") |
| Spindle nose taper | BT40 (or BT50, opt.) |
| Spindle speeds | vari 6000 r.p.m. (BT40) (or 8000/10000 r.p.m., opt.) (BT40) |
| Cutting feed rate (X, Y, Z axes) | 1~5000mm/min. (max.) |
| Rapid traverse (X, Y axes) | 10.0m/min. (max.) |
| Rapid traverse (Z axis) | 10.0m/min. (max.) |
| Gear ratio of motor pulley to ballscrew pulley on X, Y, Z axes | Direct coupled |
| Tool storage capacity | — 16 pcs (or 20pcs,opt.)(BT40) (carrousel) — 16pcs (or 20pcs,opt.)(BT40) (carousel) |
| Max. tool weight | — 7kgs (15.4 lbs)/ 15kgs(33.1 lbs)(BT50) — 7kgs (15.4 lbs)/ 15kgs(33.1 lbs)(BT50) |
| Max. tool size (dia. x length) | — 89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50) — 89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50) |
| Tool selection | — Random — Random |
| Tool shank | — BT40 (or BT50, opt.) — BT40 (or BT50, opt.) |
| Pull stud bolt | — MAS-P40T-1/ MAS-P50T-1 (BT50) — MAS-P40T-1/ MAS-P50T-1 (BT50) |
| Distance from gauge line of tool holder to table | — 645mm (25-3/8") — 645mm (25-3/8") |
| Spindle motor (AC servo) | 7.5 / 11KW (or 11/15KW, opt.) |
| X, Y, Z axes motor | AC servo, 3.5KW, 2000 r.p.m. |
| Coolant pump motor | AC1/4HP |
| Gross weight (Approx.) | 6700kgs (14740 lbs) 6900kgs (15180 lbs) 7000kgs (15470 lbs) 7200kgs (15912 lbs) |
| Packing size (L x W x H) | 3000x2300x2545mm (118-1/8"x90-9/16"x100-3/16") +3030x2300x1060mm (119-5/16"x90-9/16"x41-3/4") |
