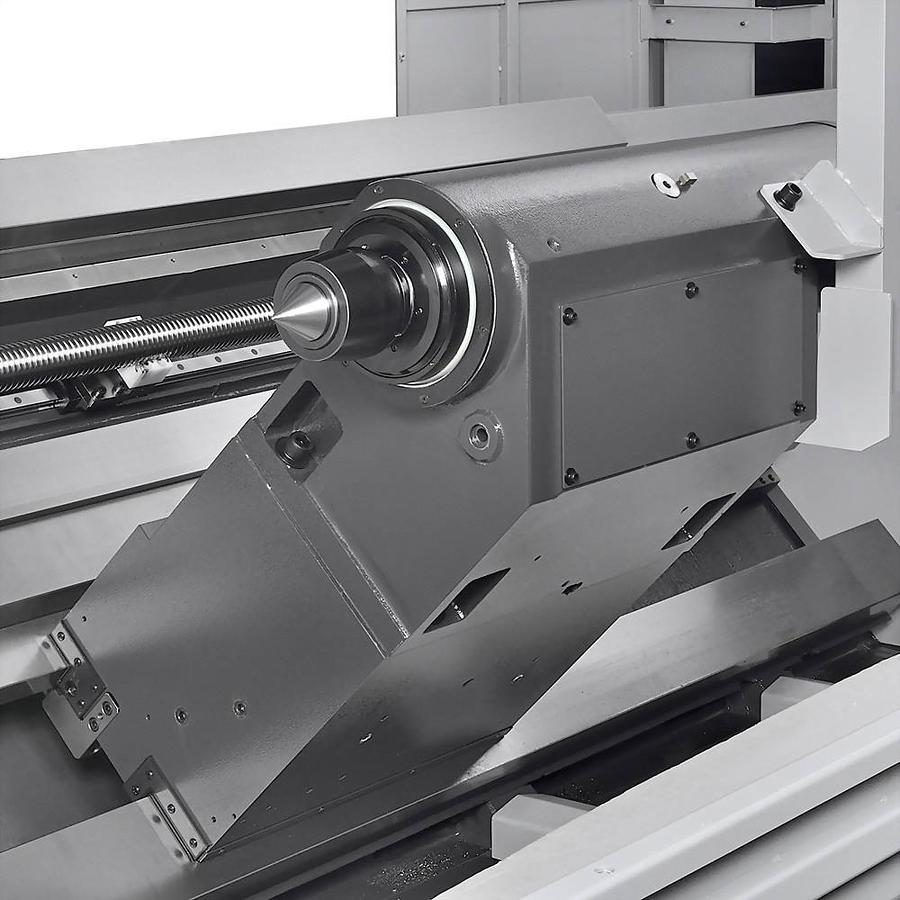

UT-400LX4Y
Contact us for price
Description

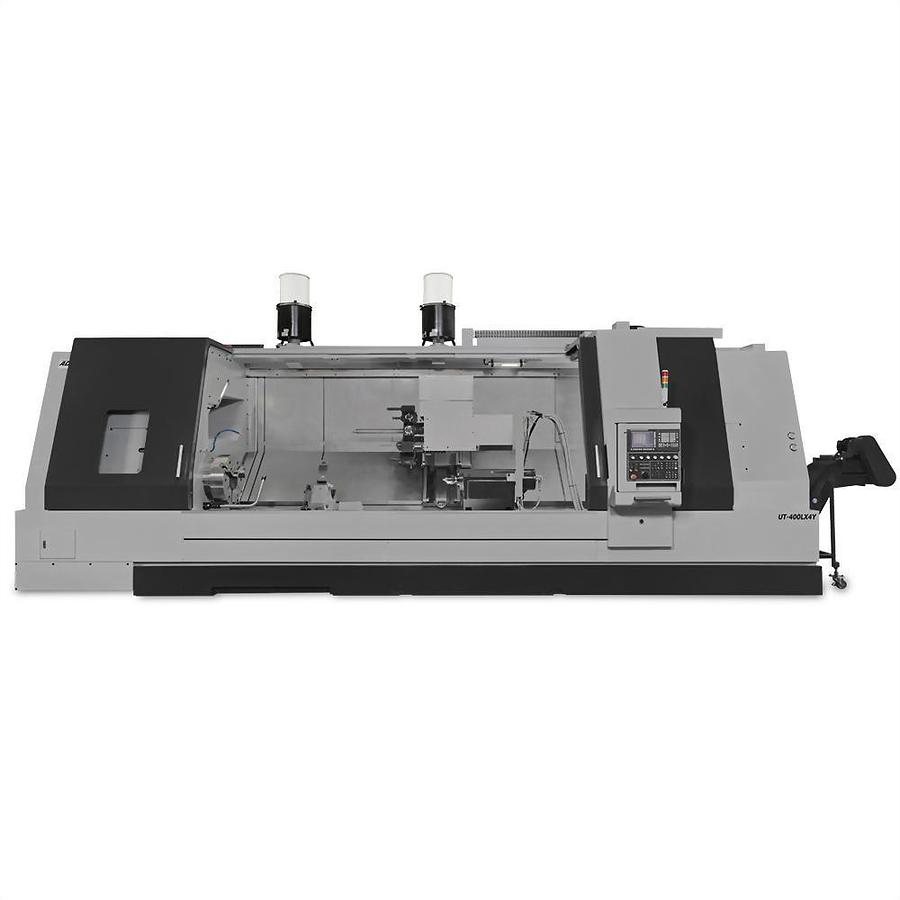

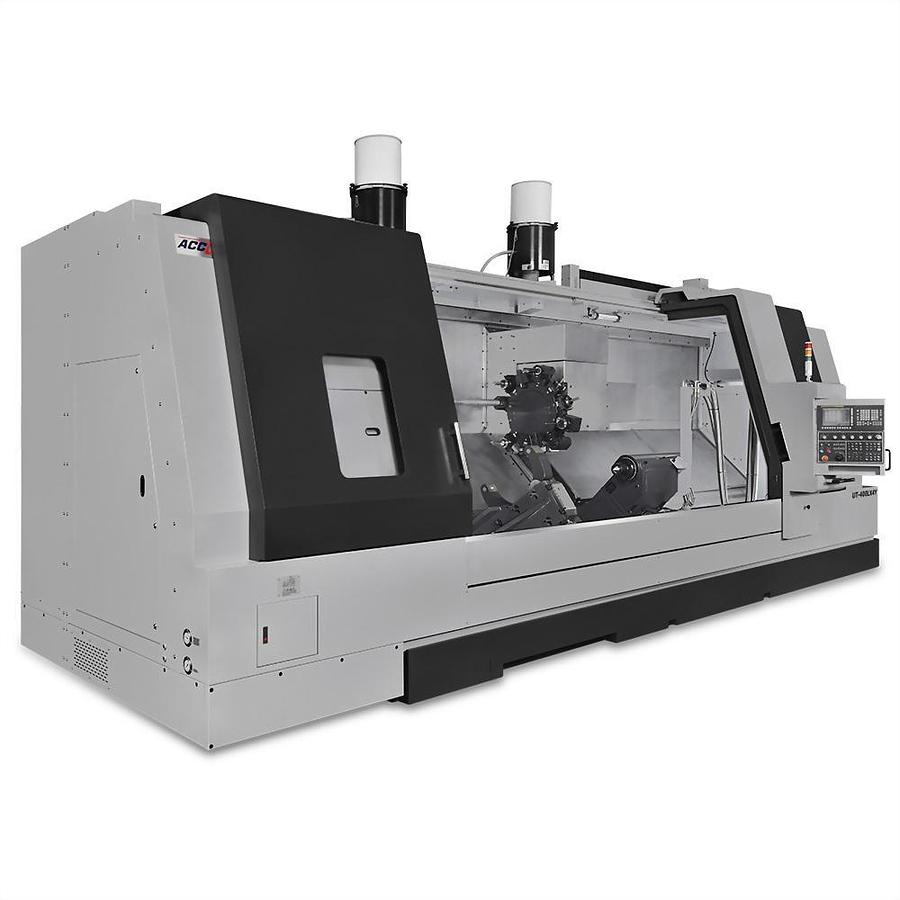

Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

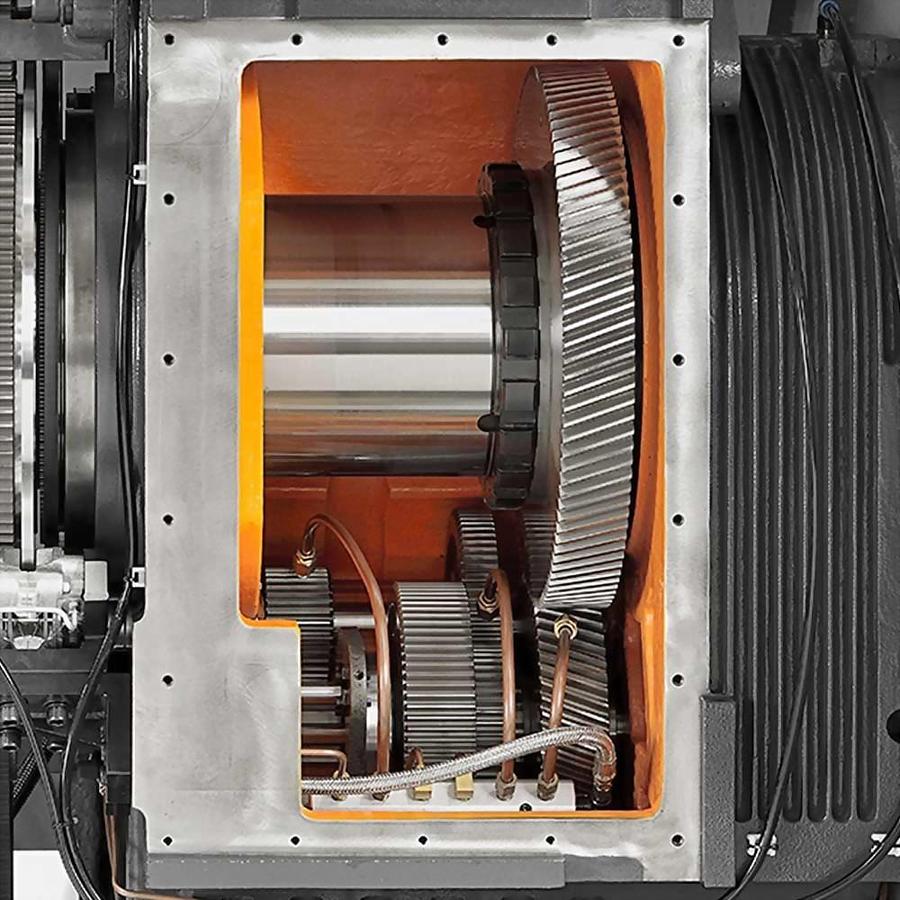

Gear box
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-15 spindle headstock and 205 mm spindle through hole
A2-15 spindle headstock and 235 mm spindle through hole
A2-15 spindle headstock and 258 mm spindle through hole

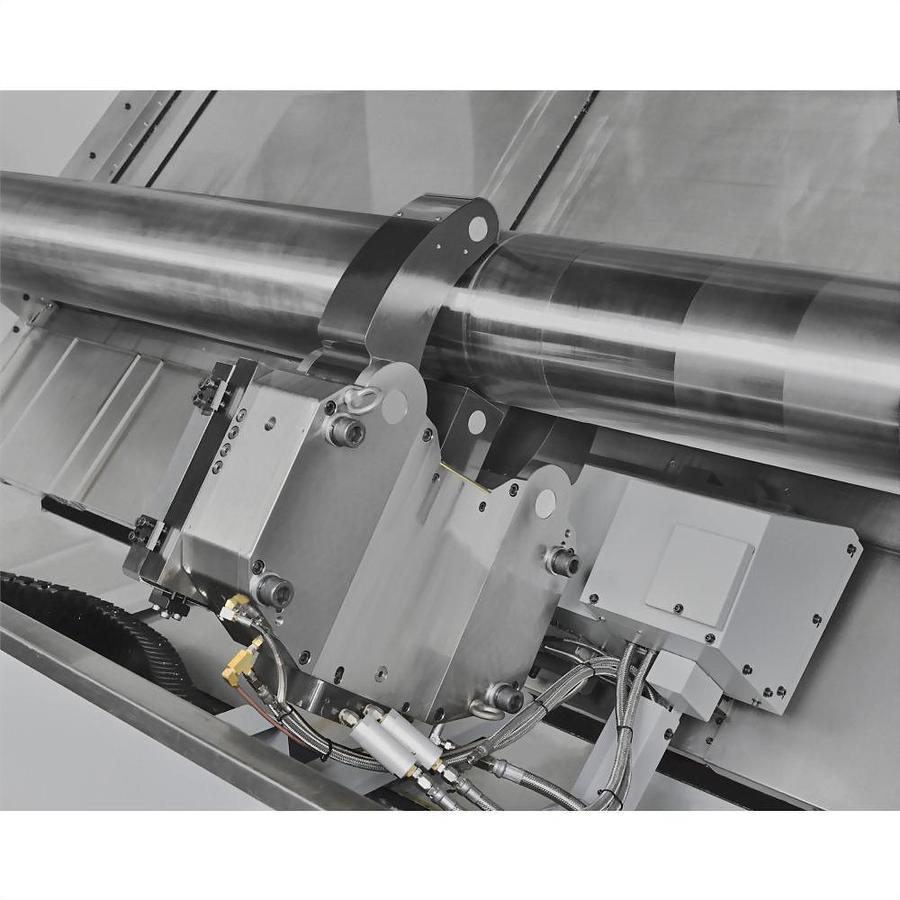

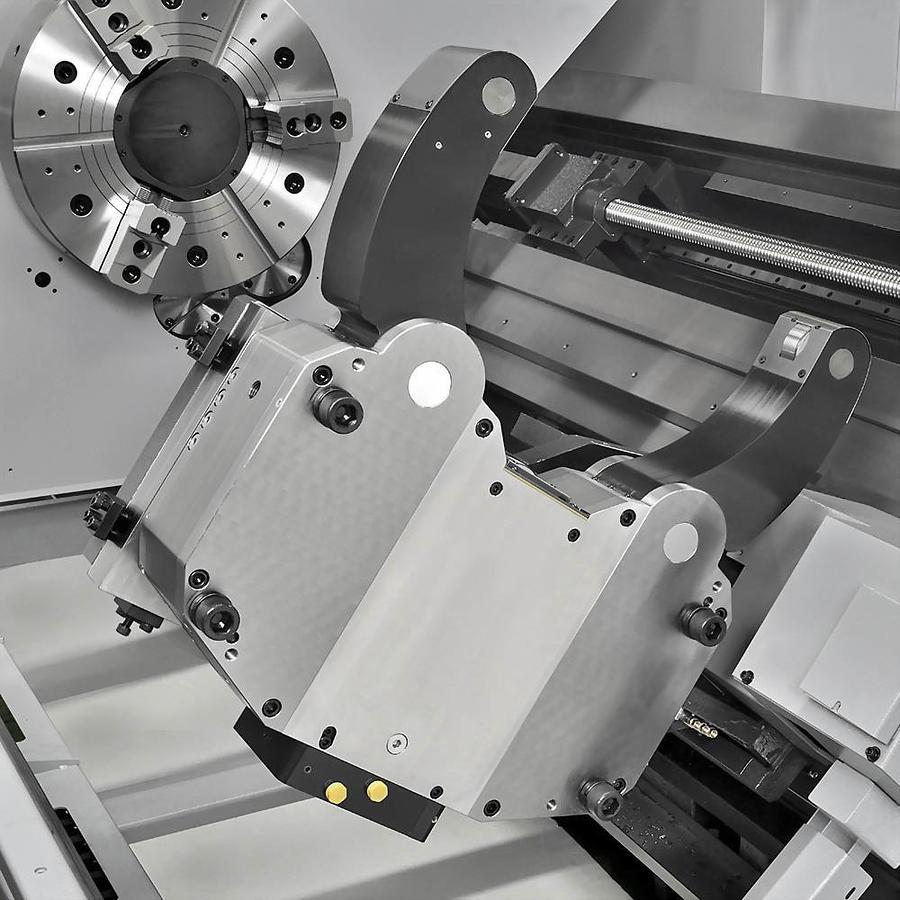

Steady rest
Transformer
CE version
0 degree rotary tool holder
90 degree rotary tool holder
Linear scale
Auto door
Specifications
| Manufacturer | Accuway |
| Model | UT-400LX4Y |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 1200 |
| Swing over saddle | mm 1040 |
| Max. turning diameter | mm 700 |
| Max. turning length | mm 3900 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-11 A2-15 |
| Chuck diameter | inch 15 20 20 24 |
| Spindle hole diameter | mm 131 205 235 258 |
| Spindle speed | rpm 2000 1500 850 800 |
| Spindle motor power(Cont. / 30min) | kW 30/37(37/45)+2-step gearbox |
| X-axis Travel | mm 380 |
| Z-axis Travel | mm 4100 |
| Y-axis Travel | mm ±75 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 6 |
| Y-axis Rapid Traverse Rate | m/min 10 |

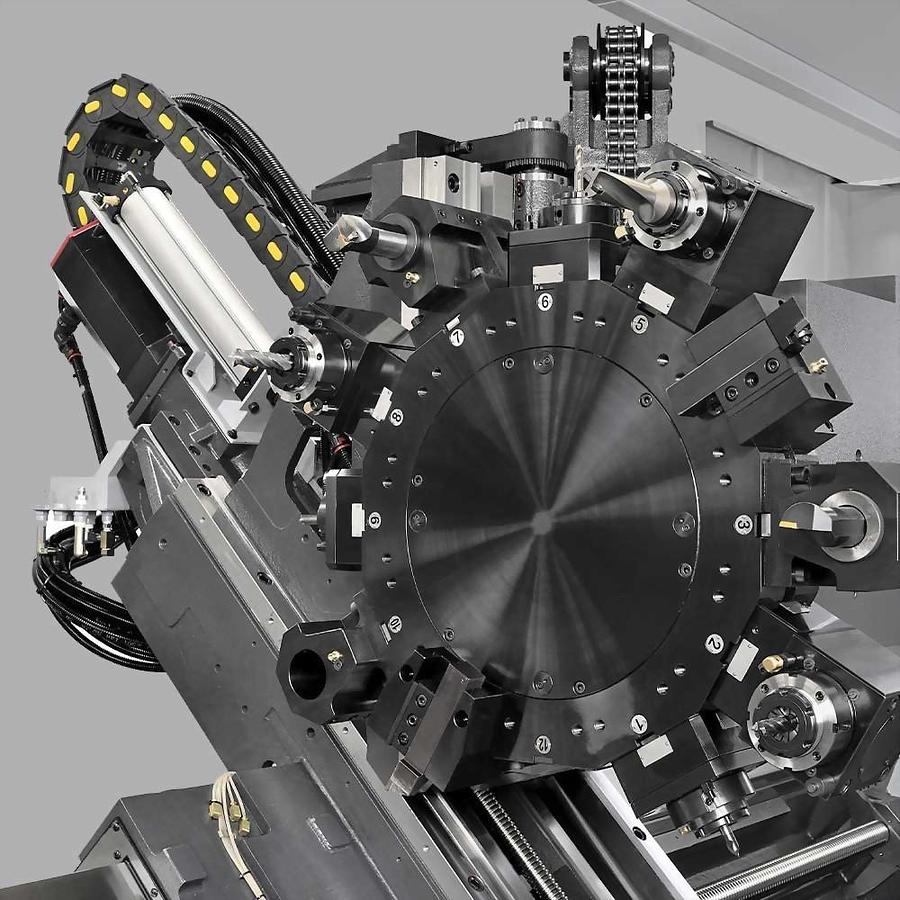

| Tooling system | BMT-85 |
| Turret driven type | Servo mechanical |
| Number of tools | station 12 |
| Square tool shank size | mm 32 |
| Round tool shank size | mm 50 |
| Max. Rotary Tool Speed | rpm 4000 |
| Rotary Tool power | kW 7.5/11 |
| Tailstock body travel | mm 3950 |
| Quill travel | mm 150 |
| Quill diameter | mm 160 |
| Quill taper | MT 6 |
| Machine dimension L x W x H | m 9.4 x 3.2 x 3.1 |
| Net weight | kg 23000 |
