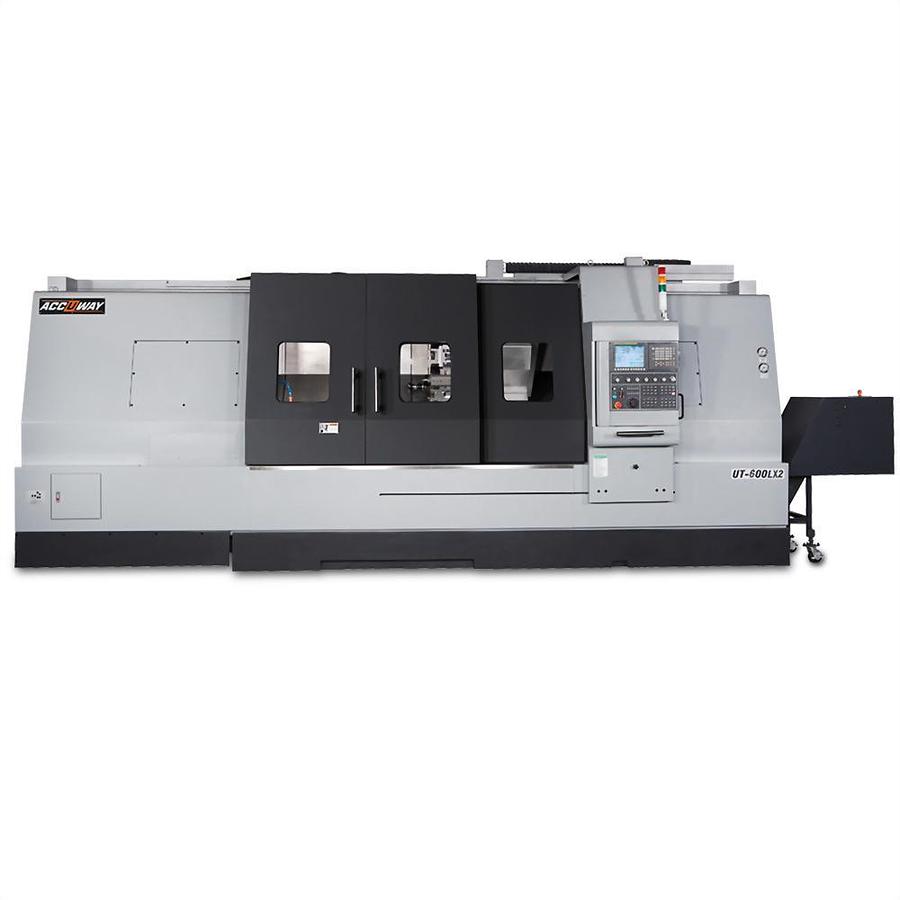

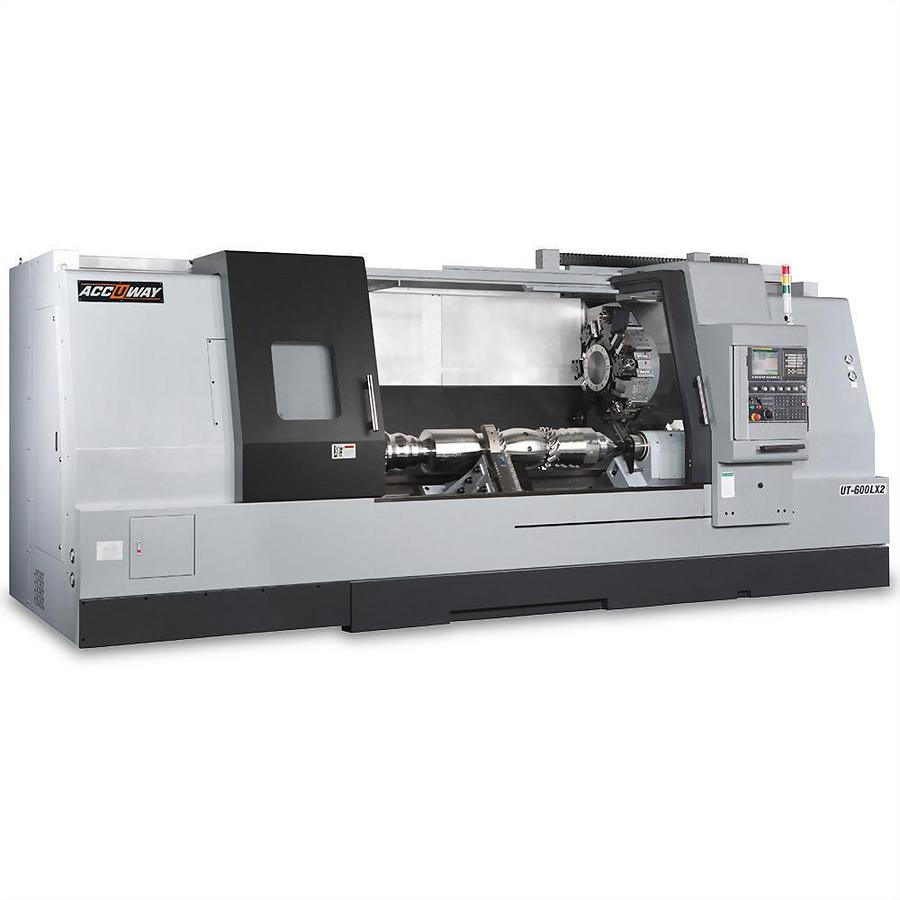

UT-600LX2
Contact us for price
Description
Super Heavy Duty Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
Gear box
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-15 spindle headstock and 235 mm spindle through hole
A2-15 spindle headstock and 258 mm spindle through hole
APT 60 power turret + CS contouring control
APT 60 power turret + CF Axis Control
Steady rest
Transformer
CE version
Linear scale
Auto door
Specifications
| Model | UT-600LX2 |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 1030 |
| Swing over saddle | mm 950 |
| Max. turning diameter | mm 900 |
| Max. turning length | mm 1900 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-15 A2-20 |
| Chuck diameter | inch 20 20 24 32 32 |
| Spindle hole diameter | mm 205 235 258 320 375 |
| Spindle speed | rpm 1500 850 800 400 300 |
| Spindle motor power(Cont. / 30min) | kW 30/37 (37/45)+2-step gearbox |
| X-axis Travel | mm 495 |
| Z-axis Travel | mm 2100 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 15 |
| Tooling system | BOT |
| Turret driven type | Servo mechanical |
| Number of tools | station 12 |
| Square tool shank size | mm 32 |
| Round tool shank size | mm 50 |
| Tailstock body travel | mm 2050 |
| Quill travel | mm 150 |
| Quill diameter | mm 160 |
| Quill taper | MT 6 |
| Machine dimension L x W x H | m 6.9 x 2.9 x 3 |
| Net weight | kg 20000 |
