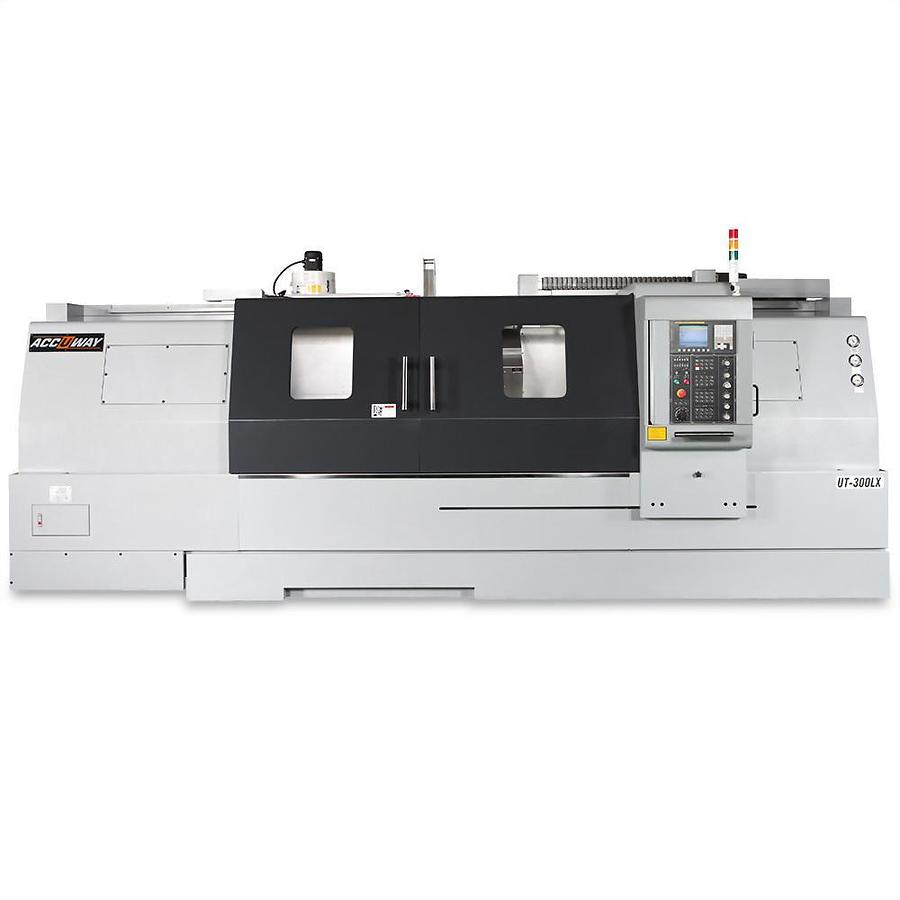

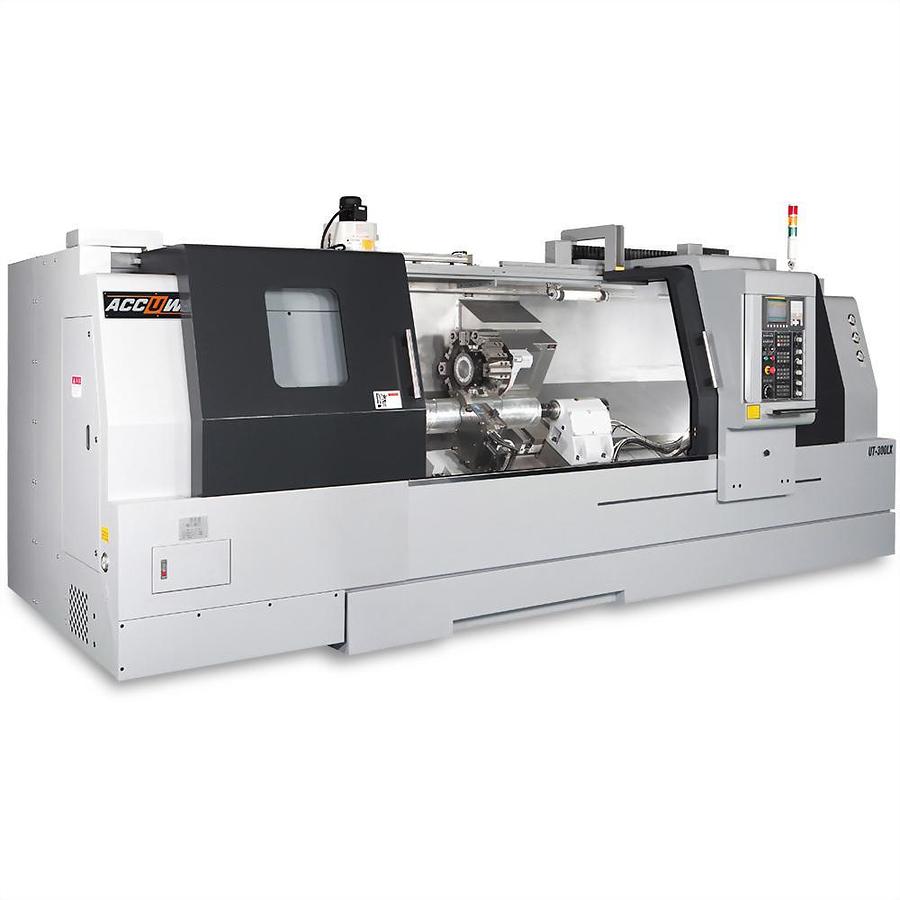

UT-300LX
Contact us for price
Description
Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter

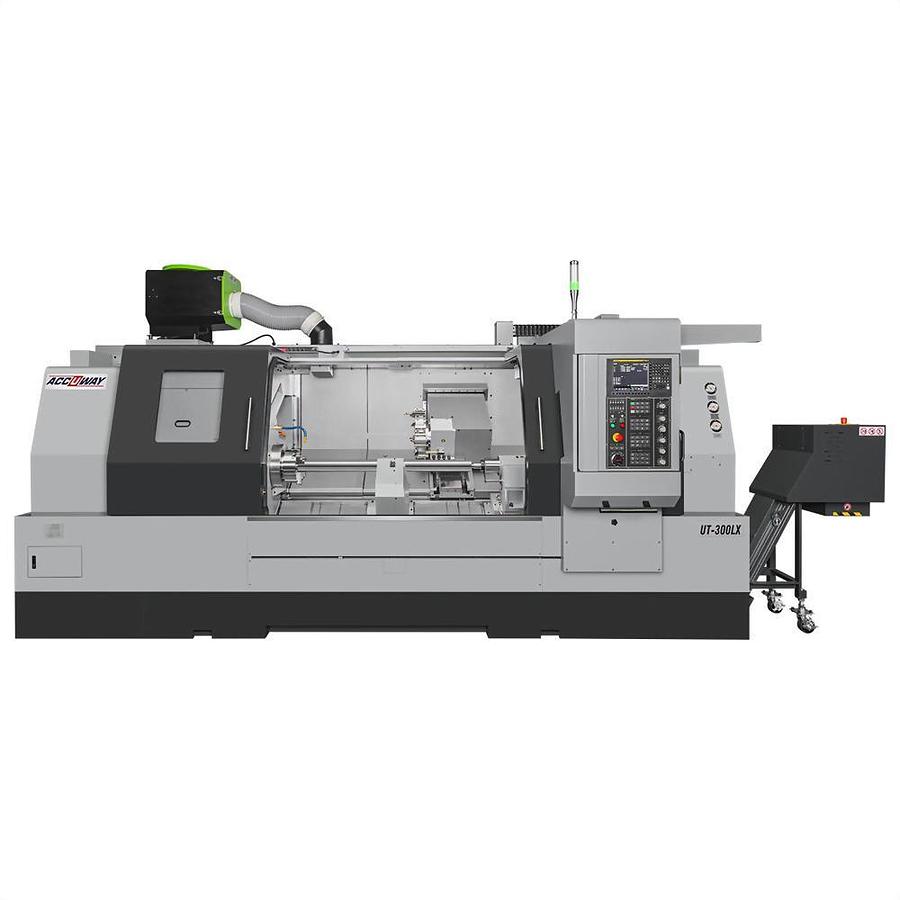

Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Auto door

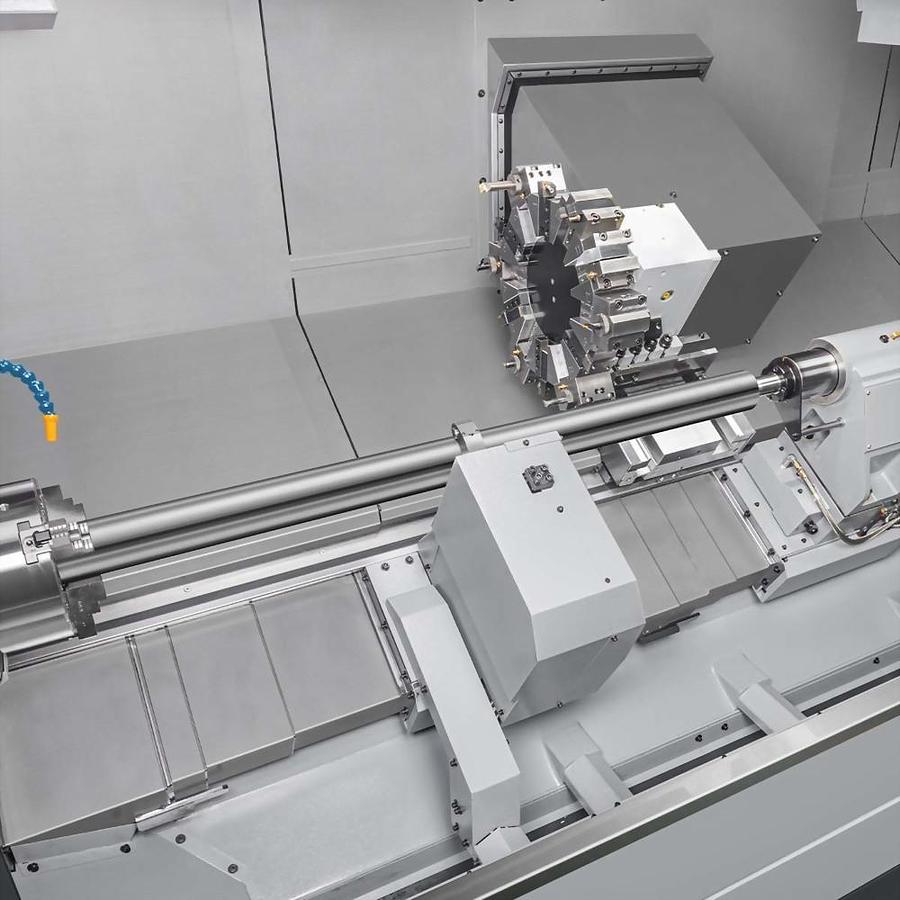

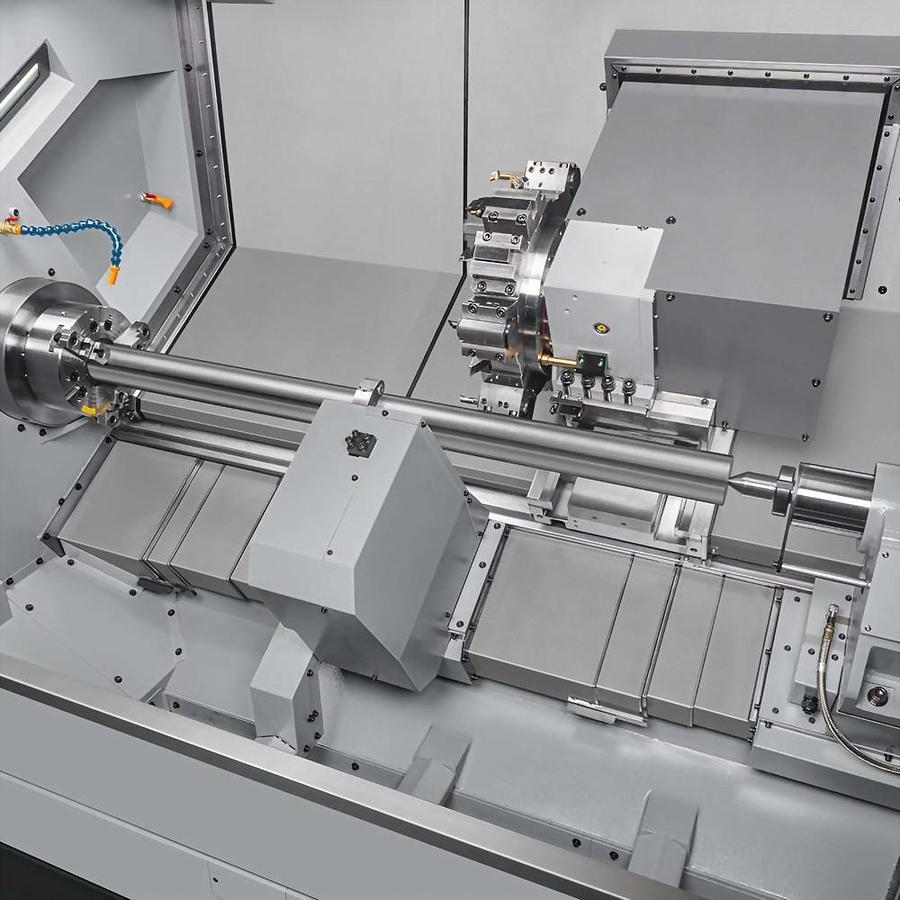

Steady rest
Linear scale
Specifications
| Model | UT-300LX |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 612 |
| Swing over saddle | mm 400 |
| Max. turning diameter | mm 500 |
| Max. turning length | mm 1680 1600 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-8 A2-11 |
| Chuck diameter | inch 10 12 15 |
| Bar capacity | mm 75 90 105 116.5 |
| Spindle speed | rpm 3500 2700 2500 2000 |
| Spindle motor power(Cont. / 30min) | kW 15/18.5 (18.5/22) |
| X-axis Travel | mm 300 |
| Z-axis Travel | mm 1750 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 24 |
| Tooling system | BOT |
| Turret driven type | Hydraulic/Servo |
| Number of tools | station 12 |
| Square tool shank size | mm 25 |
| Round tool shank size | mm 40 |
| Tailstock body travel | mm 1540 |
| Quill travel | mm 120 |
| Quill diameter | mm 110 |
| Quill taper | MT 5 |
| Machine dimension L x W x H | m 5.2 x 2.3 x 2.2 |
| Net weight | kg 7500 |
