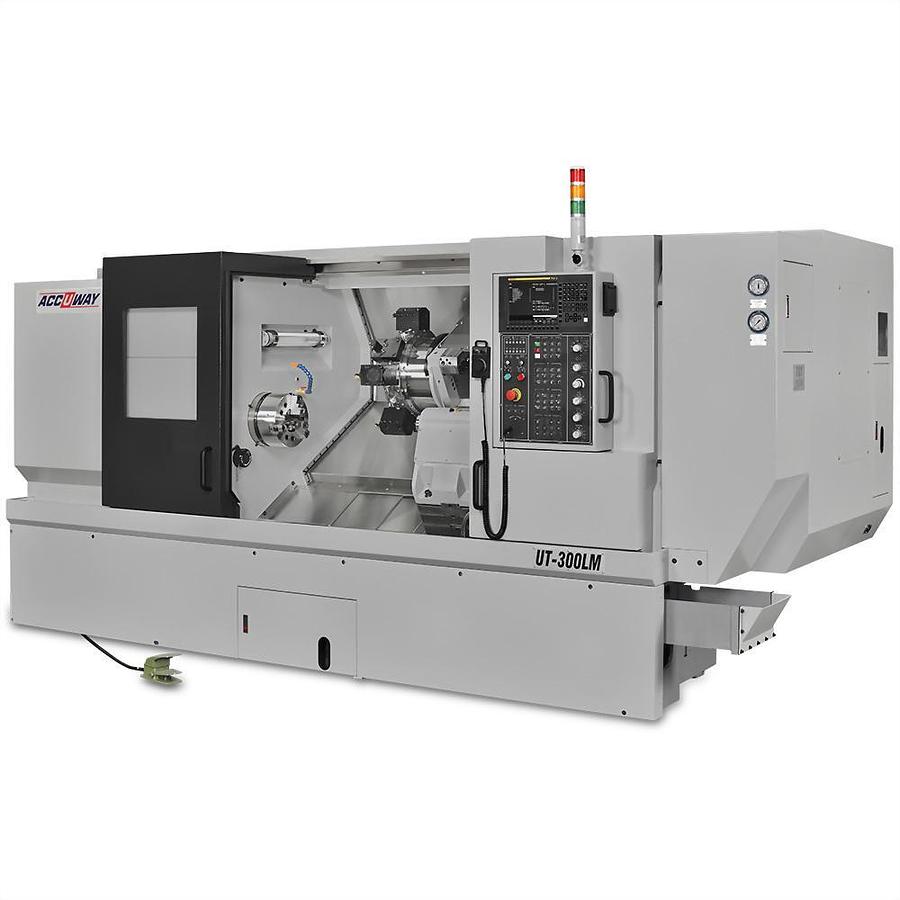

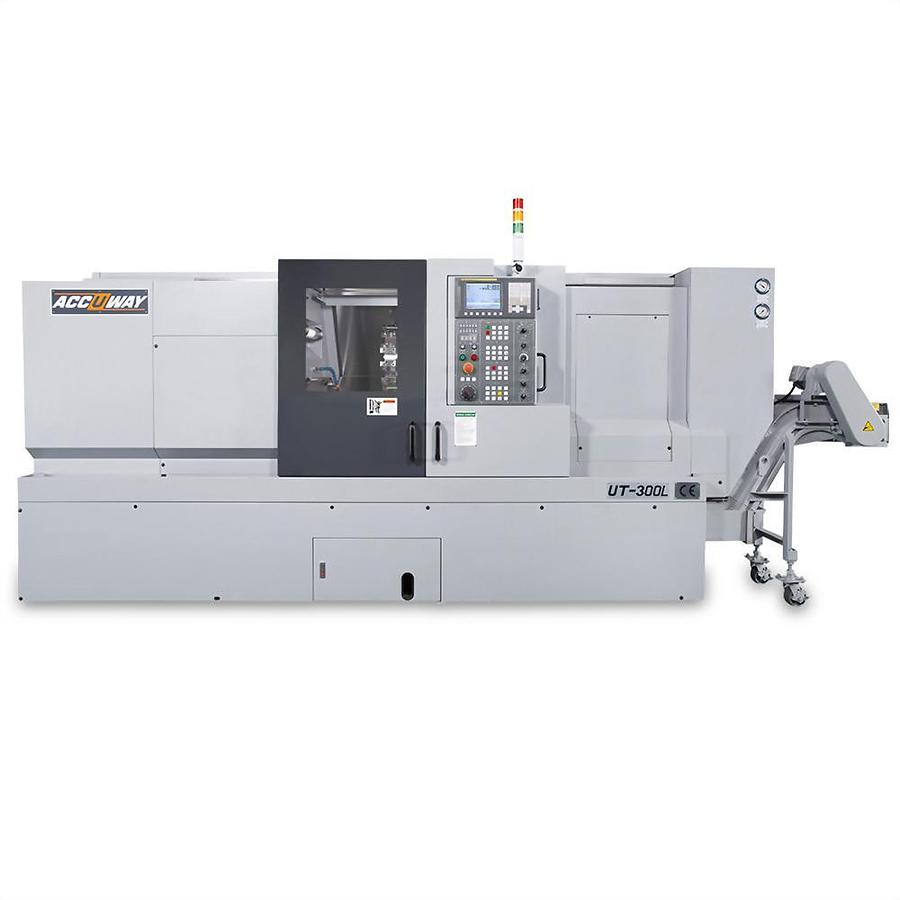

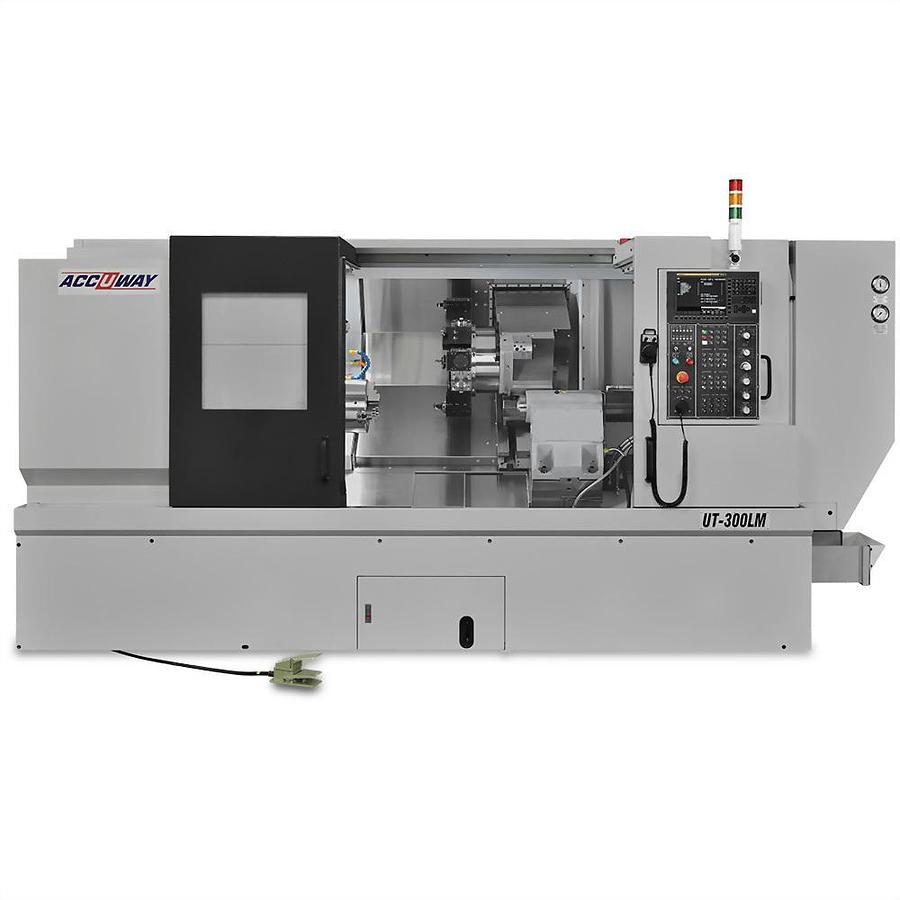

UT-300L/UT-300LM
Contact us for price
Description

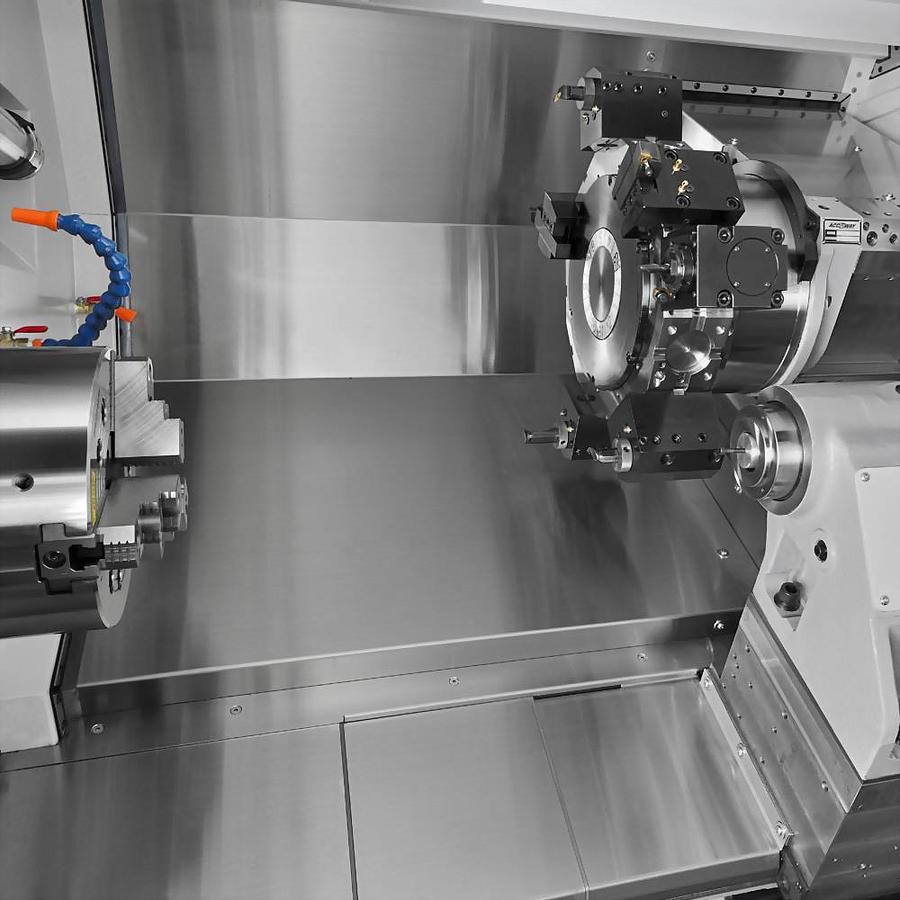

Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck

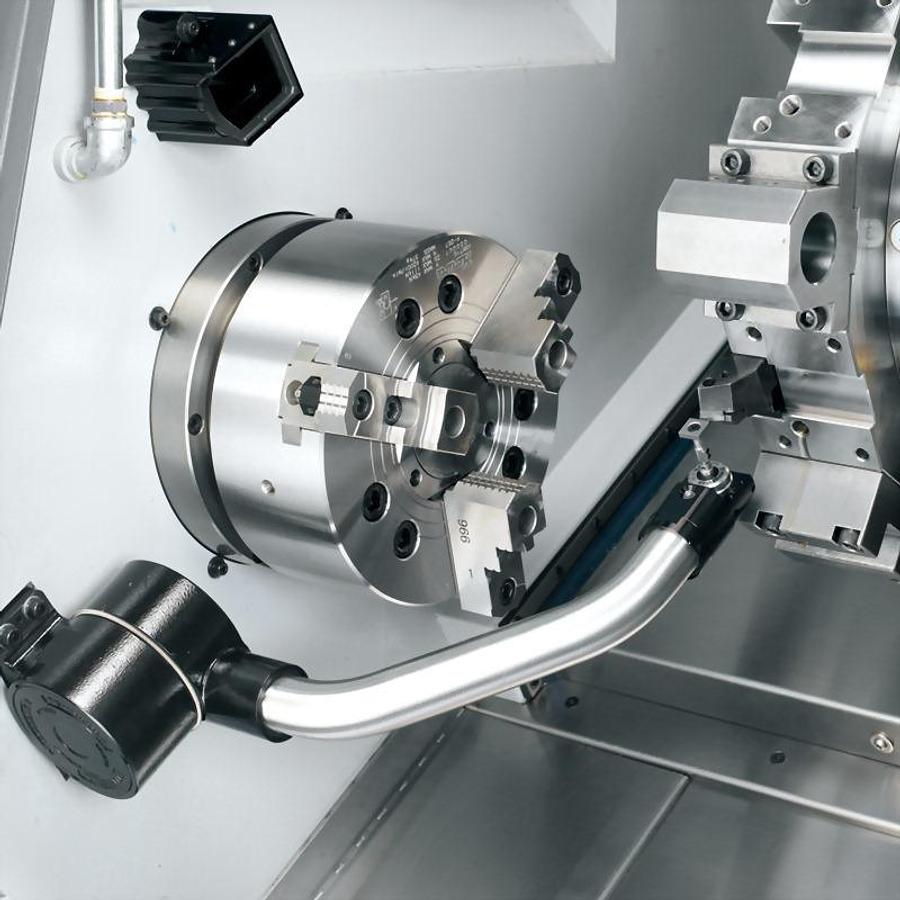

Tool setter

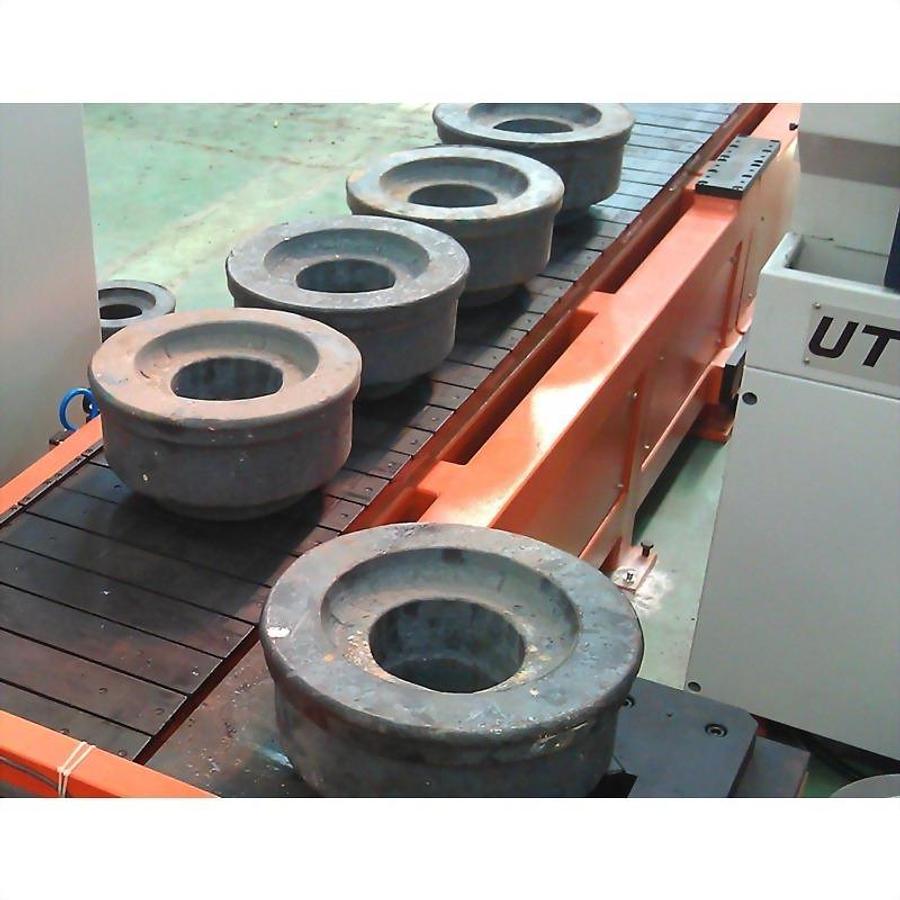

Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version

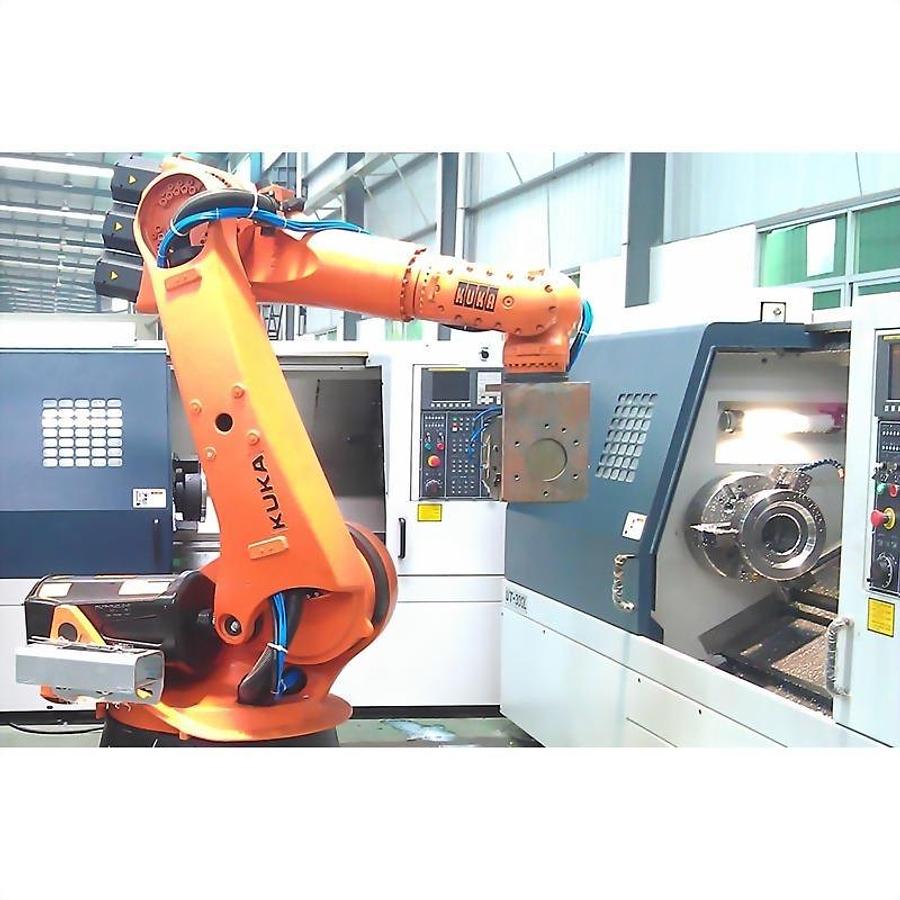

Loader interface
Gantry loader system
0 degree rotary tool holder(UT-300LM)
90 degree rotary tool holder(UT-300LM)
Auto door
Linear scale
Specifications
| Model | UT-300L UT-300LM |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 612 612 |
| Swing over saddle | mm 400 400 |
| Max. turning diameter | mm 500 420 |
| Max. turning length | mm 1180 1100 1040 960 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-8 A2-11 A2-8 A2-11 |
| Chuck diameter | inch 10 12 15 10 12 15 |
| Bar capacity | mm 75 90 105 116.5 75 90 105 116.5 |
| Spindle speed | rpm 3500 2700 2500 2000 3500 2700 2500 2000 |
| Spindle motor power(Cont. / 30min) | kW 15/18.5 (18.5/22) |
| X-axis Travel | mm 300 300 |
| Z-axis Travel | mm 1250 1250 |
| X-axis Rapid Traverse Rate | m/min 20 20 |
| Z-axis Rapid Traverse Rate | m/min 24 24 |
| Tooling system | BOT BMT/VDI |

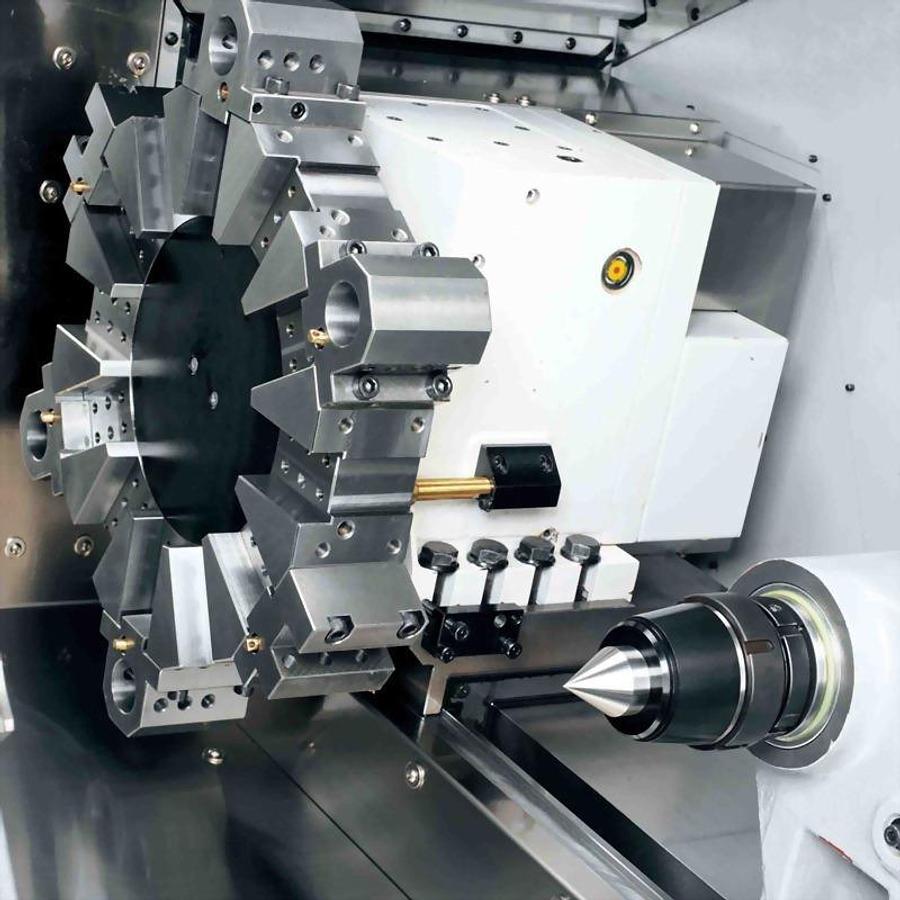

| Turret driven type | Hydraulic/Servo Servo mechanical |
| Number of tools | station 12 12 |
| Square tool shank size | mm 25 25 |
| Round tool shank size | mm 40 40 |

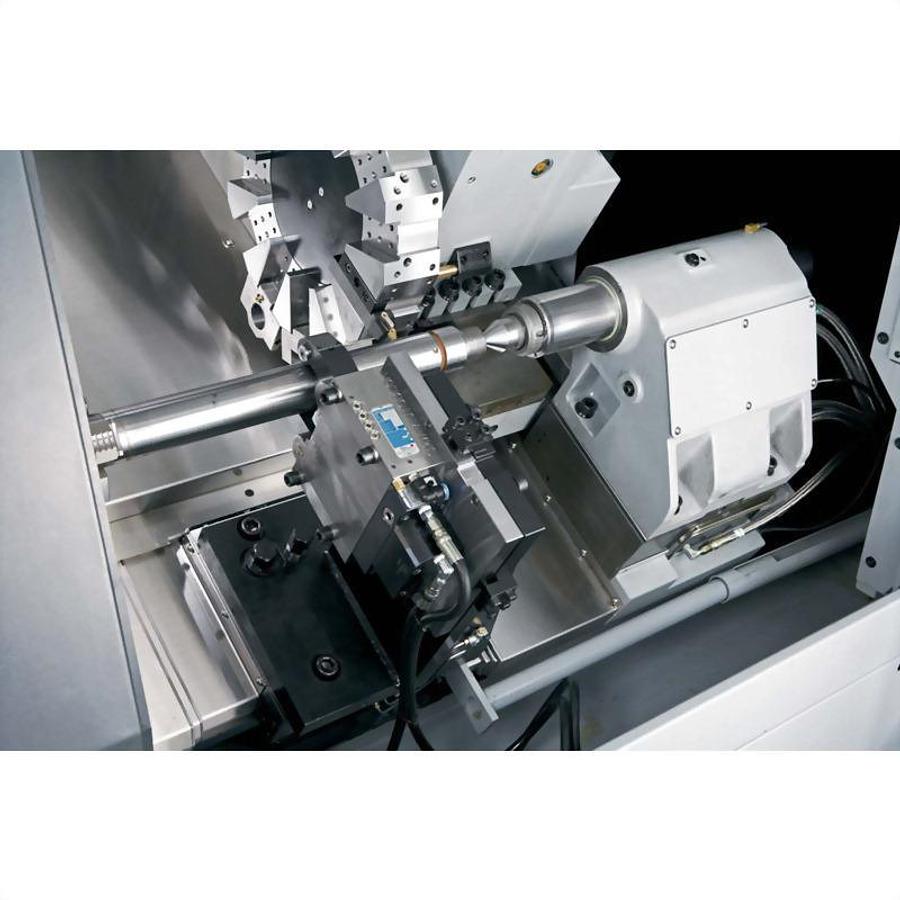

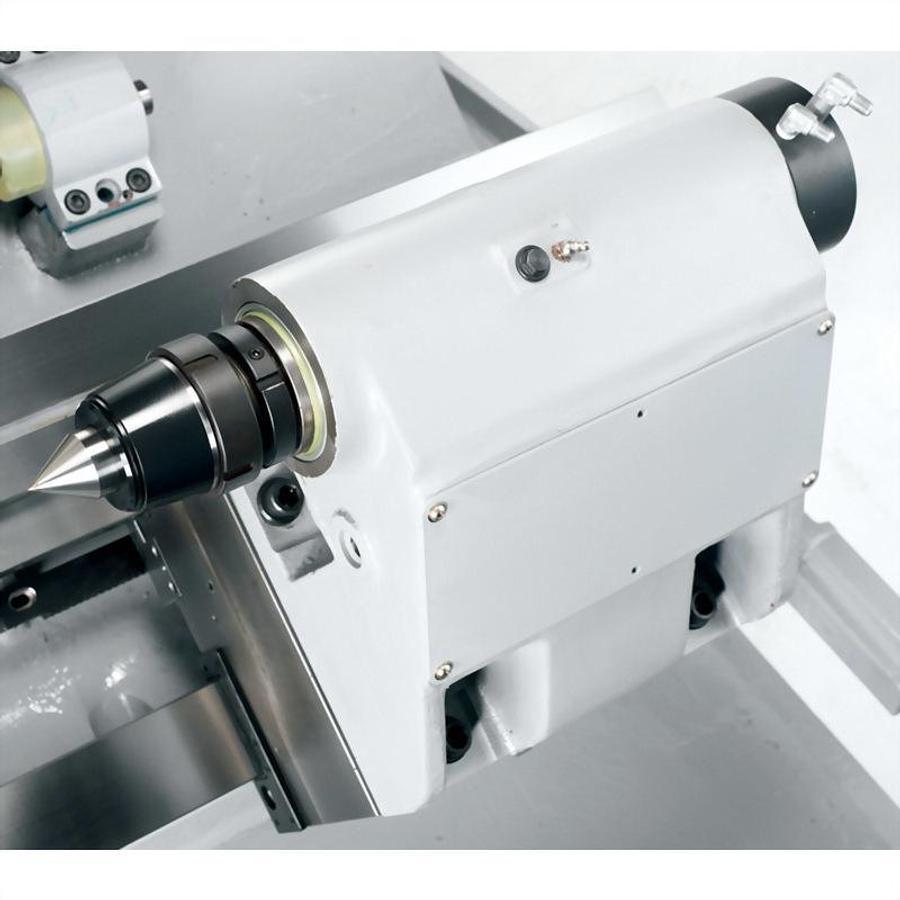

| Tailstock body travel | mm 1040 1040 |
| Quill travel | mm 120 120 |
| Quill diameter | mm 110 110 |
| Quill taper | MT 5 5 |
| Machine dimension L x W x H | m 4 x 1.8 x 1.8 4 x 1.8 x 1.9 |
| Net weight | kg 6000 6000 |
