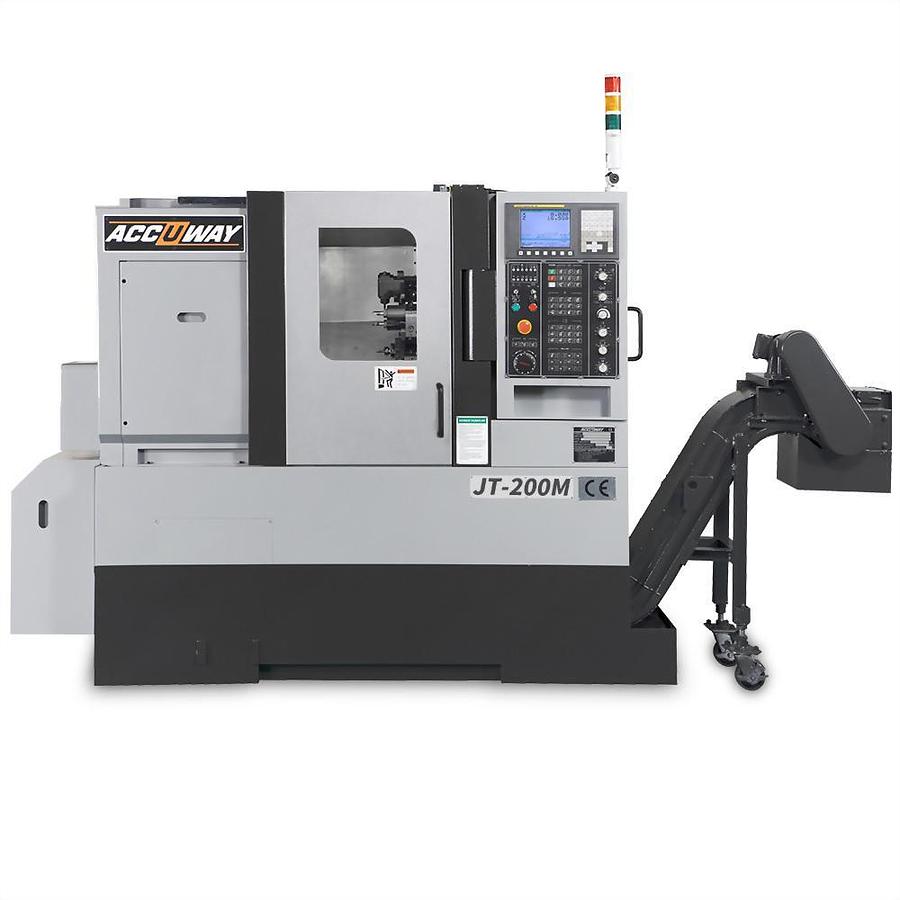

JT-200/JT-200M
Contact us for price
Description
Slant Bed Linear Way CNC Lathe
STANDARD ACCESSORIES
FANUC 0i-T controller
Rigid tapping
RJ-45 interface
10.4" Colored LCD monitor
Heat exchanger for electric cabinet
4-bar coolant system
Lubrication system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version

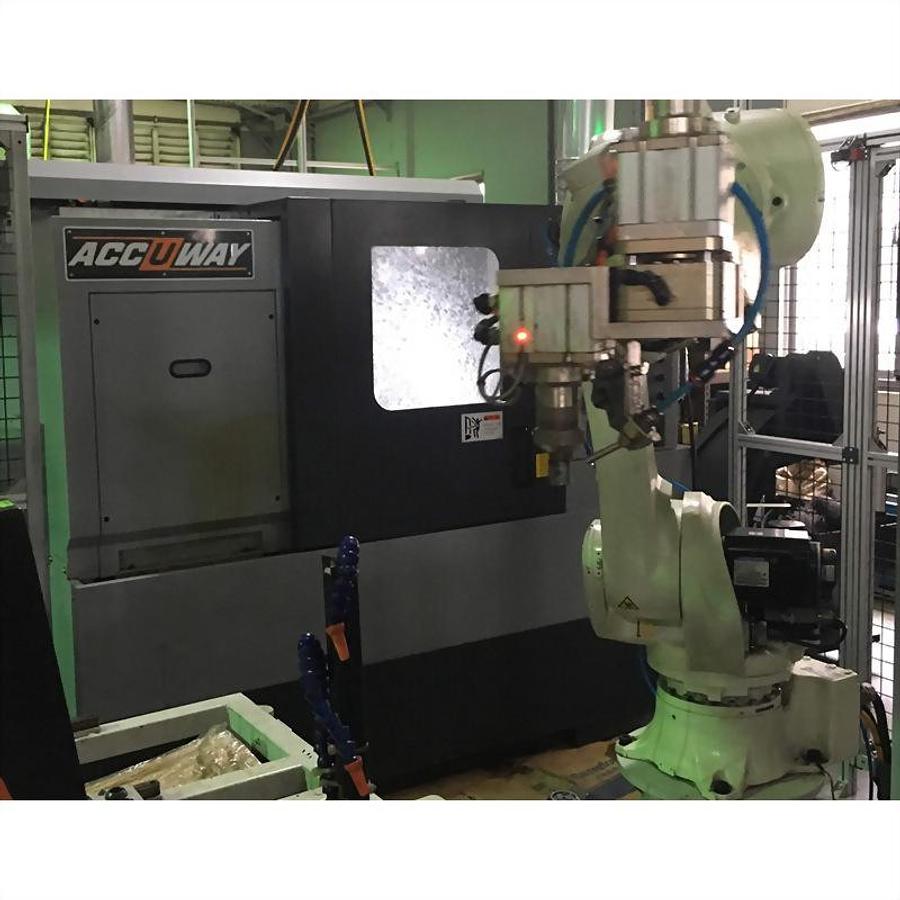

Loader interface

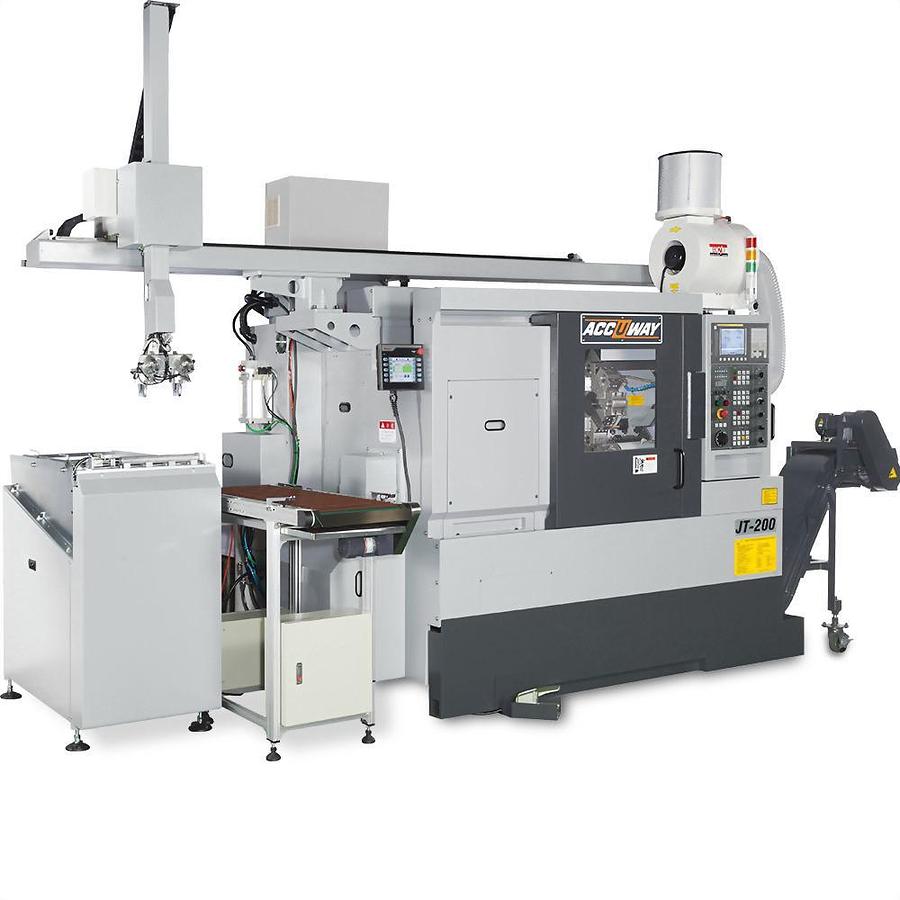

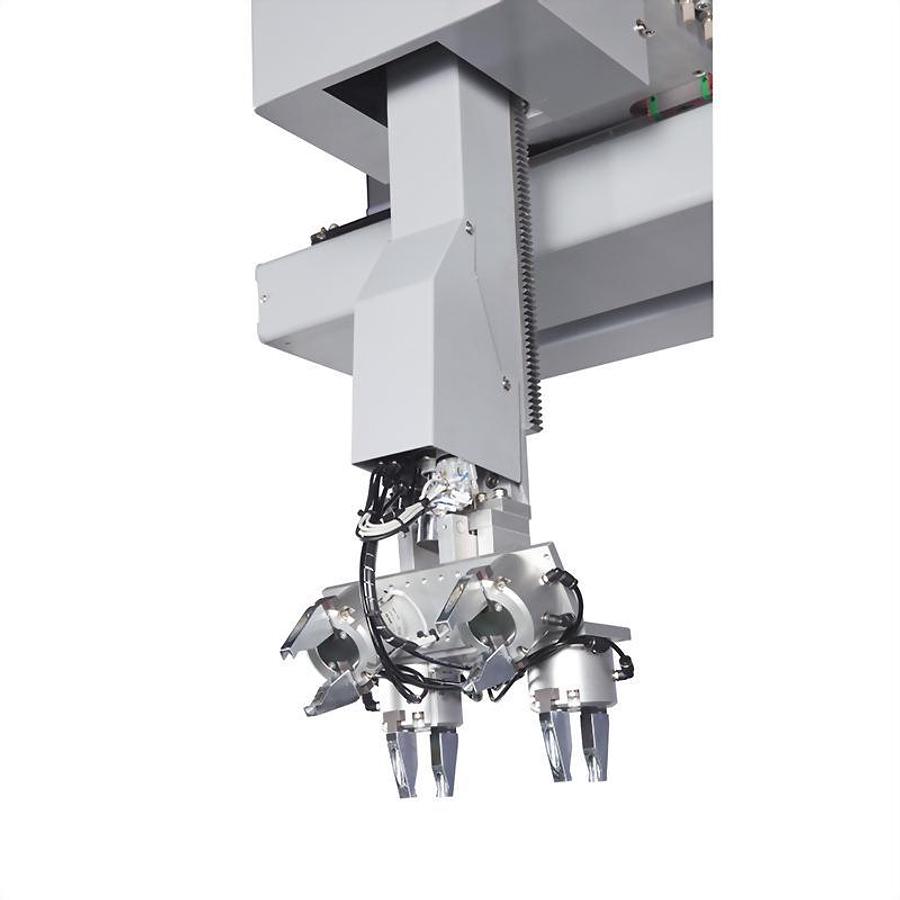

Gantry loader system
Auto door
Linear scale
0 degree rotary tool holder(JT-200M)
90 degree rotary tool holder(JT-200M)
Specifications
| Model | JT-200 JT-200M |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 505 505 |
| Swing over saddle | mm 318 318 |
| Max. turning diameter | mm 300 230 |
| Max. turning length | mm 560 450 |
| Guide way type | Linear |
| Spindle nose taper | ASA A2-5 A2-6 A2-5 A2-6 |
| Chuck diameter | inch 6 8 6 8 |
| Bar capacity | mm 44 52 65 44 52 65 |
| Spindle speed | rpm 6000 4500 4000 6000 4500 4000 |
| Spindle motor power(Cont. / 30min) | kW 11/15 11/15 |
| X-axis Travel | mm 195 195 |
| Z-axis Travel | mm 600 600 |
| X-axis Rapid Traverse Rate | m/min 30 30 |
| Z-axis Rapid Traverse Rate | m/min 30 30 |

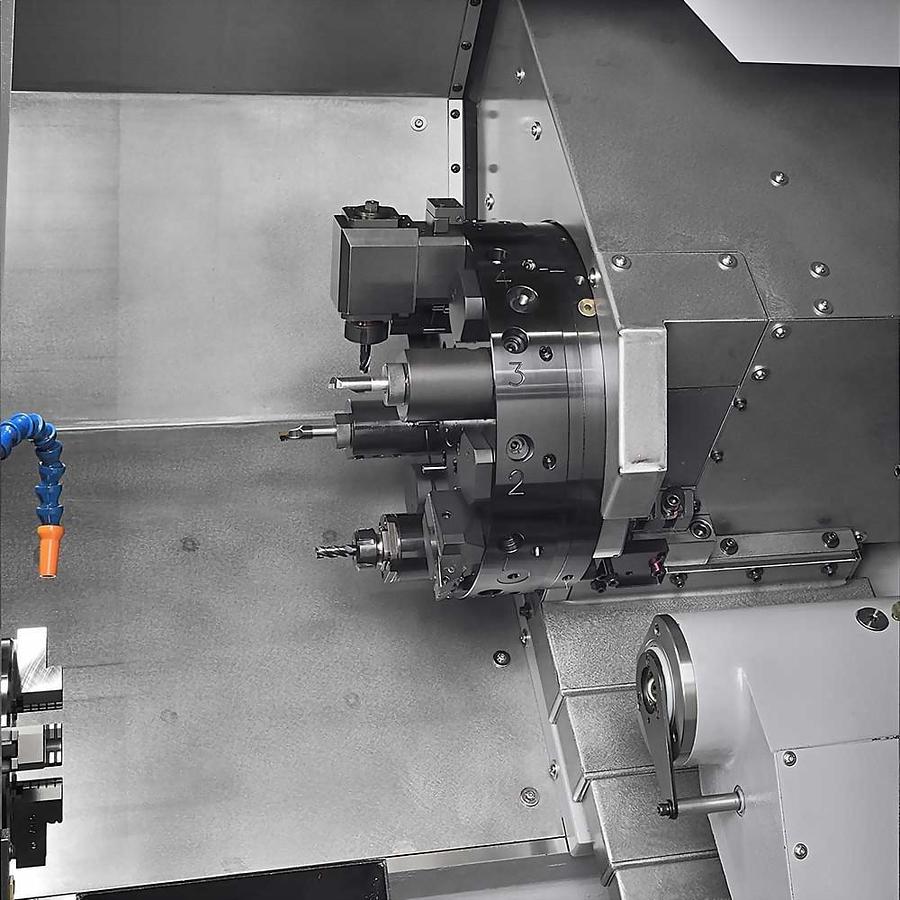

| Tooling system | BOT BMT/VDI |
| Turret driven type | Hydraulic/Servo Servo mechanical |
| Number of tools | station 8 10 12 12 |
| Square tool shank size | mm 25 25 20 20 |
| Round tool shank size | mm 32 32 |
| Tailstock body travel | mm 450 450 |
| Quill travel | mm 150 150 |
| Quill diameter | mm 70 70 |
| Quill taper | MT 4 4 |
| Machine dimension L x W x H | m 2.6 x 1.7 x 1.8 2.6 x 1.7 x 1.9 |
| Net weight | kg 3200 3300 |
