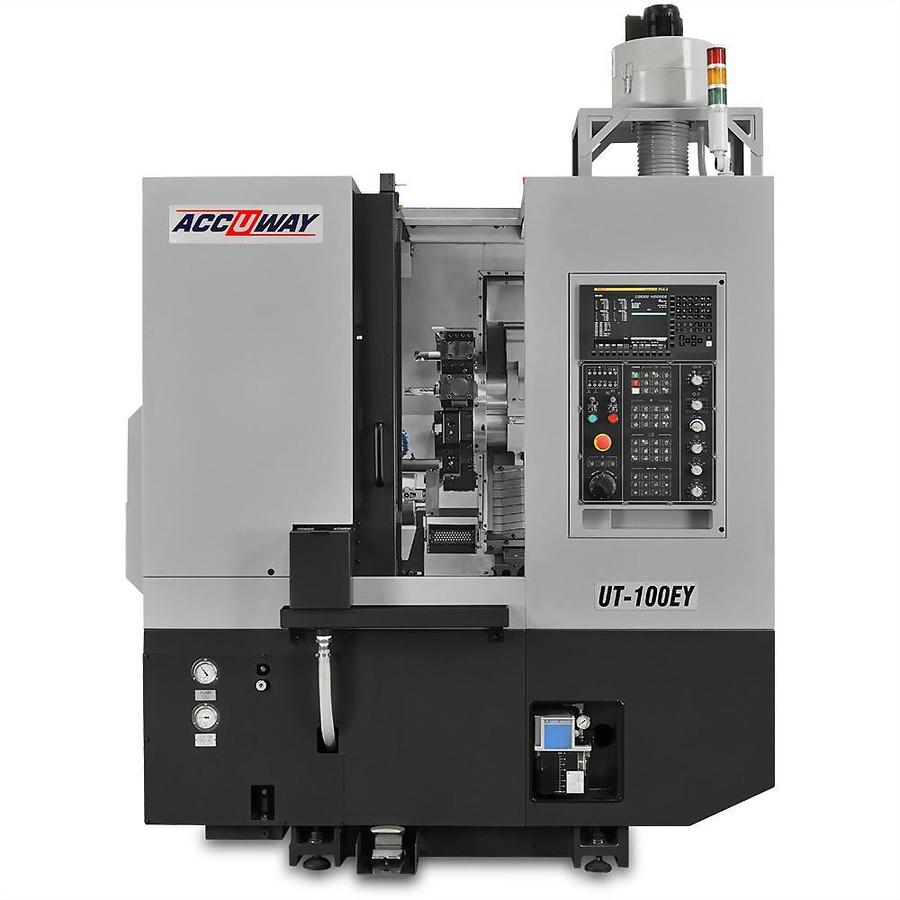

UT-100EY
Contact us for price
Description
Compact CNC Lathe for Automatic Machining
Specifications
| Manufacturer | Accuway |
| Model | UT-100EY |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 450 |
| Swing over saddle | mm 330 |
| Max. turning diameter | mm 110 |
| Max. turning length | mm 170 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-5 |
| Chuck diameter | inch 6 |
| Bar capacity | mm 30 |
| Spindle speed | rpm 6000 |
| Spindle motor power(Cont. / 30min) | kW 5.5/7.5 |
| X-axis Travel | mm 80 |
| Z-axis Travel | mm 220 |
| Y-axis Travel | mm ±25 |
| X-axis Rapid Traverse Rate | m/min 12 |
| Z-axis Rapid Traverse Rate | m/min 18 |
| Y-axis Rapid Traverse Rate | m/min 10 |
| Turret driven type | BMT-55 |
| Tooling system | Servo mechanical |
| Number of tools | station 12 |
| Square tool shank size | mm 25 |
| Round tool shank size | mm 40 |
| Max. Rotary Tool Speed | rpm 6000 |
| Rotary Tool driver power | kW 3.7/5.5 |
| Machine dimension L x W x H | m 2.4 x 2 x 2.53 |
| Net weight | kg 2300 |
