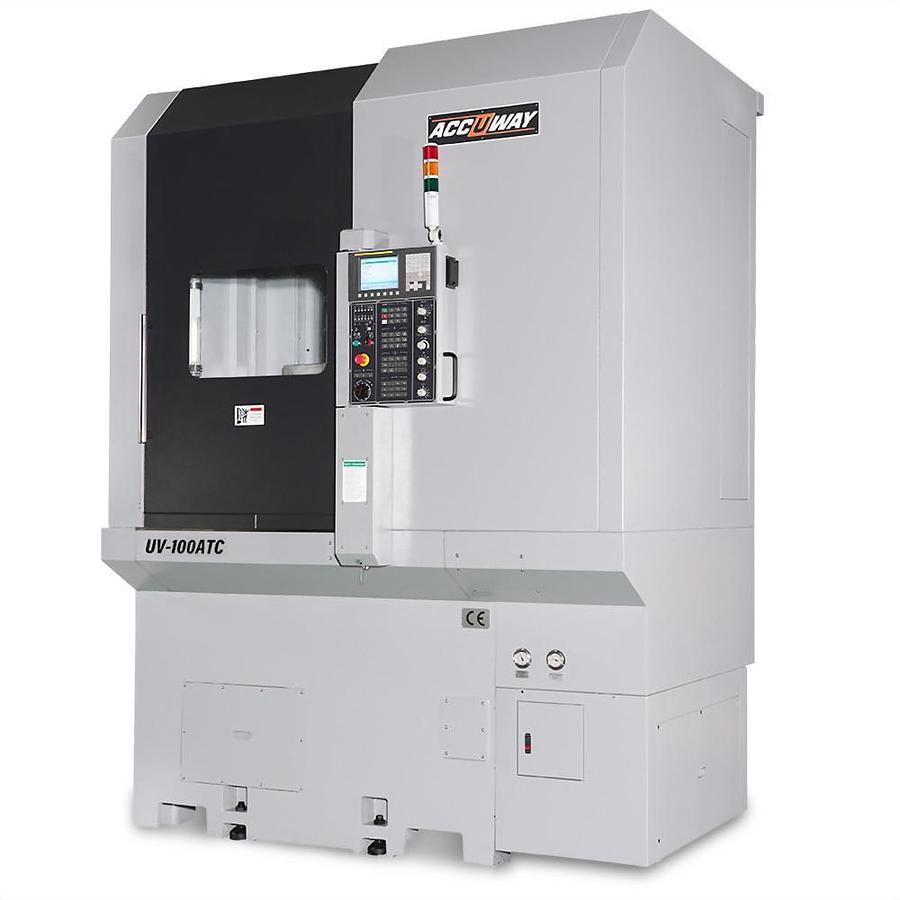

UV-100ATC
Contact us for price
Description

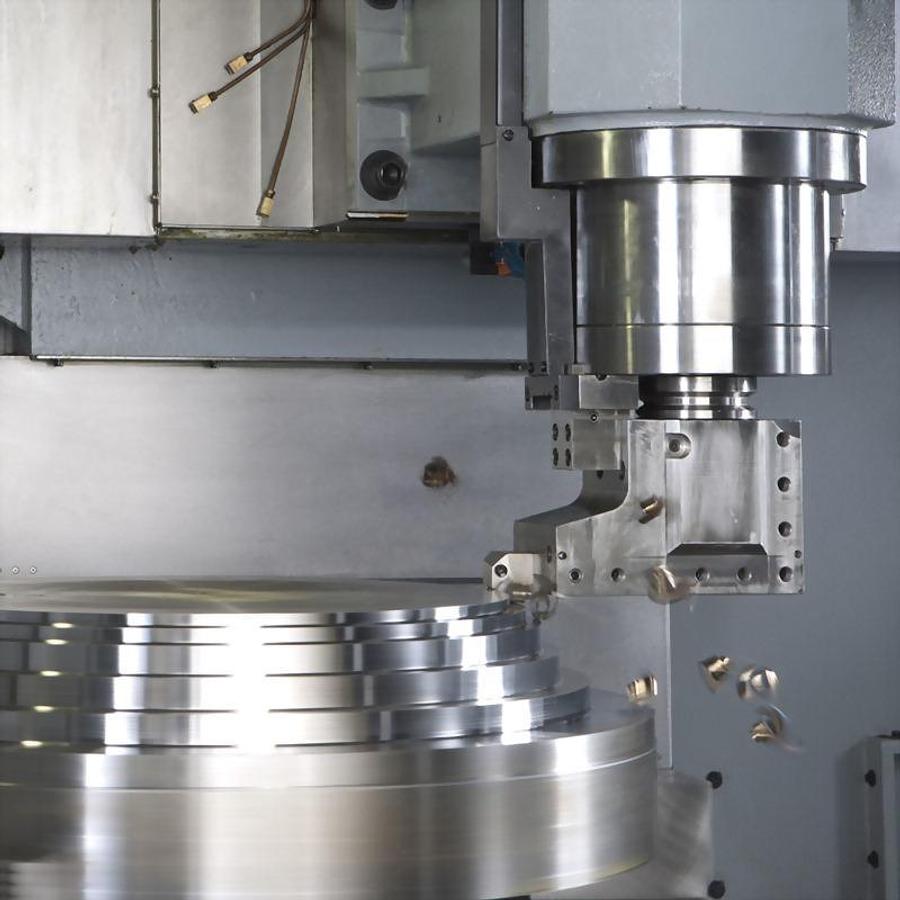

Vertical Turning Center
Specifications
| Model | UV-100ATC |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 1100 |
| Max. turning diameter | mm 1000 |
| Max. turning length | mm 800 |
| Guide way type | Box way |
| Spindle nose taper | ASA A2-15 |
| Chuck diameter | inch 24(32/40) |
| Spindle Speed | rpm 1200 |
| Spindle drive system | 2-step gearbox + Belt |
| Spindle Motor Power(Cont. /30min) | kW 30/37 (37/45, 45/55) |
| Spindle taper | BT50 |
| X-axis Travel | mm 765 |
| Z-axis Travel | mm 800 |
| X-axis Rapid Traverse Rate | m/min 15 |
| Z-axis Rapid Traverse Rate | m/min 7 |
| Indexing type | Servo-gear |
| Number of tools | station 12 |
| Max. tool length | mm 400 |
| Max. tool weight | kg 50 |
| Max. magazine load | kg 420 |
| Machine dimension L x W x H | m 3.1 x 3.7 x 4.6 |
| Net weight | kg 16500 |
