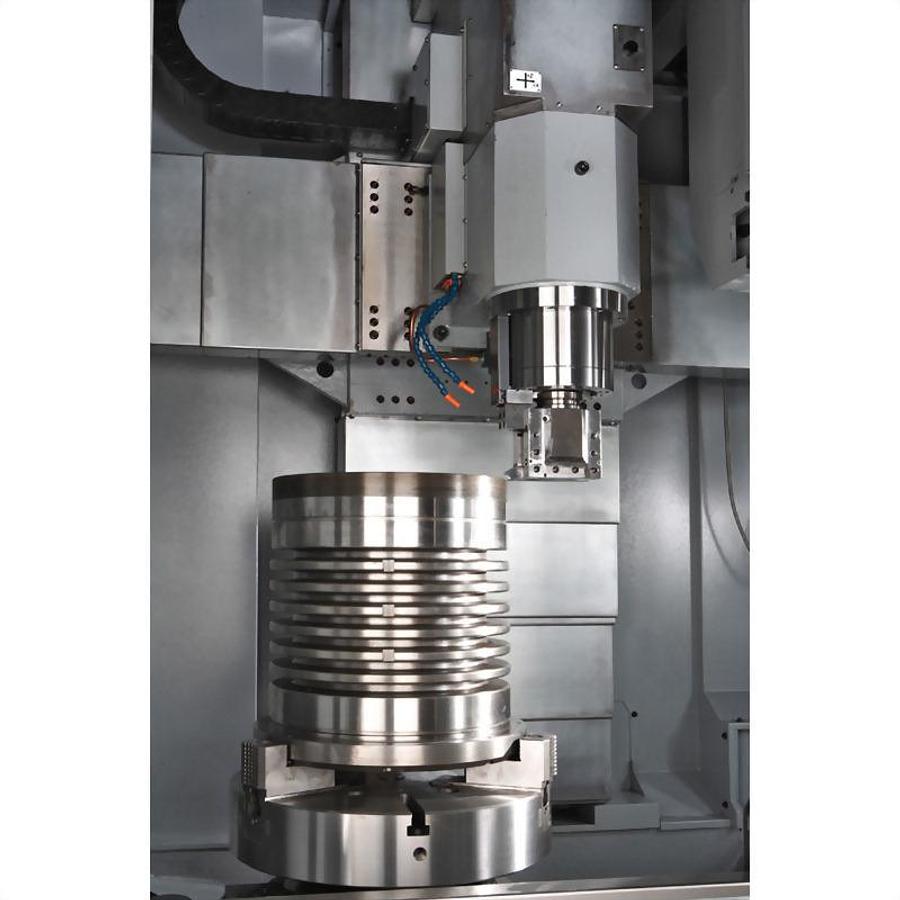

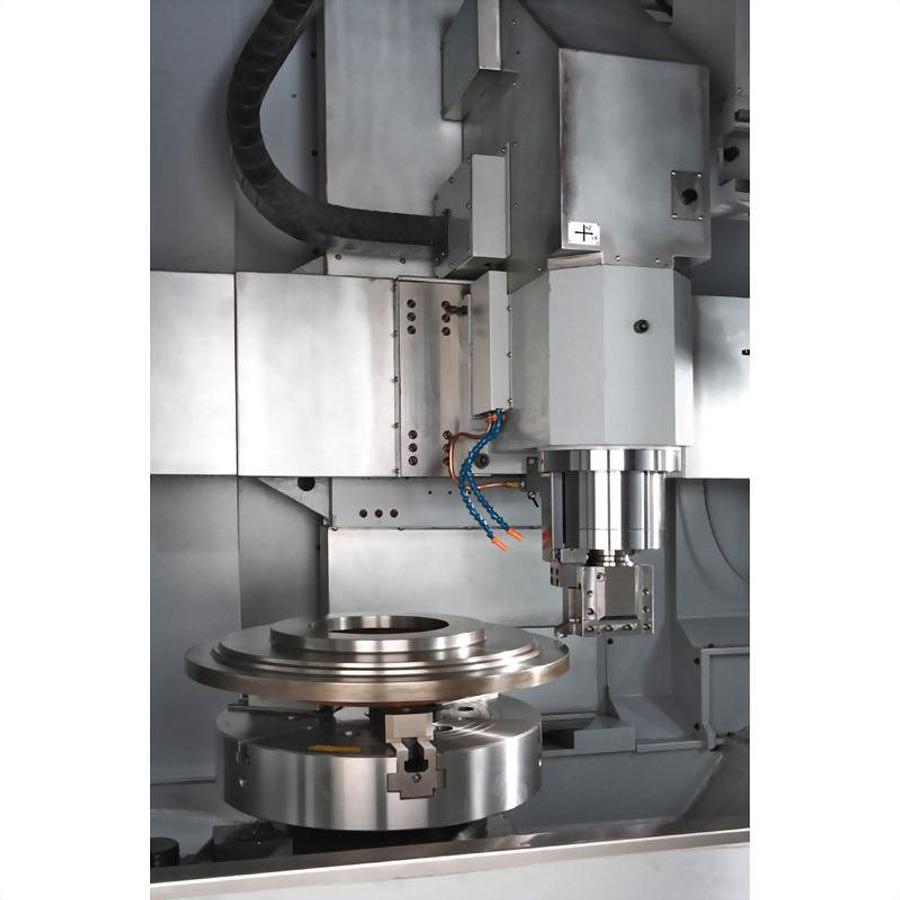

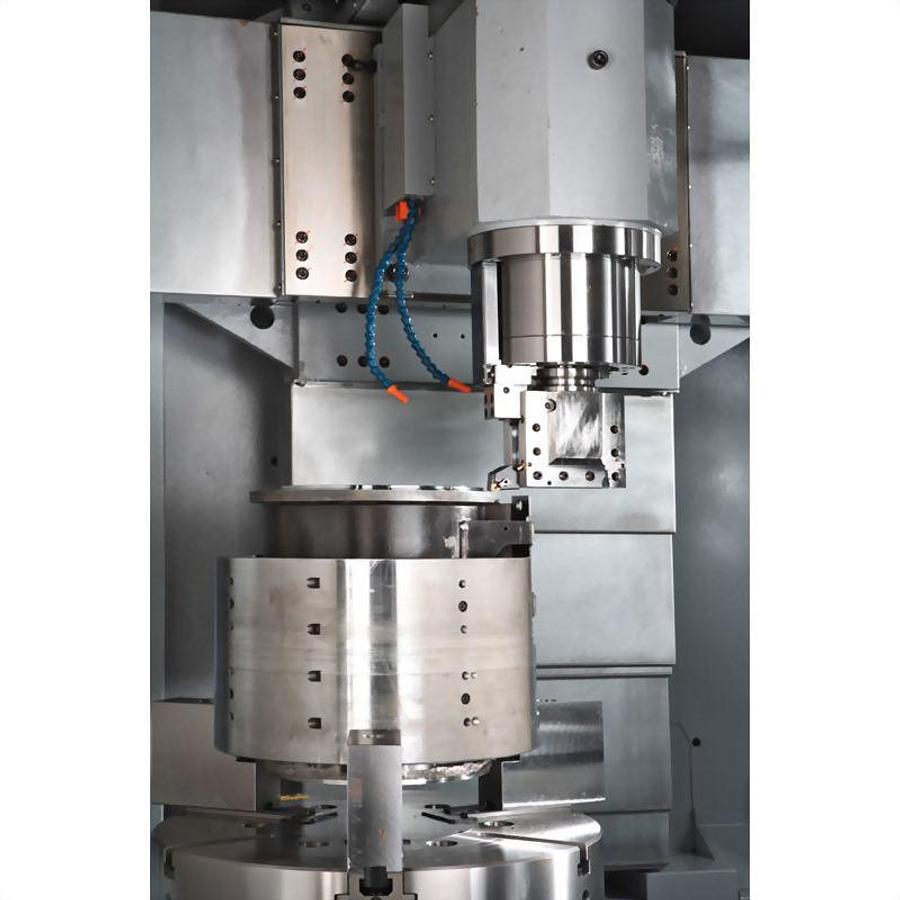

UV-75ATC
Contact us for price
Description
Vertical Turning Center
Specifications
| Manufacturer | Accuway |
| Model | UV-75ATC |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 850 |
| Max. turning diameter | mm 750 |
| Max. turning length | mm 800 |
| Guide way type | Linear (Box way) |
| Spindle nose taper | ASA A2-11 |
| Chuck diameter | inch 24(32) |
| Spindle Speed | rpm 1600 |
| Spindle drive system | Belt |
| Spindle Motor Power(Cont. /30min) | kW 18.5/22 |
| Spindle taper | BT50 |
| X-axis Travel | mm 650 |
| Z-axis Travel | mm 800 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 7 |
| TOOL MAGAZINE | |
| Indexing type | Servo-gear |
| Number of tools | station 12 |
| Max. tool length | mm 400 |
| Max. tool weight | kg 50 |
| Max. magazine load | kg 420 |
| DIMENSION | |
| Machine dimension L x W x H | m 2.7 x 3.7 x 4.0 |
| Net weight | kg 16000 |
