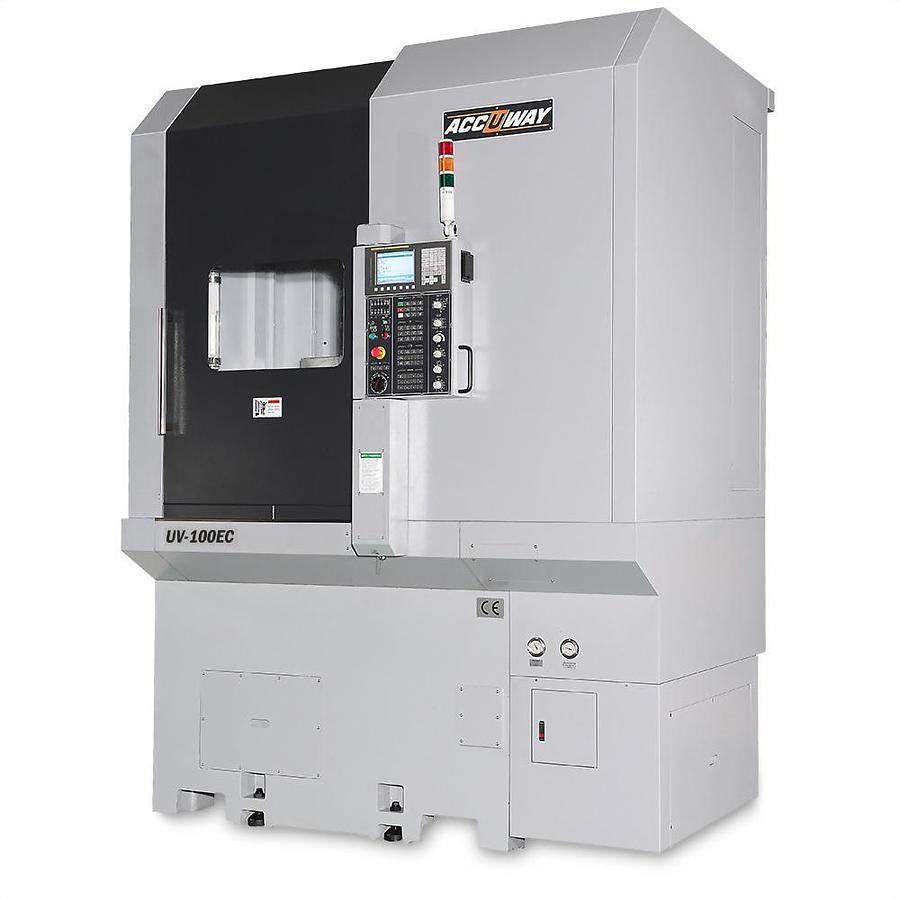

UV-100EC
Contact us for price
Description
Vertical Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
Single chain type chip conveyor + chip cart
Tool kit
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Automatic door
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Upgrade to non-through hole 3-jaw 32" (40") hydraulic chuck & cylinder
0 degree rotary tool holder
90 degree rotary tool holder
Transformer
CE version
Linear scale (Heidenhain)
Specifications
| Manufacturer | Accuway |
| Model | UV-100EC |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 1100 |
| Max. turning diameter | mm 1000 |
| Max. turning length | mm 700 |
| Guide way type | Box way |
| Spindle nose taper | ASA A2-15 |
| Chuck diameter | inch 24(32/40) |
| Spindle Speed | rpm 1200 |
| Spindle drive system | 2-step gearbox + Belt |
| Spindle Motor Power(Cont. /30min) | kW 30/37 (37/45,45/55) |
| X-axis Travel | mm 550 |
| Z-axis Travel | mm 800 |
| X-axis Rapid Traverse Rate | m/min 15 |
| Z-axis Rapid Traverse Rate | m/min 7 |
| Tooling system | BMT |
| Turret driven type | Servo mechanical |
| Number of tools | station 12 |
| Square tool shank size | mm 32 |
| Round tool shank size | mm 50 |
| Machine dimension L x W x H | m 3.1 x 3.7 x 4.2 |
| Net weight | kg 16000 |
