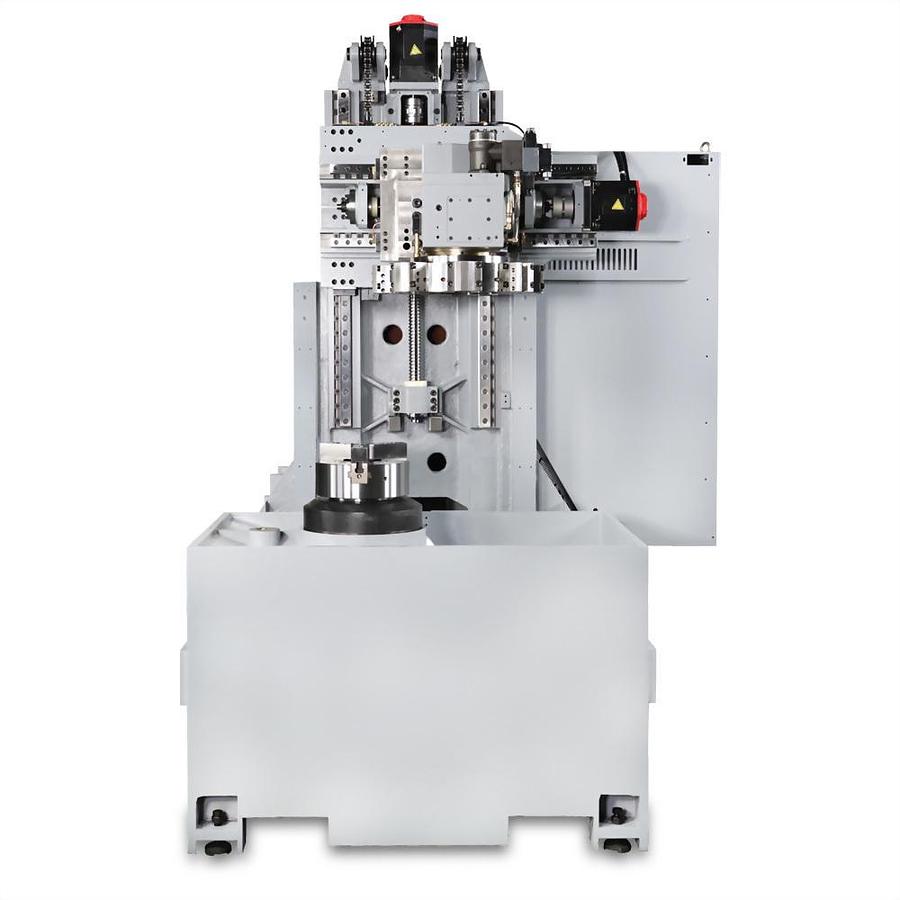

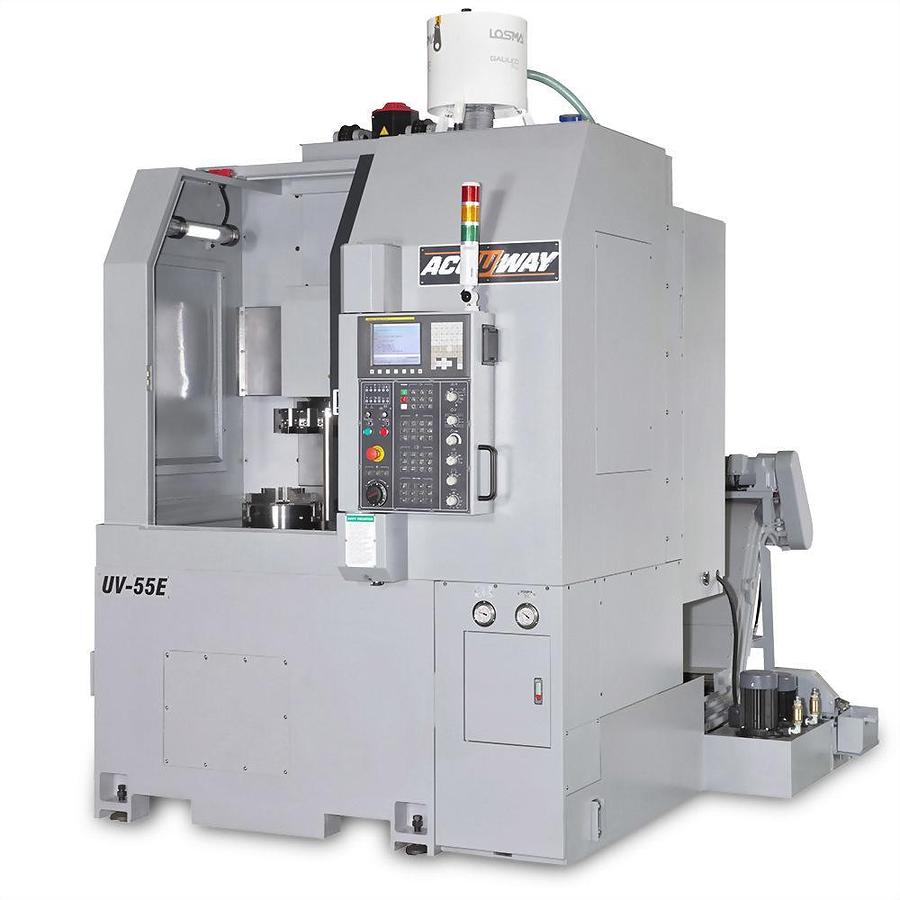

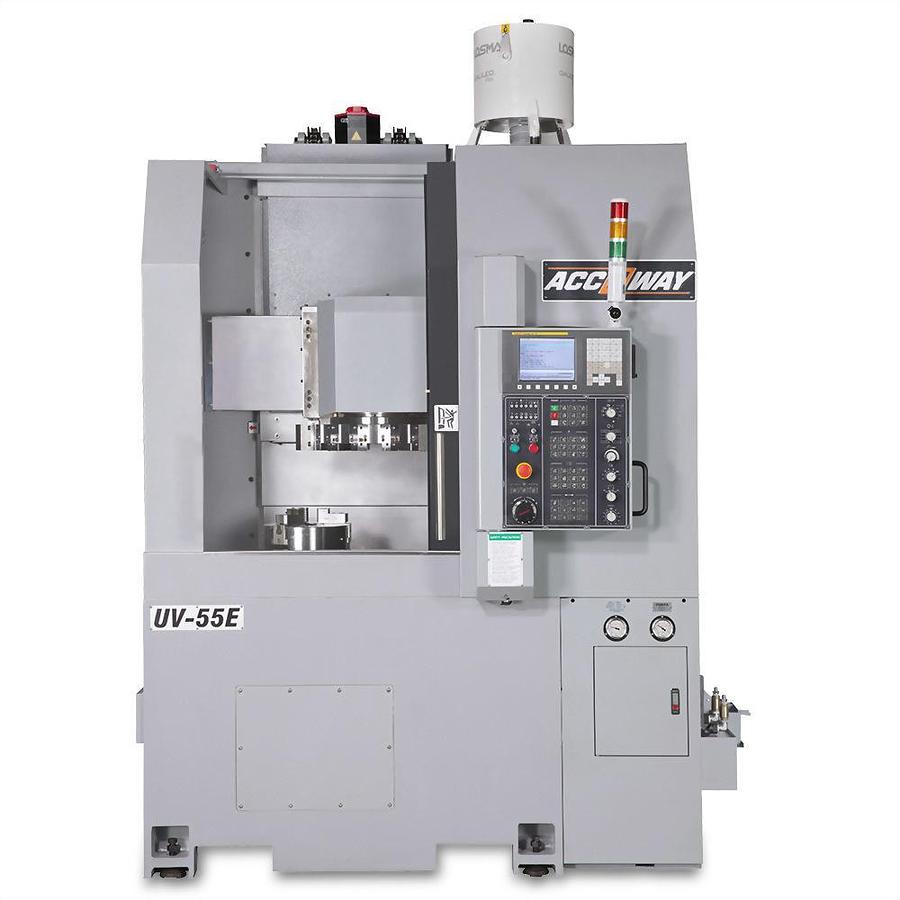

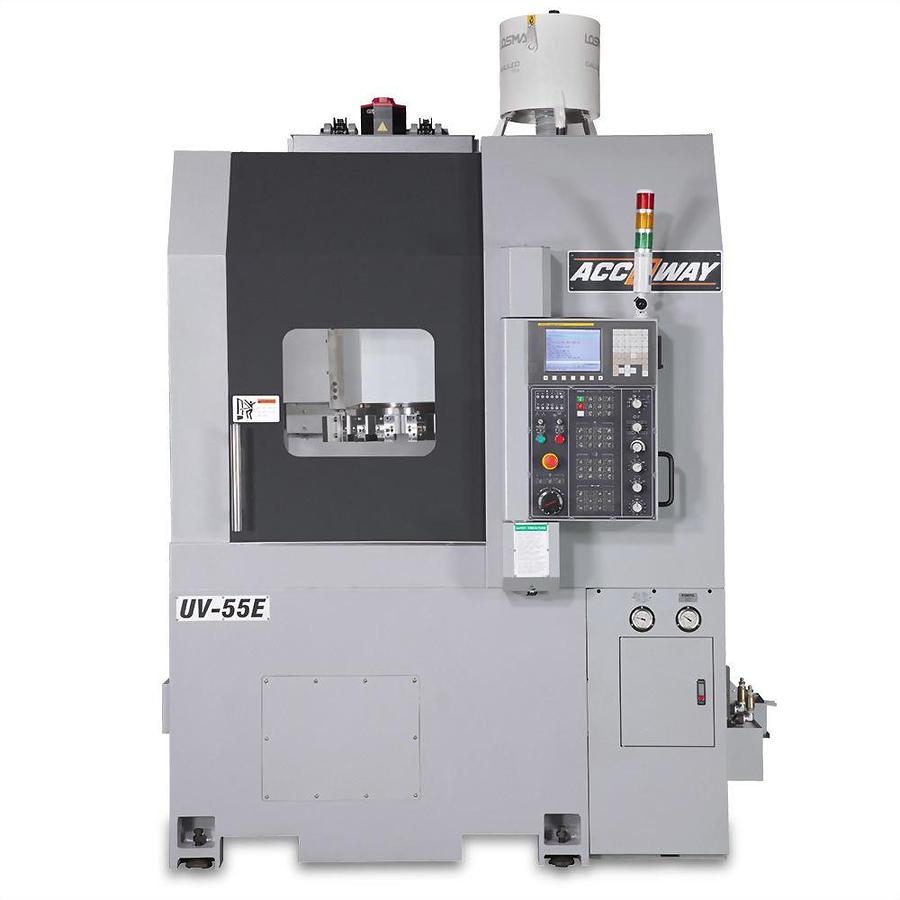

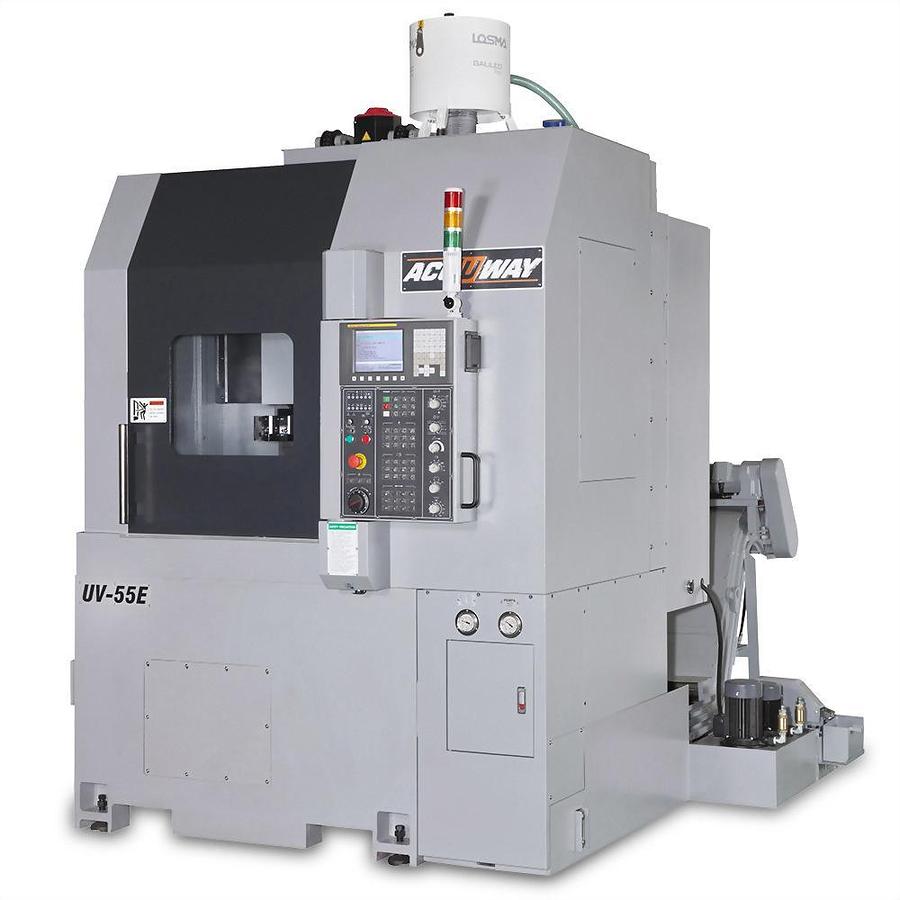

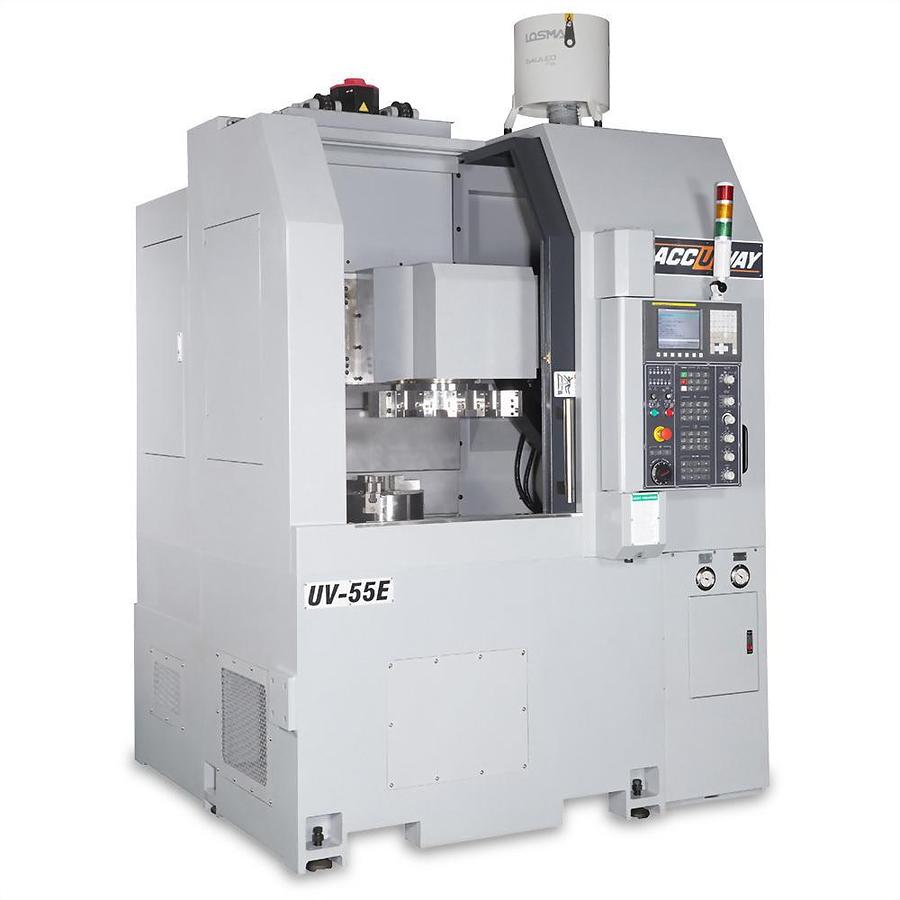

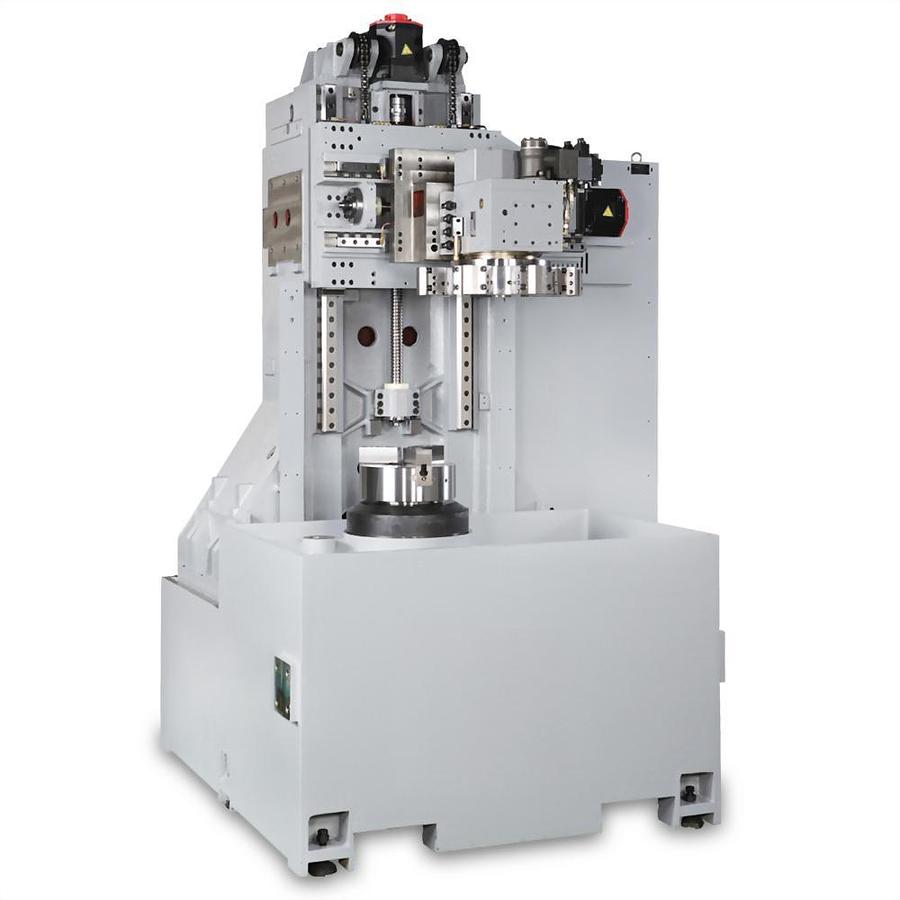

UV-55E
Contact us for price
Description
Vertical Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
Single chain type chip conveyor + chip cart
Tool kit
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
12 station servo turret
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Gearbox
Upgrade to non-through hole 3-jaw 15" Â hydraulic chuck & cylinder
Transformer
CE version
Auto door
Linear scale (Heidenhain)
Specifications
| Model | UV-55E |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 750 |
| Max. turning diameter | mm 550 |
| Max. turning length | mm 550 |
| Guide way type | Linear |
| Spindle nose taper | ASA A2-8 |
| Chuck diameter | inch 12(15) |
| Spindle Speed | rpm 2500 |
| Spindle drive system | Belt |
| Spindle Motor Power(Cont. /30min) | kW 15/18.5 |
| X-axis Travel | mm 295 |
| Z-axis Travel | mm 550 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 7 |
| Tooling system | BOT |
| Turret driven type | Hydraulic |
| Number of tools | station 12 |
| Square tool shank size | mm 25 |
| Round tool shank size | mm 40 |
| Machine dimension L x W x H | m 2.3 x 3.0 x 3.0 |
| Net weight | kg 5300 |
