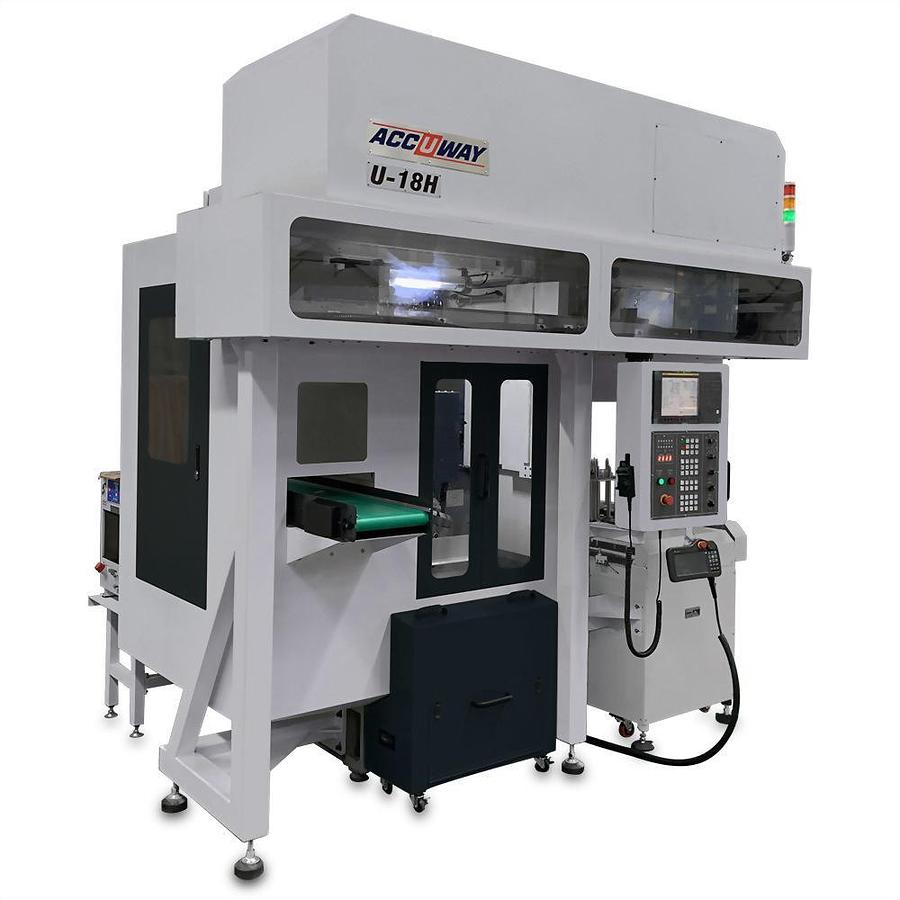

U-18H
Contact us for price
Description
5-Axis Vertical Machining Center
Specifications
| Condition | New |
| ITEM/MODOL | U-18H |
| Controller | FANUC 0i-M |
| Spindle speed | rpm 60,000 |
| Spindle nose | φ6 |
| Drive system | Direct |
| Z-axis travel | mm 300 |
| C-axis travel | degree 360 |
| Max. speed of rotary axis (C-axis) | rpm 62.5 |
| Max. speed of tilting axis (A-axis) | rpm 40 |
| Max. table loading at 0° | kg 60 |
| Max. table loading at 90° | kg 60 |
| Spindle nose to table | mm 58~358 |
| Table dimension | mm Ø200 |
| Max. workpiece size | mm Ø200 x 200 |
| T-slot size | mm 12 |
| X-axis Rapid Traverse Rate | m / min 48 |
| Y-axis Rapid Traverse Rate | m / min 48 |
| Z-axis Rapid Traverse Rate | m / min 48 |
| Cutting feed rate | m / min 12 |
| Ball screw diameter (X/Y/Z) | mm 32/32/32 |
| Guideway bearing type | Ball |
| Spindle motor power(Cont. / 30min) | kW 1.2 |
| X/Y/Z feed motor | kW 3/3/4 |
| Coolant pump motor(50Hz/60Hz) | kW 0.53+0.85/0.75+1.27 |
| Air supply | kg/cm² 5.5 |
| Machine dimension L x W x H | m 2.8 x 2.5 x 3 |
| Net weight | kg 3500 |
